- Name: Copper graphite brush М4 5х8х20 К4-2
- Brand: ZTV
- Product Code: M4_5x8x20_K4-2
- Availability: Pre-order 39 calendar days
70 грн.
Main specifications
All specifications
Material:
М4
Analog material:
MG466, MG2
Сonstruction by ГОСТ Р 53617-2009:
К4-2
Сonstruction by IEC 60276:
CL06A
Conductor length by ГОСТ 12232-89, no less, L :
50 mm
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

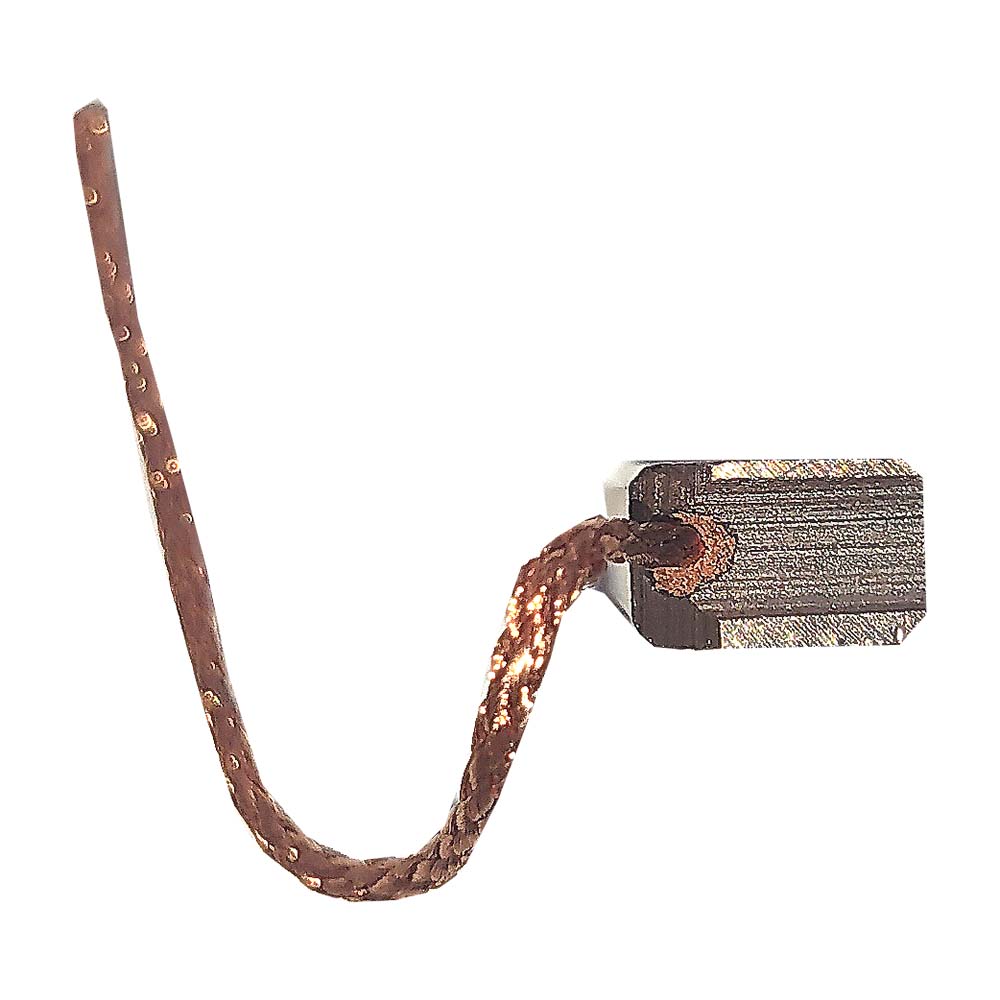

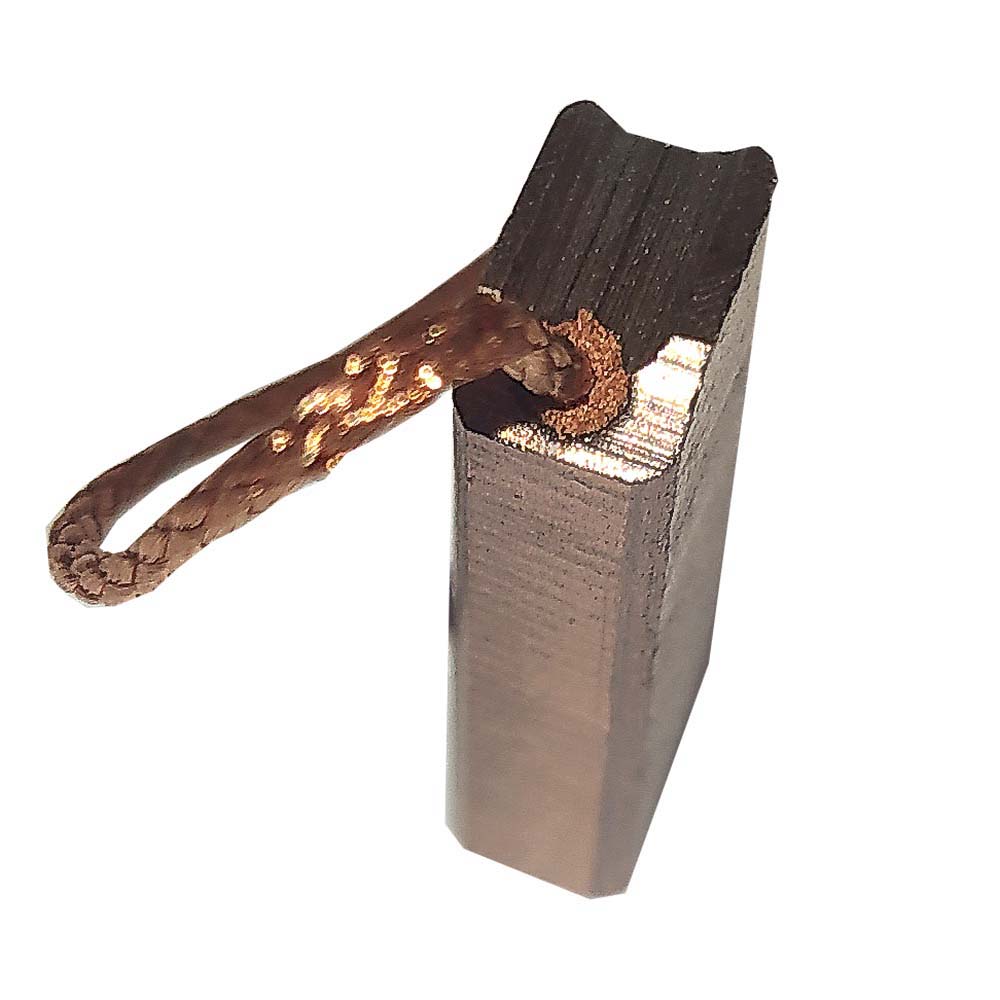

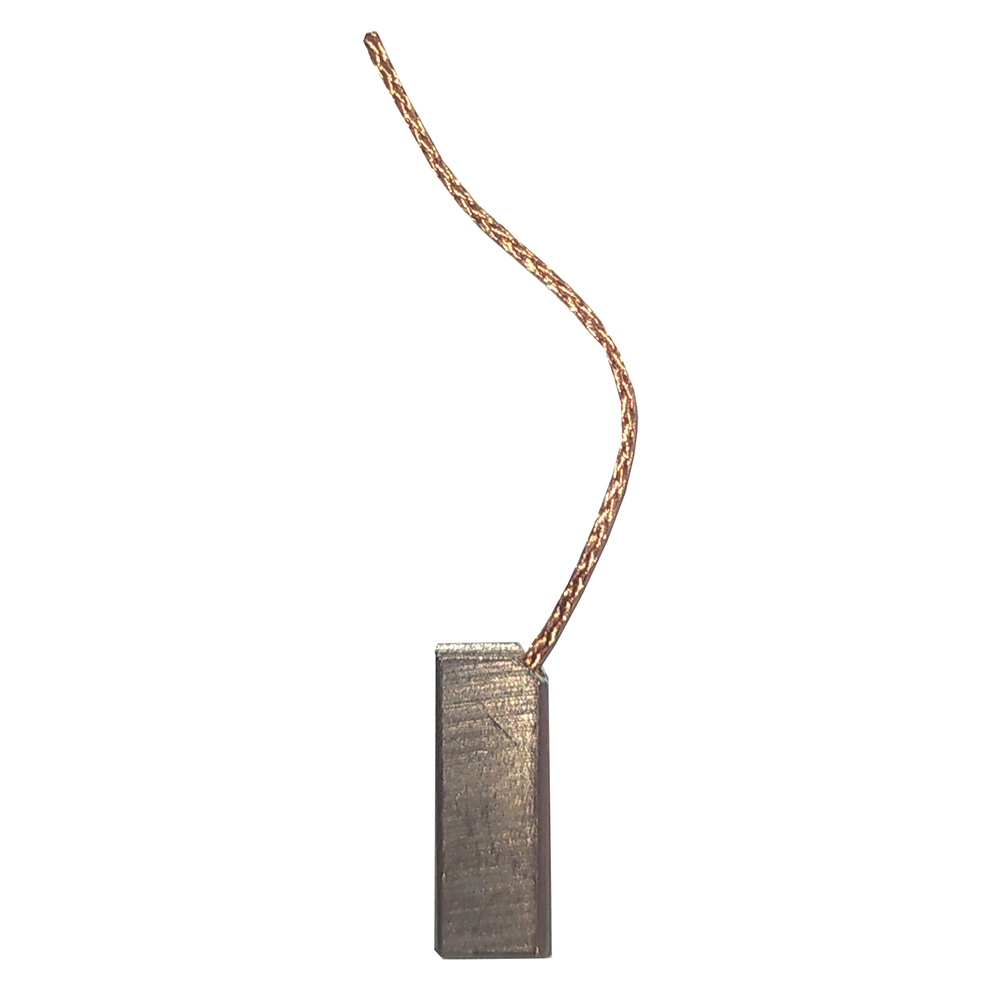

Copper graphite brush М4 5х8х20 К4-2
Specifications
Main characteristics
Material
М4
Analog material
MG466, MG2
Сonstruction by ГОСТ Р 53617-2009
К4-2
Сonstruction by IEC 60276
CL06A
Conductor length by ГОСТ 12232-89, no less, L
50 mm
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
4-18 HR
Specific electrical resistance, p
0.10-0.25 μΩ·m
Current density, j
0,2 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.2-0.4 V
Brush pressure, p
200-250 kPa
Circum velocity, Vₚₑᵣ
20 m/s
Friction factor, μ
0.20
Manufacturer country
Bulgaria
