- Name: Asynchronous electric motor MA 112MB-4
- Brand: MMOTORS JSC
- Product Code: MA_112MB-4
- Availability: Pre-order 39 calendar days
552.30€
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
400/230 V Y/Δ
Quantity phases:
3
Frequency, f :
50 Hz
Power electric, Рₑₗ :
5.5 kW
Power mechanical, Pₘ :
7.5 hp
Speed of revolution nominal, Nₙₒₘ :
1400 rpm
Energy efficiency class:
IE1
Axle height, H :
112 mm
Mode of operation:
S4

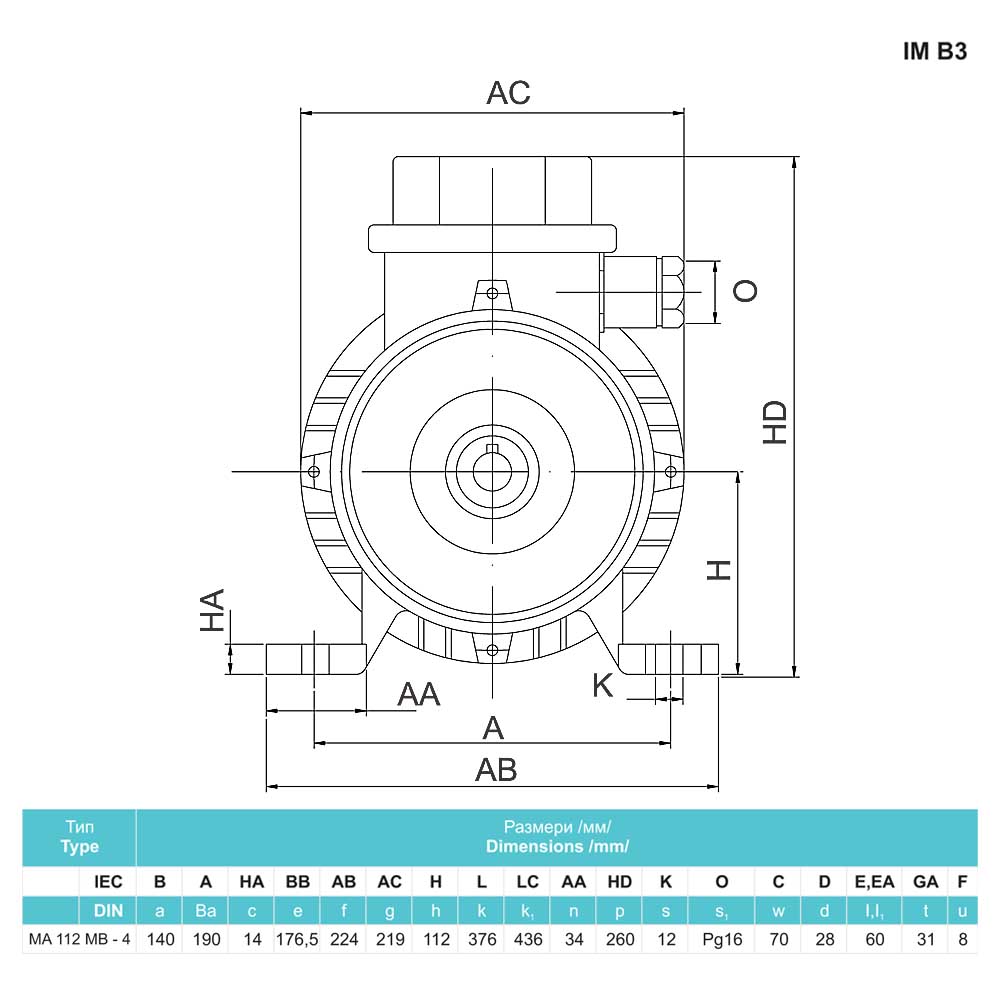

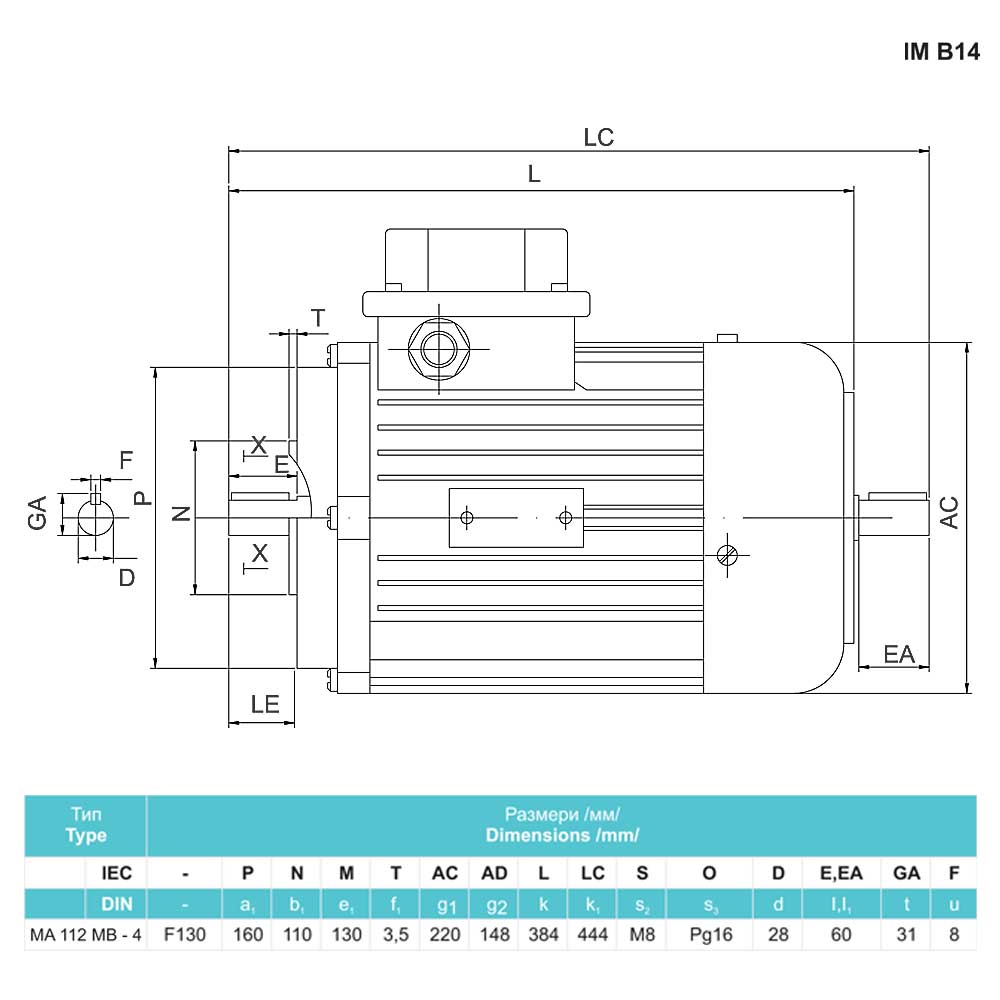

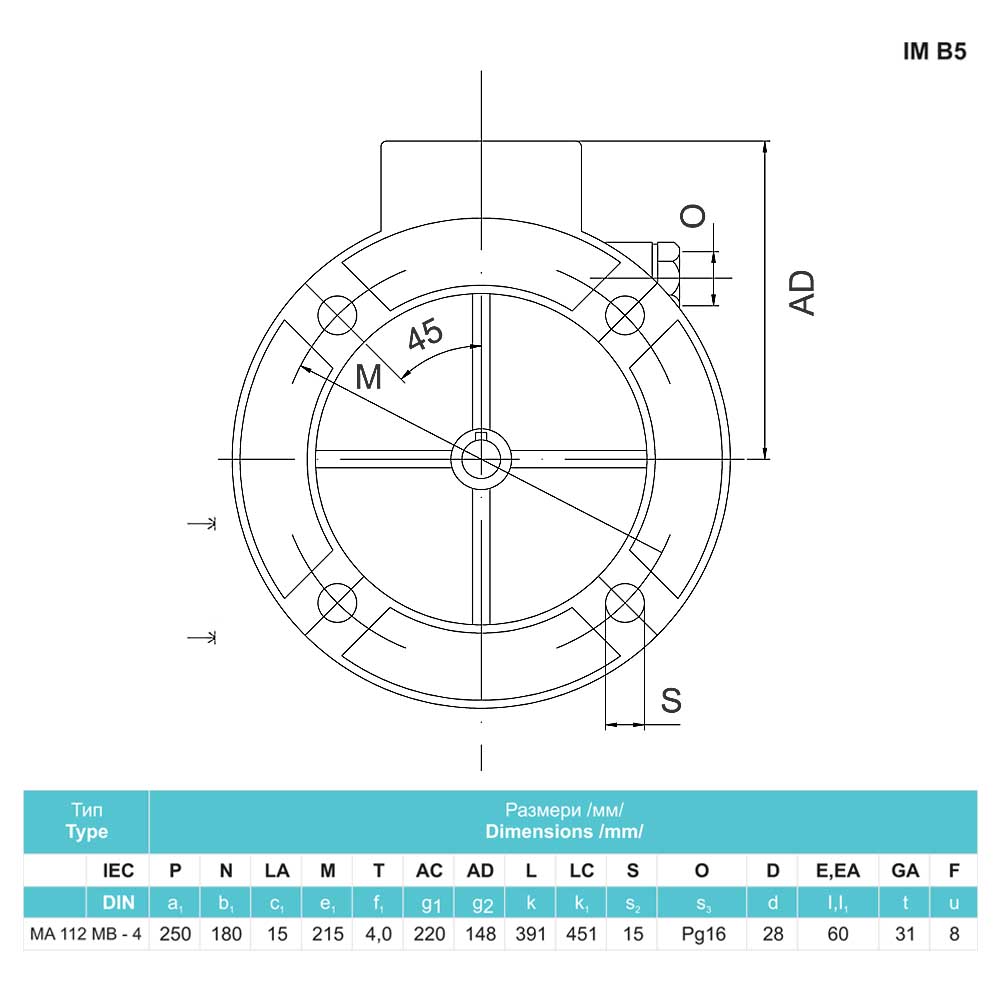

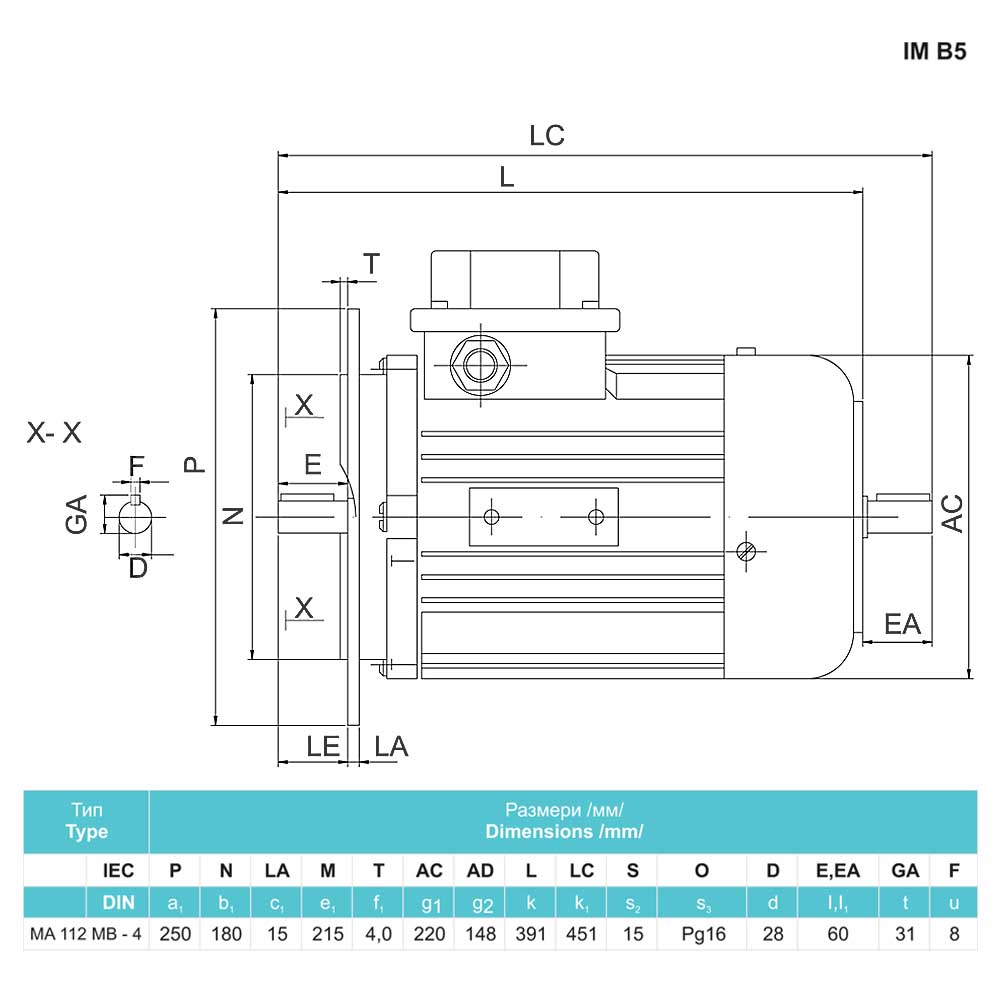

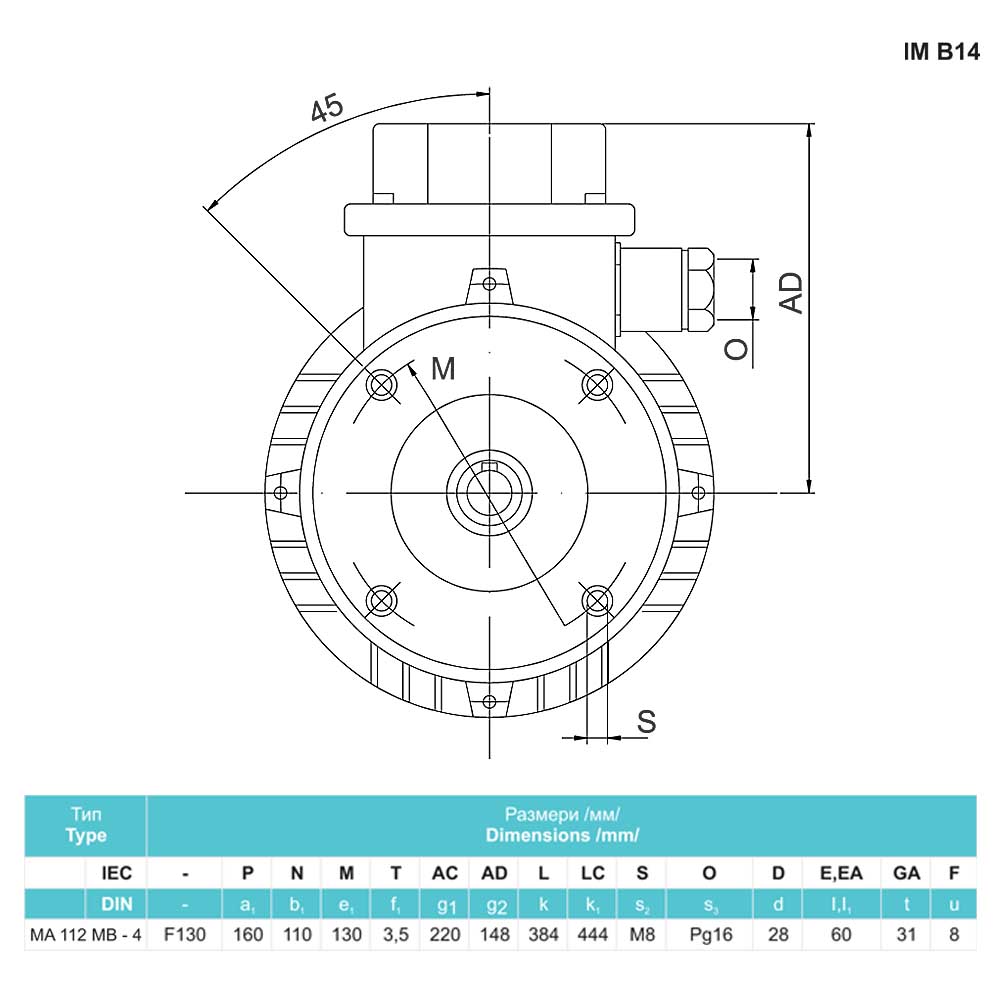

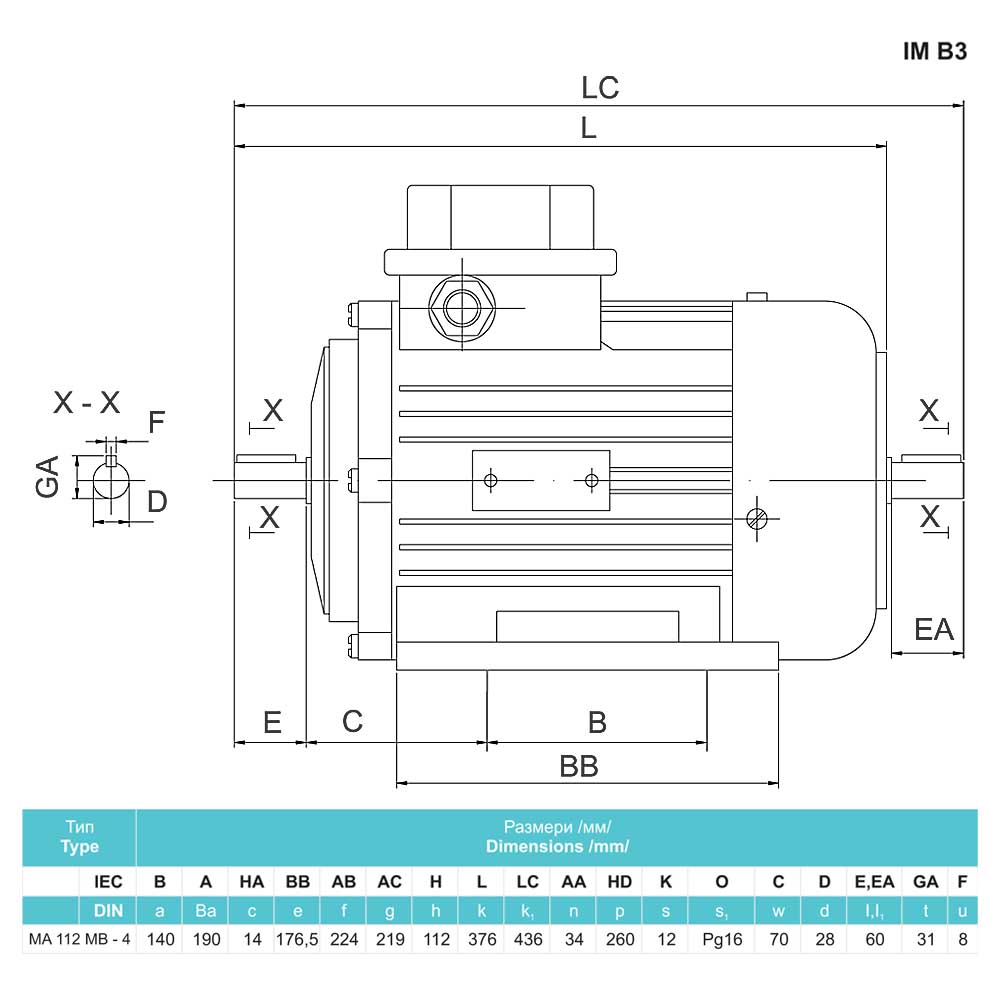

Constructive performance:
ІМ В3, ІМ В5, ІМ В6, ІМ В7, ІМ В8, ІМ В14, ІМ V1, ІМ V3, ІМ V5, ІМ V6, ІМ V18, ІМ V19
Installation method:
ІМ 1001, ІМ 1002, ІМ 1011, ІМ 1012, ІМ 1031, ІМ 1032, ІМ 1051, ІМ 1052, ІМ 1061, ІМ 1062, ІМ 1071, ІМ 1072, ІМ 3001, ІМ 3002, ІМ 3011, ІМ 3012, ІМ 3031, ІМ 3032, ІМ 3601, ІМ 3602, ІМ 3611, ІМ 3612, ІМ 3631, ІМ 3632
Explosion protection:
missing
Brake:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Asynchronous electric motor MA 112MB-4 is shipped from the territory of Bulgaria and Ukraine throughout the WORLD
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
400/230 V Y/Δ
Quantity phases
3
Frequency, f
50 Hz
Power electric, Рₑₗ
5.5 kW
Power mechanical, Pₘ
7.5 hp
Speed of revolution nominal, Nₙₒₘ
1400 rpm
Energy efficiency class
IE1
Axle height, H
112 mm
Mode of operation
S4
Constructive performance
ІМ В3, ІМ В5, ІМ В6, ІМ В7, ІМ В8, ІМ В14, ІМ V1, ІМ V3, ІМ V5, ІМ V6, ІМ V18, ІМ V19
Installation method
ІМ 1001, ІМ 1002, ІМ 1011, ІМ 1012, ІМ 1031, ІМ 1032, ІМ 1051, ІМ 1052, ІМ 1061, ІМ 1062, ІМ 1071, ІМ 1072, ІМ 3001, ІМ 3002, ІМ 3011, ІМ 3012, ІМ 3031, ІМ 3032, ІМ 3601, ІМ 3602, ІМ 3611, ІМ 3612, ІМ 3631, ІМ 3632
Explosion protection
missing
Brake
missing
Additional parameters
Current, І
11,5 А
Number of poles
4
PF
0.83
ETA
83 %
Class thermal insulation
F
Degree of protection
IP 54/55
Warranty
18 months
Mass, m
30,5 kg
Manufacturer country
Bulgaria
