- Name: Copper graphite brush M1A 16x40x50 K1
- Brand: ZTV
- Product Code: M1A_16x40x50_K1
- Availability: Pre-order 39 calendar days
8.10€
Main specifications
All specifications
Material:
M1A
Сonstruction by ГОСТ Р 53617-2009:
К1
Сonstruction by IEC 60276:
CL01A
Conductor length by ГОСТ 12232-89, no less, L :
missing
Conductor cross-section, S :
No
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
IEC 60276 tip shape:
N0
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

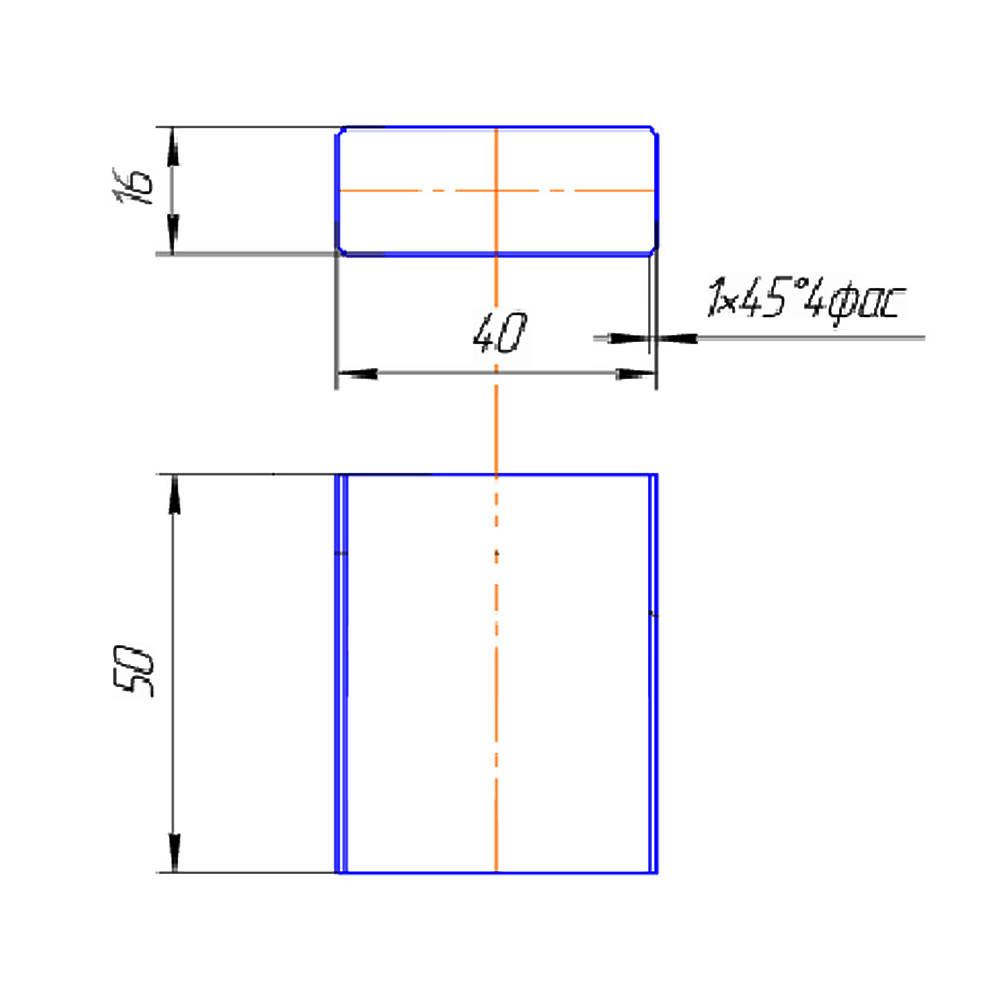

Copper graphite brush M1A 16x40x50 K1
Specifications
Main characteristics
Material
M1A
Сonstruction by ГОСТ Р 53617-2009
К1
Сonstruction by IEC 60276
CL01A
Conductor length by ГОСТ 12232-89, no less, L
missing
Conductor cross-section, S
No
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
IEC 60276 tip shape
N0
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
8-25
Specific electrical resistance, p
4-15 μΩ·m
Current density, j
0,12 A/mm²
Circum velocity, Vₚₑᵣ
33 m/s
Application area
Grounding devices ZUM-1A, ZUM-2 of subway cars, alternating current generators of passenger cars, buses
Manufacturer country
Bulgaria
