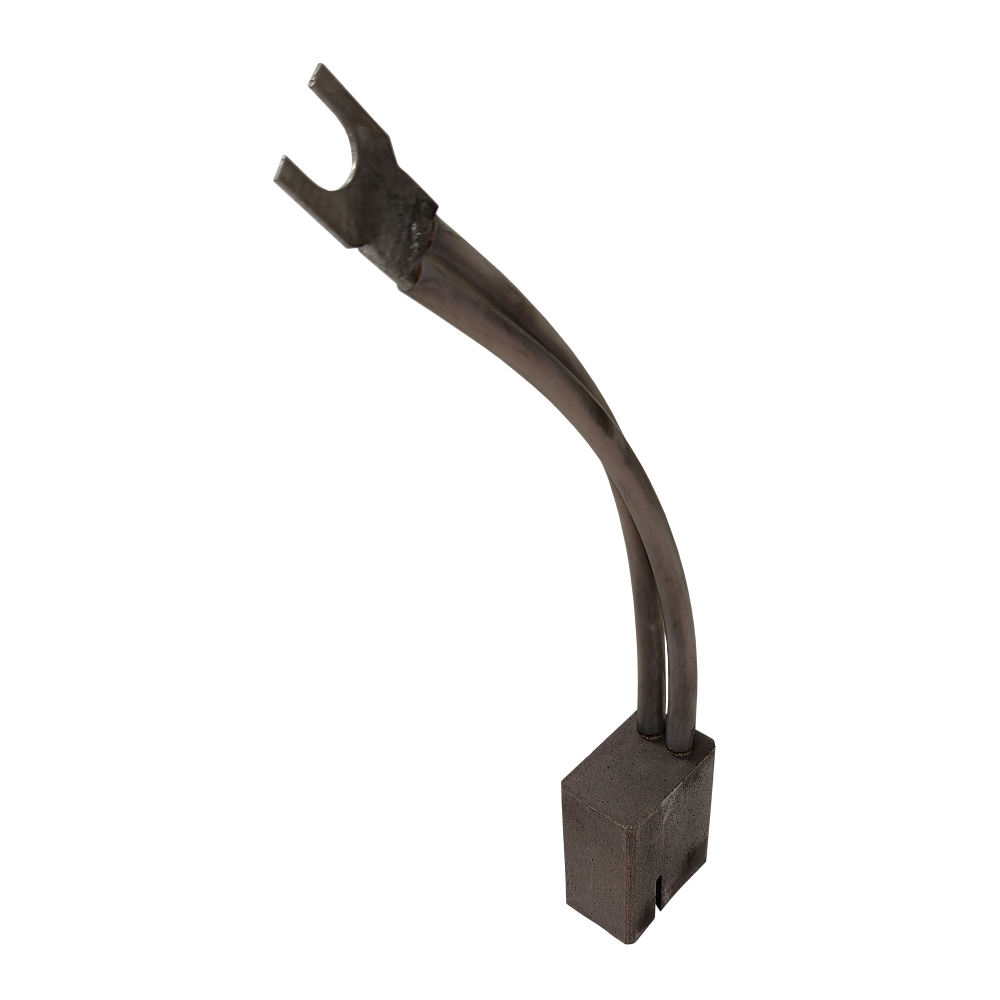

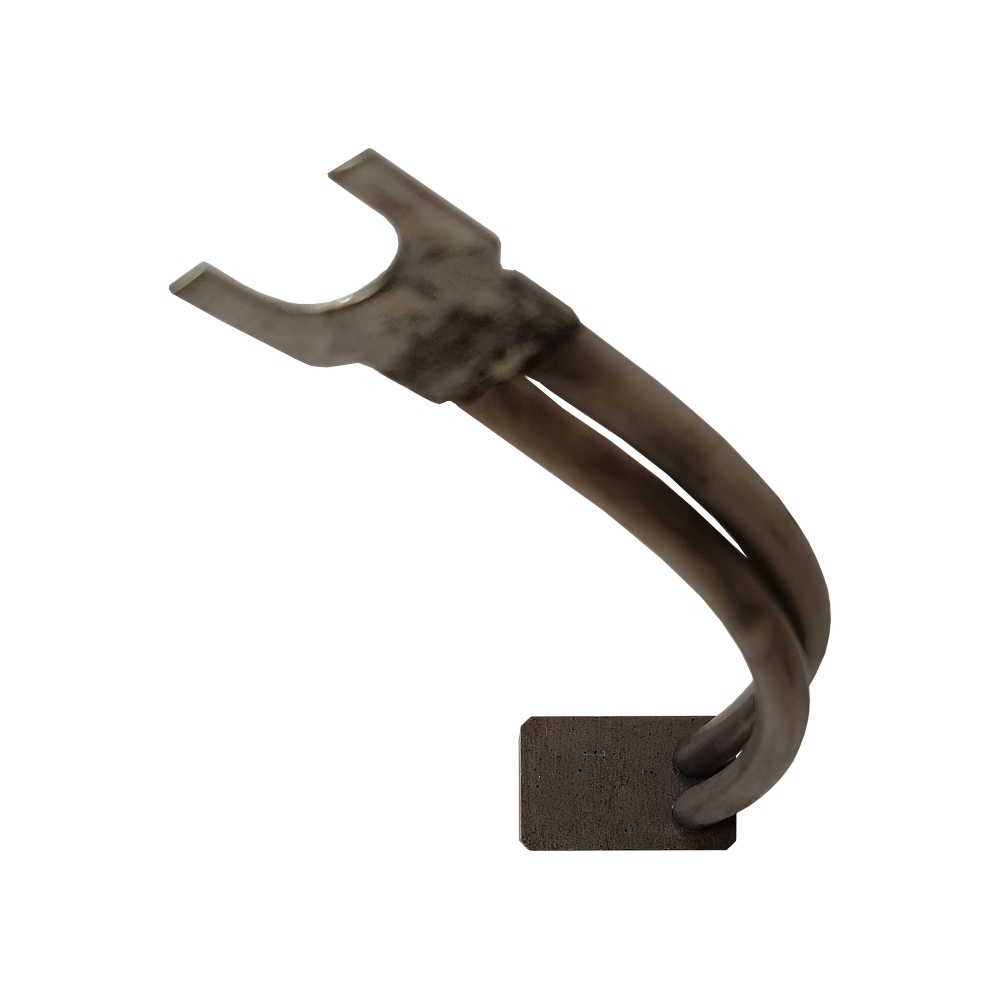

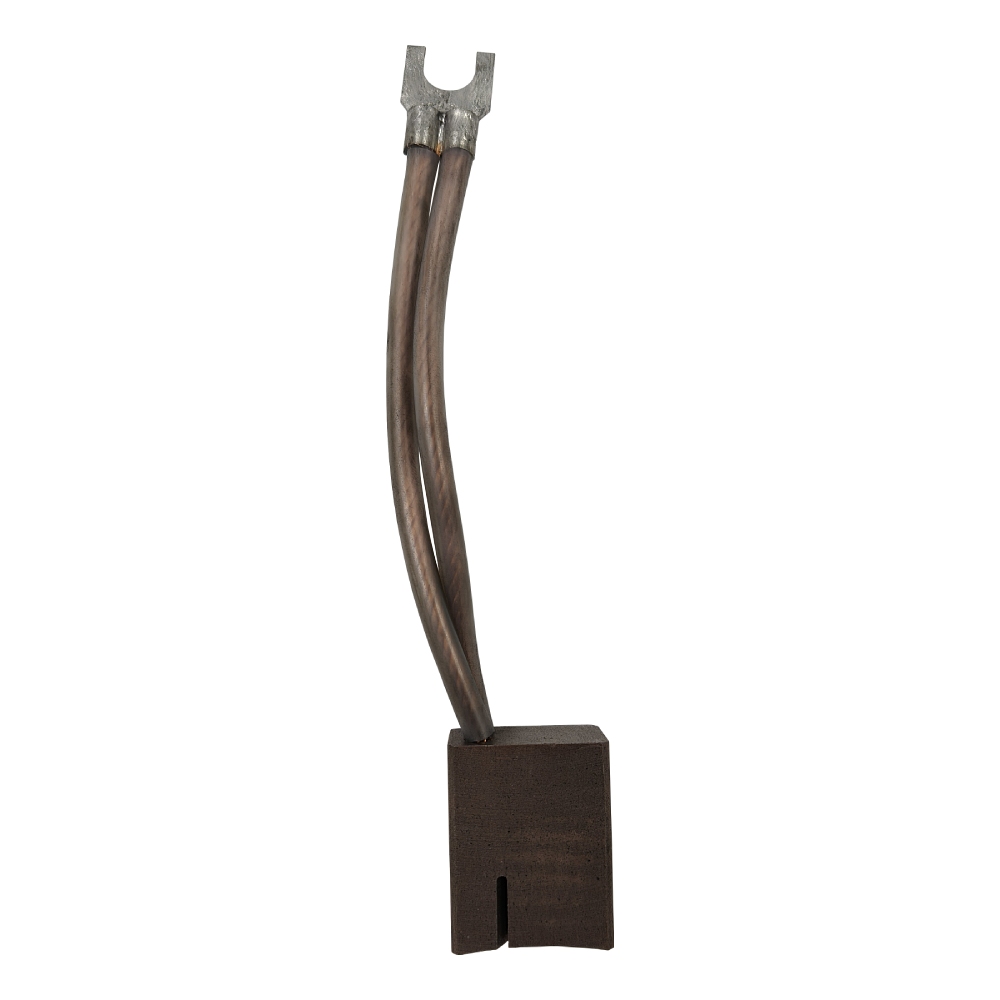

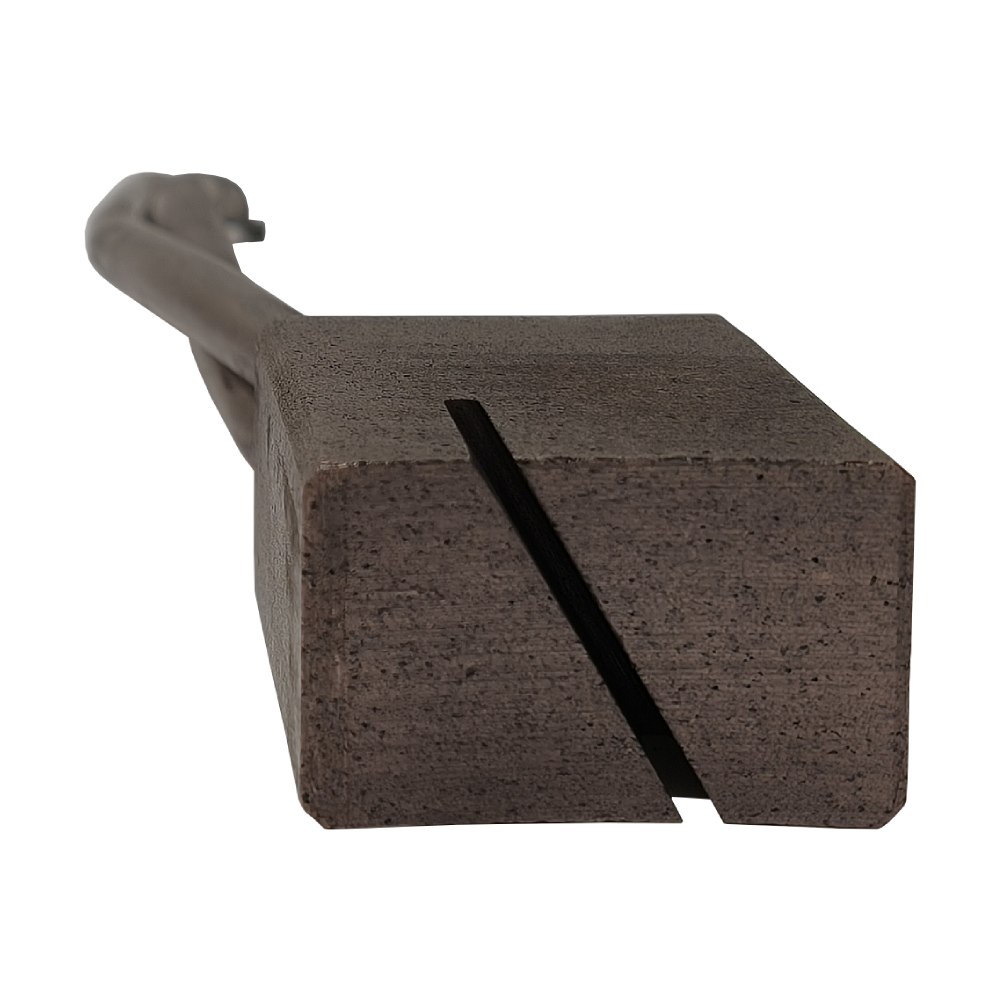

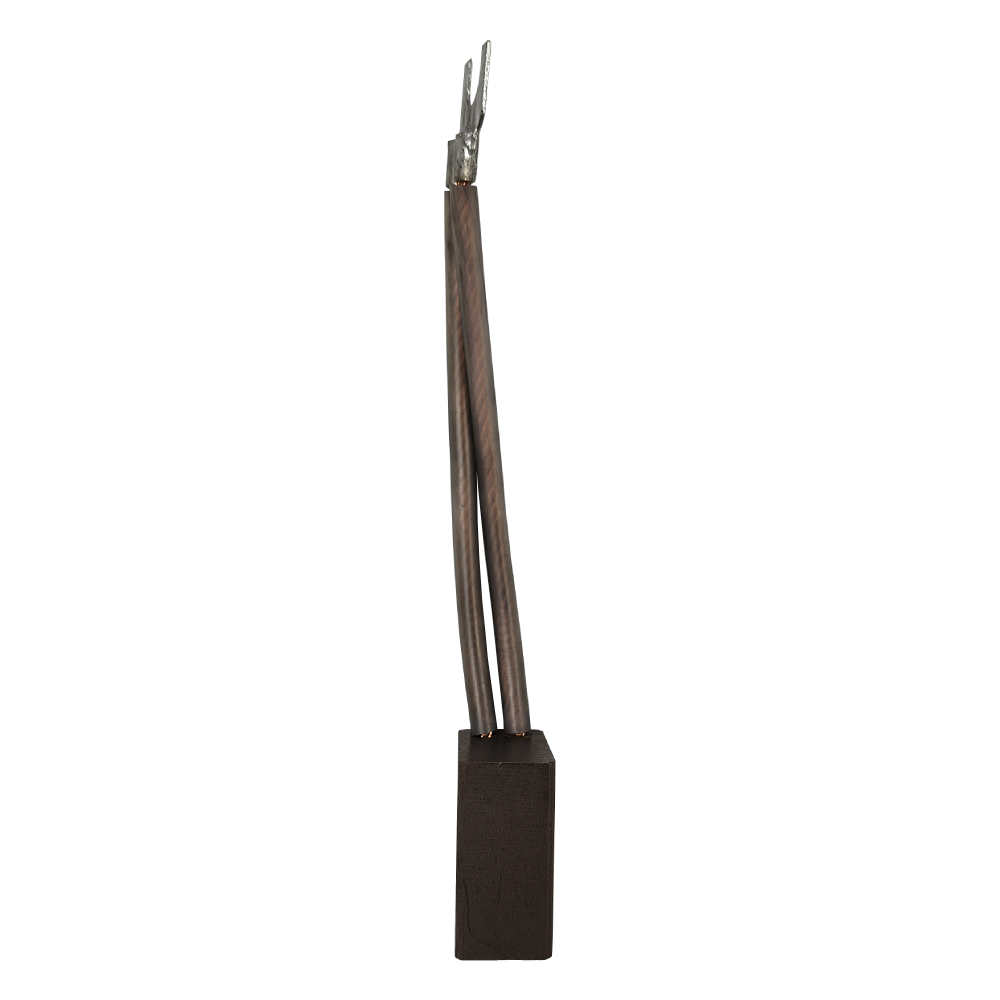

- Name: Copper graphite brush M26 20x32x40 K1-7
- Brand: ZTV
- Product Code: M26_20x32x40_K1-7
- Availability: Pre-order 39 calendar days
15.28€
Main specifications
All specifications
Material:
М26
Analog material:
C40Z3, FTSX 128, МГСО, М70, МГС21, МГ12, Г23
Сonstruction by ГОСТ Р 53617-2009:
K1-7
Conductor length by ГОСТ 12232-89, no less, L :
130 mm
Conductor cross-section, S :
6
Conductor insulation :
Yes
Terminal type according to ГОСТ Р 53617-2009:
П
IEC 60276 tip shape:
F
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M26 20x32x40 K1-7
Specifications
Main characteristics
Material
М26
Analog material
C40Z3, FTSX 128, МГСО, М70, МГС21, МГ12, Г23
Сonstruction by ГОСТ Р 53617-2009
K1-7
Conductor length by ГОСТ 12232-89, no less, L
130 mm
Conductor cross-section, S
6
Conductor insulation
Yes
Terminal type according to ГОСТ Р 53617-2009
П
IEC 60276 tip shape
F
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
11-32 HR
Specific electrical resistance, p
0.8-1.5 μΩ·m
Current density, j
0,12-0,25 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
1.0-1.5 V
Brush pressure, p
200 kPa
Circum velocity, Vₚₑᵣ
20-25 m/s
Friction factor, μ
0.2
Manufacturer country
Bulgaria
