- Name: Copper graphite brush M26 4х4х5 K1-1
- Brand: ZTV
- Product Code: M26_4x4x5_K1-1
- Availability: In Stock
2.70€
Main specifications
All specifications
Material:
М26
Analog material:
FTSX 128, МГСО, М70, МГС21, МГ12, Г23
Сonstruction by ГОСТ Р 53617-2009:
K1-1
Conductor length by ГОСТ 12232-89, no less, L :
25 mm
Conductor cross-section, S :
0,09 mm²
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
IEC 60276 tip shape:
Q
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

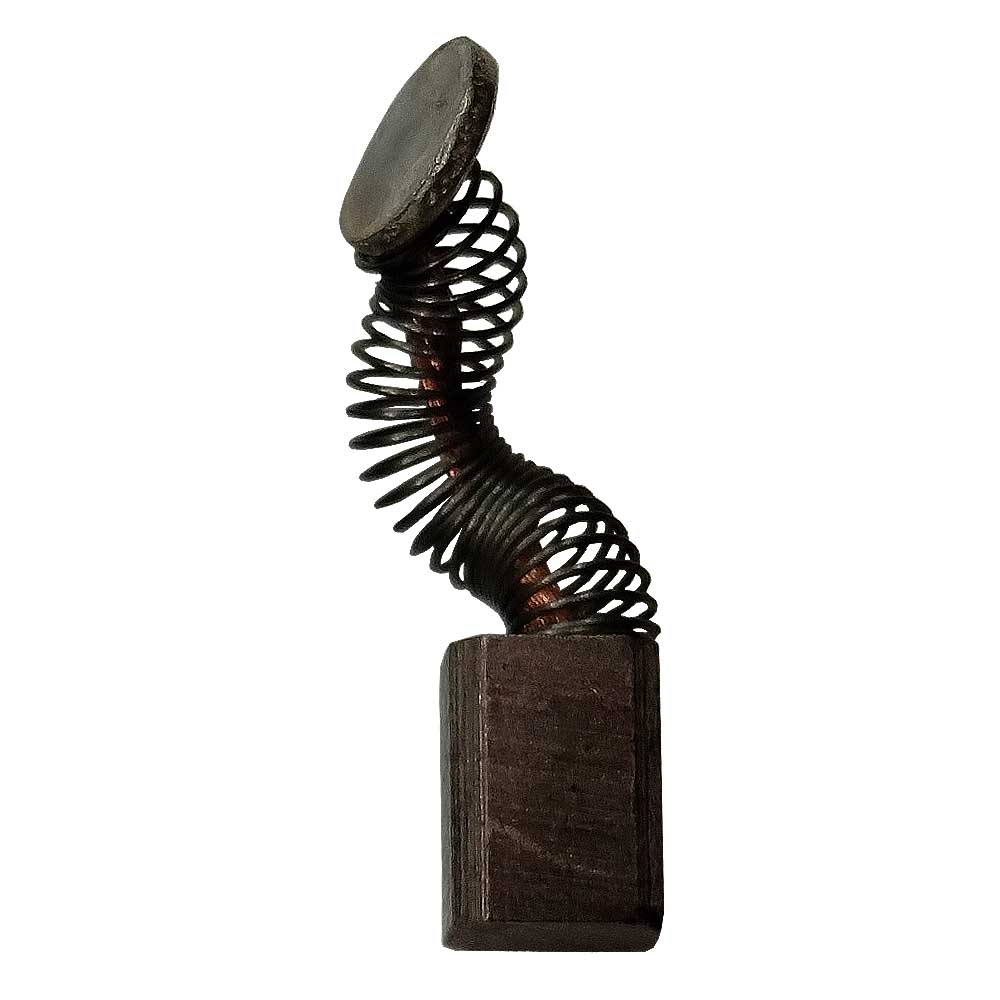

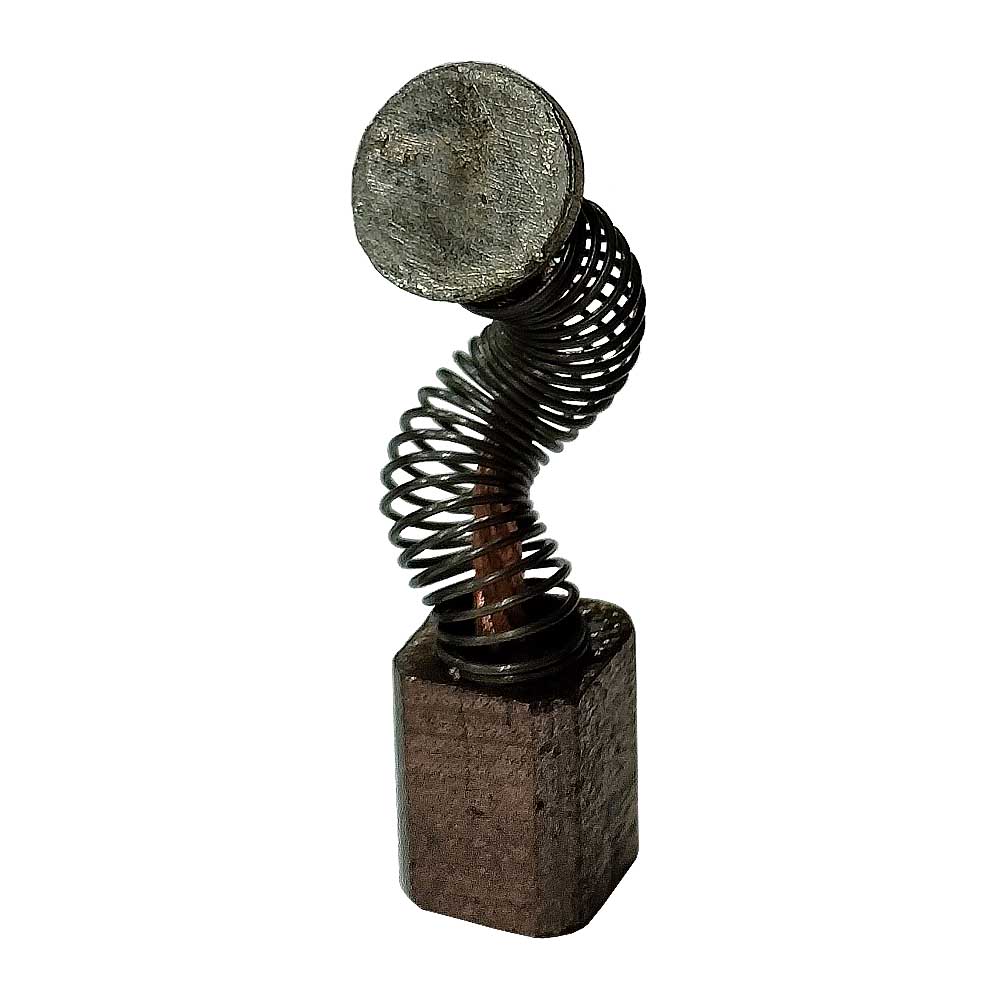

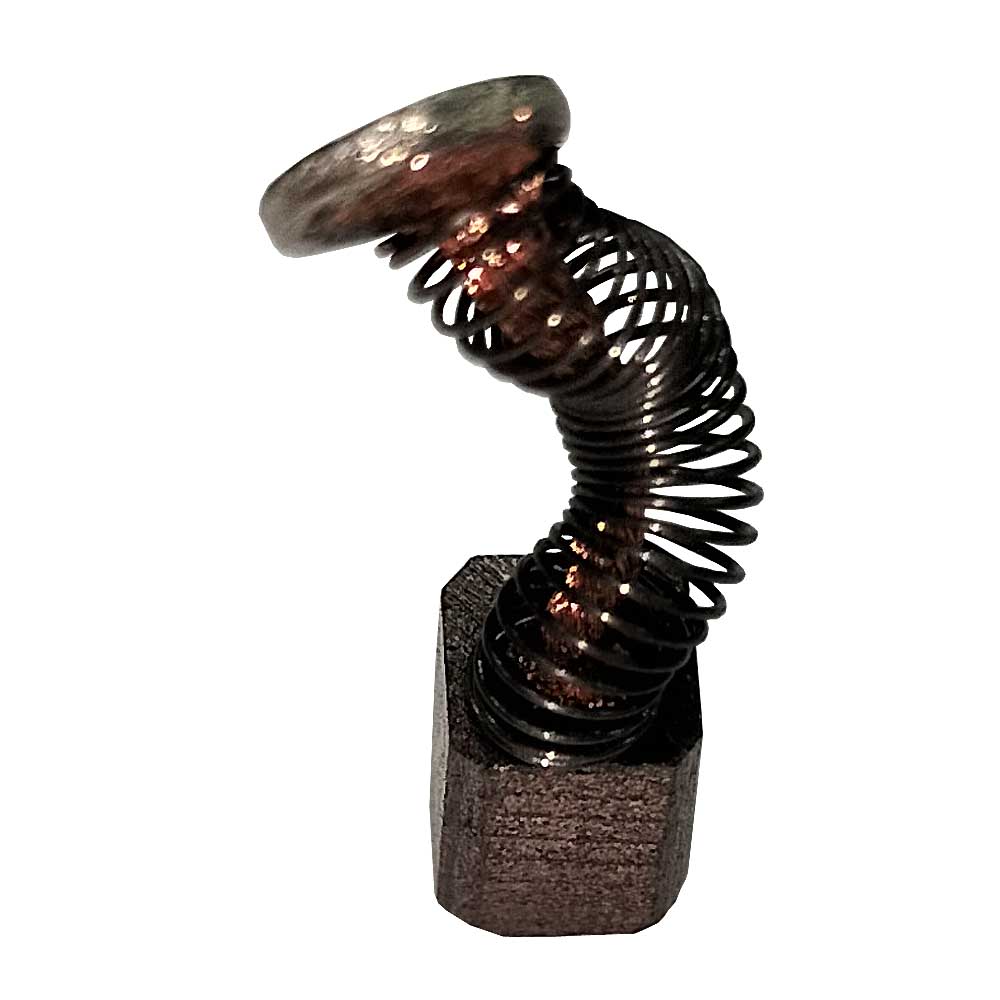

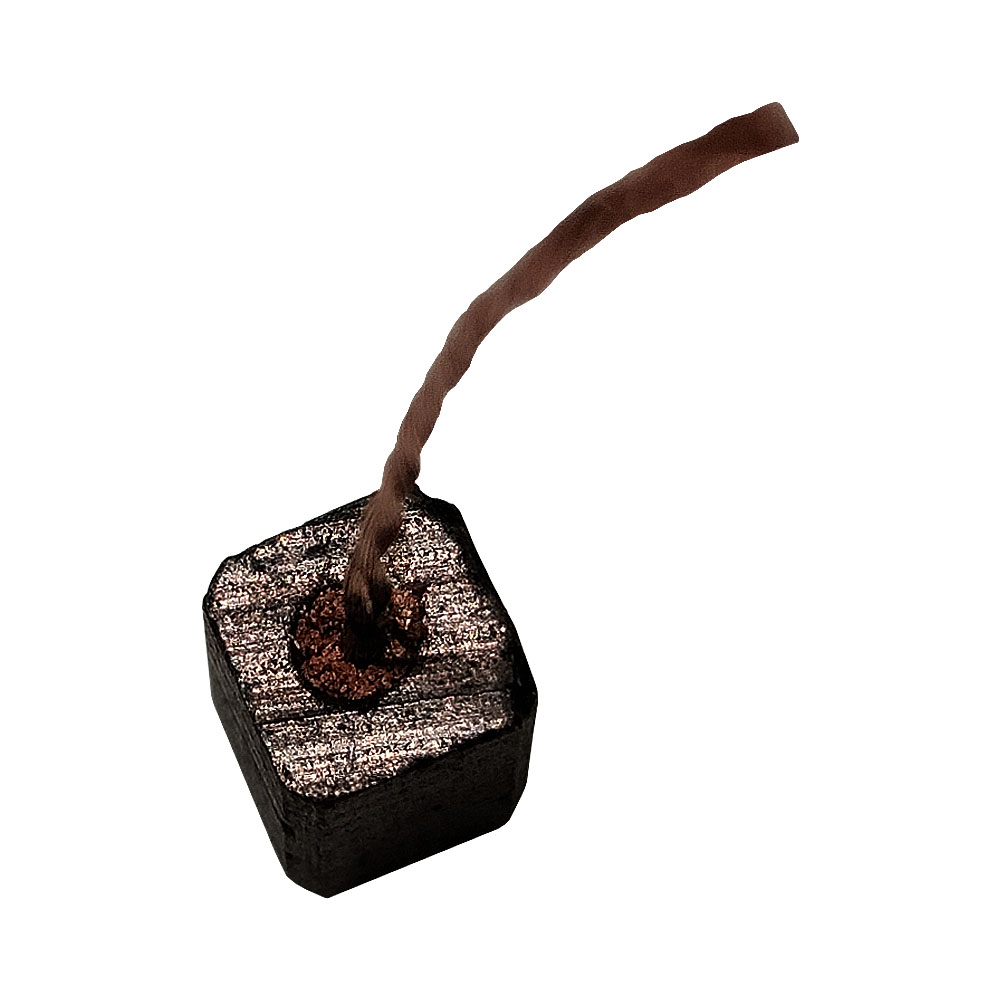

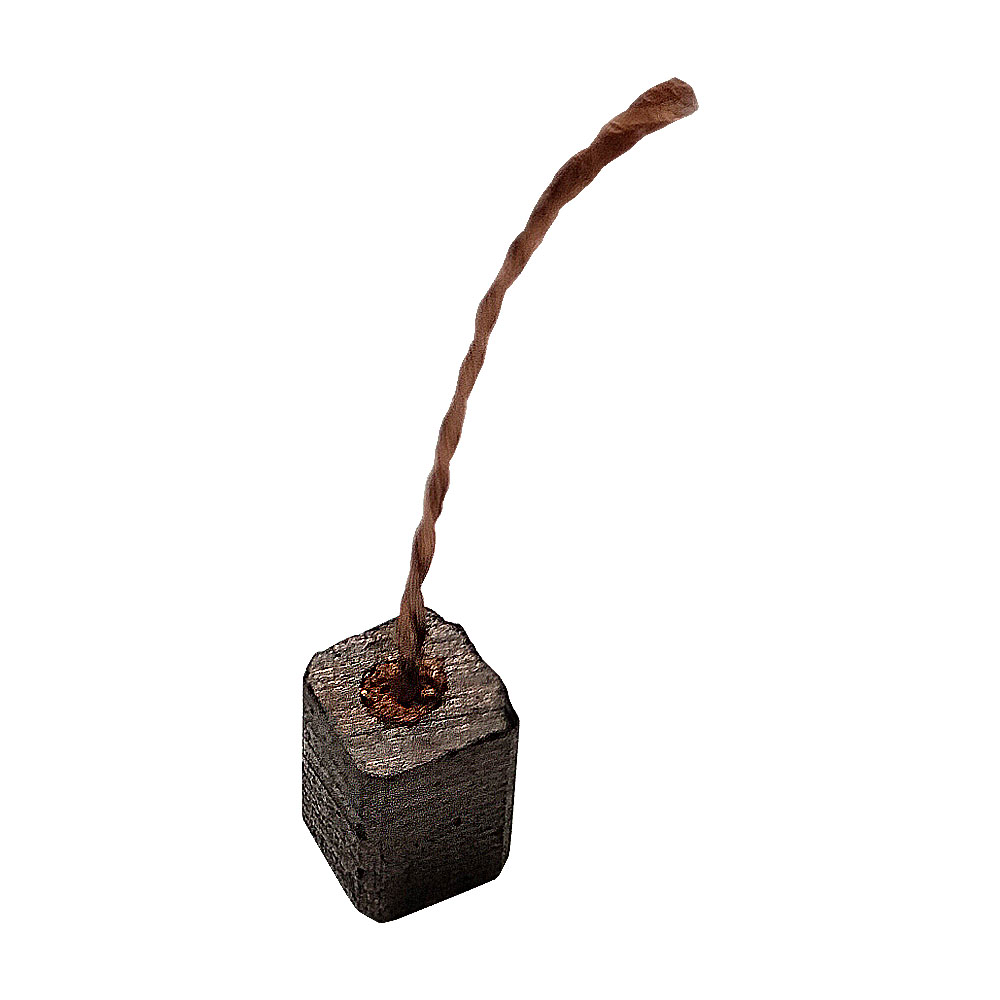

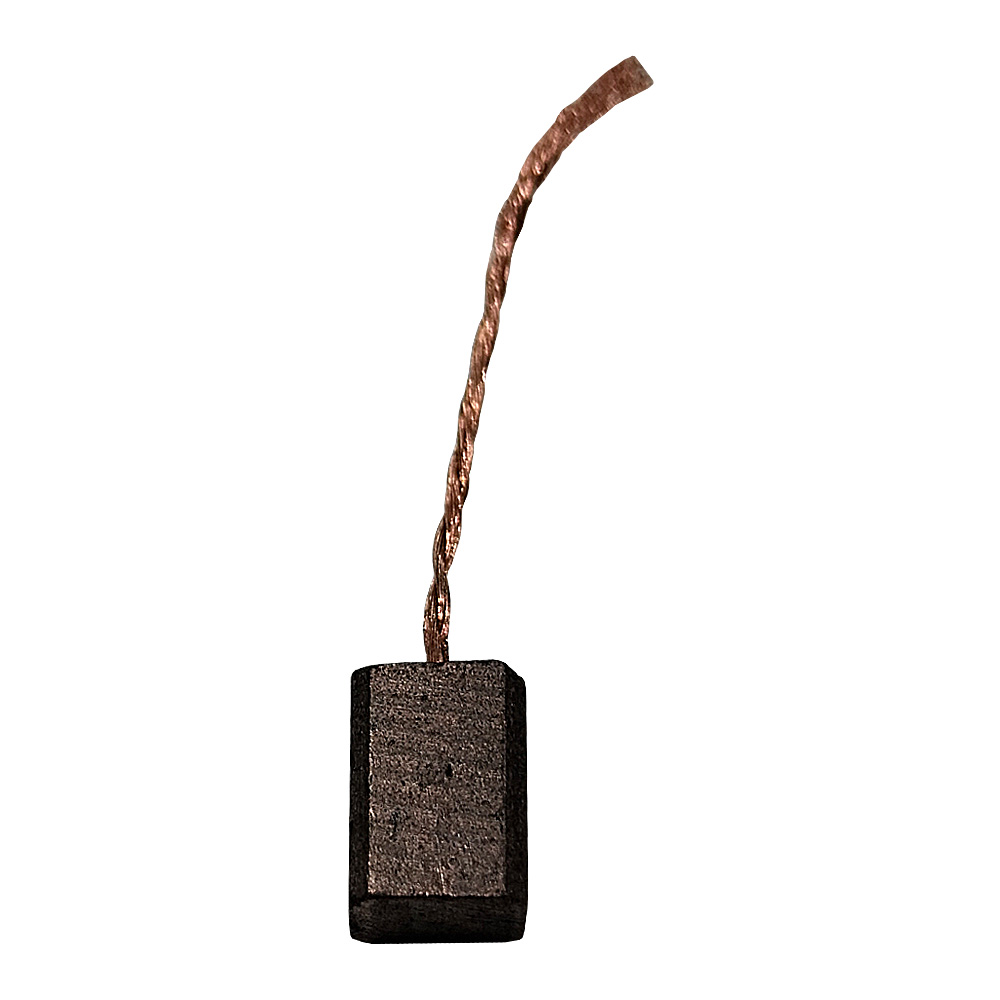

Copper graphite brush M26 4х4х5 K1-1
Specifications
Main characteristics
Material
М26
Analog material
FTSX 128, МГСО, М70, МГС21, МГ12, Г23
Сonstruction by ГОСТ Р 53617-2009
K1-1
Conductor length by ГОСТ 12232-89, no less, L
25 mm
Conductor cross-section, S
0,09 mm²
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
IEC 60276 tip shape
Q
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
11-32 HR
Specific electrical resistance, p
0.8-1.5 μΩ·m
Current density, j
0,12-0,25 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
1.0-1.5 V
Brush pressure, p
200 kPa
Circum velocity, Vₚₑᵣ
20-25 m/s
Friction factor, μ
0.2
Manufacturer country
Bulgaria
