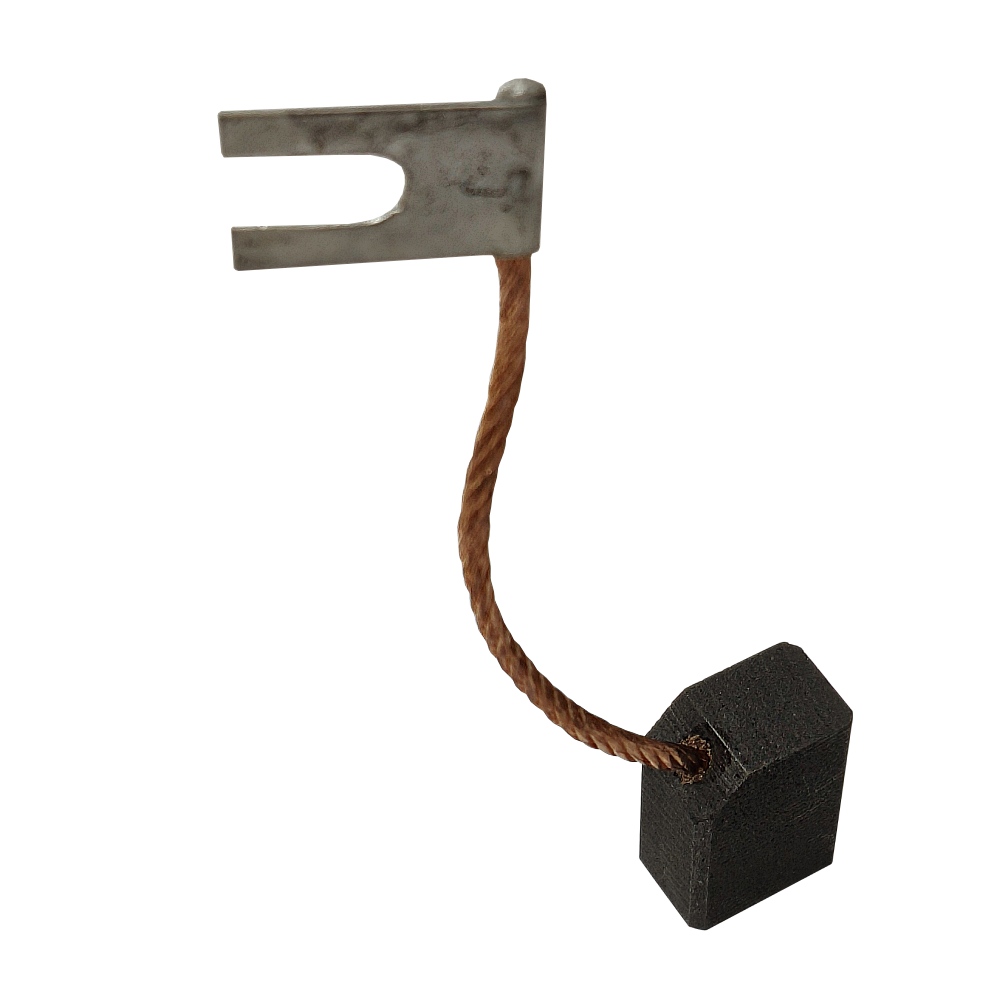

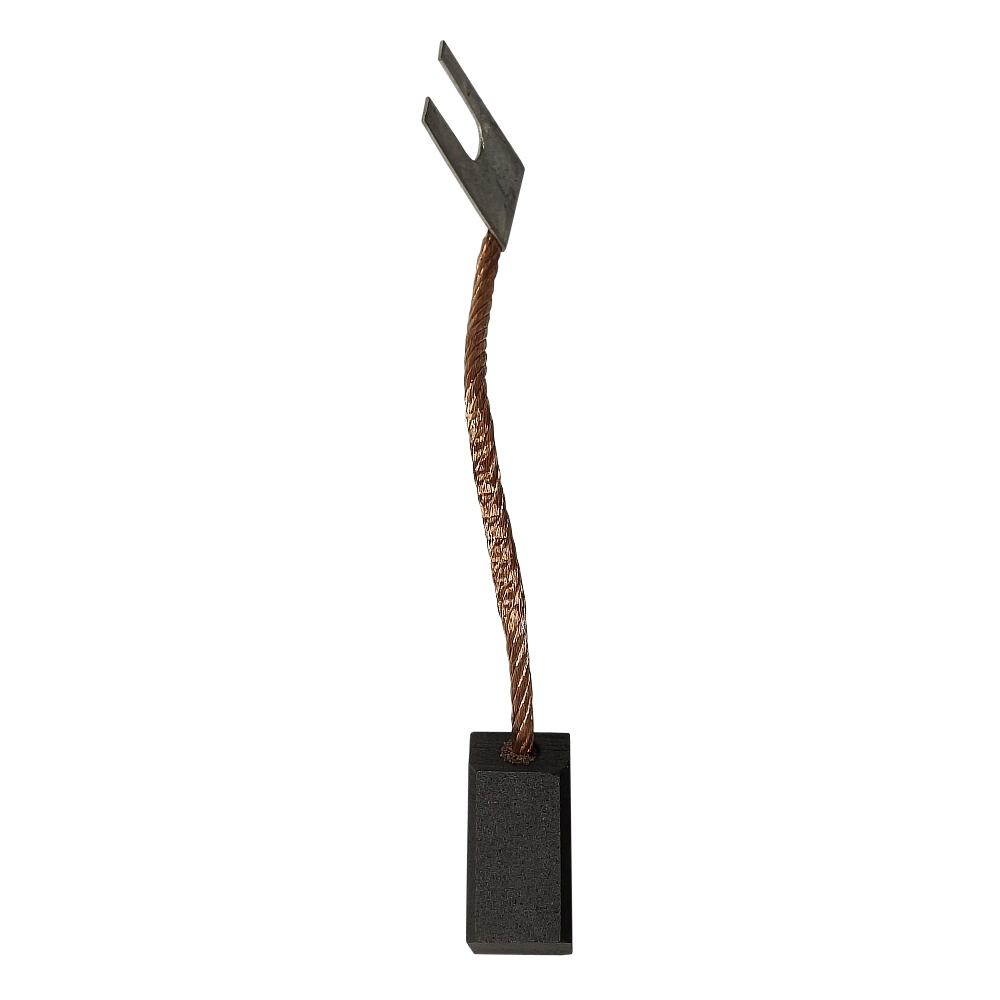

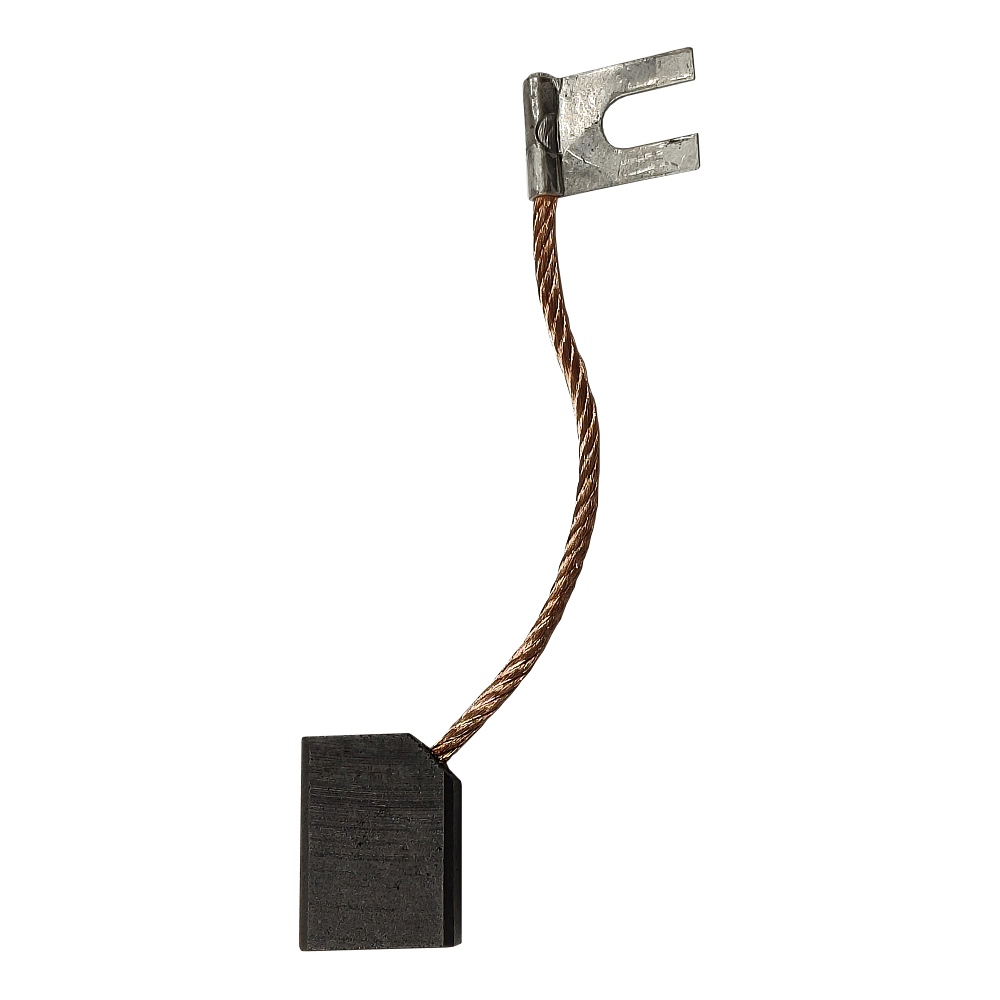

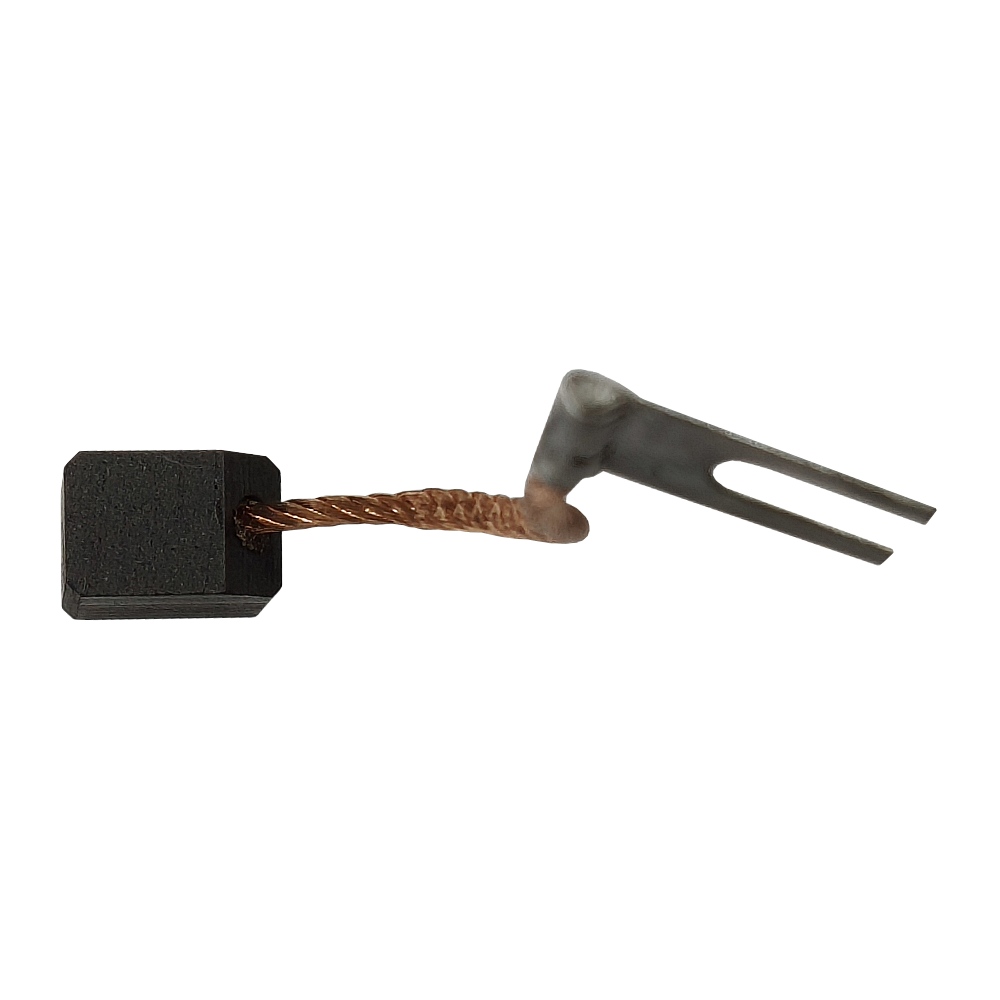

Electro graphite brush SL42 10x15x20 K4-2 for motors and generators

Reviews:

(0)

Name: Electro graphite brush SL42 10x15x20 K4-2
Brand: ZTV
Product Code: SL42_10x15x20_K4-2
Availability: Pre-order 39 calendar days

3.42€

Main specifications

All specifications

Material: SL42

Сonstruction by ГОСТ Р 53617-2009: K4-2

Сonstruction by IEC 60276: CL06A

Conductor length by ГОСТ 12232-89, no less, L : 70 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: F

IEC 60276 tip shape: H

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Electro graphite brush SL42 10x15x20 K4-2 for motors and generators

Specifications

Main characteristics

Material

SL42

Сonstruction by ГОСТ Р 53617-2009

K4-2

Сonstruction by IEC 60276

CL06A

Conductor length by ГОСТ 12232-89, no less, L

70 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

F

IEC 60276 tip shape

H

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

55 – 103 HRВ 10/40

Specific electrical resistance, p

21-35 μΩ·m

Current density, j

0,1 A/mm²

Circum velocity, Vₚₑᵣ

40 m/s

Manufacturer country

Bulgaria
