6.89€

Main specifications

Material: EG2A

Analog material: EG71, EG624, EG389P, LFC554, Е468

Сonstruction by ГОСТ Р 53617-2009: К1-3

Сonstruction by IEC 60276: CL04A

Contact wire length by ГОСТ 12232-89, no less, mm.: 150

Terminal type according to GOST R 53617-2009: 6B

Cover type according to ГОСТ Р 53617-2009: НК-2

Qty:

Terms of agreement

All goods are certified

We accept payment online

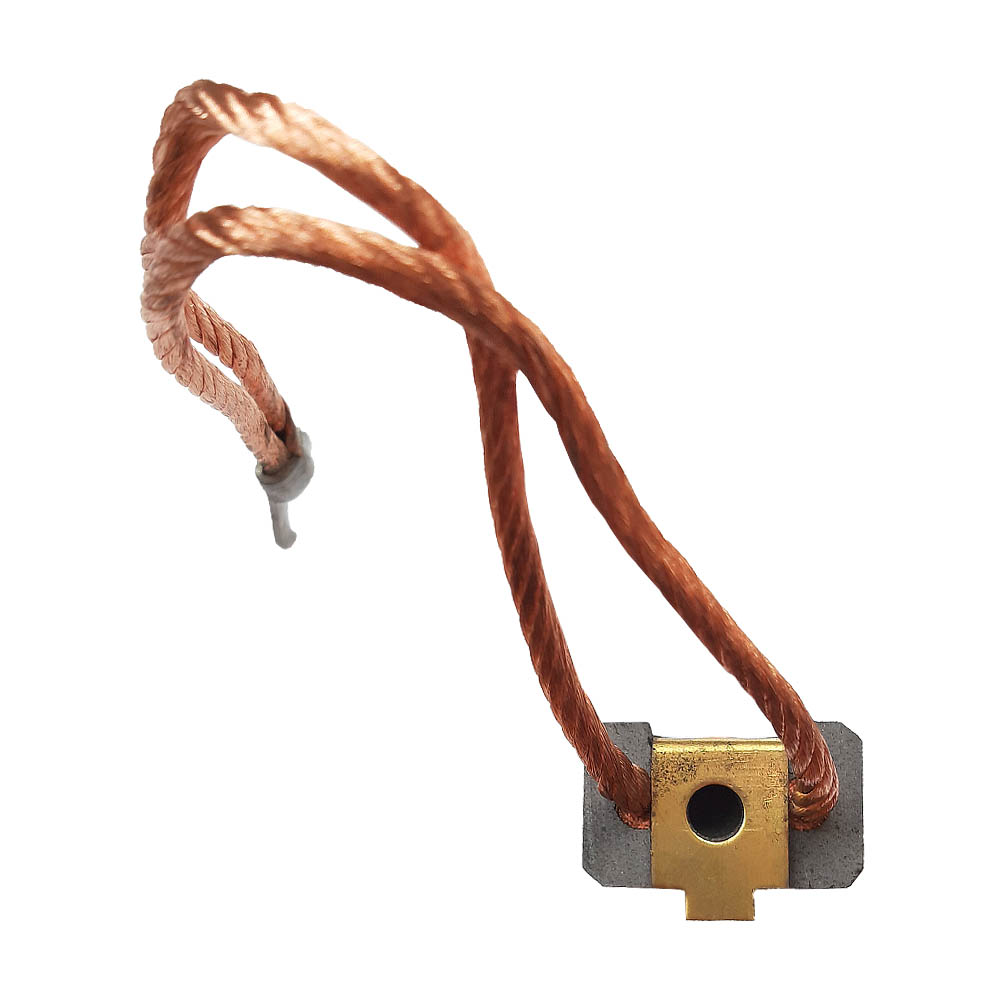

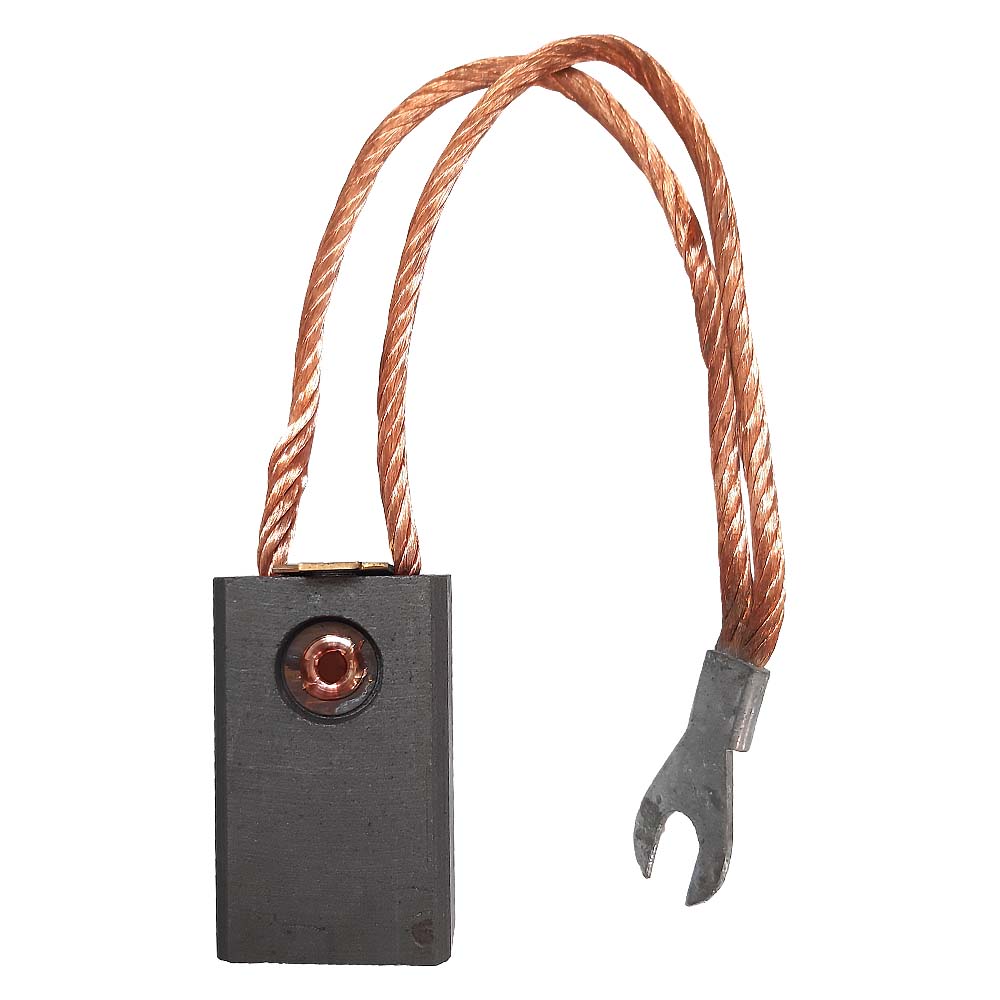

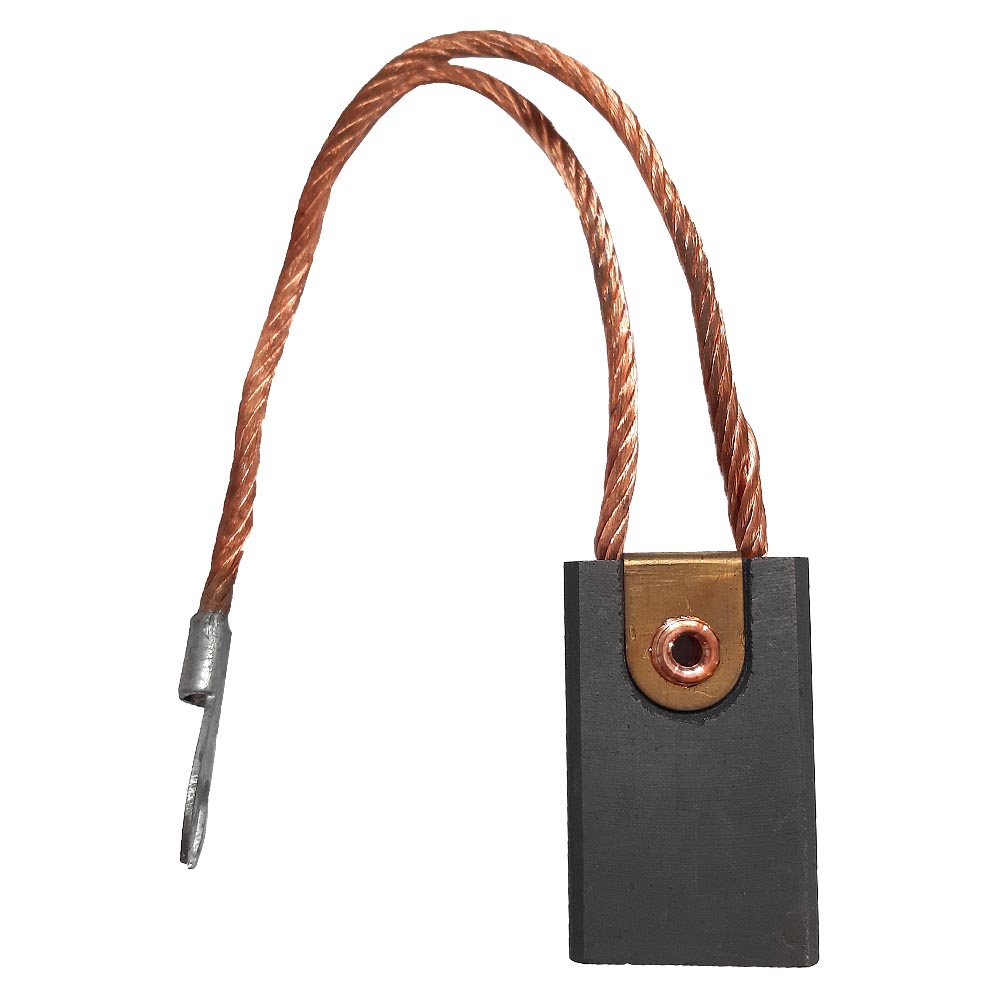

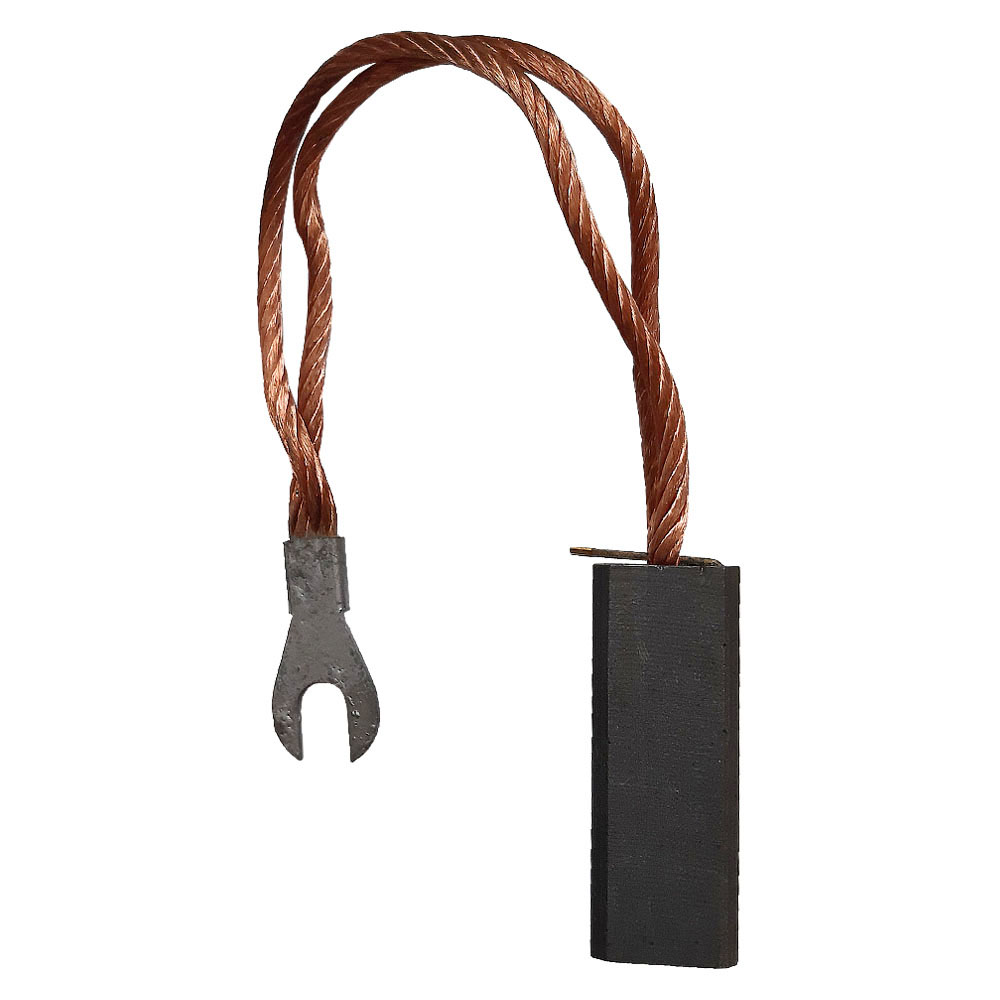

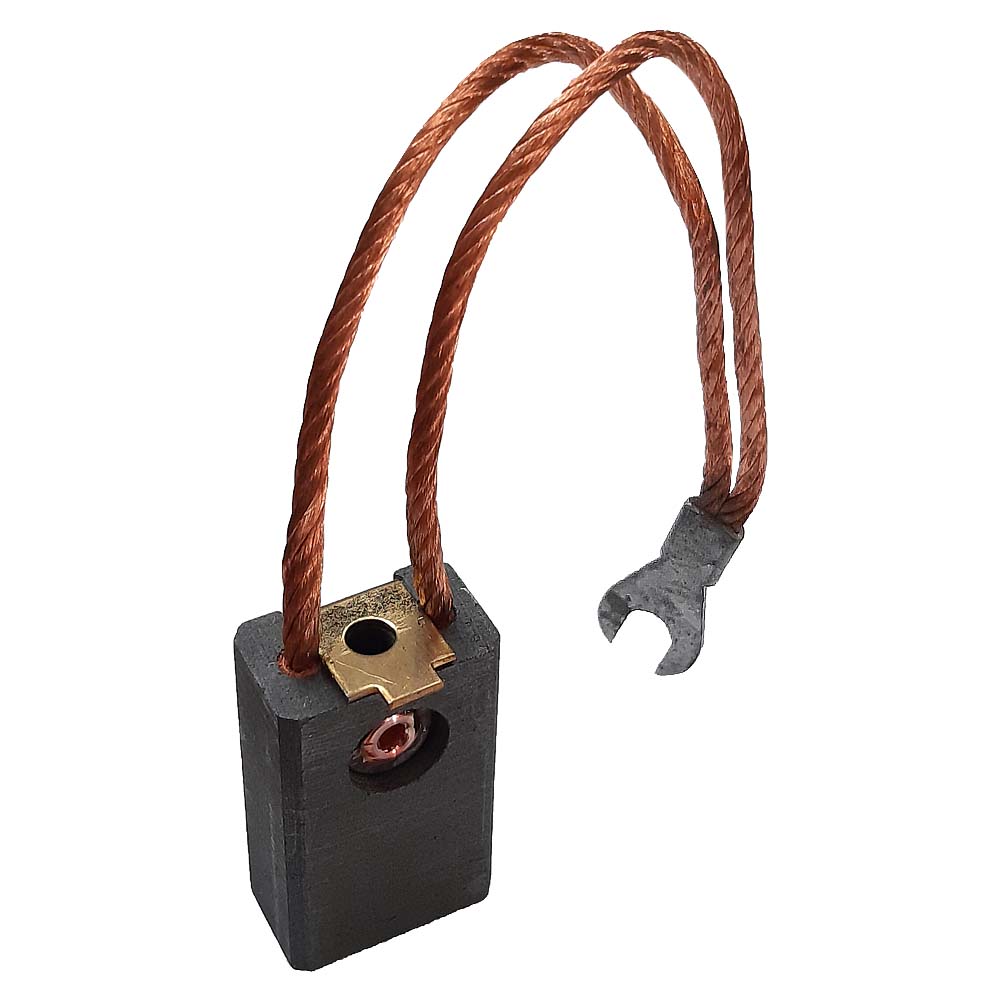

Electrographitic brush EG2A 15x25x40 K1-3

Main characteristics

Material EG2A

Analog material EG71, EG624, EG389P, LFC554, Е468

Сonstruction by ГОСТ Р 53617-2009 К1-3

Сonstruction by IEC 60276 CL04A

Contact wire length by ГОСТ 12232-89, no less, mm. 150

Terminal type according to GOST R 53617-2009 6B

Cover type according to ГОСТ Р 53617-2009 НК-2

Additional characteristics

Rockwell hardness, 10⁷ Nm² 7.0-21

Specific electric resistance, 10¯⁶ Ωm 11.0-27.0

Current density, 10⁴ A/m² 12

Circum velocity, m/s 50

Brush pressure on collector, 10³ N/m² 25

Transitional voltage drop on a pair of brushes, V 0.9-1.9

Max. friction factor, μ 0.23

Application area Chinese DC motor for electric car

Brand ZTV

Manufacturer country Bulgaria
