- Brand: ELPROM EMZ
- Product Code: РК_02715
- Availability: Pre-order 39 calendar days
504.00€
Main specifications
All specifications
Input voltage type :
AC
Quantity phases:
3
Power electric, Рₑₗ :
22 kW
Inductance, L :
0,2 μH
Mode of operation:
S1
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

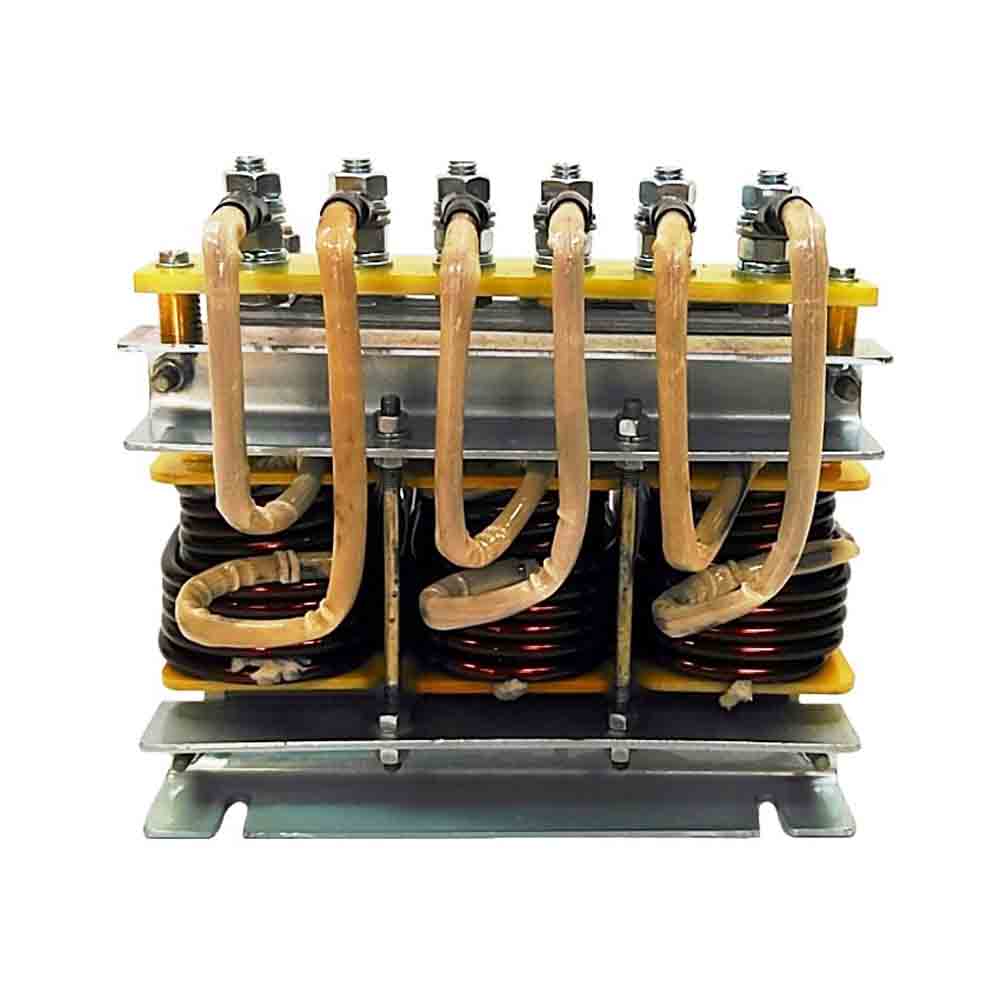

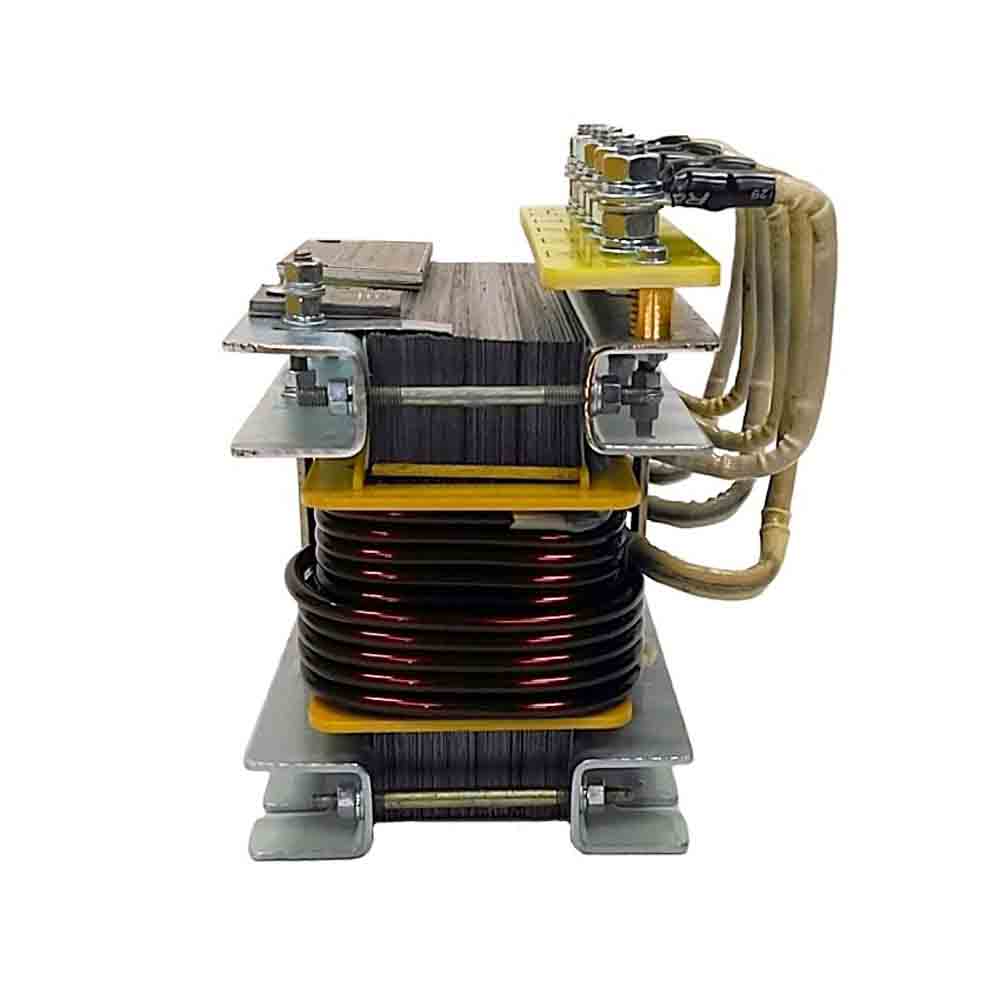

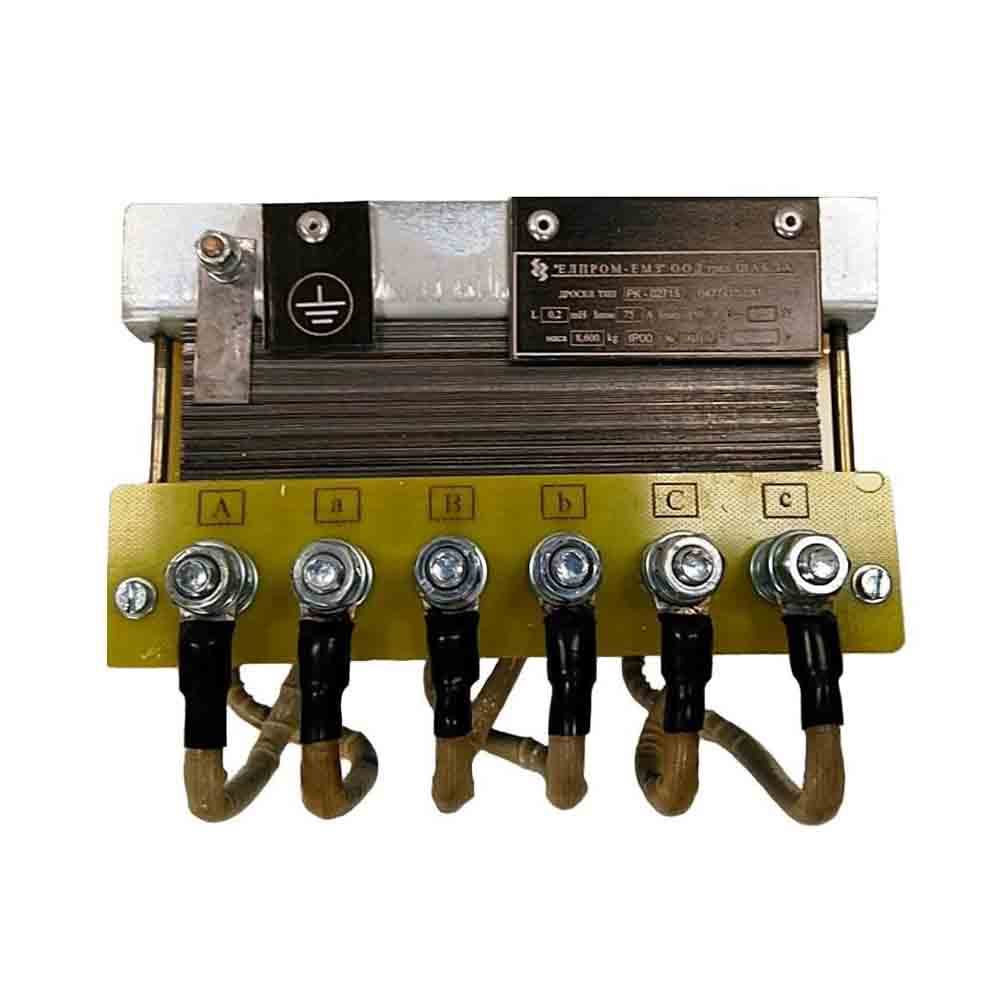

Choke PK 02715 for DC drive.
The choke PK-02715 is a complete product for an electric drive with a DC motor.
The pk02715 choke is designed for installation in a metal control cabinet of metal-cutting machines, processing machines, trans manipulators.
Choke PK 02715 can be used to complete the following drives:
- converter 8ТС2000REV;
- converter MDC2-22;
- converter ELL 4007-XXX-XX;
- converter KEMPOC 8EOA3-OC, 8EOA3.
Specifications
Main characteristics
Input voltage type
AC
Quantity phases
3
Power electric, Рₑₗ
22 kW
Inductance, L
0,2 μH
Mode of operation
S1
Additional parameters
Current, І
75 A
Current starting/maximum, Iₘₐₓ
150 A
Class thermal insulation
F
Degree of protection
IP 00
Warranty
12 months

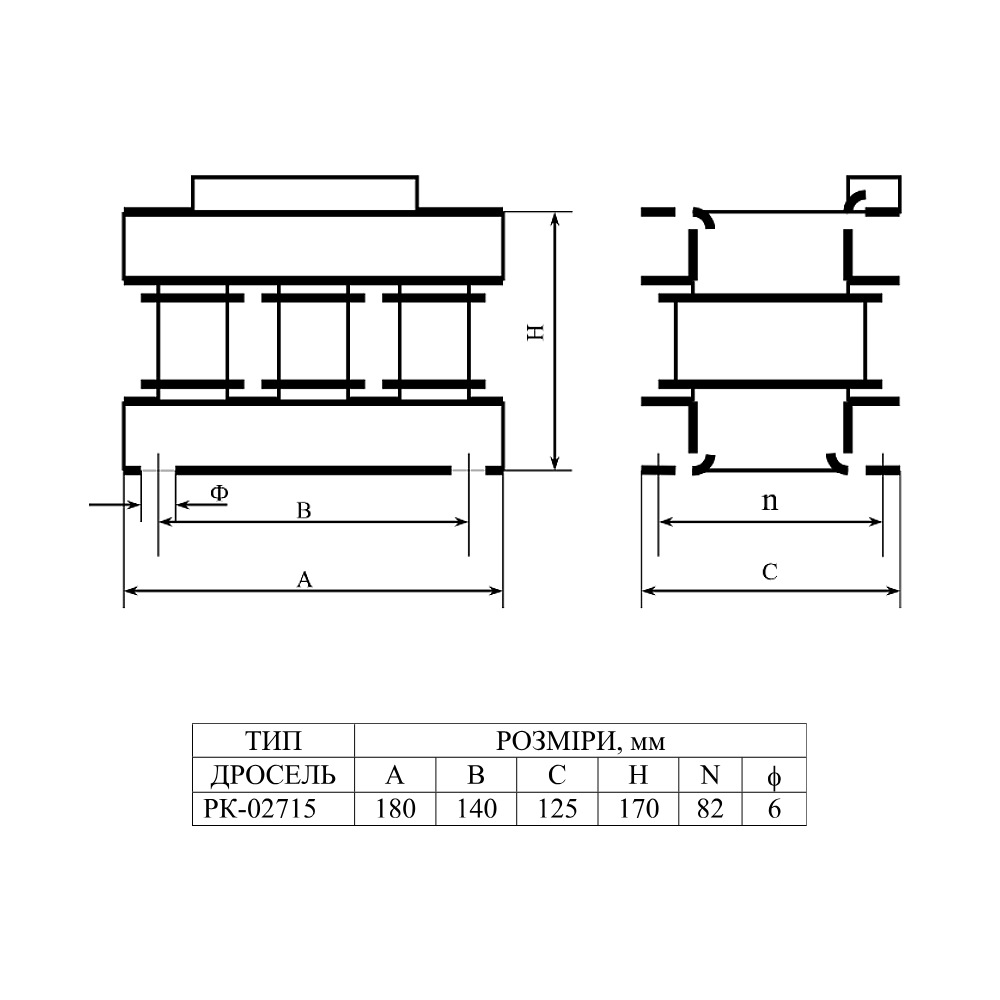

Overall dimensions of the packing case
240x103x180 mm
Mass, m
8,9 kg
Manufacturer country
Bulgaria
