- Brand: ELPROM EMZ
- Product Code: РК_05410
- Availability: Pre-order 39 calendar days
165.00€
Main specifications
All specifications
Input voltage type :
AC
Quantity phases:
3
Power electric, Рₑₗ :
11 kW
Inductance, L :
0,5 μH
Mode of operation:
S1
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

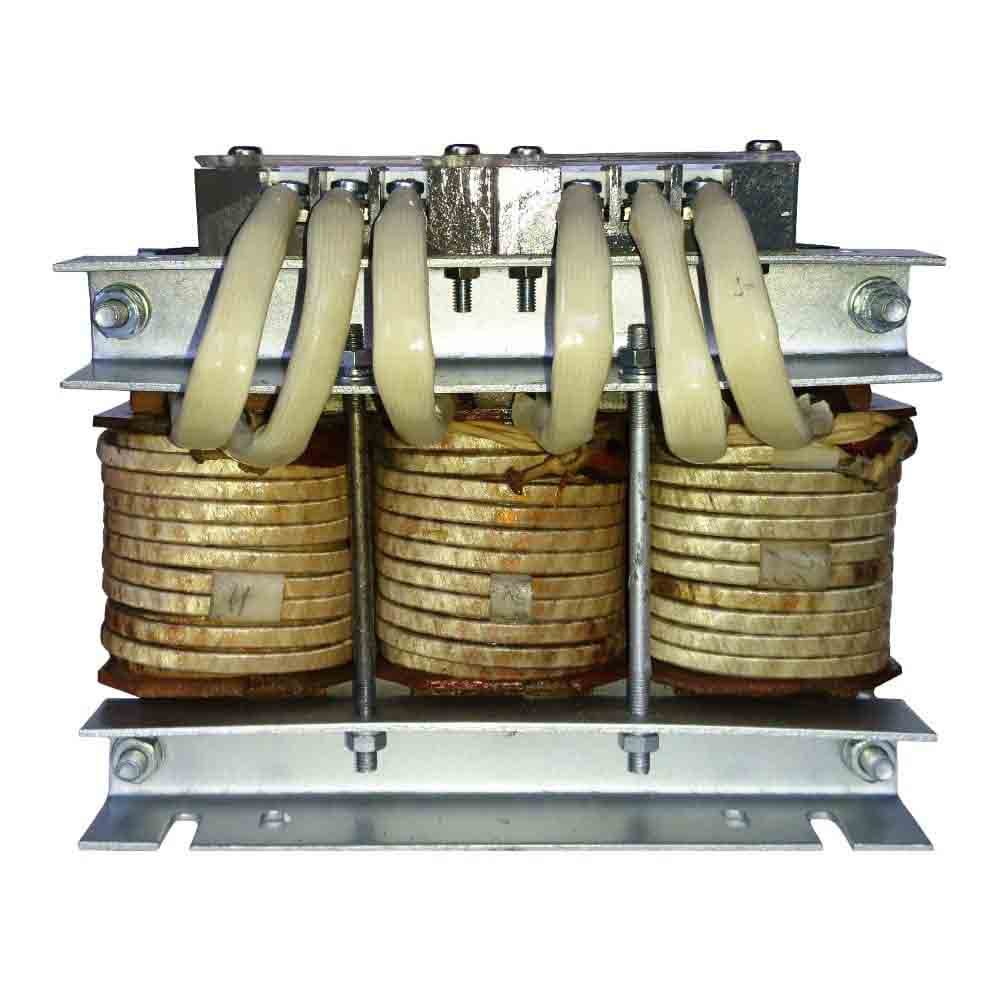

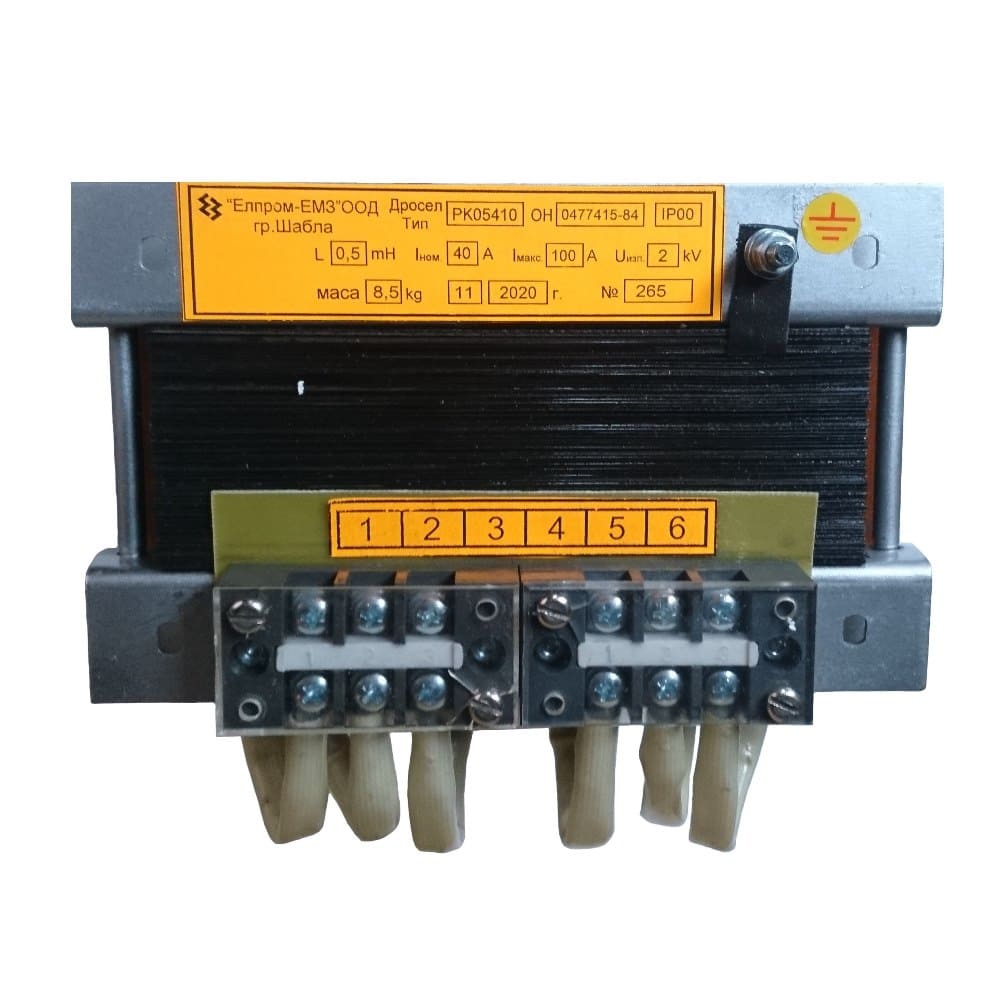

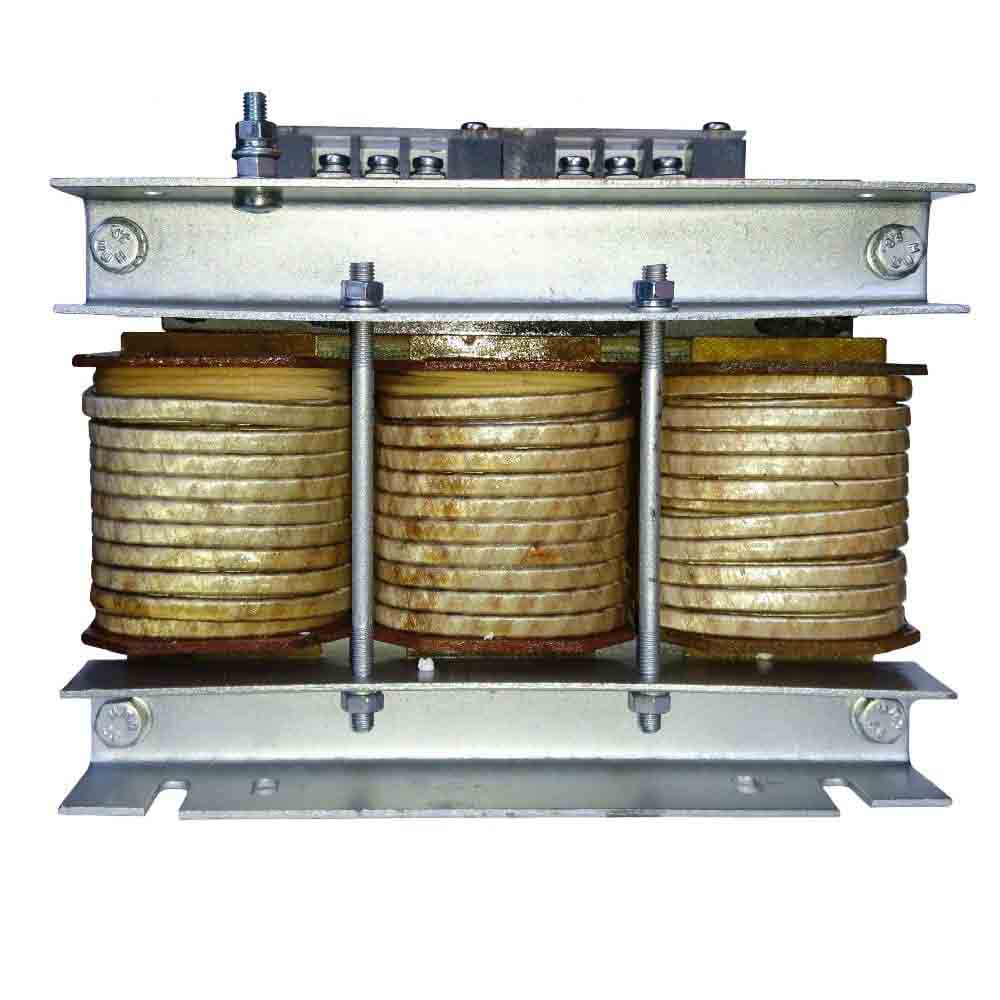

Choke PK 05410 for DC drive.
The choke PK-05410 is a complete product for an electric drive with a DC motor.
The pk05410 choke is designed for installation in a metal control cabinet of metal-cutting machines, processing machines, trans manipulators.
Choke PK 05410 can be used to complete the following drives:
- converter 5ТС2000REV, 4ТС2000REV;
- converter MDC2-15;
- converter ELL 4005-XXX-XX, ELL 4004-XXX-XX;
- converter KEMTOP 5EO3M;
- converter KEMPOC 4EOA3K, 4EOA3.
Specifications
Main characteristics
Input voltage type
AC
Quantity phases
3
Power electric, Рₑₗ
11 kW
Inductance, L
0,5 μH
Mode of operation
S1
Additional parameters
Current, І
40 A
Current starting/maximum, Iₘₐₓ
100 A
Class thermal insulation
F
Degree of protection
IP 00
Warranty
12 months
Overall dimensions of the packing case
160x104x150 mm
Mass, m
8,5 kg
Manufacturer country
Bulgaria
