- Name: Asynchronous electric motor AKKE 1608K6 Ex
- Brand: BALKANSKO ECHO
- Product Code: AKKE_1608K6_Ex
- Availability: Pre-order 39 calendar days
0.00€
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
380/220 V Y/Δ
Quantity phases:
3
Frequency, f :
50 Hz
Power electric, Рₑₗ :
0.25 kW
Speed of revolution nominal, Nₙₒₘ :
940 rpm
Mode of operation:
S4
Constructive performance:
ІМ В5, ІМ V1, ІМ V3
Installation method:
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection:
present
Brake:
present
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

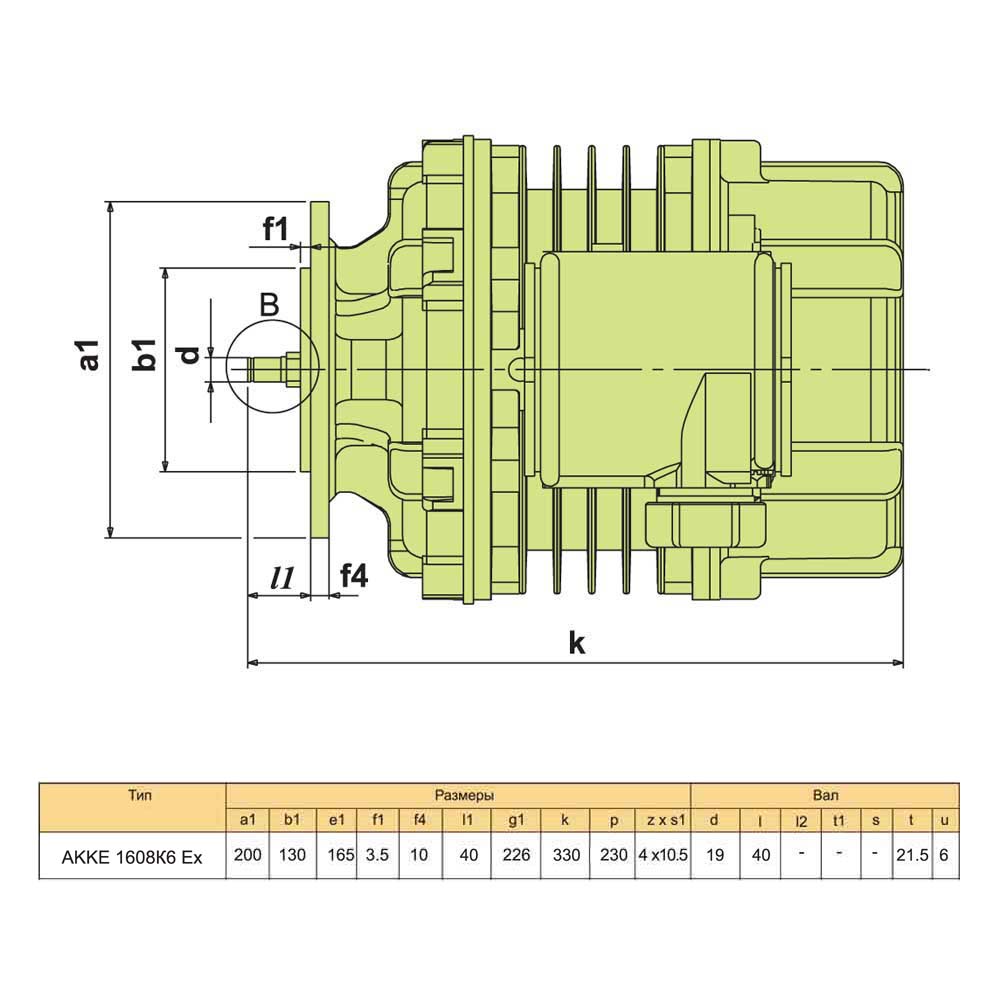

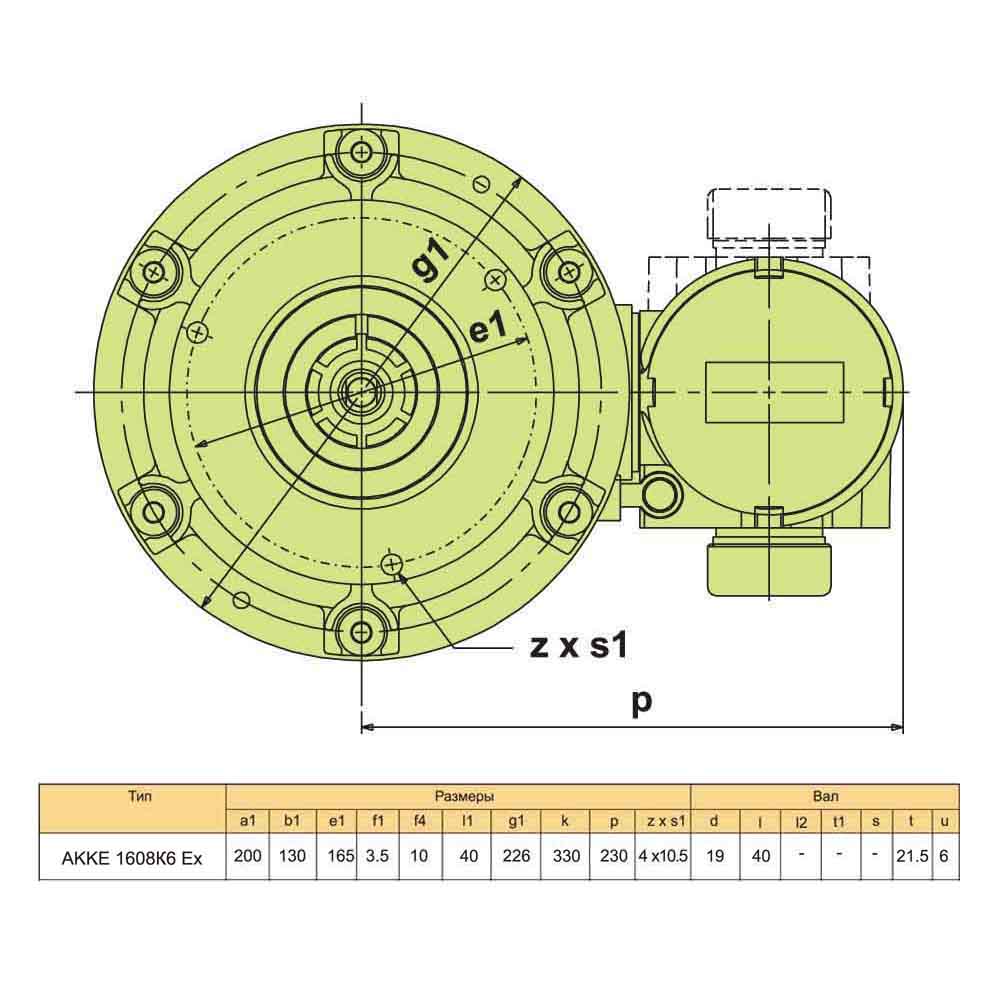

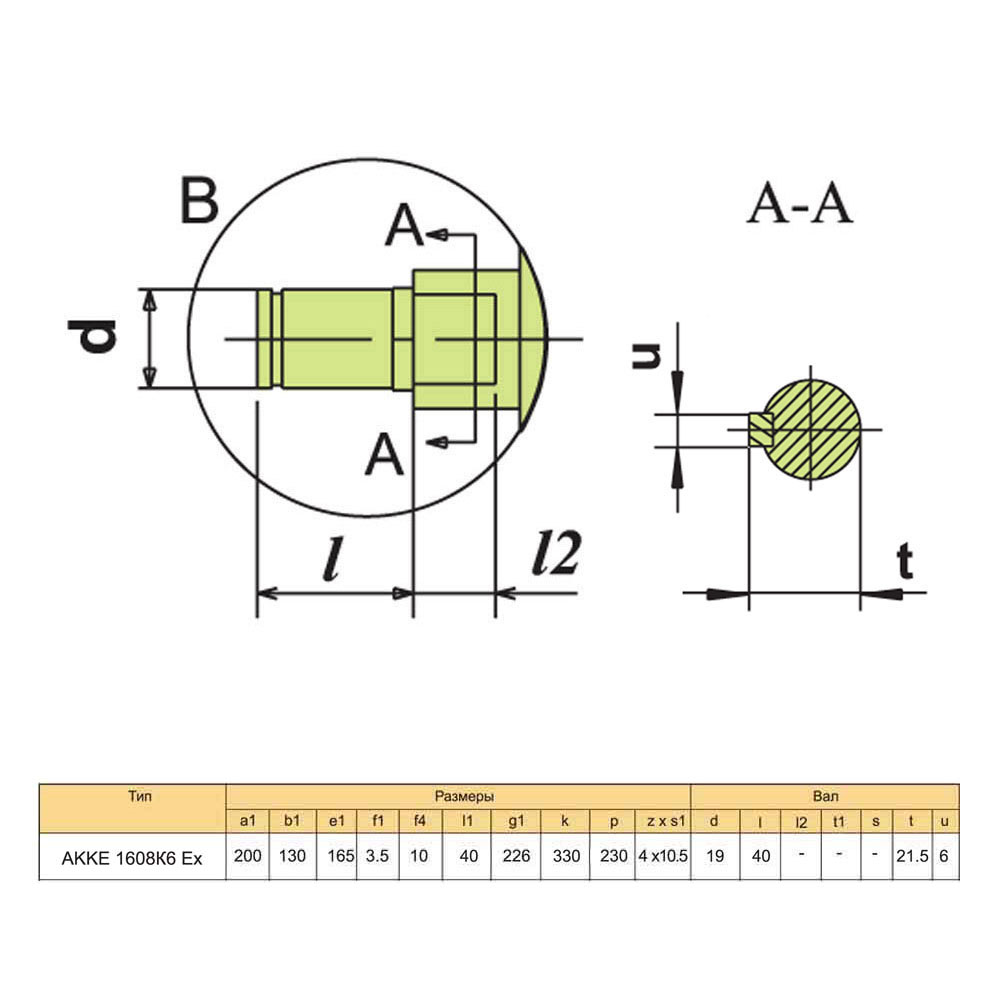

Asynchronous electric motor AKKE 1608K6 Ex
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
380/220 V Y/Δ
Quantity phases
3
Frequency, f
50 Hz
Power electric, Рₑₗ
0.25 kW
Speed of revolution nominal, Nₙₒₘ
940 rpm
Mode of operation
S4
Constructive performance
ІМ В5, ІМ V1, ІМ V3
Installation method
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection
present
Brake
present
Additional parameters
Maximum torque, Mₘₐₓ
6 Nm
Current, І
1,1 А
Oper. Regime
40 %
Number of poles
6
Start/h.
240 H⁻¹
Class thermal insulation
F
Braking torque, Mᵦ
2,2 Nm
Degree of protection
IP 54/22
Warranty
36 months
Mass, m
47 kg
Application area
Running mechanisms of explosion-proof electric hoists
Manufacturer country
Bulgaria
