- Brand: BALKANSKO ECHO
- Product Code: KGE_2009-24_4
- Availability: Pre-order 39 calendar days
99 410 грн.
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
380 V
Quantity phases:
3
Frequency, f :
50 Hz
Electric power, Р₁ :
0,16 kW
Electric power, Р₂ :
1,1 kW
Speed, N₁ :
200 rpm
Speed, N₂ :
1400 rpm
Mode of operation:
S4
Constructive performance:
ІМ В5, ІМ V1, ІМ V3
Installation method:
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

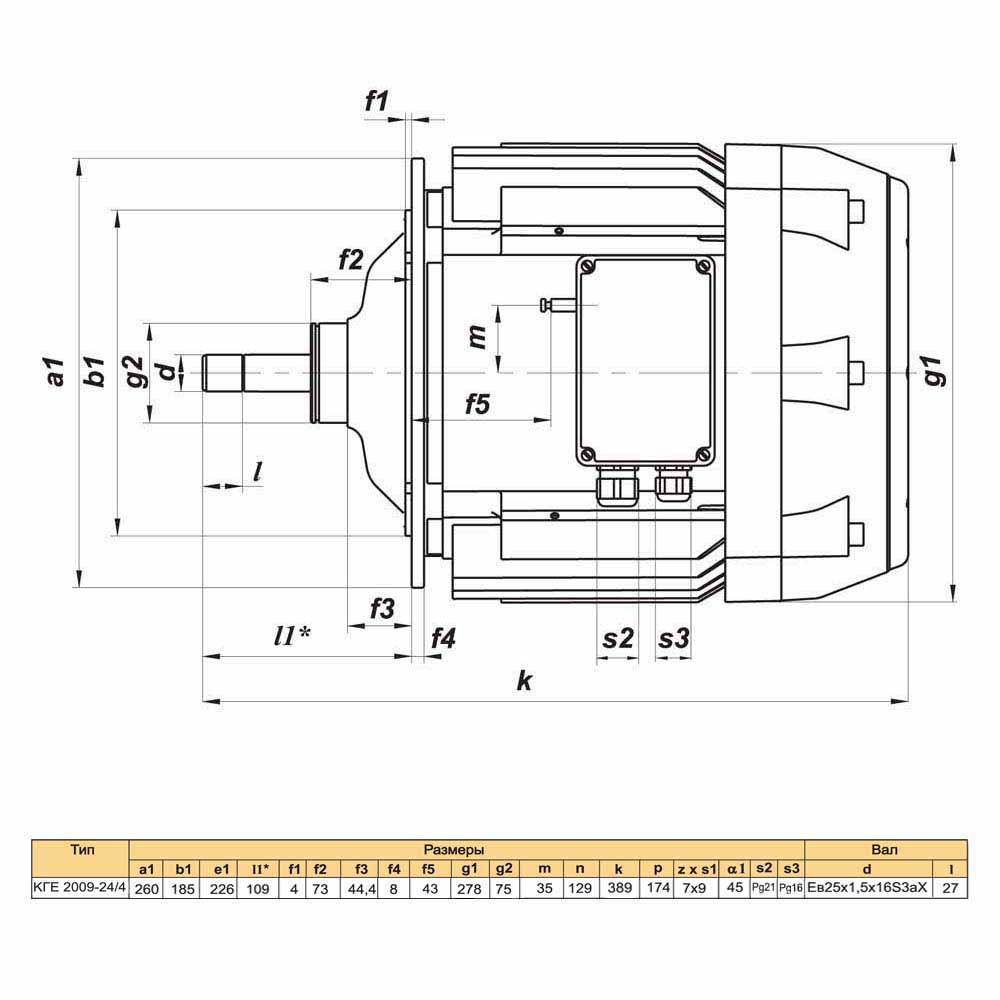

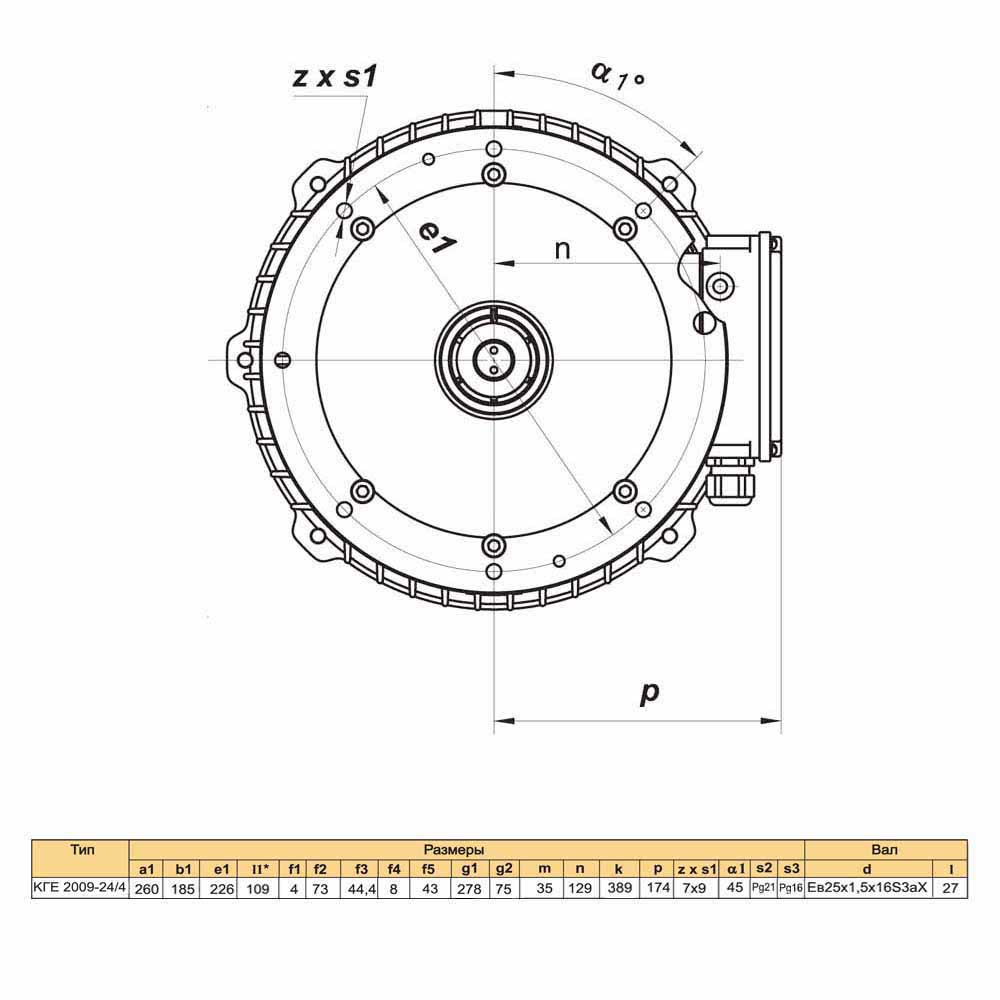

Asynchronous electric motor КГЕ 2009-24/4
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
380 V
Quantity phases
3
Frequency, f
50 Hz
Electric power, Р₁
0,16 kW
Electric power, Р₂
1,1 kW
Speed, N₁
200 rpm
Speed, N₂
1400 rpm
Mode of operation
S4
Constructive performance
ІМ В5, ІМ V1, ІМ V3
Installation method
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection
missing
Additional parameters
Torgue starting/maximum, М₁max
16 Nm
Torgue starting/maximum, М₂max
16 Nm
Current, I₁
3 A
Current, I₂
3,5 A
Oper. Regime₁
25 %
Oper. Regime₂
50 %
Number of poles
4, 24
Start/h.
300 H⁻¹
Class thermal insulation
F
Braking torque, Mᵦ
15 Nm
Degree of protection
IP 54
Warranty
36 months
Mass, m
48 kg
Application area
Main lifting mechanism of rope hoists series T
Manufacturer country
Bulgaria
