- Brand: BALKANSKO ECHO
- Product Code: KKE_1404P12_4_Ex
- Availability: Pre-order 39 calendar days
0.00€
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
380 V
Quantity phases:
3
Frequency, f :
50 Hz
Electric power, Р₁ :
0,06 kW
Electric power, Р₂ :
0,18 kW
Speed, N₁ :
430 rpm
Speed, N₂ :
1380 rpm
Mode of operation:
S4
Constructive performance:
ІМ В5, ІМ V1, ІМ V3
Installation method:
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection:
present
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

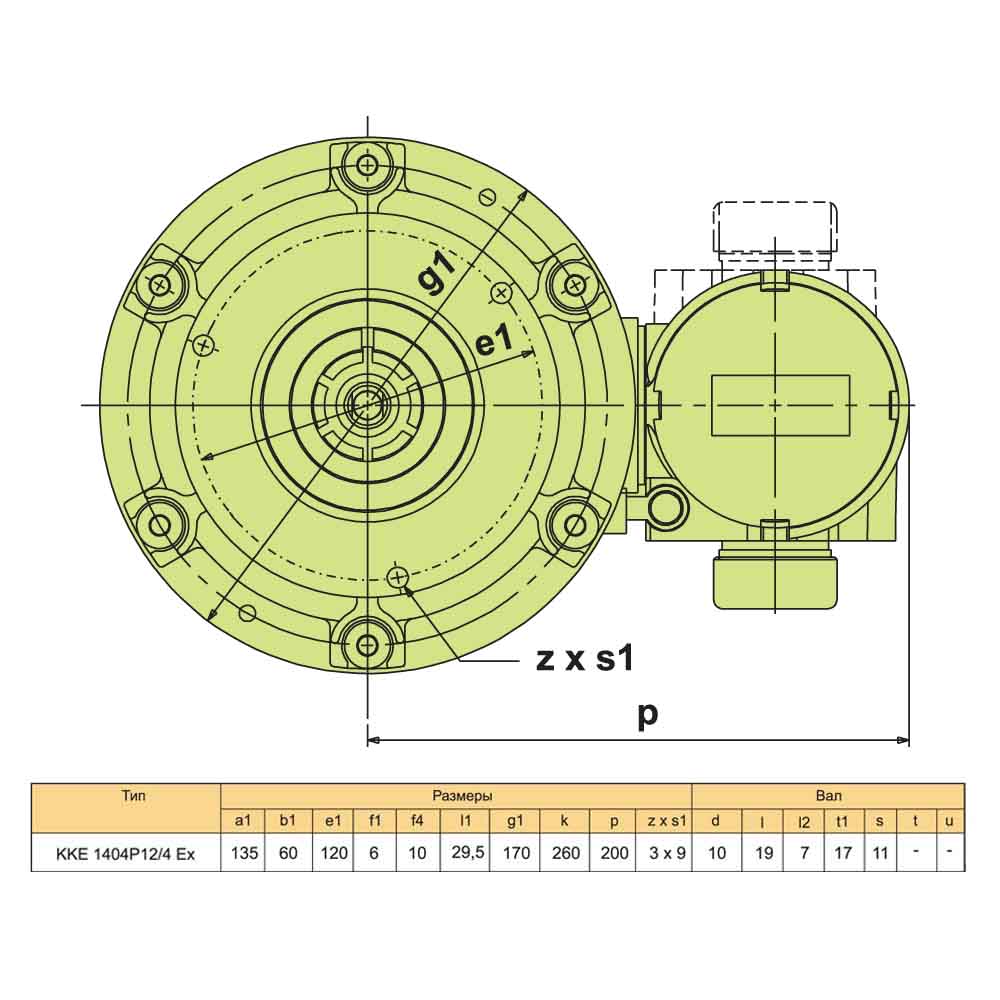

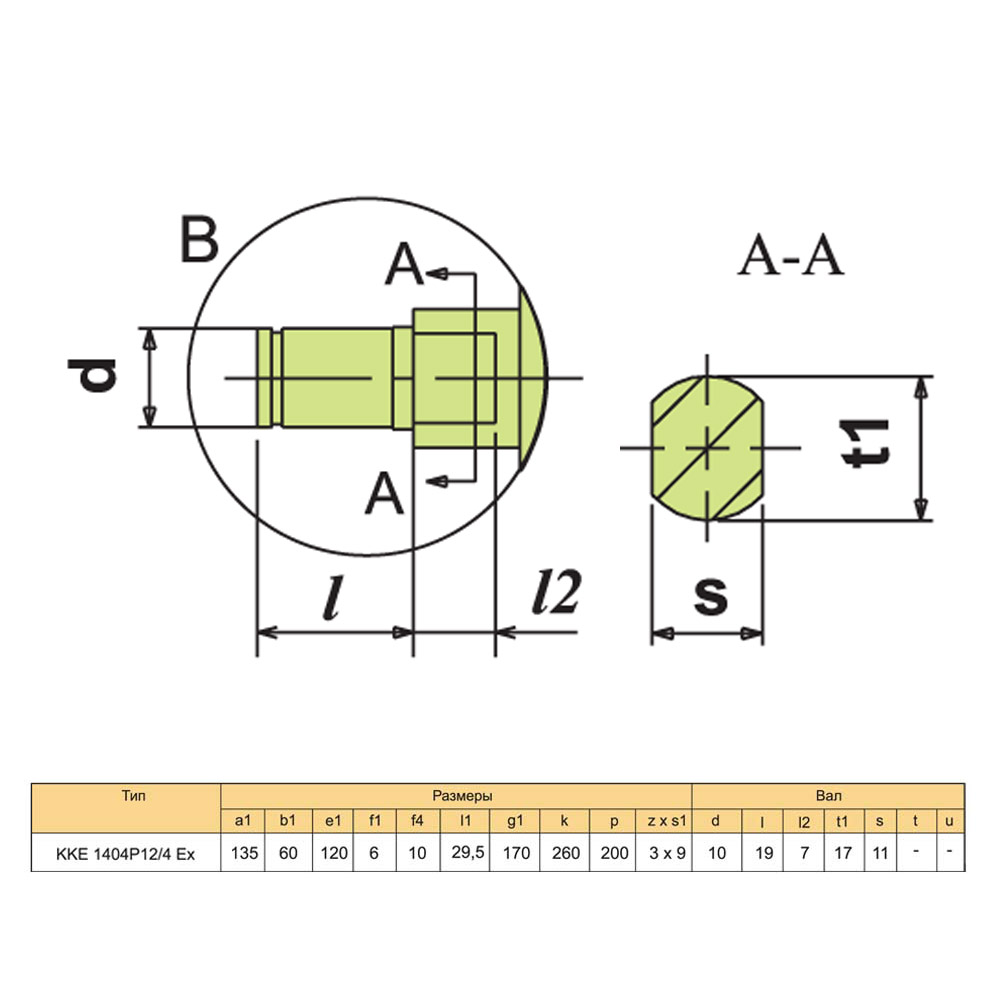

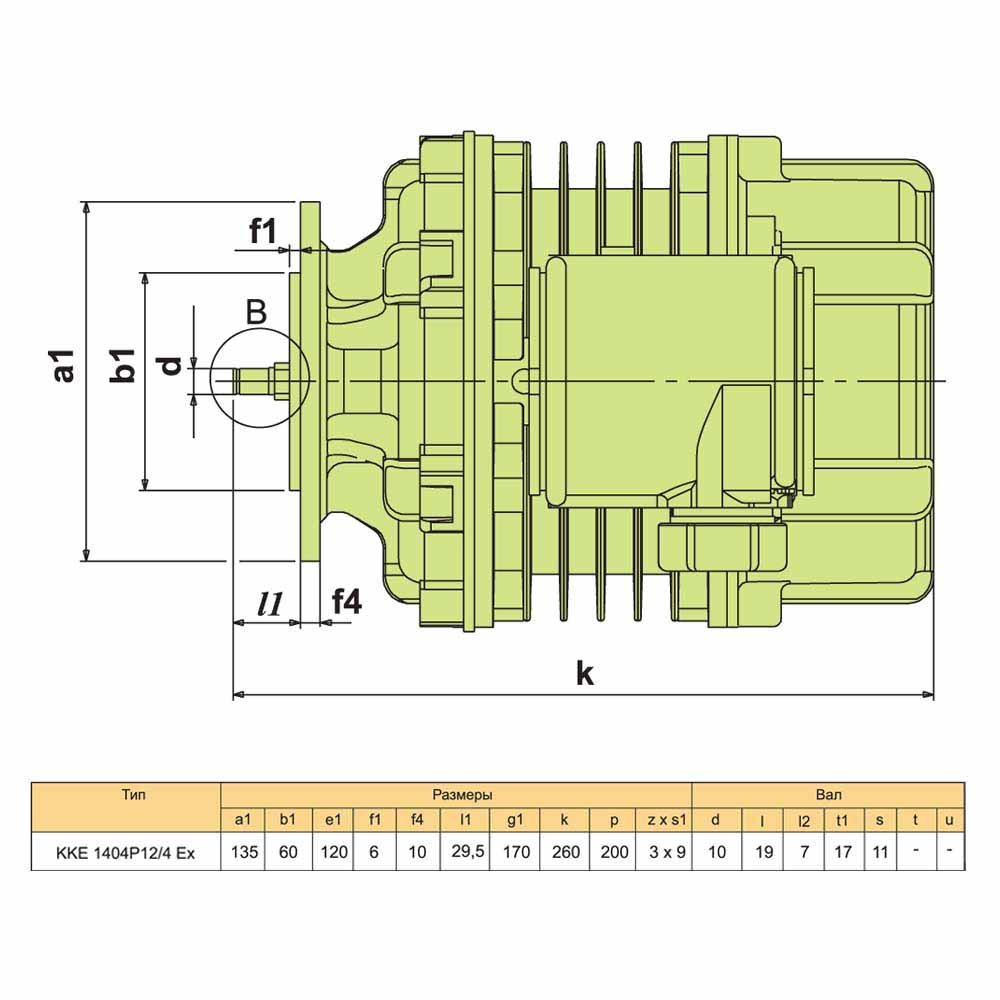

Asynchronous electric motor KKE 1404P12/4 Ex
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
380 V
Quantity phases
3
Frequency, f
50 Hz
Electric power, Р₁
0,06 kW
Electric power, Р₂
0,18 kW
Speed, N₁
430 rpm
Speed, N₂
1380 rpm
Mode of operation
S4
Constructive performance
ІМ В5, ІМ V1, ІМ V3
Installation method
ІМ 3001, ІМ 3011, ІМ 3031
Explosion protection
present
Additional parameters
Torgue starting/maximum, М₁max
3 Nm
Torgue starting/maximum, М₂max
2,7 Nm
Current, I₁
1,3 A
Current, I₂
0,8 A
Oper. Regime₁
20 %
Oper. Regime₂
40 %
Number of poles
4, 12
Start/h.
240 H⁻¹
Class thermal insulation
F
Braking torque, Mᵦ
0,9 Nm
Degree of protection
IP 54
Warranty
36 months
Mass, m
24 kg
Application area
Main lifting mechanism of explosion-proof rope hoists series BT, BMT
Manufacturer country
Bulgaria
