- Brand: BALKANSKO ECHO
- Product Code: MKTE_3518-24_4
- Availability: Pre-order 39 calendar days
0.00€
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
380 V
Quantity phases:
3
Frequency, f :
50 Hz
Electric power, Р₁ :
4 kW
Electric power, Р₂ :
24 kW
Speed, N₁ :
210 rpm
Speed, N₂ :
1400 rpm
Mode of operation:
S4
Explosion protection:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

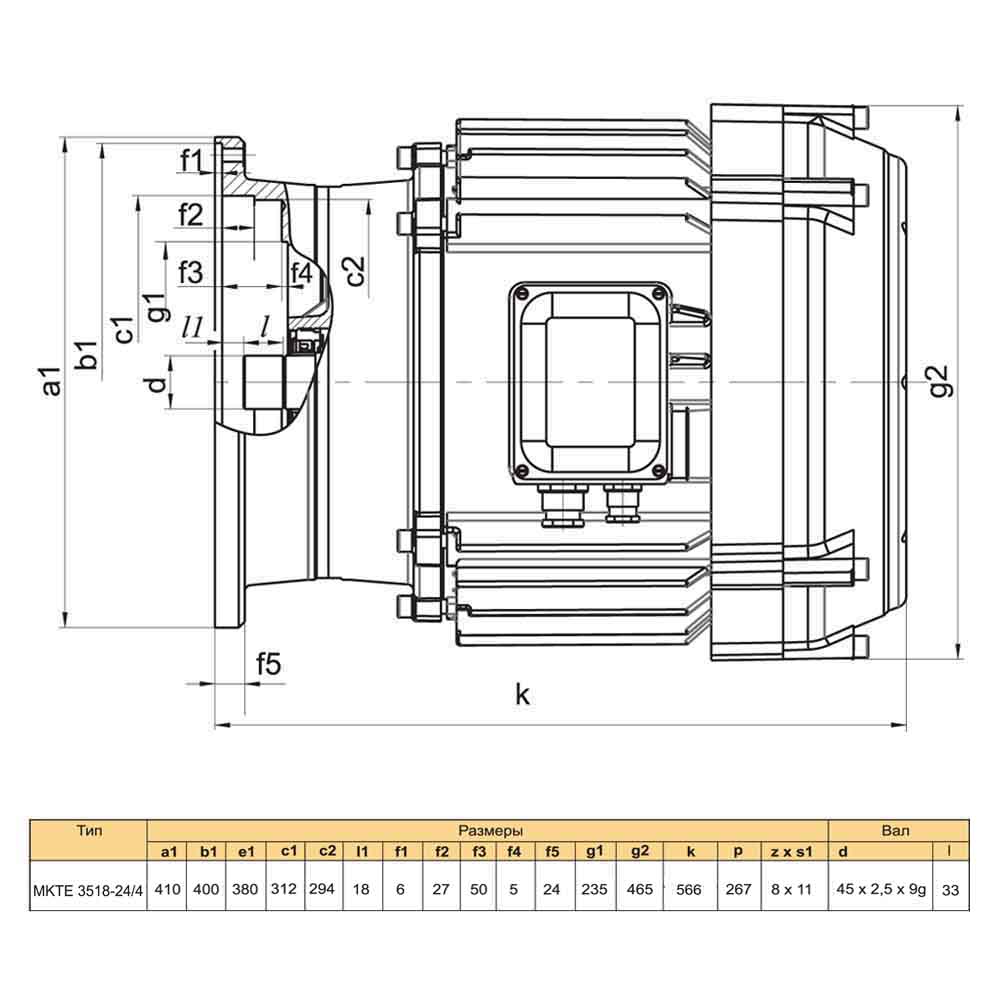

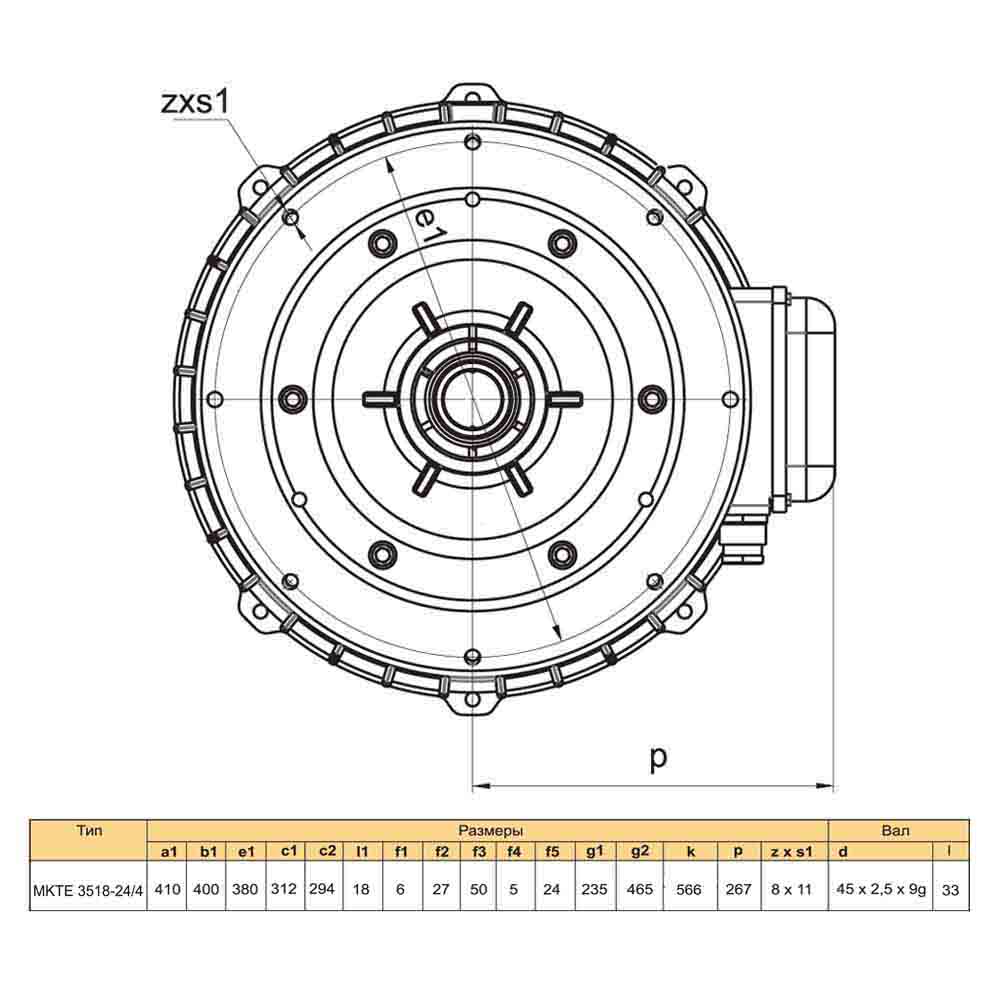

Asynchronous electric motor MKTE 3518-24/4
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
380 V
Quantity phases
3
Frequency, f
50 Hz
Electric power, Р₁
4 kW
Electric power, Р₂
24 kW
Speed, N₁
210 rpm
Speed, N₂
1400 rpm
Mode of operation
S4
Explosion protection
missing
Additional parameters
Torgue starting/maximum, М₁max
360 Nm
Torgue starting/maximum, М₂max
380 Nm
Current, I₁
65 A
Current, I₂
48 A
Oper. Regime₁
10 %
Oper. Regime₂
40 %
Number of poles
4, 24
Start/h.
240 H⁻¹
Class thermal insulation
F
Braking torque, Mᵦ
290 Nm
Degree of protection
IP 54
Warranty
36 months
Mass, m
253 kg
Application area
Main lifting mechanism of rope hoists of MPM series
Manufacturer country
Bulgaria
