- Name: Asynchronous electric motor 1AL-80M2-4
- Brand: VYBO Electric
- Product Code: 1AL-80M2-4
- Availability: Pre-order 39 calendar days
11 819 грн.
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
230/400 V Δ/Y
Quantity phases:
3
Frequency, f :
50 Hz
Power electric, Рₑₗ :
0.75 kW
Power mechanical, Pₘ :
1 hp
Speed of revolution nominal, Nₙₒₘ :
1390 rpm
Energy efficiency class:
IE1
Axle height, H :
80 mm
Mode of operation:
S1, S2, S3, S4, S5, S6, S7, S8, S9

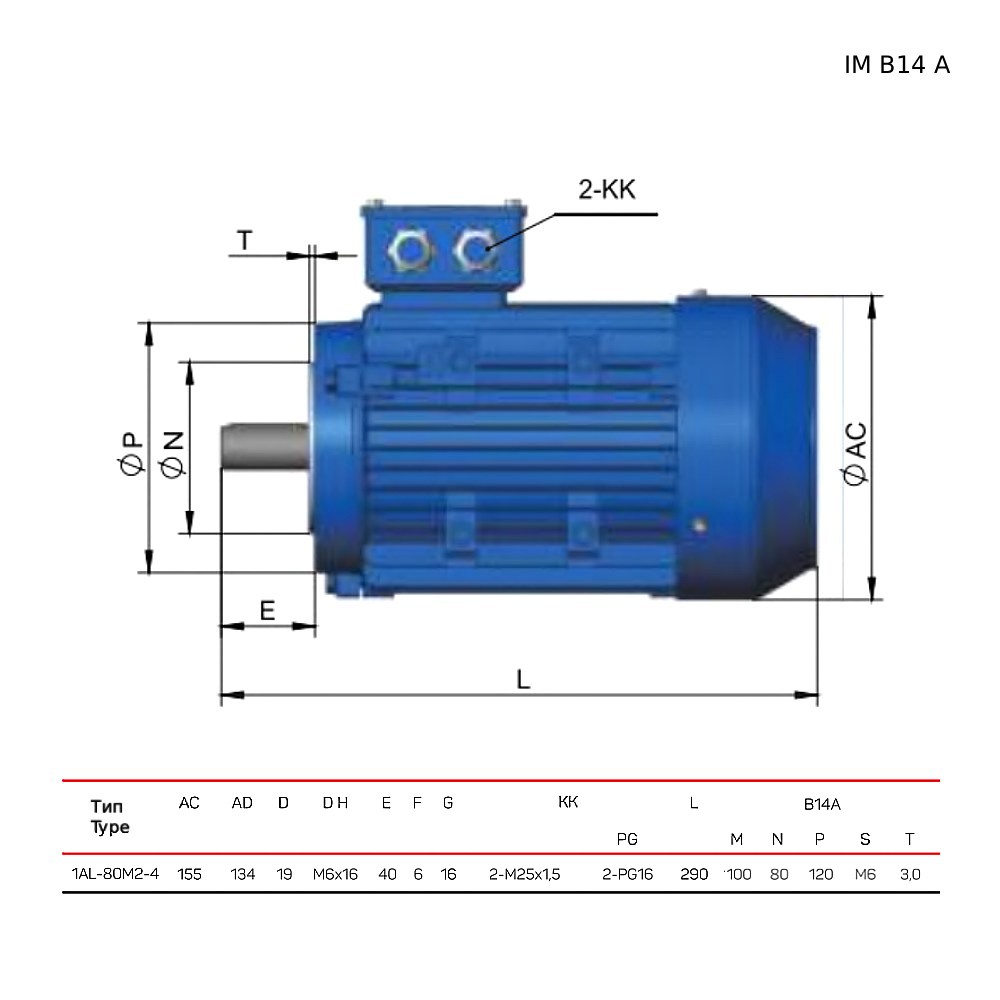

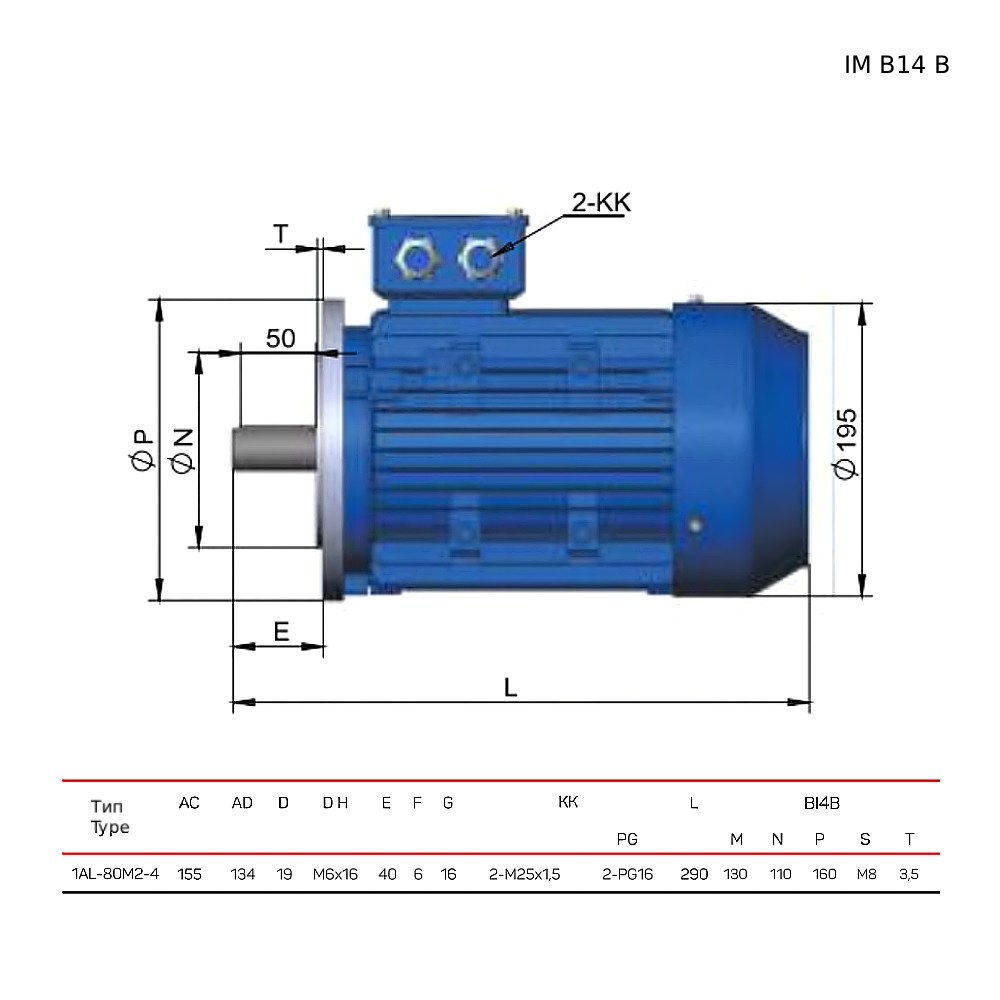

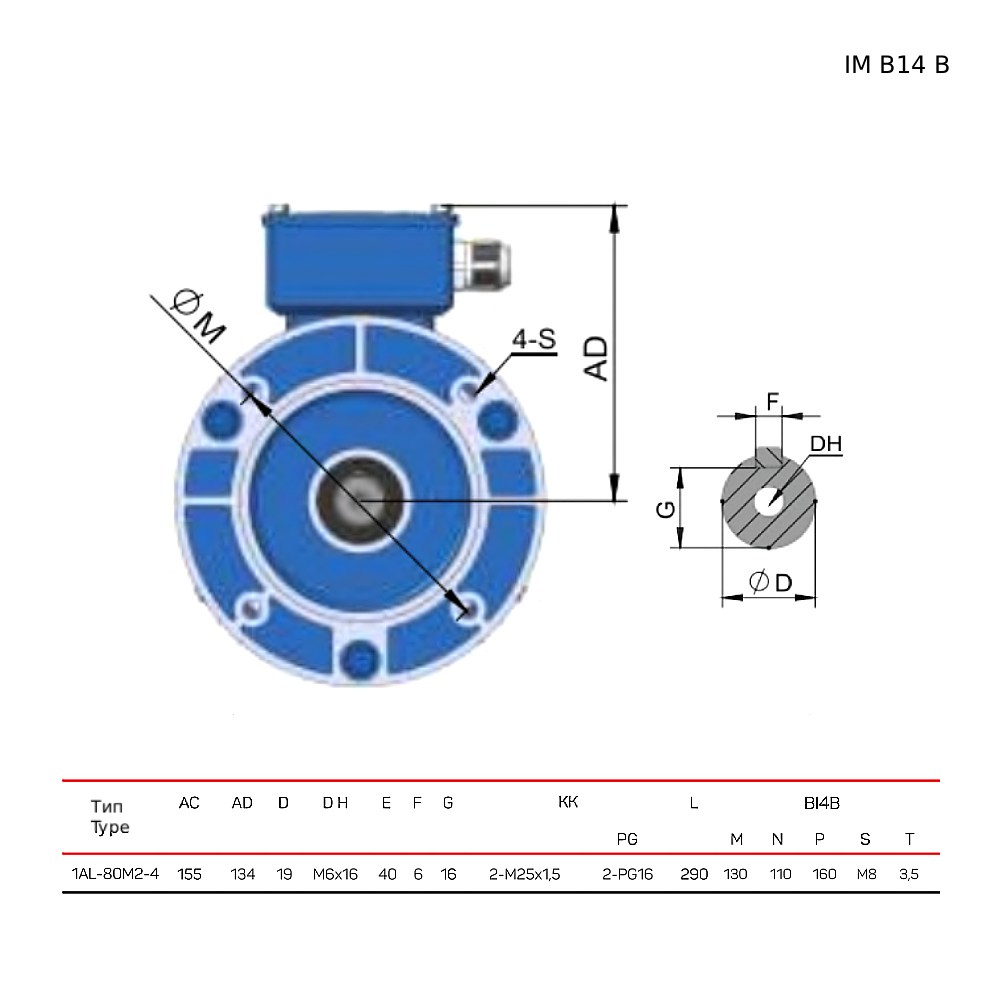

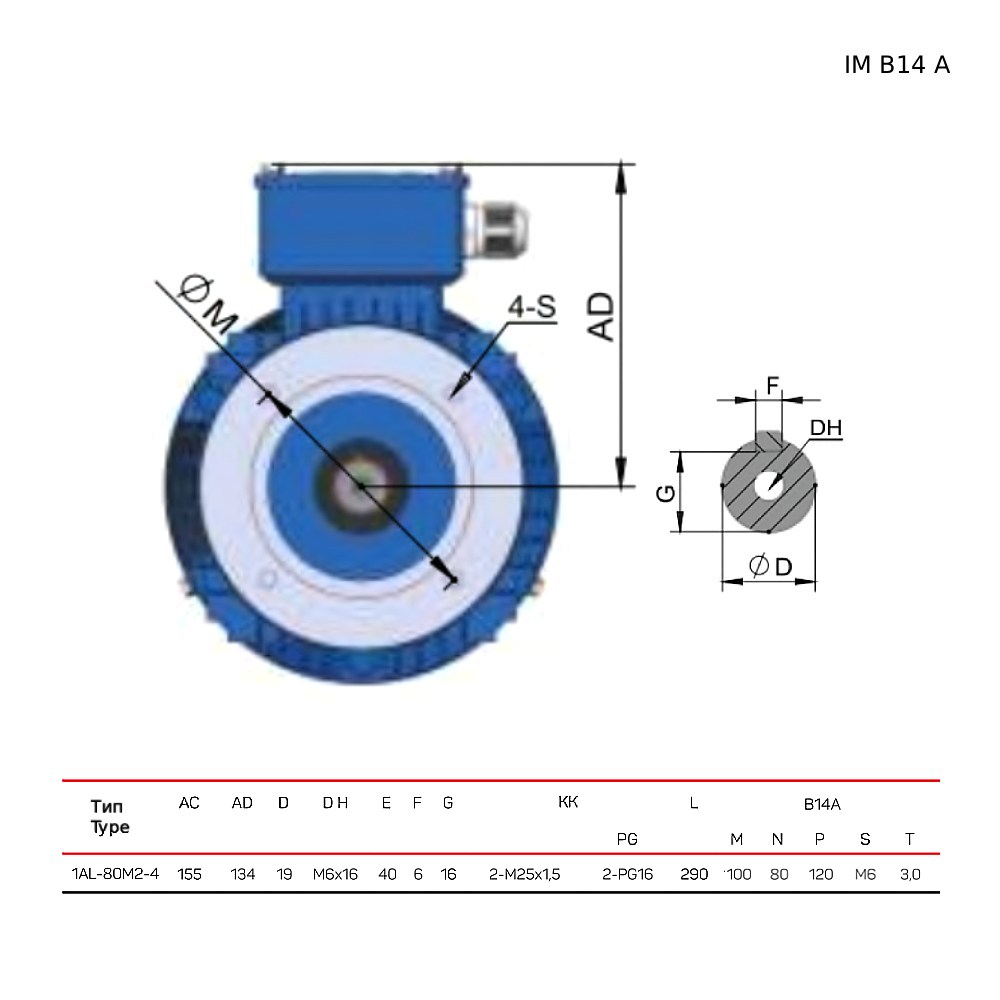

Constructive performance:
ІМ В14, ІМ V18, ІМ V19
Installation method:
ІМ 3601, ІМ 3611, ІМ 3631
Explosion protection:
missing
Brake:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Asynchronous electric motor 1AL-80M2-4
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
230/400 V Δ/Y
Quantity phases
3
Frequency, f
50 Hz
Power electric, Рₑₗ
0.75 kW
Power mechanical, Pₘ
1 hp
Speed of revolution nominal, Nₙₒₘ
1390 rpm
Energy efficiency class
IE1
Axle height, H
80 mm
Mode of operation
S1, S2, S3, S4, S5, S6, S7, S8, S9
Constructive performance
ІМ В14, ІМ V18, ІМ V19
Installation method
ІМ 3601, ІМ 3611, ІМ 3631
Explosion protection
missing
Brake
missing
Additional parameters
Current, І
1.85 A
Number of poles
4
PF
0.76
ETA
73,0%
Class thermal insulation
F
Degree of protection
IP 55
Warranty
12 months
Mass, m
11 kg
Manufacturer country
Slovakia
