- Name: Asynchronous electric motor MRS 90L-4
- Brand: MMOTORS JSC
- Product Code: MRS_90L-4
- Availability: Pre-order 39 calendar days
18 945 грн.
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
220/240 V Y/Δ
Quantity phases:
1
Frequency, f :
50 Hz
Power electric, Рₑₗ :
1.5 kW
Power mechanical, Pₘ :
2.0 hp
Speed of revolution nominal, Nₙₒₘ :
1420 rpm
Axle height, H :
90 mm
Mode of operation:
S1
Constructive performance:
ІМ В3, ІМ В5, ІМ В6, ІМ В7, ІМ В8, ІМ В14, ІМ V1, ІМ V3, ІМ V5, ІМ V6, ІМ V18, ІМ V19
Installation method:
ІМ 1001, ІМ 1002, ІМ 1011, ІМ 1012, ІМ 1031, ІМ 1032, ІМ 1051, ІМ 1052, ІМ 1061, ІМ 1062, ІМ 1071, ІМ 1072, ІМ 3001, ІМ 3002, ІМ 3011, ІМ 3012, ІМ 3031, ІМ 3032, ІМ 3601, ІМ 3602, ІМ 3611, ІМ 3612, ІМ 3631, ІМ 3632
Explosion protection:
missing
Brake:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Asynchronous electric motor MRS 90L-4 is shipped from the territory of Bulgaria and Ukraine throughout the WORLD
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
220/240 V Y/Δ
Quantity phases
1
Frequency, f
50 Hz
Power electric, Рₑₗ
1.5 kW
Power mechanical, Pₘ
2.0 hp
Speed of revolution nominal, Nₙₒₘ
1420 rpm
Axle height, H
90 mm
Mode of operation
S1

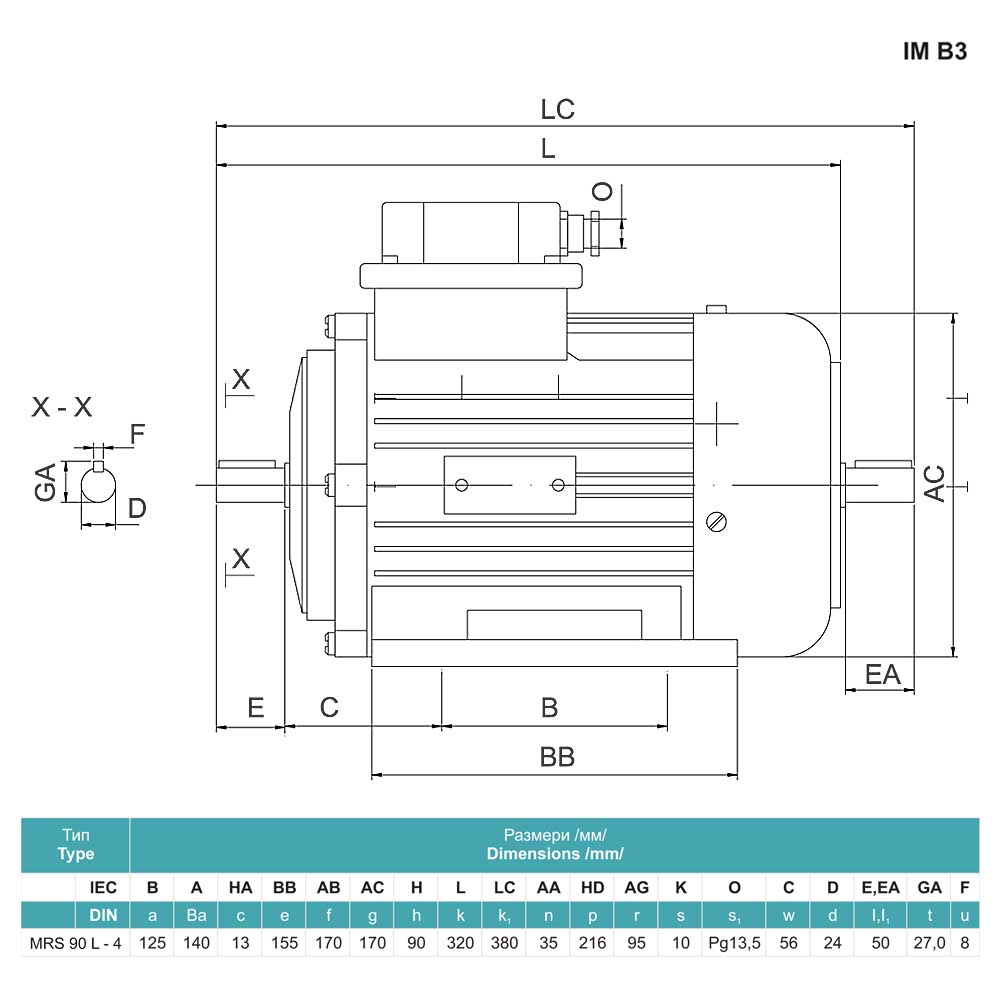

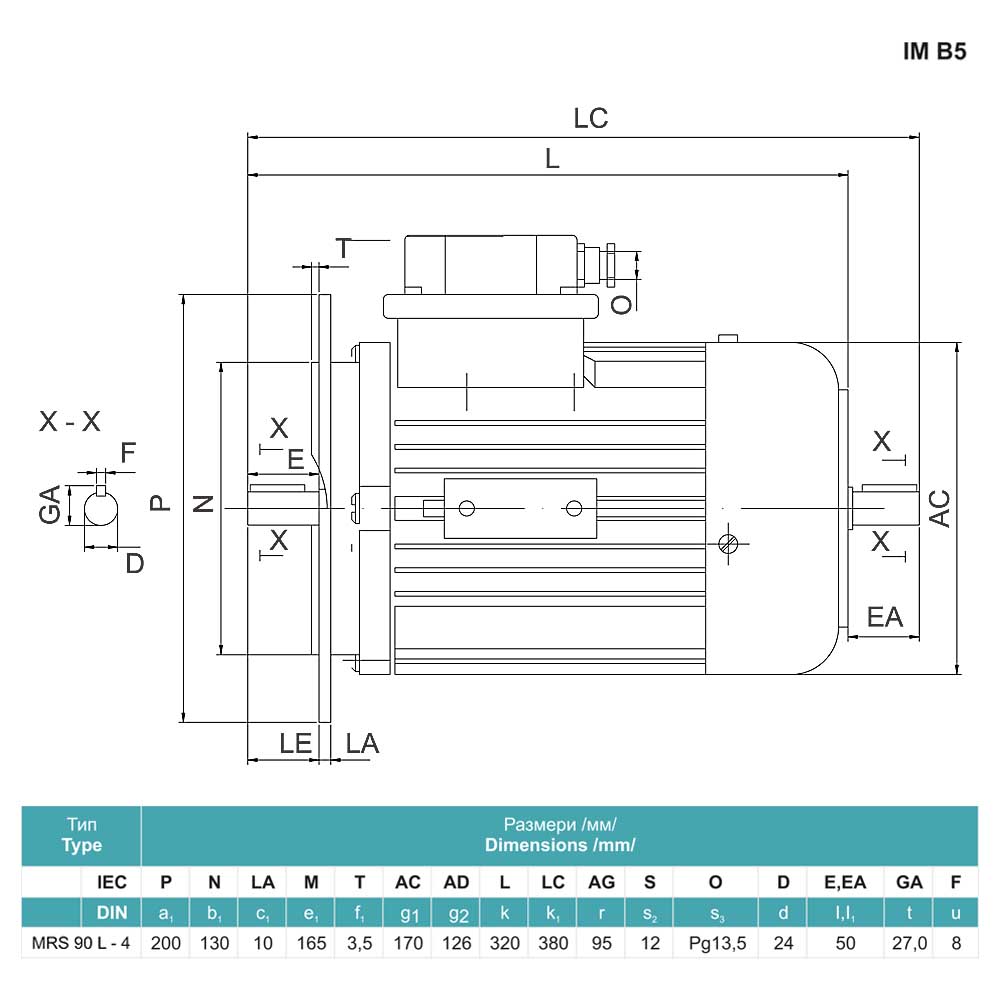

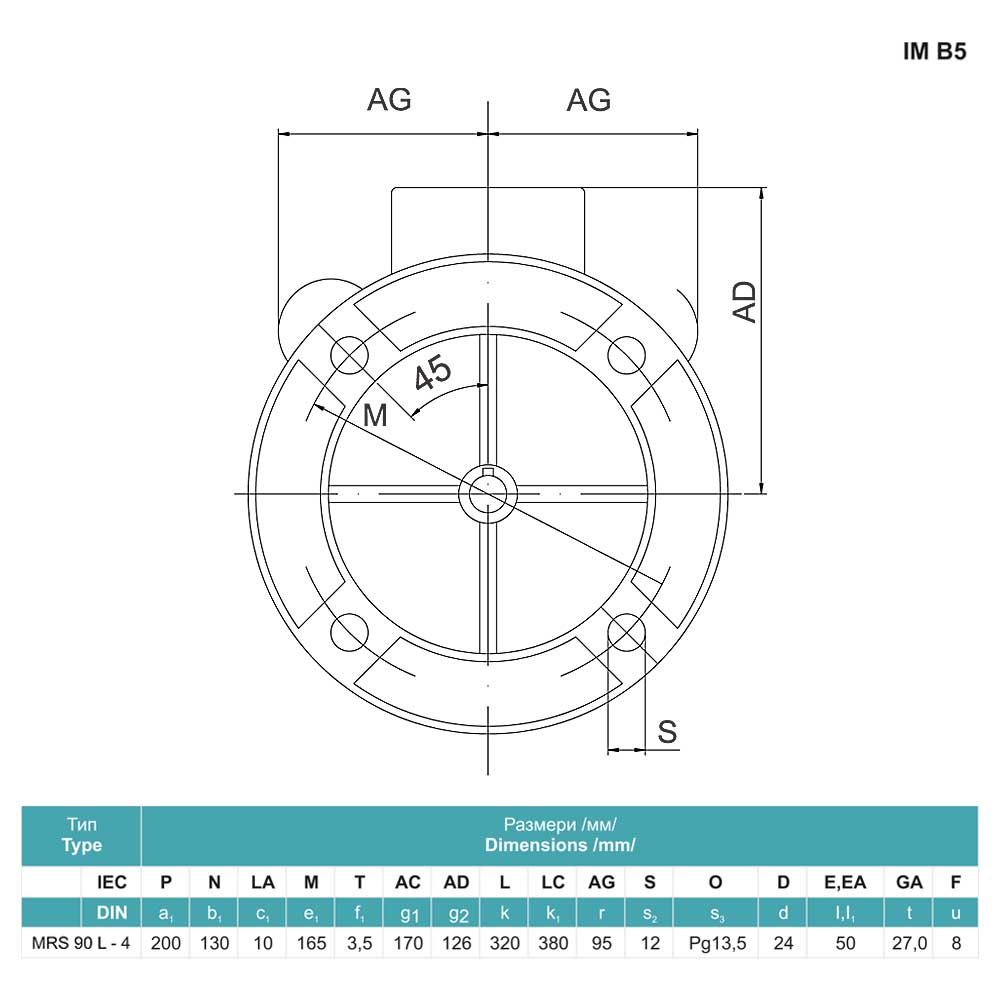

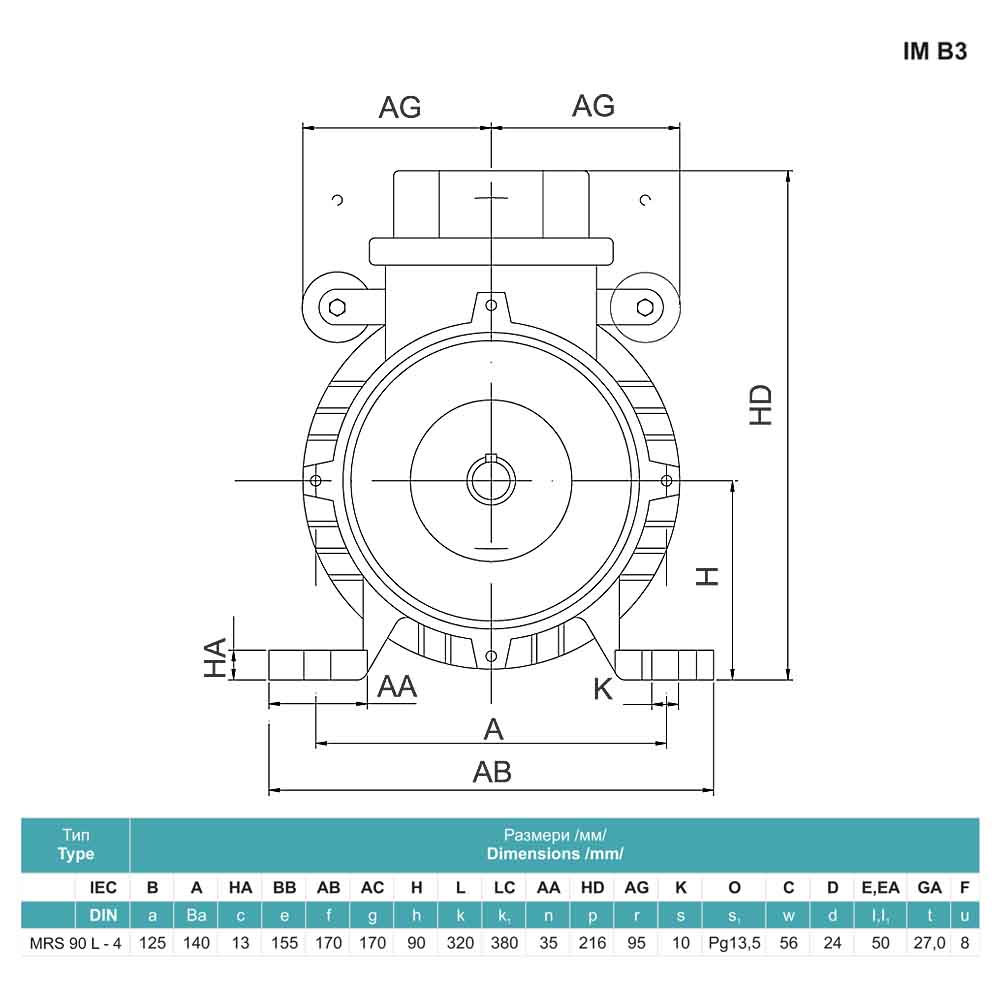

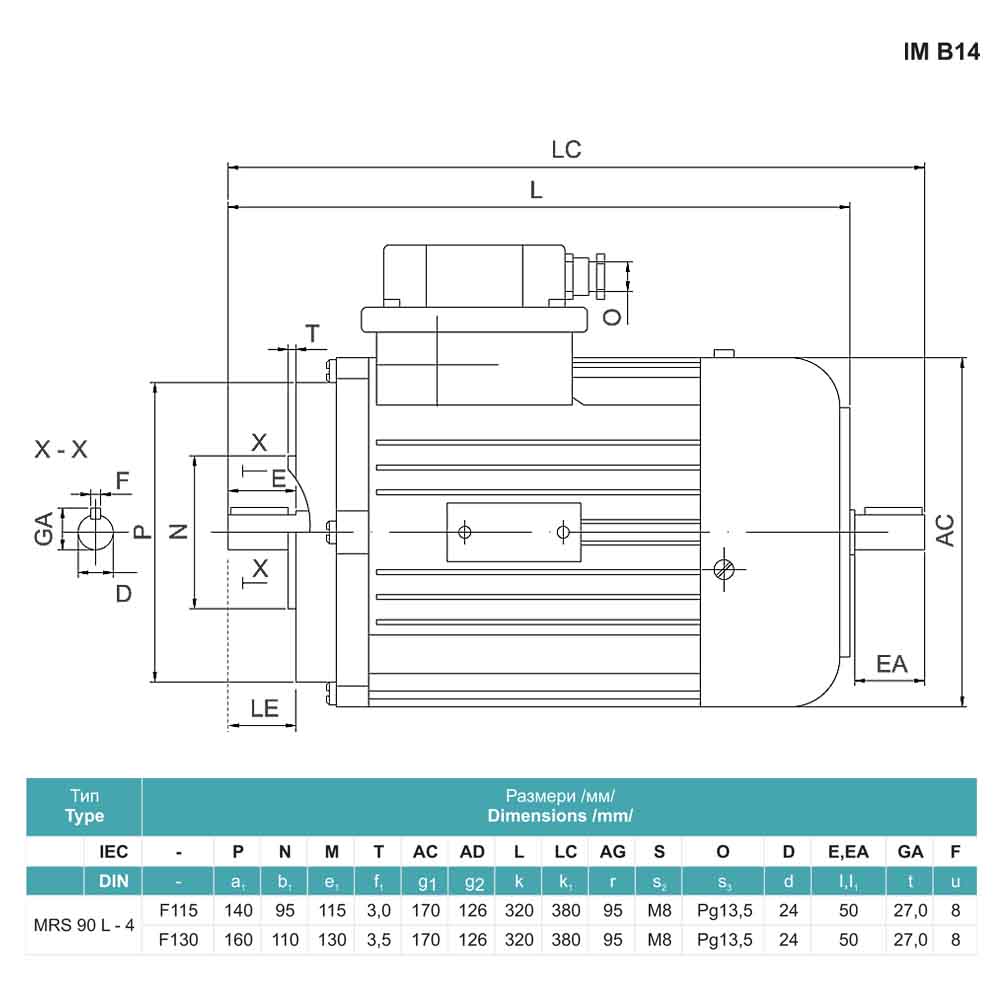

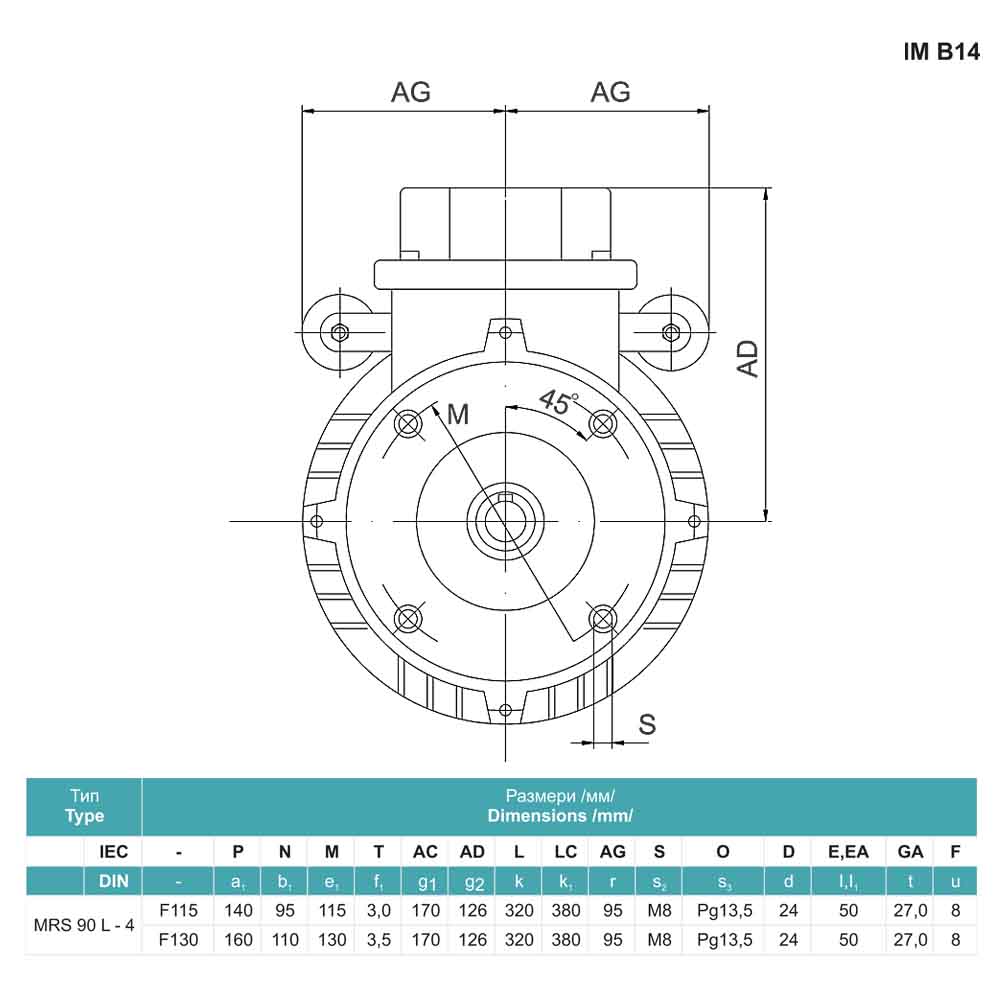

Constructive performance
ІМ В3, ІМ В5, ІМ В6, ІМ В7, ІМ В8, ІМ В14, ІМ V1, ІМ V3, ІМ V5, ІМ V6, ІМ V18, ІМ V19
Installation method
ІМ 1001, ІМ 1002, ІМ 1011, ІМ 1012, ІМ 1031, ІМ 1032, ІМ 1051, ІМ 1052, ІМ 1061, ІМ 1062, ІМ 1071, ІМ 1072, ІМ 3001, ІМ 3002, ІМ 3011, ІМ 3012, ІМ 3031, ІМ 3032, ІМ 3601, ІМ 3602, ІМ 3611, ІМ 3612, ІМ 3631, ІМ 3632
Explosion protection
missing
Brake
missing
Additional parameters
Current, І
9,5 А
Number of poles
4
PF
0.92
ETA
74 %
Class thermal insulation
F
Degree of protection
IP 54/55
Warranty
18 months
Mass, m
15,4 kg
Manufacturer country
Bulgaria
