- Name: Graphite carbon brush H12 6x10x20 K13-2 set
- Brand: ZTV
- Product Code: H12_6x10x20_K13-2
- Availability: Pre-order 39 calendar days
3.24€
Main specifications
All specifications
Material:
H12
Analog material:
G20
Сonstruction by ГОСТ Р 53617-2009:
К13-2
Сonstruction by IEC 60276:
CL07D
Conductor length by ГОСТ 12232-89, no less, L :
25 mm
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
IEC 60276 tip shape:
X
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

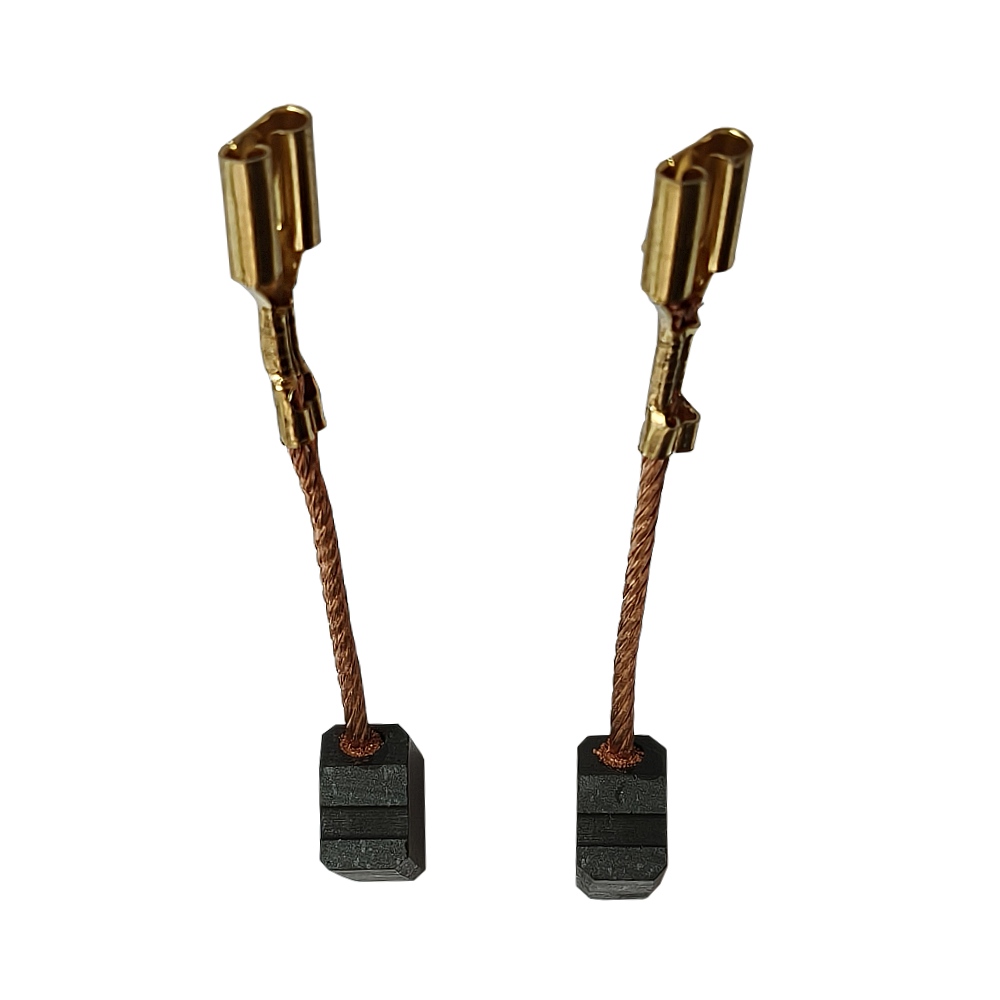

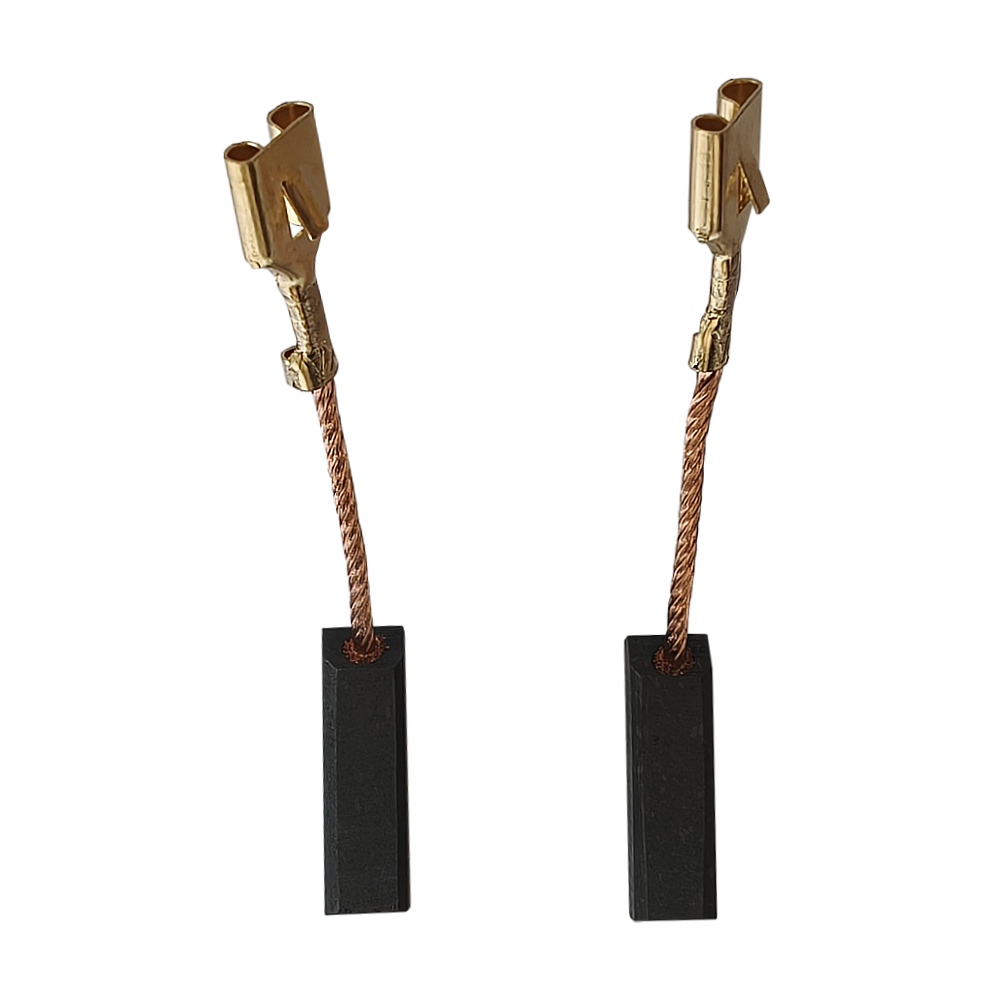

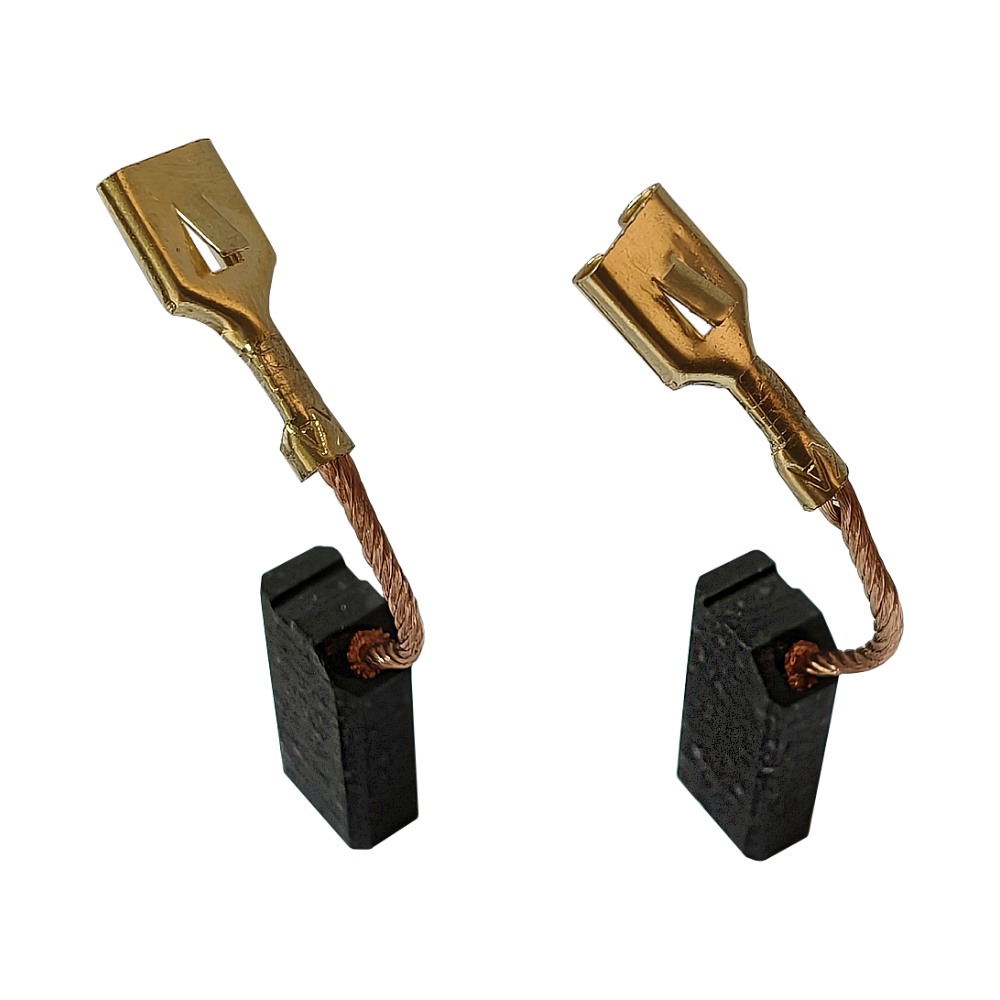

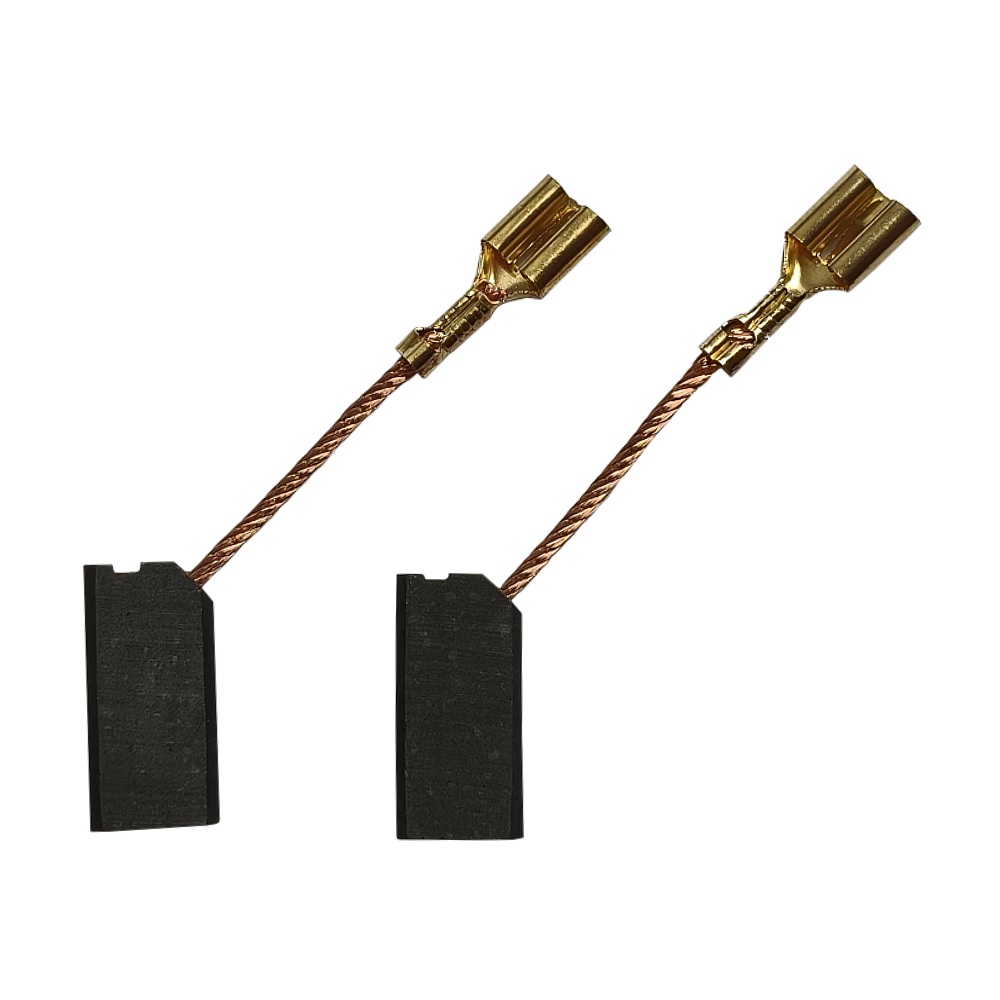

Graphite carbon brush H12 6x10x20 K13-2 set
Specifications
Main characteristics
Material
H12
Analog material
G20
Сonstruction by ГОСТ Р 53617-2009
К13-2
Сonstruction by IEC 60276
CL07D
Conductor length by ГОСТ 12232-89, no less, L
25 mm
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
IEC 60276 tip shape
X
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
110 HRB 10/40
Specific electrical resistance, p
800 μΩ·m
Current density, j
0,08 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
2.5-3.5 V
Brush pressure, p
40 kPa
Circum velocity, Vₚₑᵣ
45 m/s
Friction factor, μ
0.15
Manufacturer country
Bulgaria
