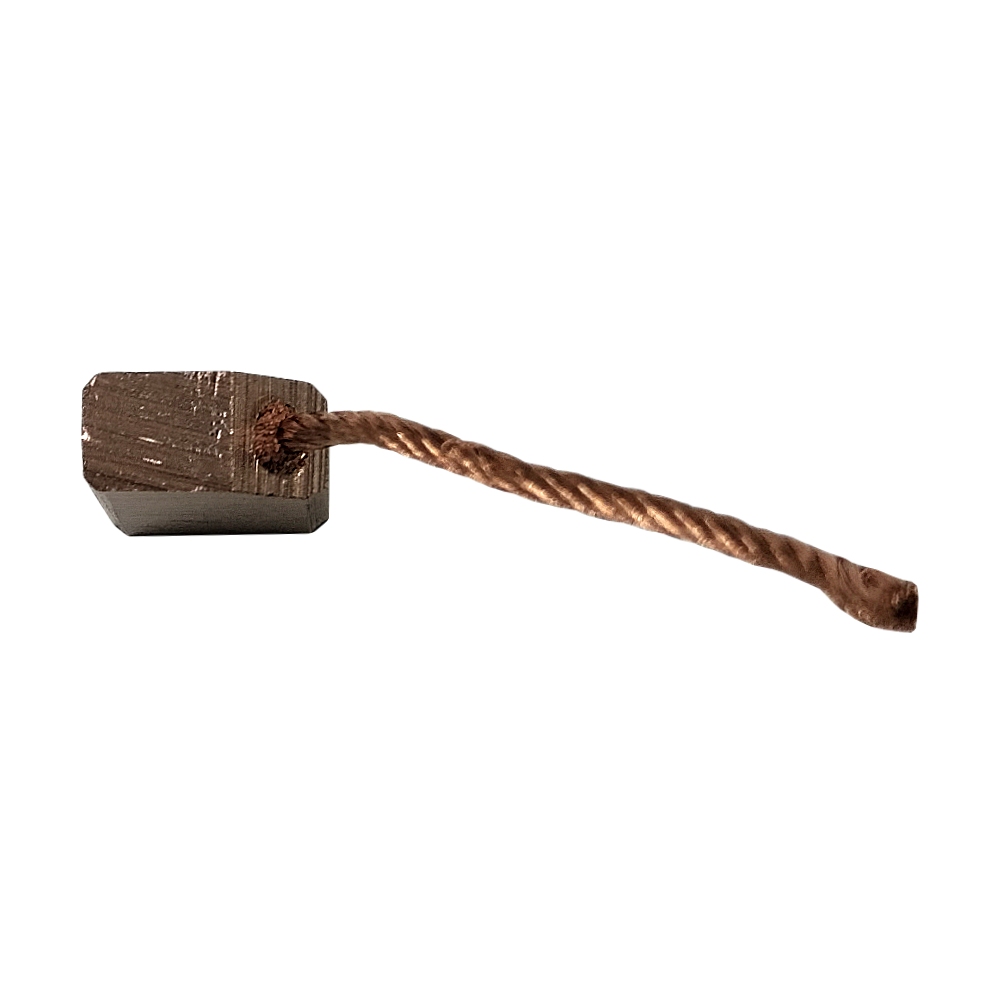

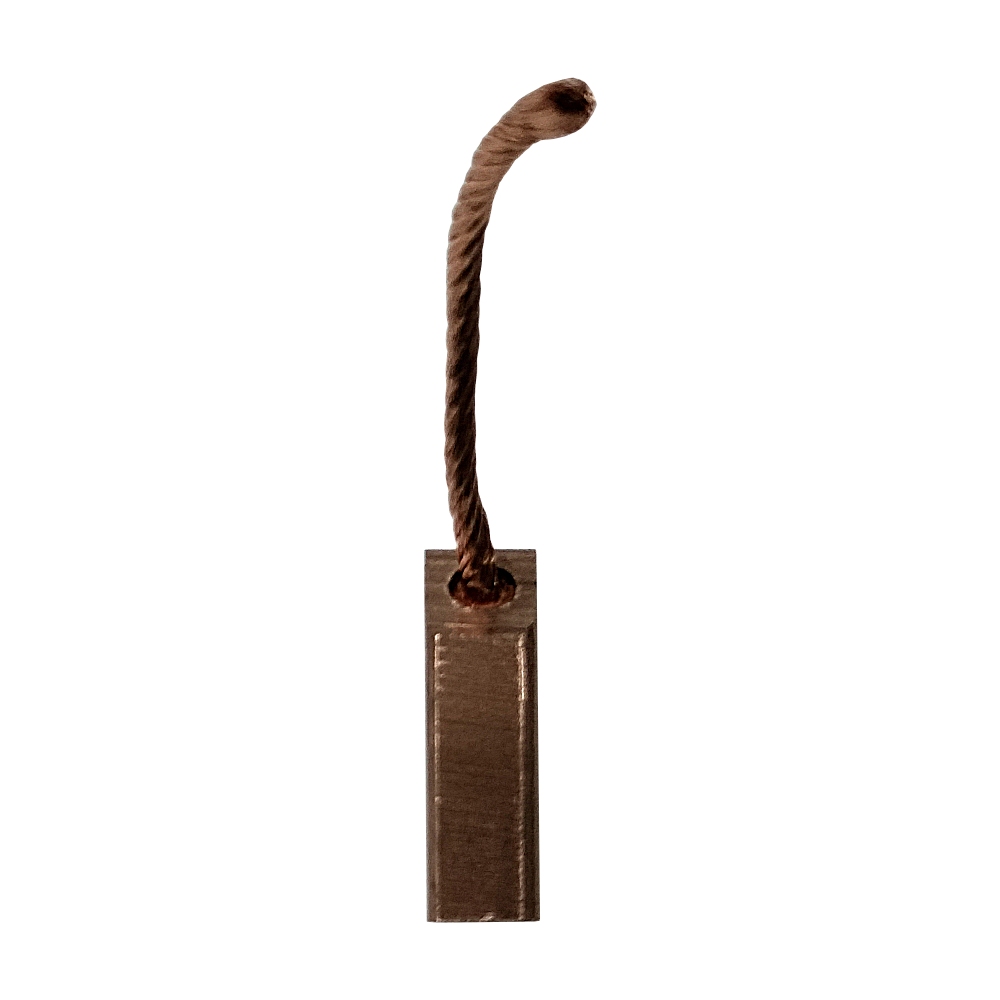

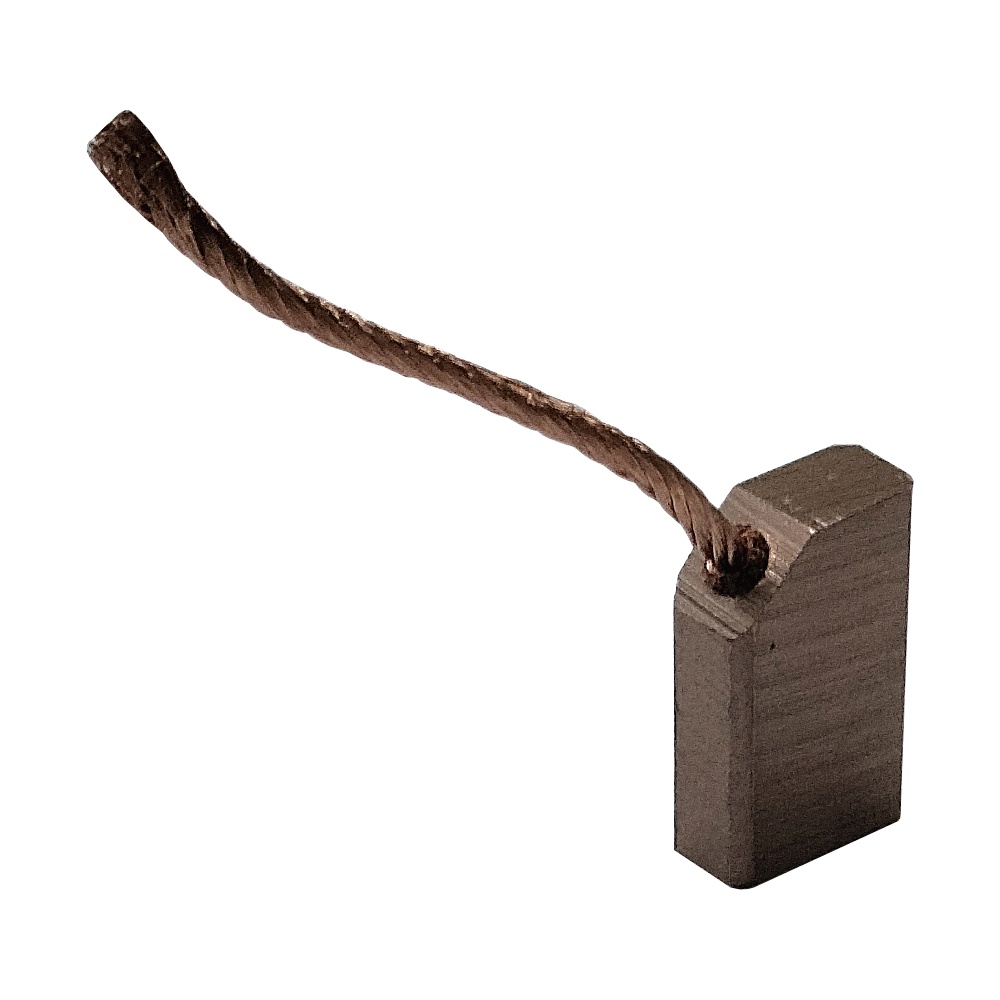

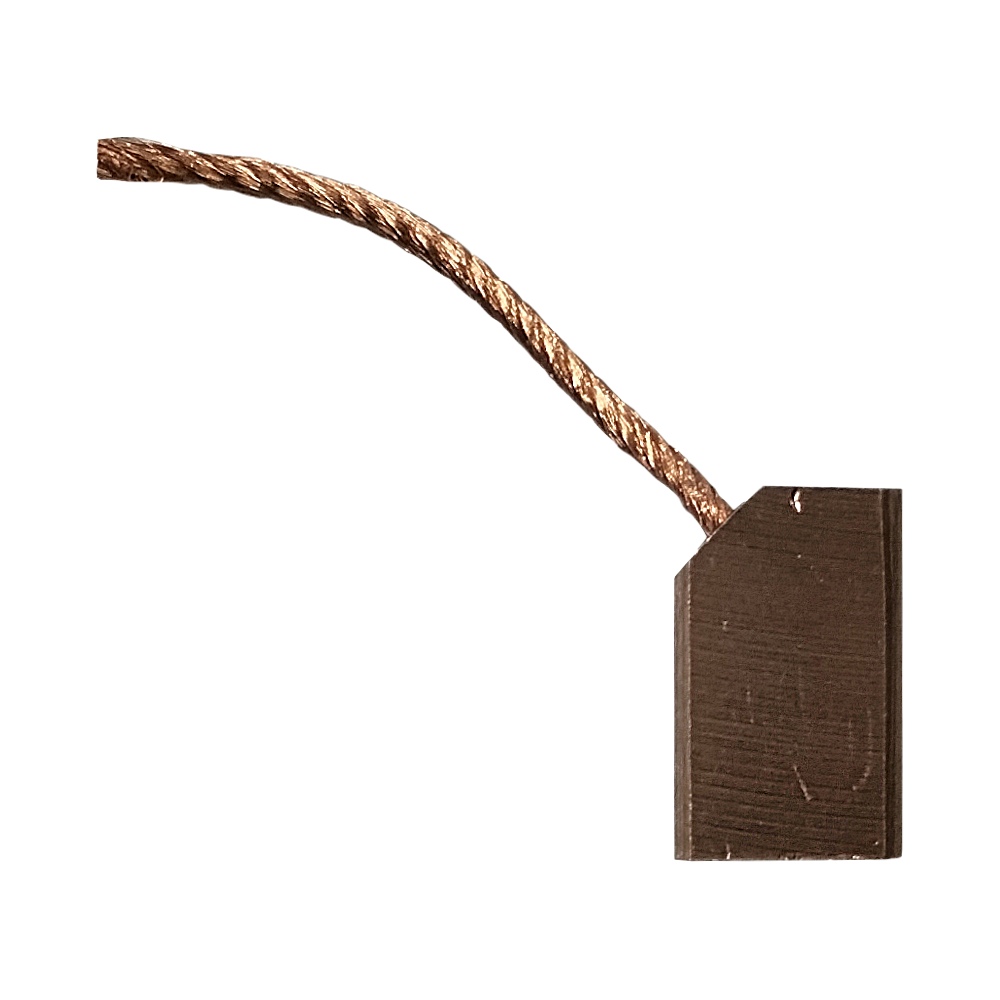

Copper graphite brush M10 5x10x16 K4-2

Reviews:

(0)

Name: Copper graphite brush M10 5x10x16 K4-2
Brand: ZTV
Product Code: M10_5x10x16_K4-2
Availability: In Stock

0.90€

Main specifications

All specifications

Material: М10

Analog material: CM1S, MG, M87

Сonstruction by ГОСТ Р 53617-2009: К4-2

Сonstruction by IEC 60276: CL06A

Conductor length by ГОСТ 12232-89, no less, L : 35 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: missing

IEC 60276 tip shape: No

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Copper graphite brush M10 5x10x16 K4-2

Specifications

Main characteristics

Material

М10

Analog material

CM1S, MG, M87

Сonstruction by ГОСТ Р 53617-2009

К4-2

Сonstruction by IEC 60276

CL06A

Conductor length by ГОСТ 12232-89, no less, L

35 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

missing

IEC 60276 tip shape

No

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

6-17 HR

Specific electrical resistance, p

0.08-0.15 μΩ·m

Current density, j

0,2 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

0.15-0.30 V

Brush pressure, p

200 kPa

Circum velocity, Vₚₑᵣ

20 m/s

Friction factor, μ

0.20

Manufacturer country

Bulgaria
