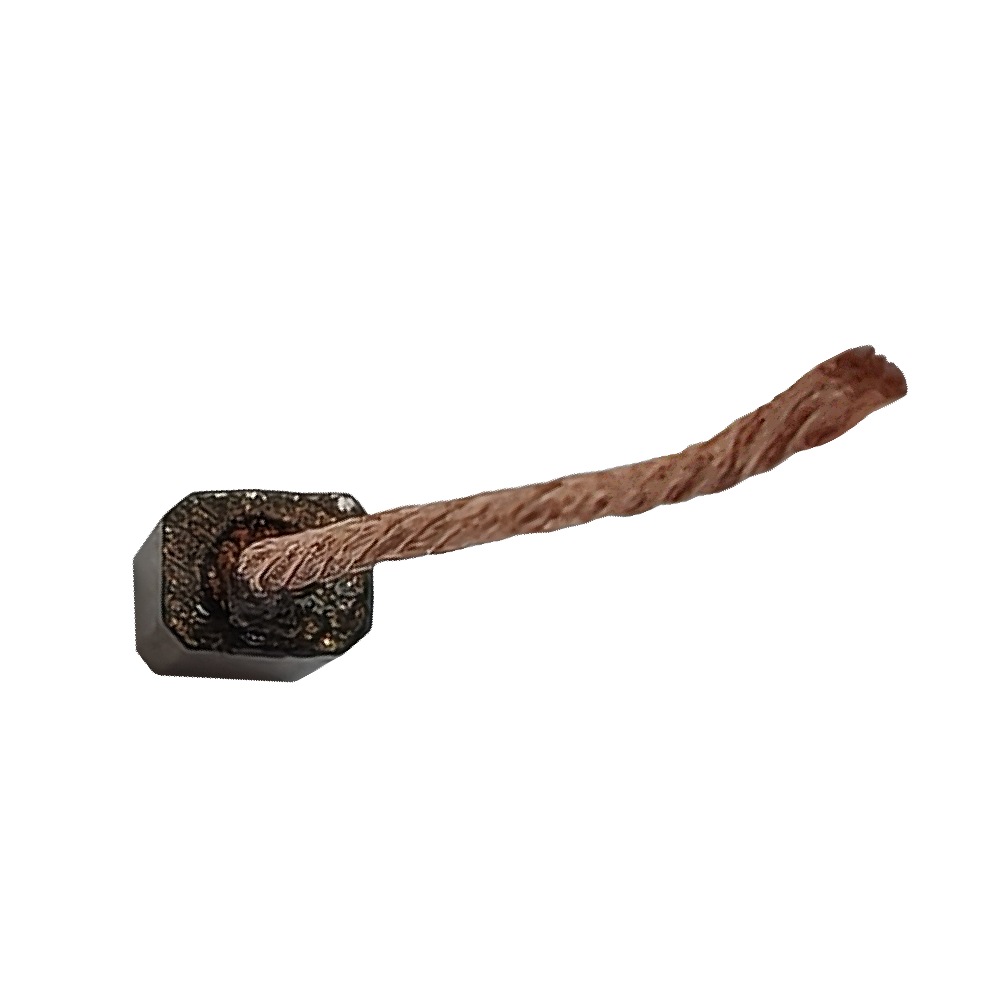

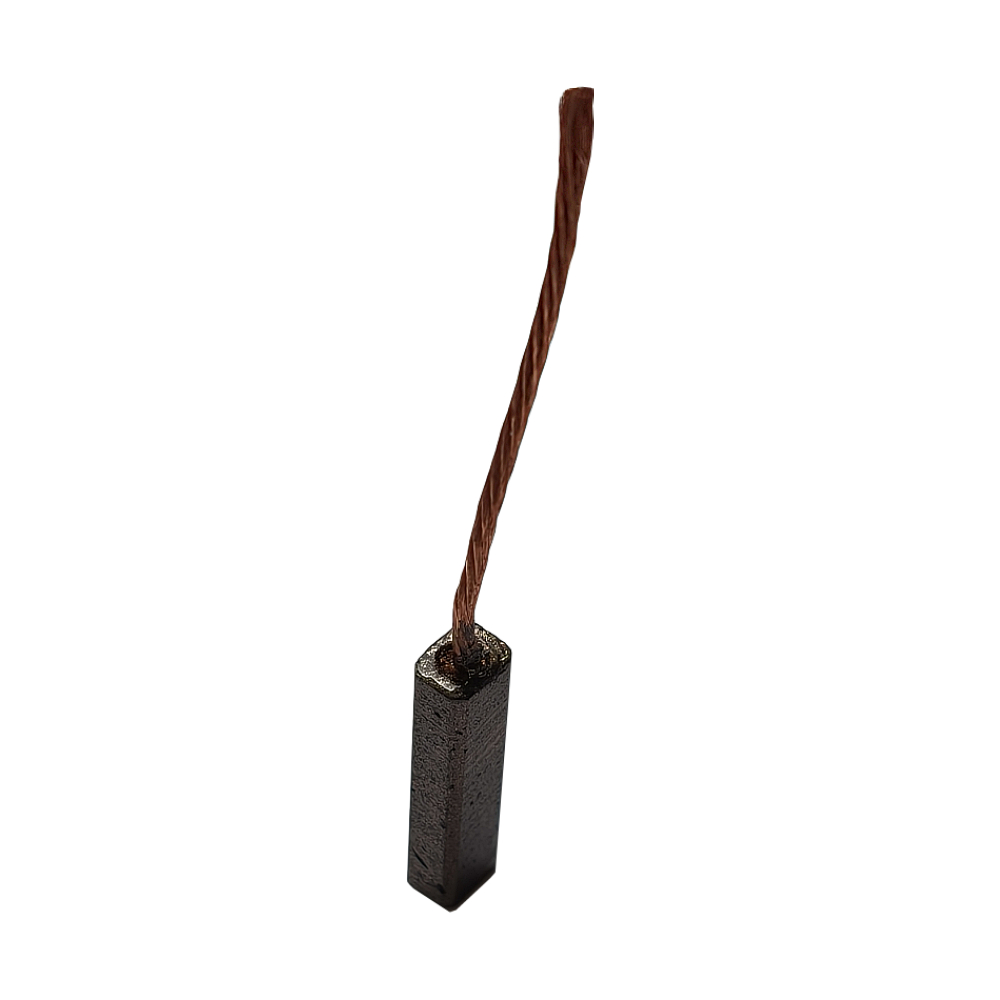

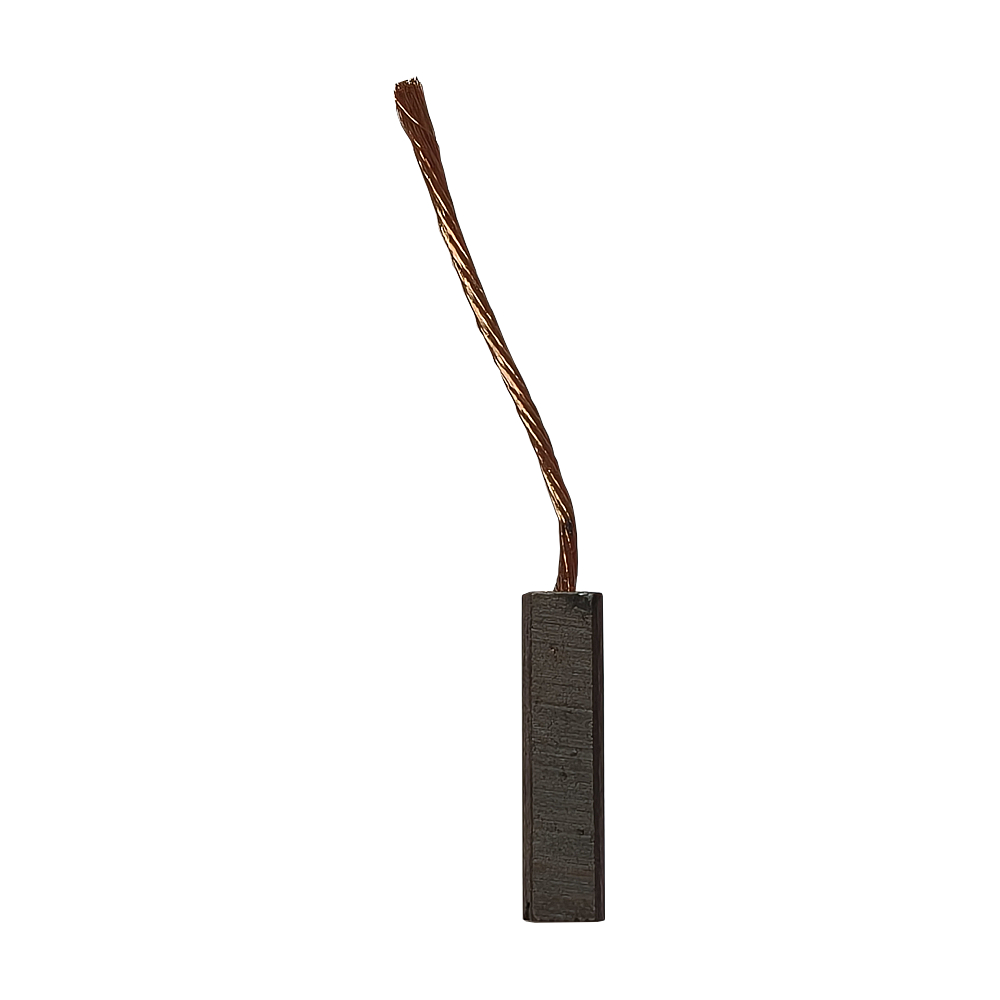

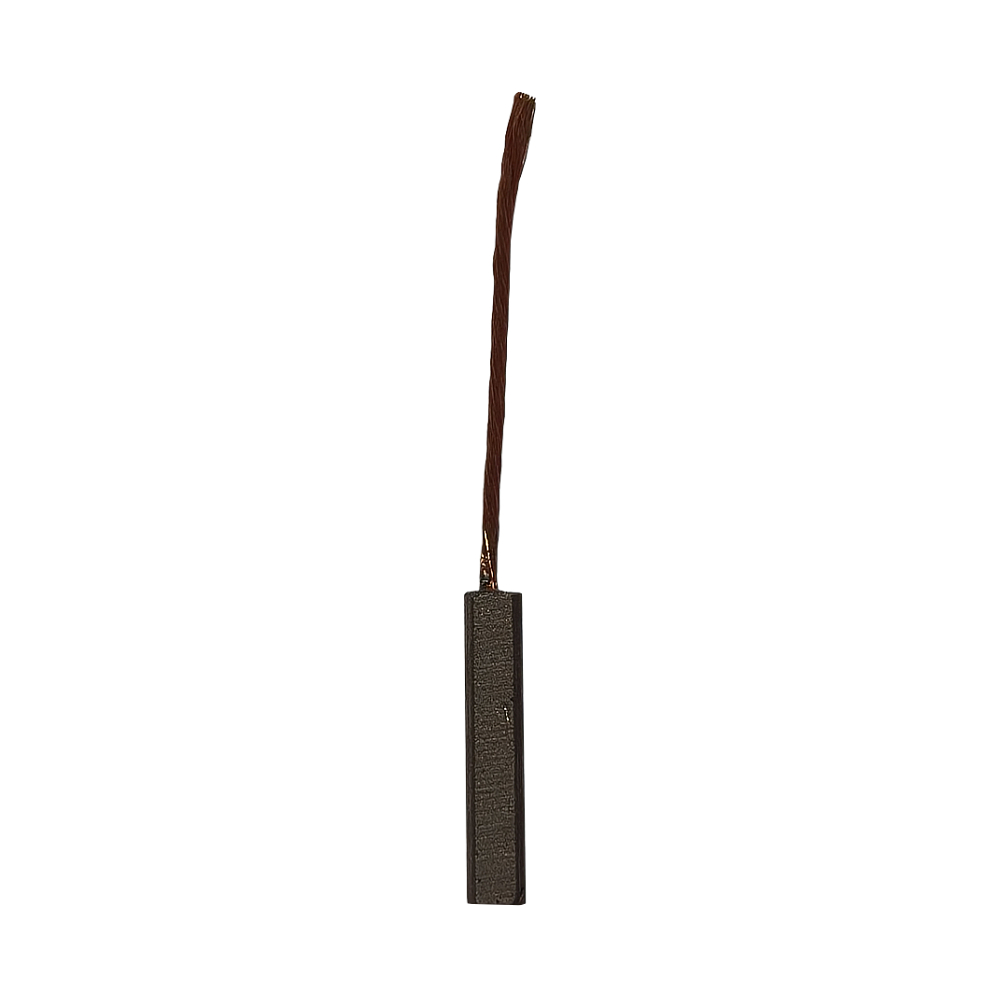

- Name: Copper graphite brush M30 3x4x15 K1-1
- Brand: ZTV
- Product Code: M30_3x4x15_K1-1
- Availability: Pre-order 39 calendar days
3.24€
Main specifications
All specifications
Сonstruction by ГОСТ Р 53617-2009:
К1-1
Сonstruction by IEC 60276:
missing
Conductor length by ГОСТ 12232-89, no less, L :
25 mm
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
IEC 60276 tip shape:
missing
Cover type according to ГОСТ Р 53617-2009:
missing
Analog:
CG657
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M30 3x4x15 K1-1
Specifications
Main characteristics
Сonstruction by ГОСТ Р 53617-2009
К1-1
Сonstruction by IEC 60276
missing
Conductor length by ГОСТ 12232-89, no less, L
25 mm
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
IEC 60276 tip shape
missing
Cover type according to ГОСТ Р 53617-2009
missing
Analog
CG657
Additional parameters
Hardness, H
10-30 HR
Specific electrical resistance, p
1.0-3.0 μΩ·m
Current density, j
0,12-0,25 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
1.0-1.8 V
Brush pressure, p
200 kPa
Circum velocity, Vₚₑᵣ
20-25 m/s
Friction factor, μ
0.20
Application area
DC tachogenerator Radio Energie RE.O444 NT1B
Manufacturer country
Bulgaria
