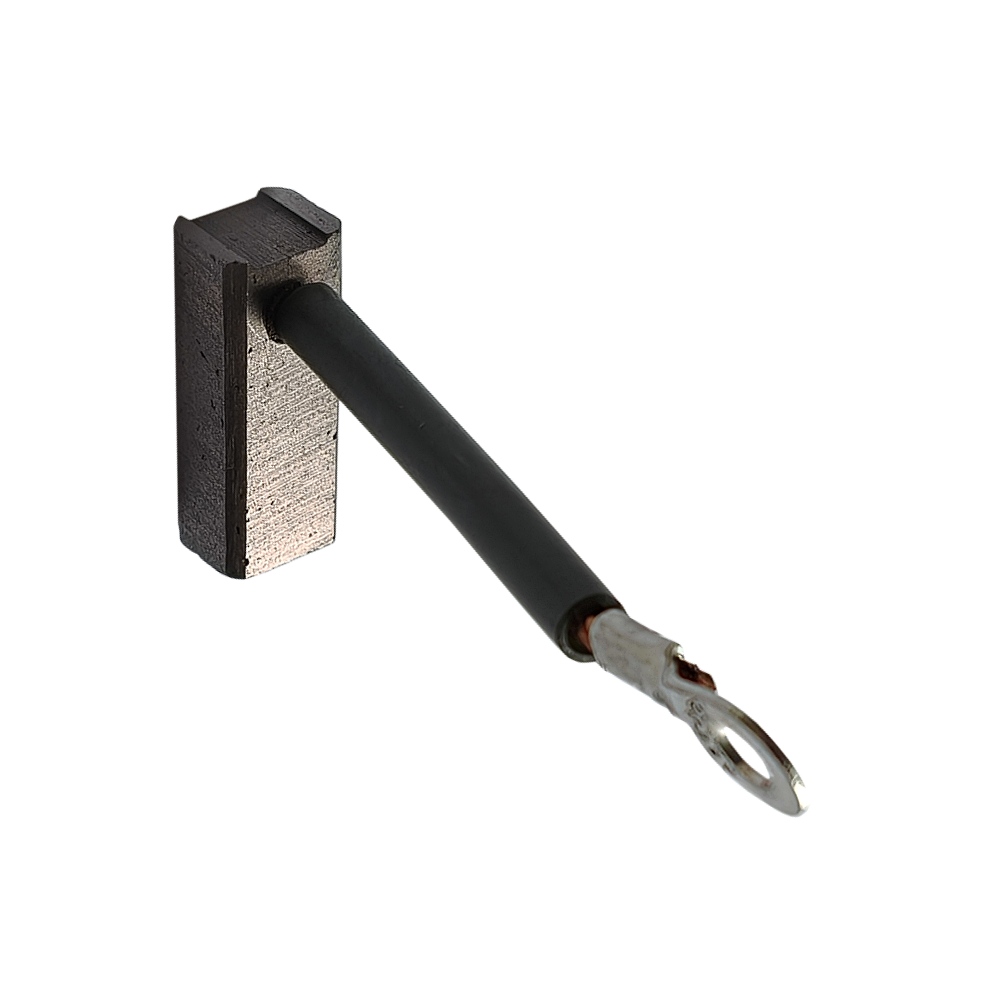

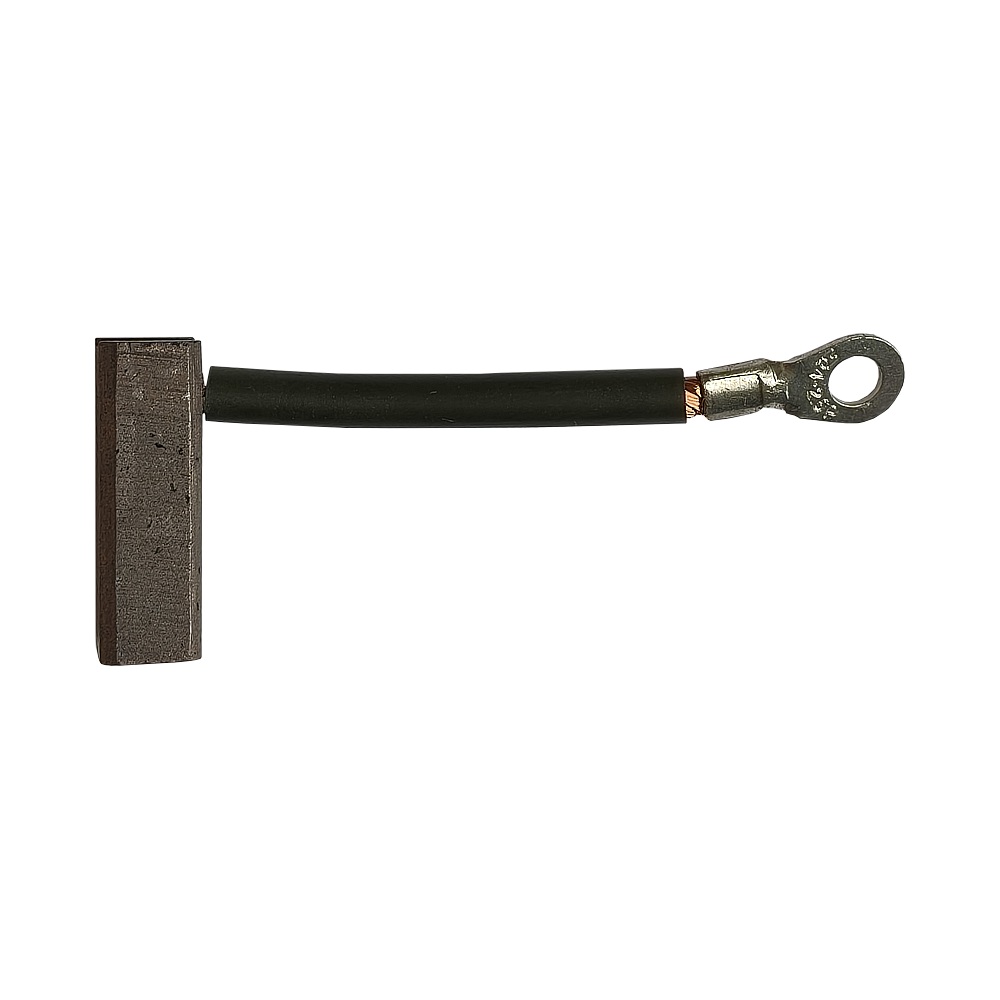

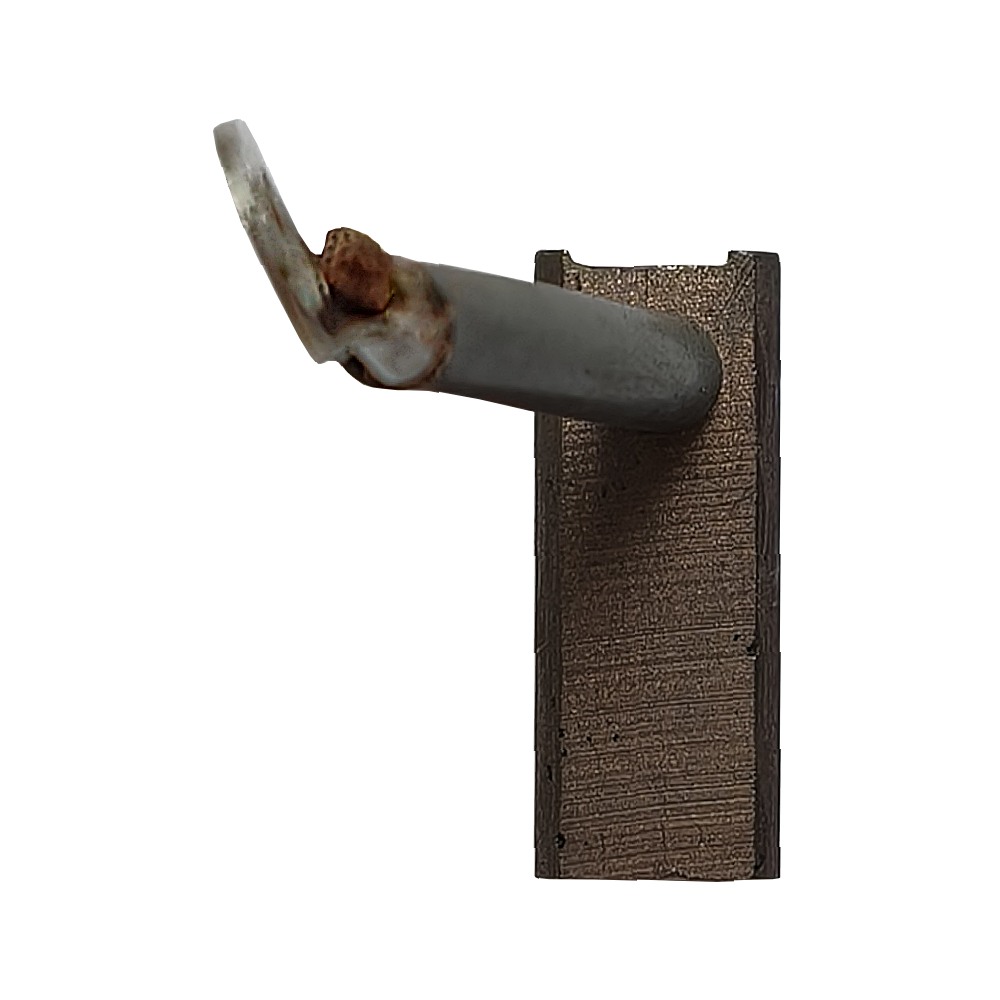

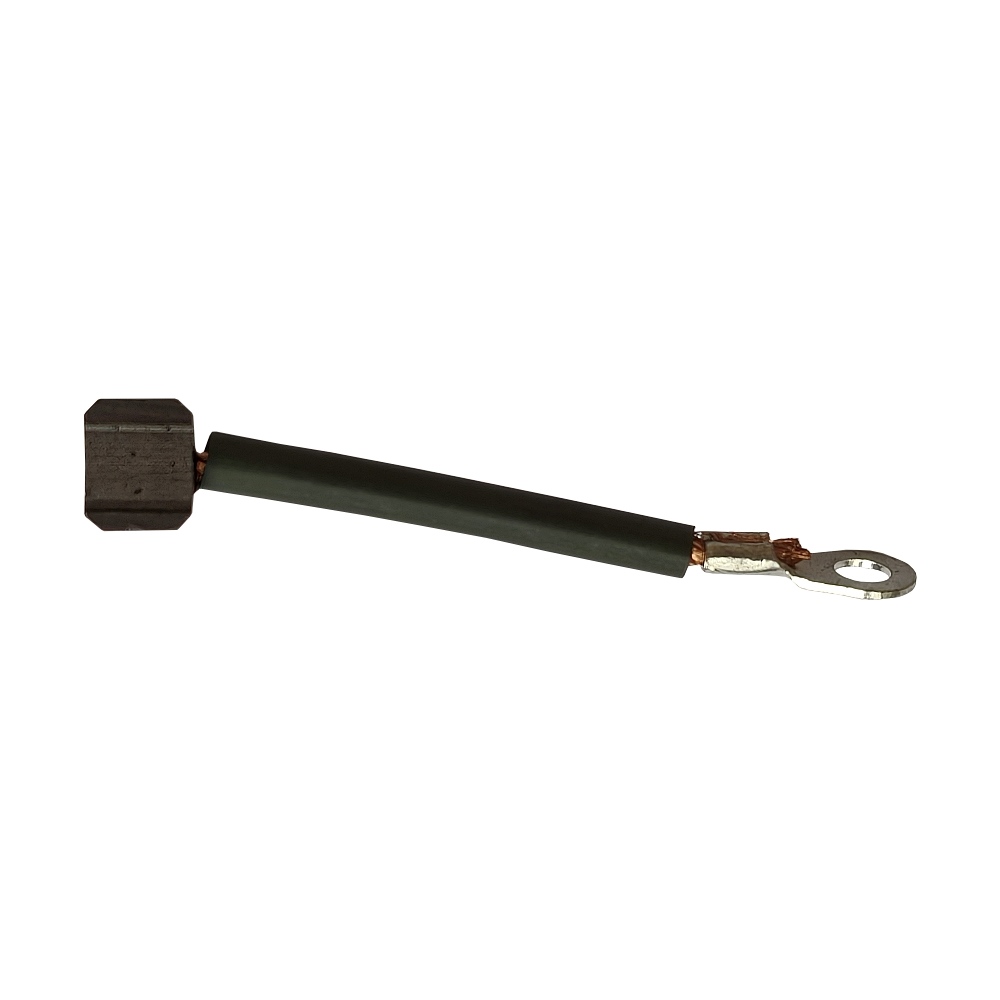

- Name: Copper graphite brush M30 8x10x25 K8-5
- Brand: ZTV
- Product Code: M30_8x10x25_K8-5
- Availability: Pre-order 39 calendar days
121 грн.
Main specifications
All specifications
Analog material:
CG657
Сonstruction by ГОСТ Р 53617-2009:
К8-5
Сonstruction by IEC 60276:
missing
Conductor length by ГОСТ 12232-89, no less, L :
40 mm
Conductor insulation :
present
Terminal type according to ГОСТ Р 53617-2009:
BG
IEC 60276 tip shape:
N
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M30 8x10x25 K8-5
Specifications
Main characteristics
Analog material
CG657
Сonstruction by ГОСТ Р 53617-2009
К8-5
Сonstruction by IEC 60276
missing
Conductor length by ГОСТ 12232-89, no less, L
40 mm
Conductor insulation
present
Terminal type according to ГОСТ Р 53617-2009
BG
IEC 60276 tip shape
N
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
10-30 HR
Specific electrical resistance, p
1.0-3.0 μΩ·m
Current density, j
0,12-0,25 A/mm²
Circum velocity, Vₚₑᵣ
20-25 m/s
Brush pressure, p
200 kPa
Transitional voltage drop on a pair of brushes, ΔUᵦ
1.0-1.8 V
Friction factor, μ
0.20
Manufacturer country
Bulgaria
