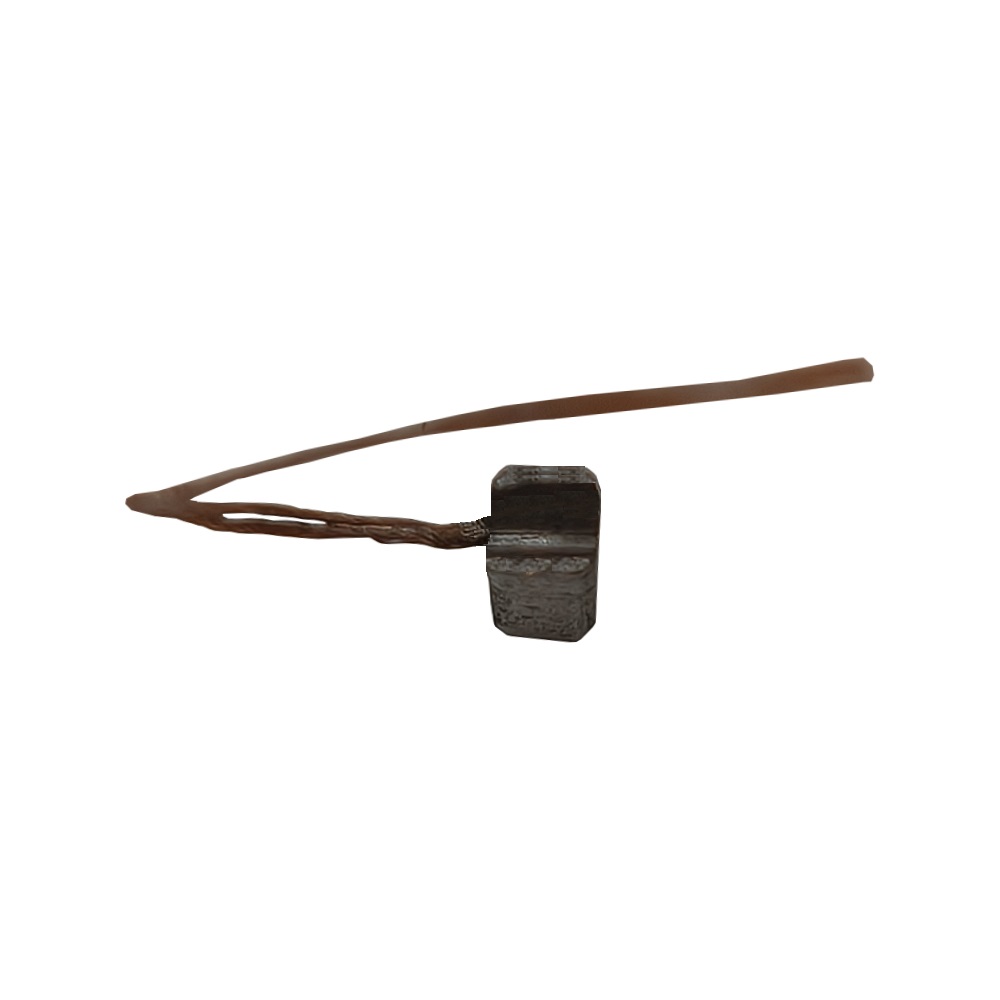

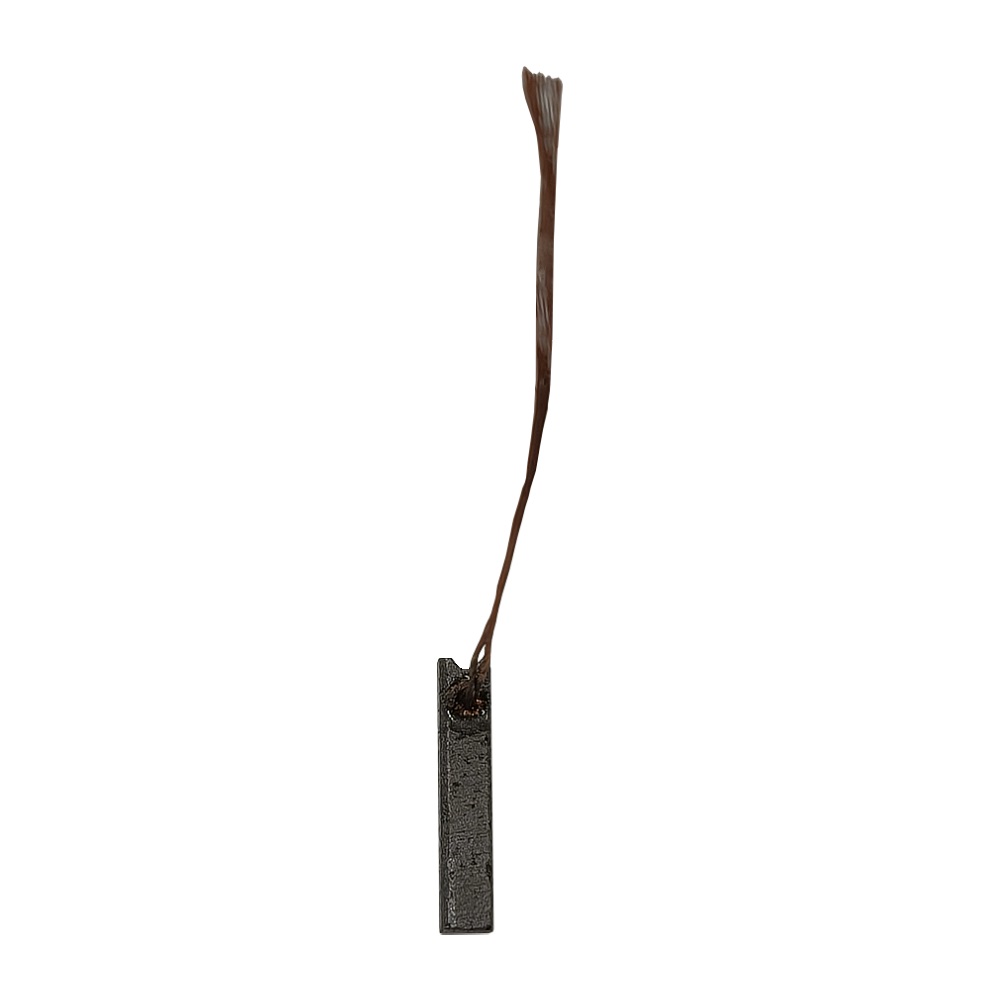

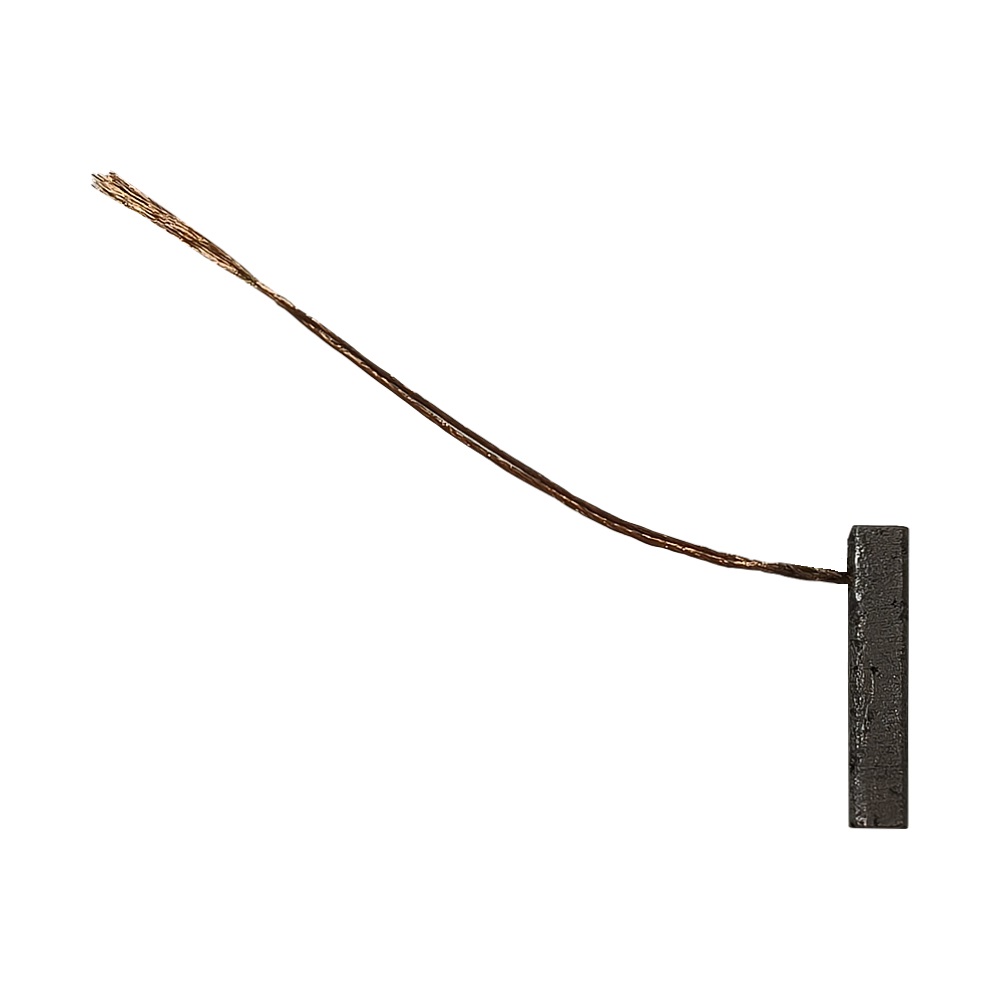

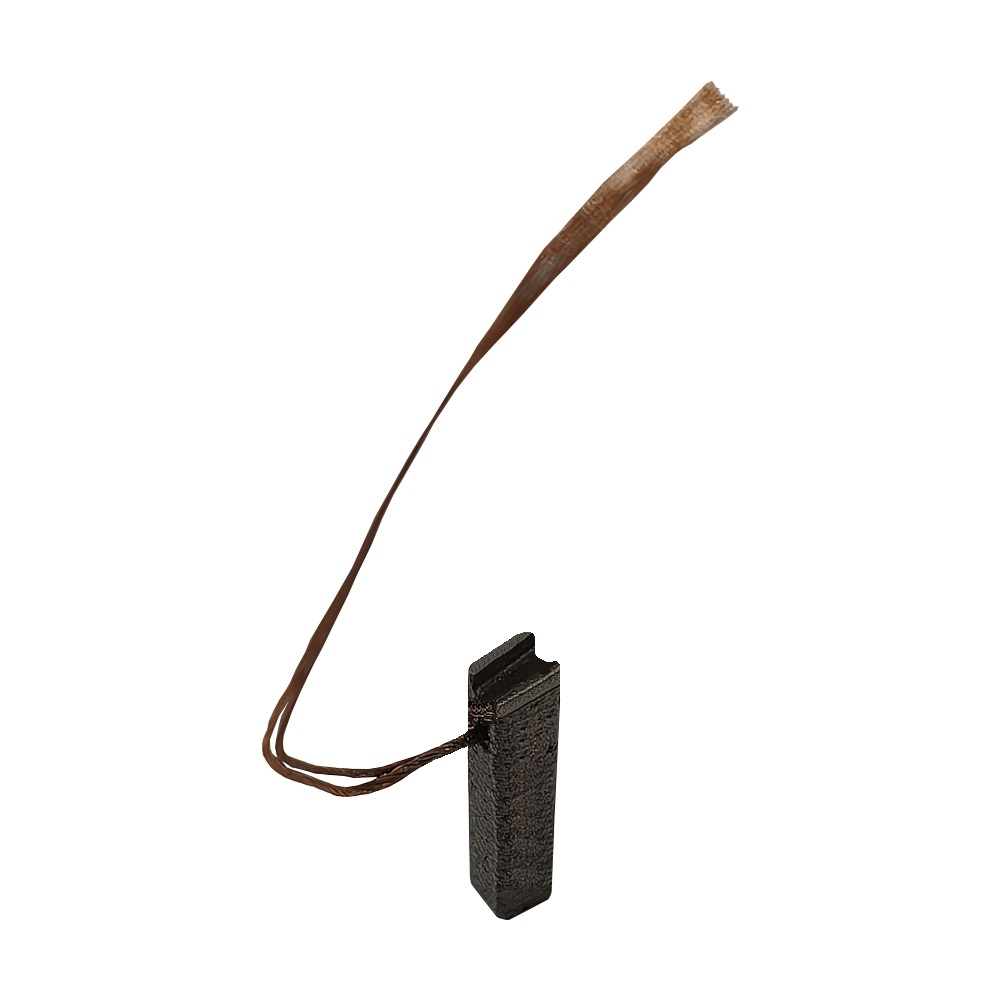

Copper graphite brush M50 2.35x2.5x12 K8-4

Reviews:

(0)

Name: Copper graphite brush M50 2.35x2.5x12 K8-4
Brand: ZTV
Product Code: M50_2.35x2.5x12_K8-4
Availability: In Stock

4.50€

Main specifications

All specifications

Material: М50

Analog material: AB-1, LE-34, М1, MGC7, 611OM, RC51A, MGC5

Сonstruction by ГОСТ Р 53617-2009: K8-4

Сonstruction by IEC 60276: missing

Conductor length by ГОСТ 12232-89, no less, L : 25 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: missing

IEC 60276 tip shape: missing

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Copper graphite brush M50 2.35x2.5x12 K8-4

Specifications

Main characteristics

Material

М50

Analog material

AB-1, LE-34, М1, MGC7, 611OM, RC51A, MGC5

Сonstruction by ГОСТ Р 53617-2009

K8-4

Сonstruction by IEC 60276

missing

Conductor length by ГОСТ 12232-89, no less, L

25 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

missing

IEC 60276 tip shape

missing

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

9 -25 HR

Specific electrical resistance, p

4-15 μΩ·m

Current density, j

0,12 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

1-2 V

Brush pressure, p

200 kPa

Circum velocity, Vₚₑᵣ

25 m/s

Friction factor, μ

0.20

Manufacturer country

Bulgaria
