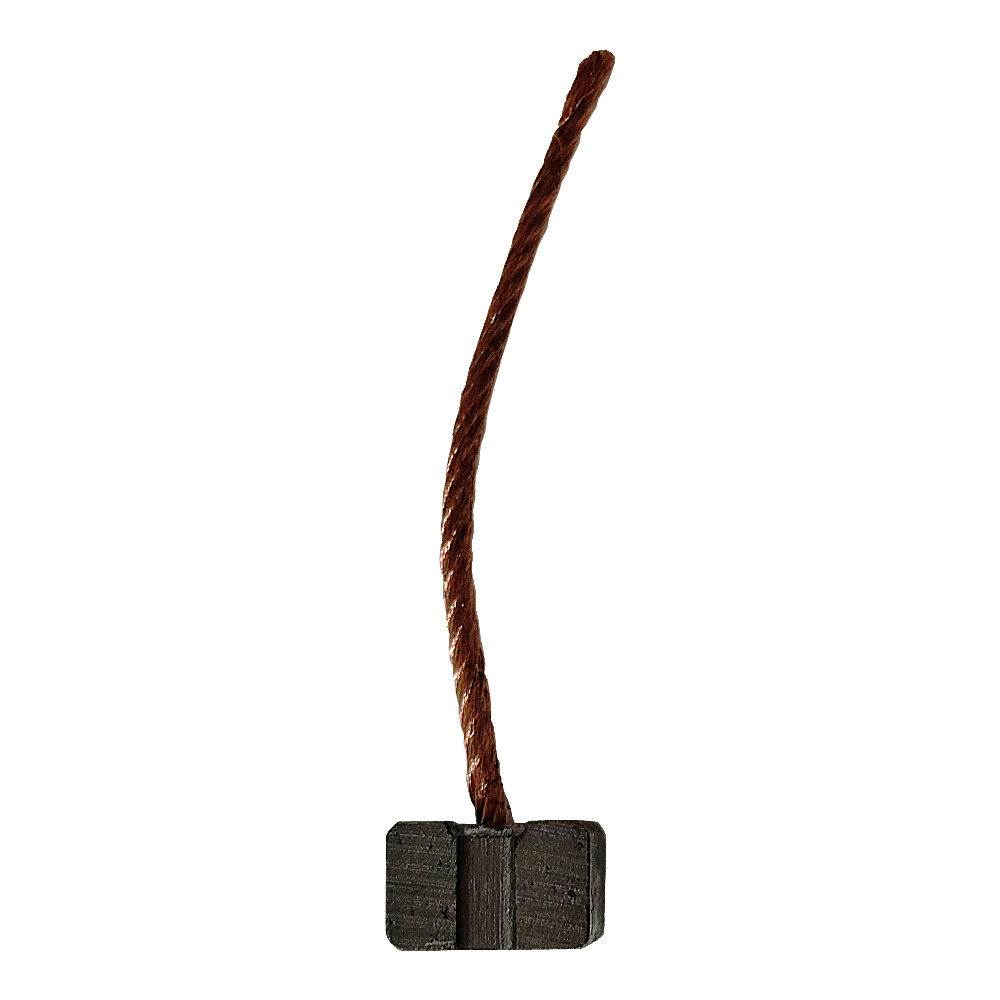

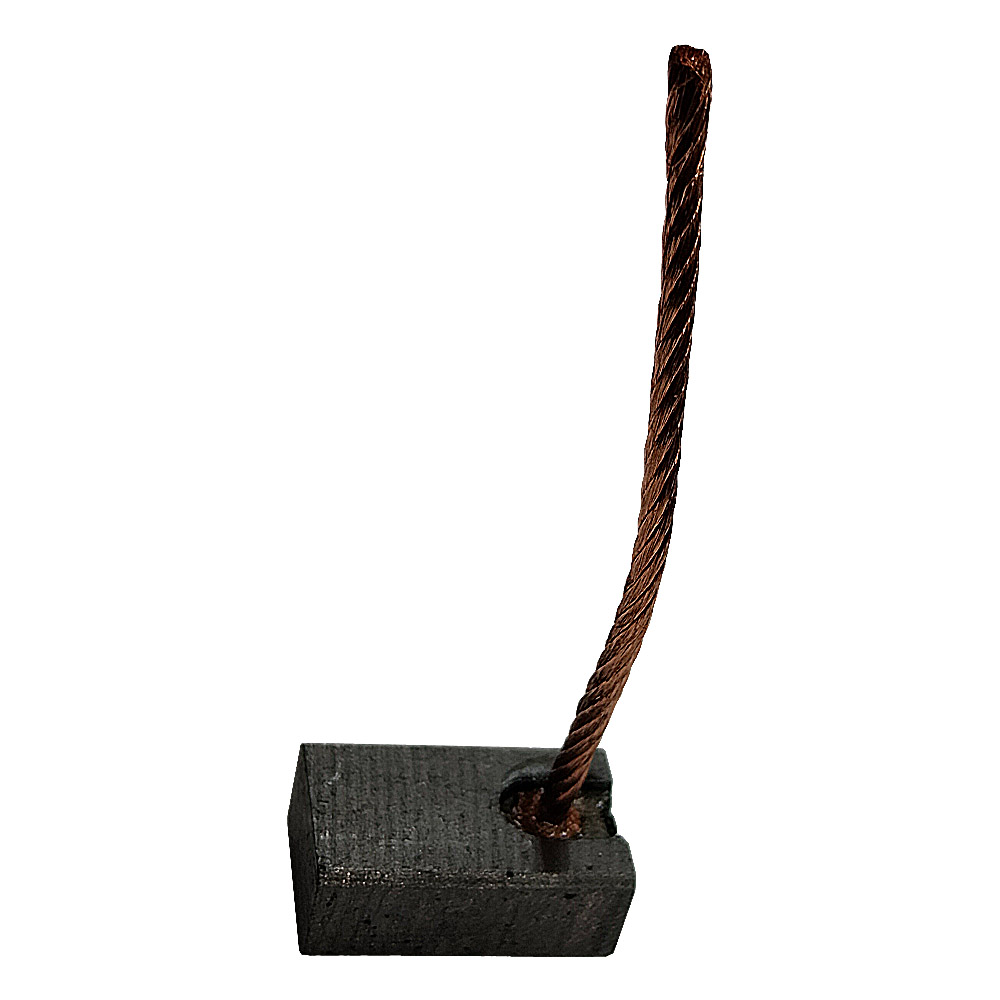

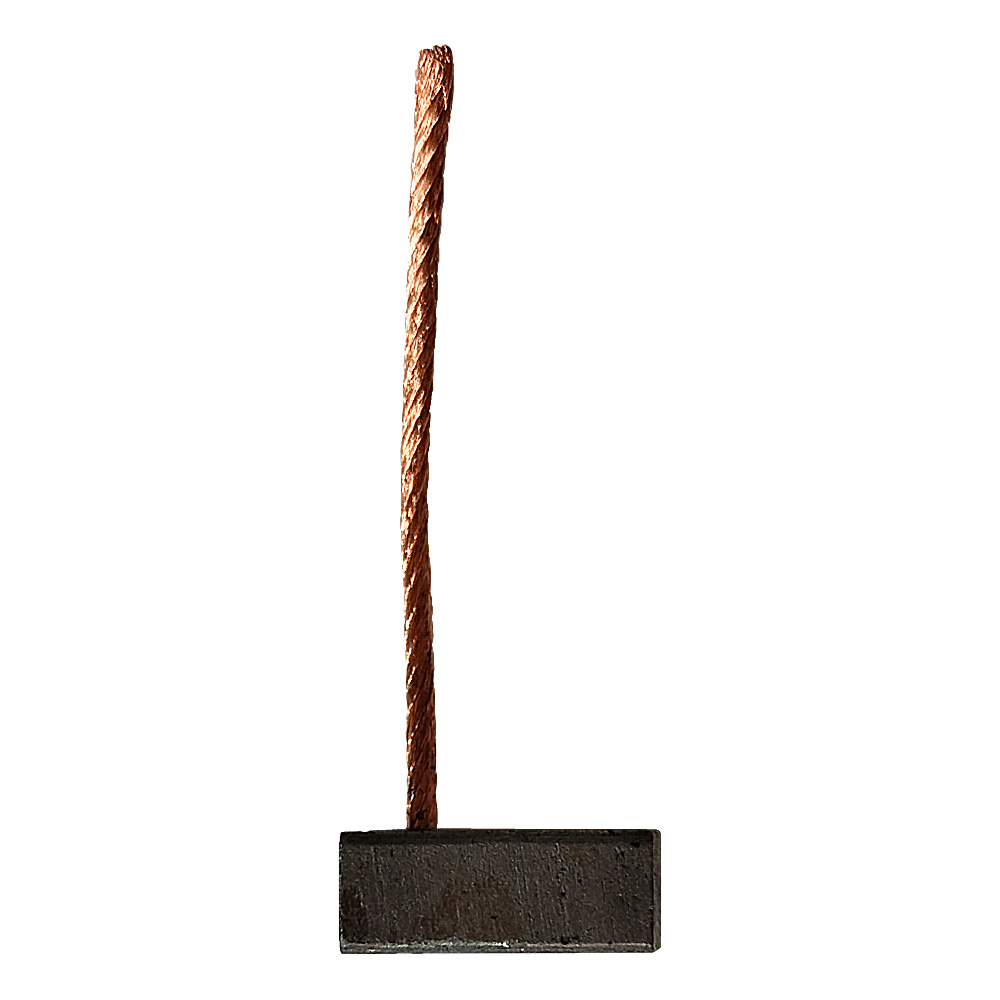

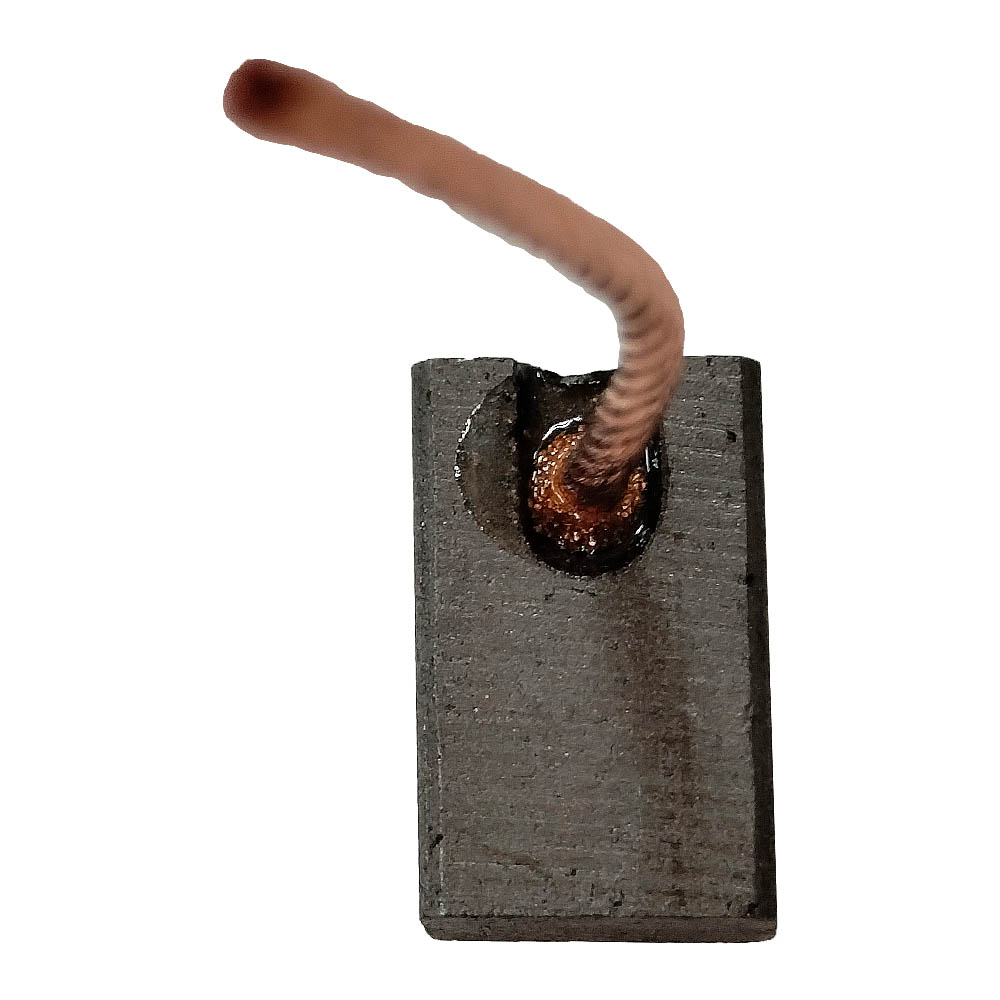

Copper graphite brush M50 5x8x12 K8-5

Reviews:

(0)

Name: Copper graphite brush M50 5x8x12 K8-5
Brand: ZTV
Product Code: M50_5x8x12_K8-5
Availability: Pre-order 39 calendar days

1.80€

Main specifications

All specifications

Material: М50

Analog material: AB-1, LE-34, М1, MGC7, 611OM, RC51A, MGC5

Сonstruction by ГОСТ Р 53617-2009: К8-5

Conductor length by ГОСТ 12232-89, no less, L : 160 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: missing

IEC 60276 tip shape: No

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Copper graphite brush M50 5x8x12 K8-5

Specifications

Main characteristics

Material

М50

Analog material

AB-1, LE-34, М1, MGC7, 611OM, RC51A, MGC5

Сonstruction by ГОСТ Р 53617-2009

К8-5

Conductor length by ГОСТ 12232-89, no less, L

160 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

missing

IEC 60276 tip shape

No

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

9 -25 HR

Specific electrical resistance, p

4-15 μΩ·m

Current density, j

0,12 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

1-2 V

Brush pressure, p

200 kPa

Circum velocity, Vₚₑᵣ

25 m/s

Friction factor, μ

0.20

Application area

DC motor MTF

Manufacturer country

Bulgaria
