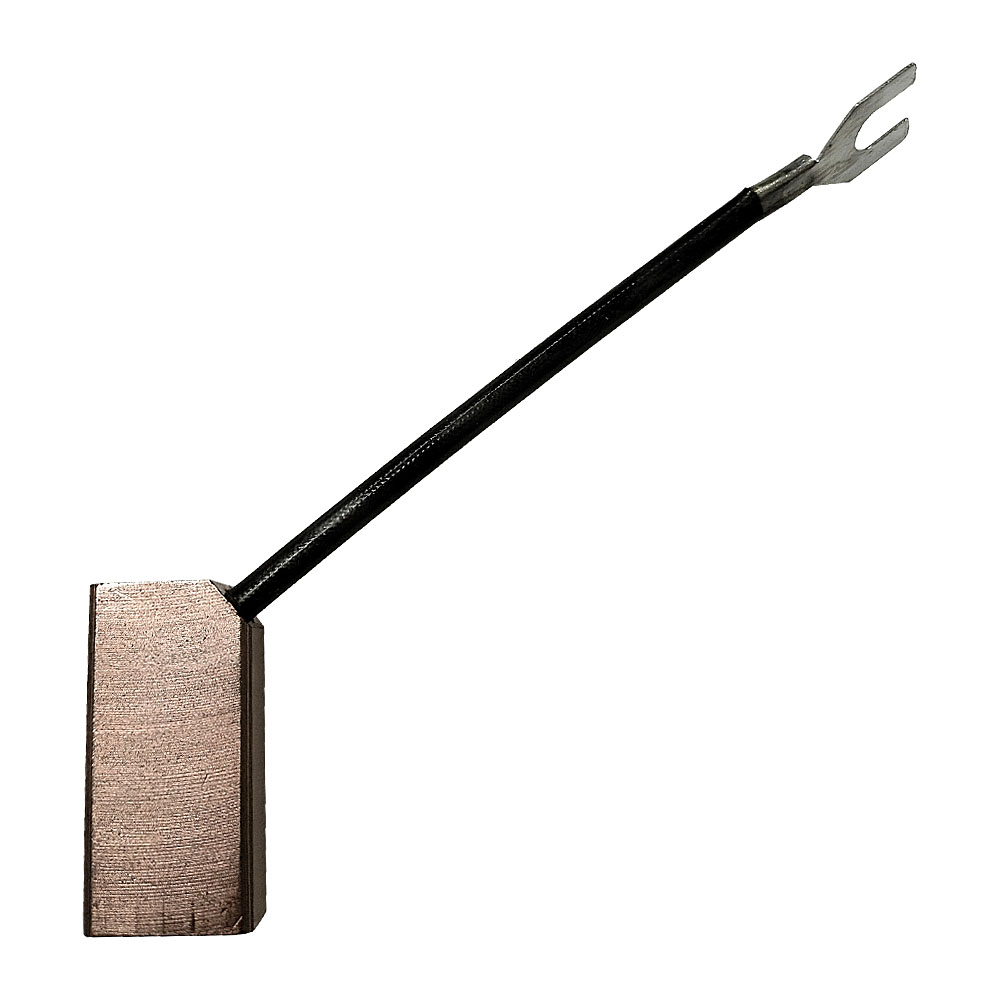

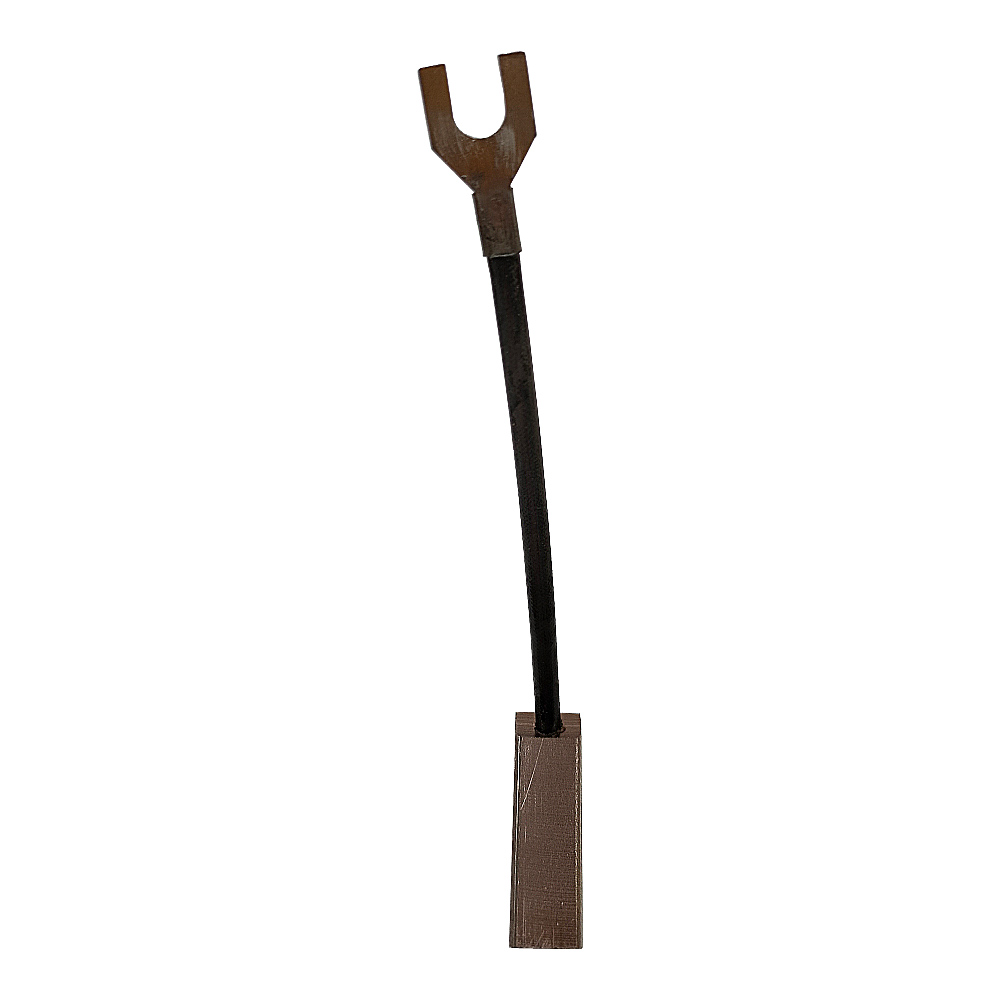

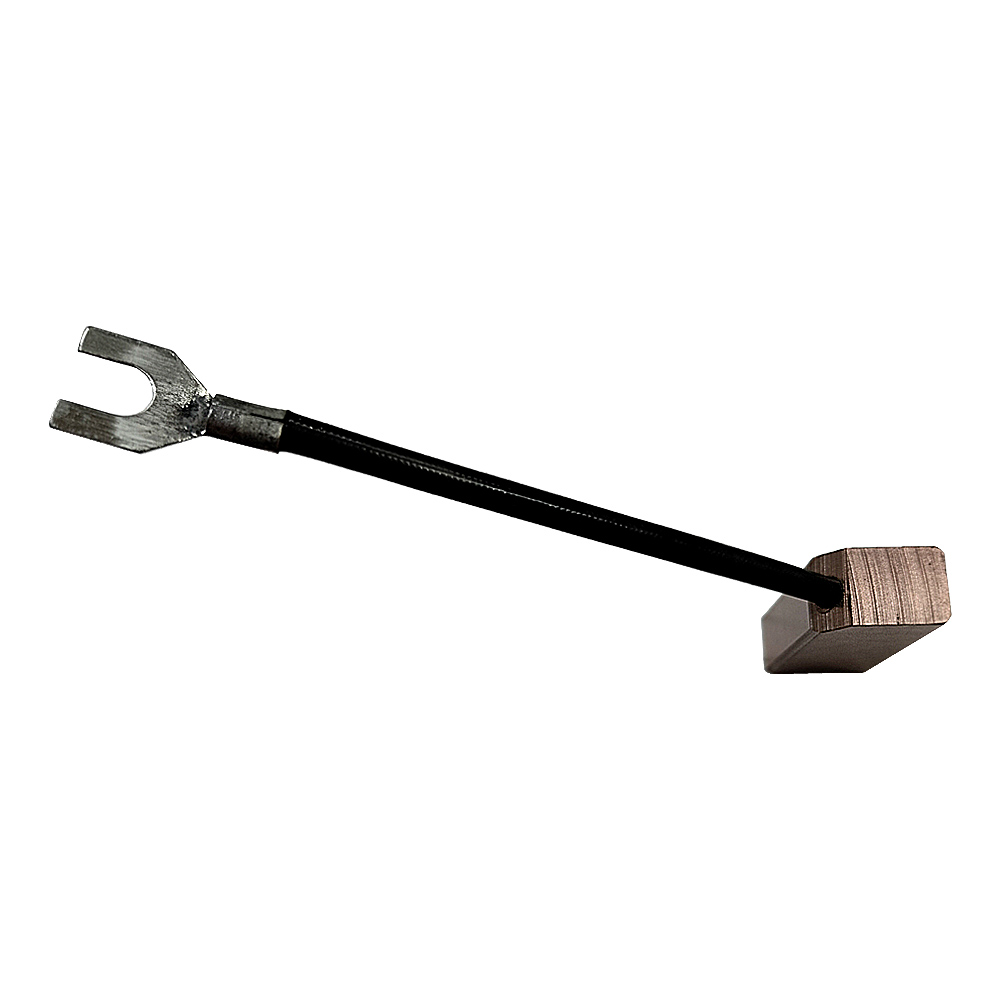

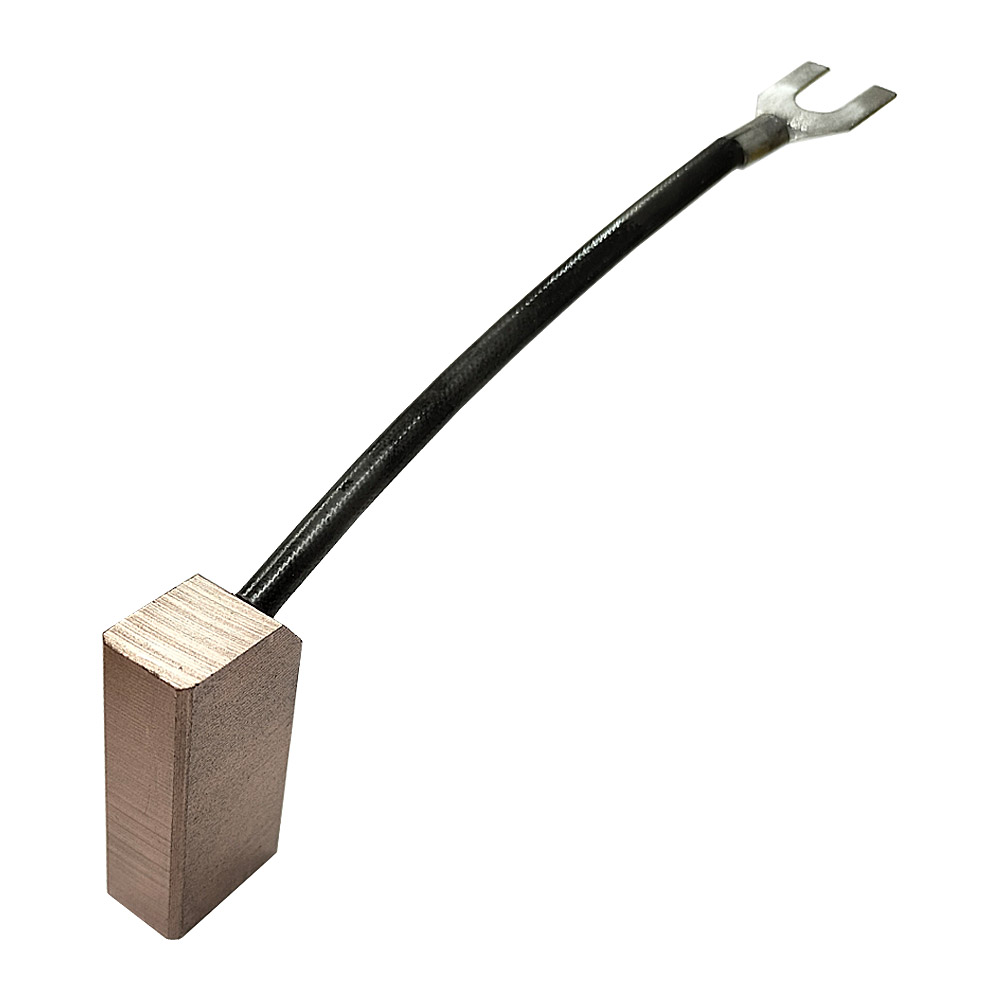

- Name: Copper graphite brush M7 12.5x20x40 K4-2
- Brand: ZTV
- Product Code: M7_12.5x20x40_K4-2
- Availability: Pre-order 39 calendar days
9.43€
Main specifications
All specifications
Material:
M7
Сonstruction by ГОСТ Р 53617-2009:
К4-2
Сonstruction by IEC 60276:
CL06A
Conductor length by ГОСТ 12232-89, no less, L :
80 mm
Conductor insulation :
present
Terminal type according to ГОСТ Р 53617-2009:
B
IEC 60276 tip shape:
B
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M7 12.5x20x40 K4-2
Specifications
Main characteristics
Material
M7
Сonstruction by ГОСТ Р 53617-2009
К4-2
Сonstruction by IEC 60276
CL06A
Conductor length by ГОСТ 12232-89, no less, L
80 mm
Conductor insulation
present
Terminal type according to ГОСТ Р 53617-2009
B
IEC 60276 tip shape
B
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
10-20 HR
Specific electrical resistance, p
0.075-0.16 μΩ·m
Current density, j
0,18 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.7 V
Brush pressure, p
150-200 kPa
Circum velocity, Vₚₑᵣ
40 m/s
Friction factor, μ
0.20
Manufacturer country
Bulgaria
