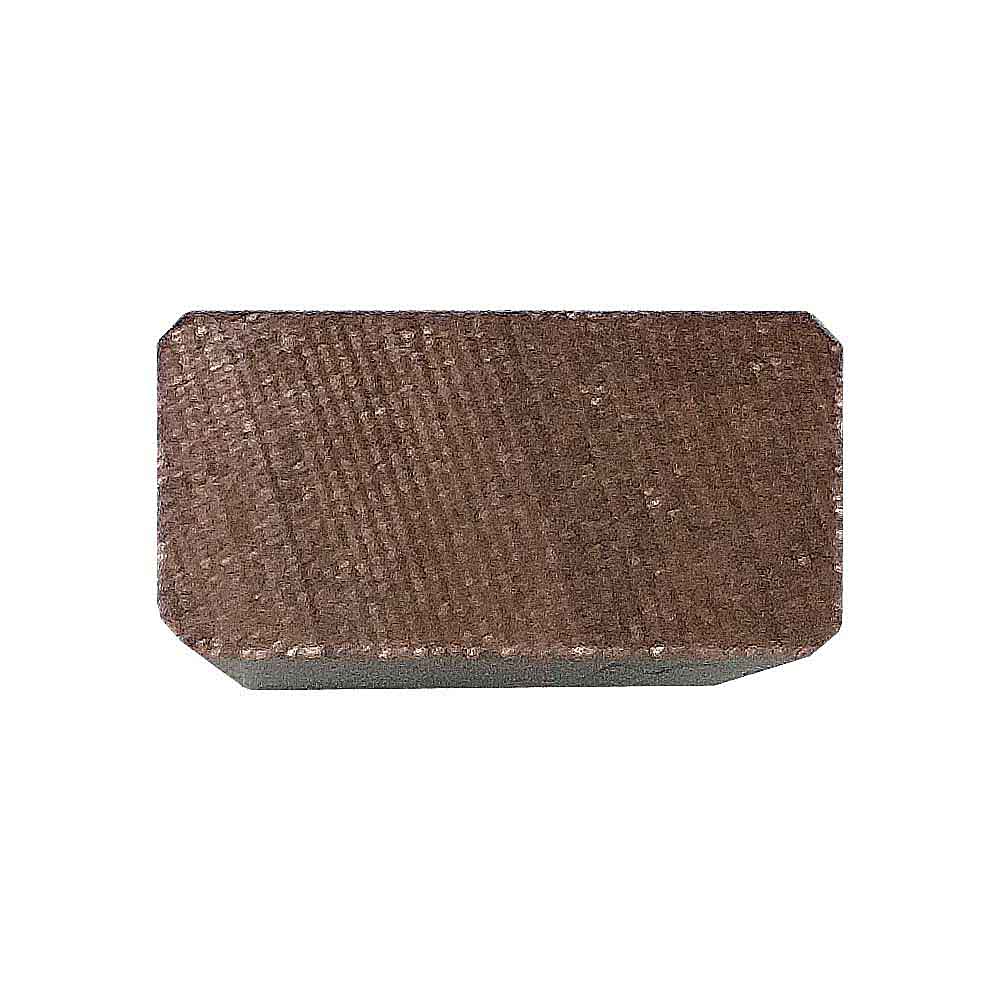

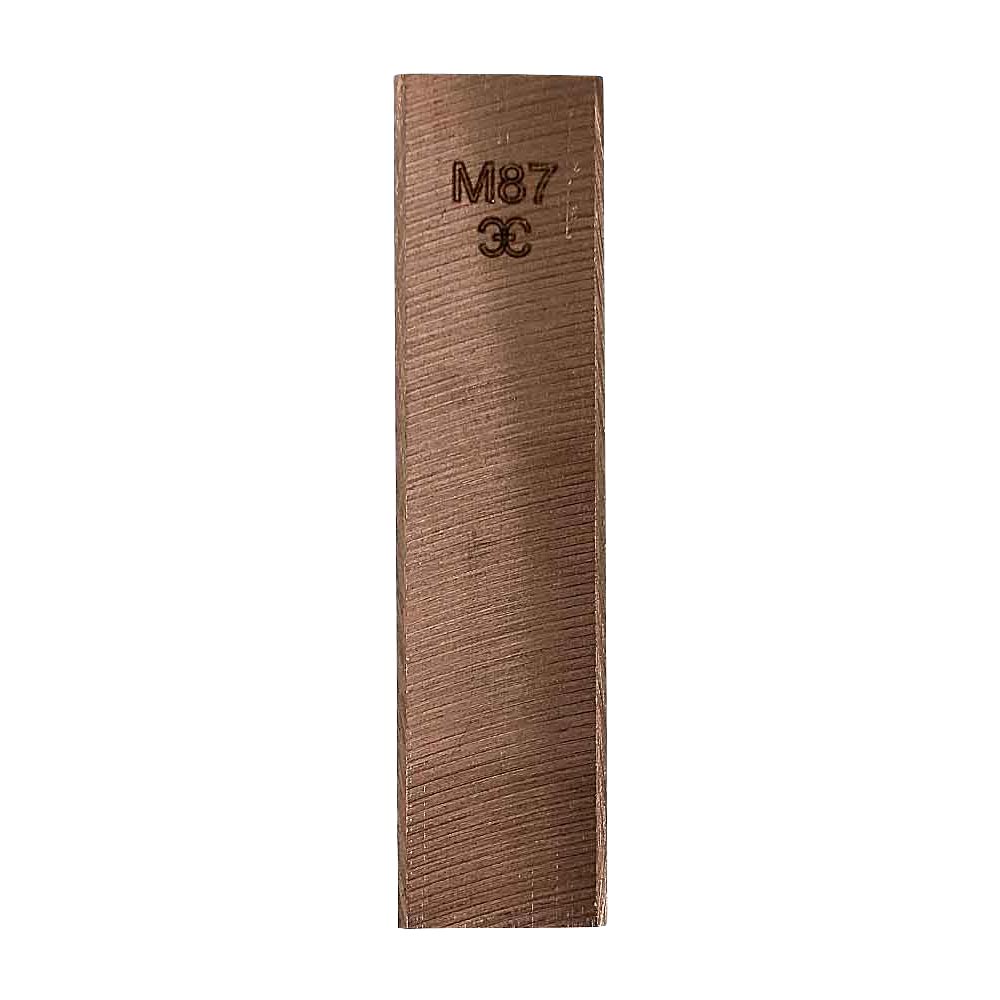

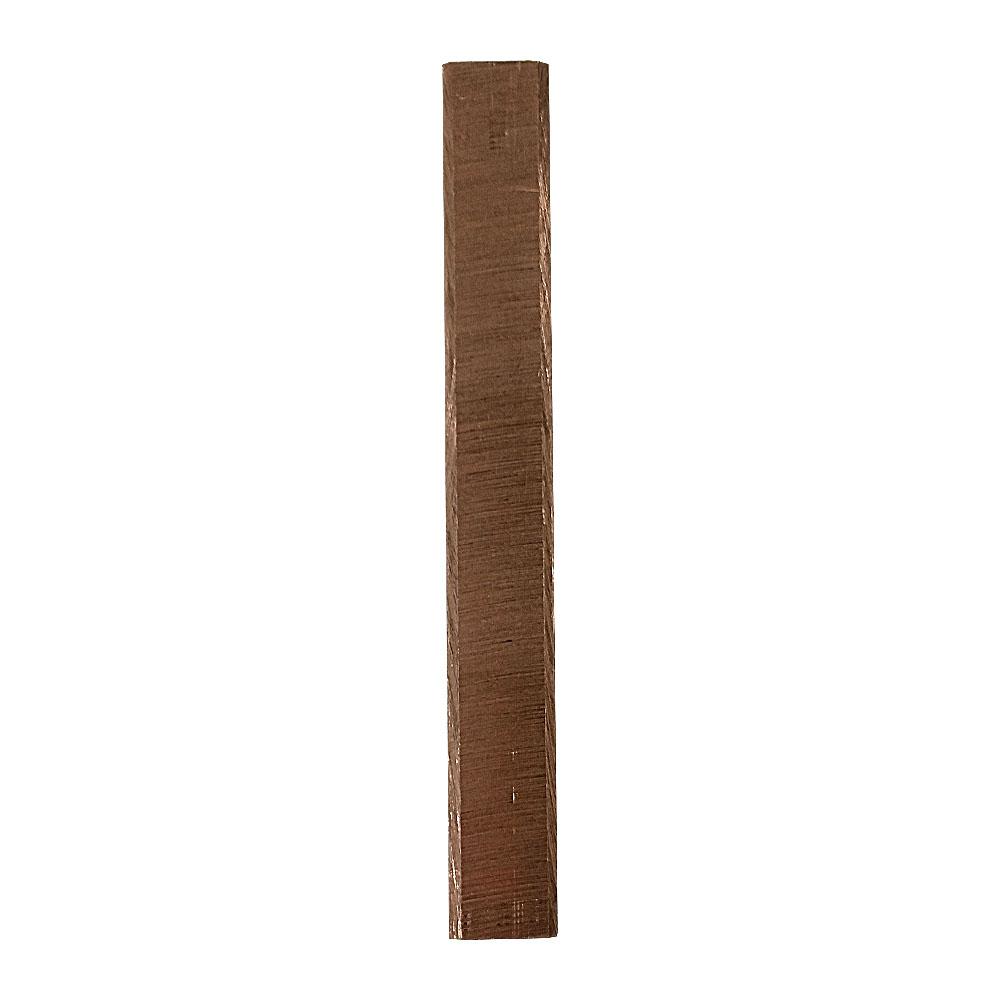

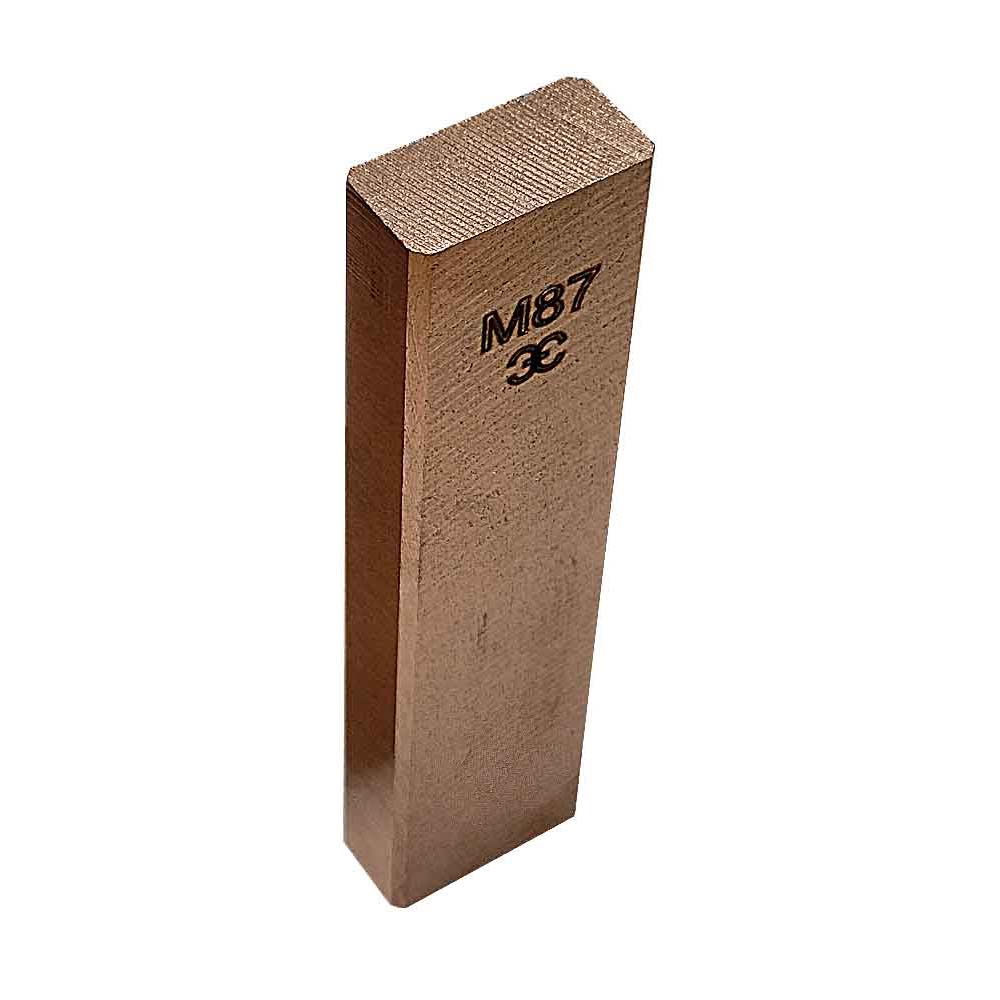

- Name: Copper graphite brush M87 10x20x80 K1
- Brand: ELEKTROCARBON
- Product Code: M87_10x20x80_K1
- Availability: Pre-order 39 calendar days
8.55€
Main specifications
All specifications
Material:
M87
Сonstruction by ГОСТ Р 53617-2009:
K1
Сonstruction by IEC 60276:
CL01A
Conductor length by ГОСТ 12232-89, no less, L :
missing
Conductor cross-section, S :
missing
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
missing
IEC 60276 tip shape:
missing
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M87 10x20x80 K1
Specifications
Main characteristics
Material
M87
Сonstruction by ГОСТ Р 53617-2009
K1
Сonstruction by IEC 60276
CL01A
Conductor length by ГОСТ 12232-89, no less, L
missing
Conductor cross-section, S
missing
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
missing
IEC 60276 tip shape
missing
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
7-14 HS
Specific electrical resistance, p
0.04-0.09 μΩ·m
Current density, j
0,2 A/mm²
Circum velocity, Vₚₑᵣ
20 m/s
Brush pressure, p
17,5 kPa
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.2-0.4 V
Friction factor, μ
0.2
Application area
Grounding systems for generators, railway vehicles
Manufacturer country
Poland
