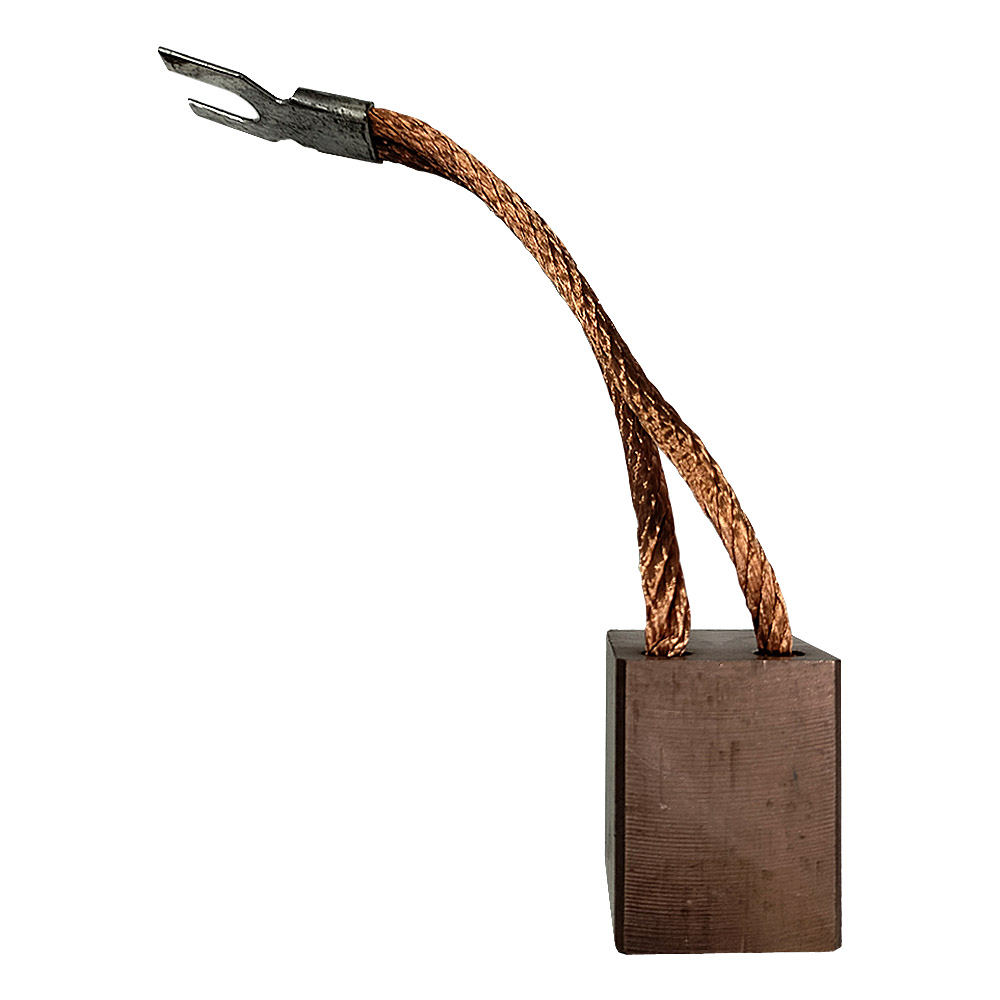

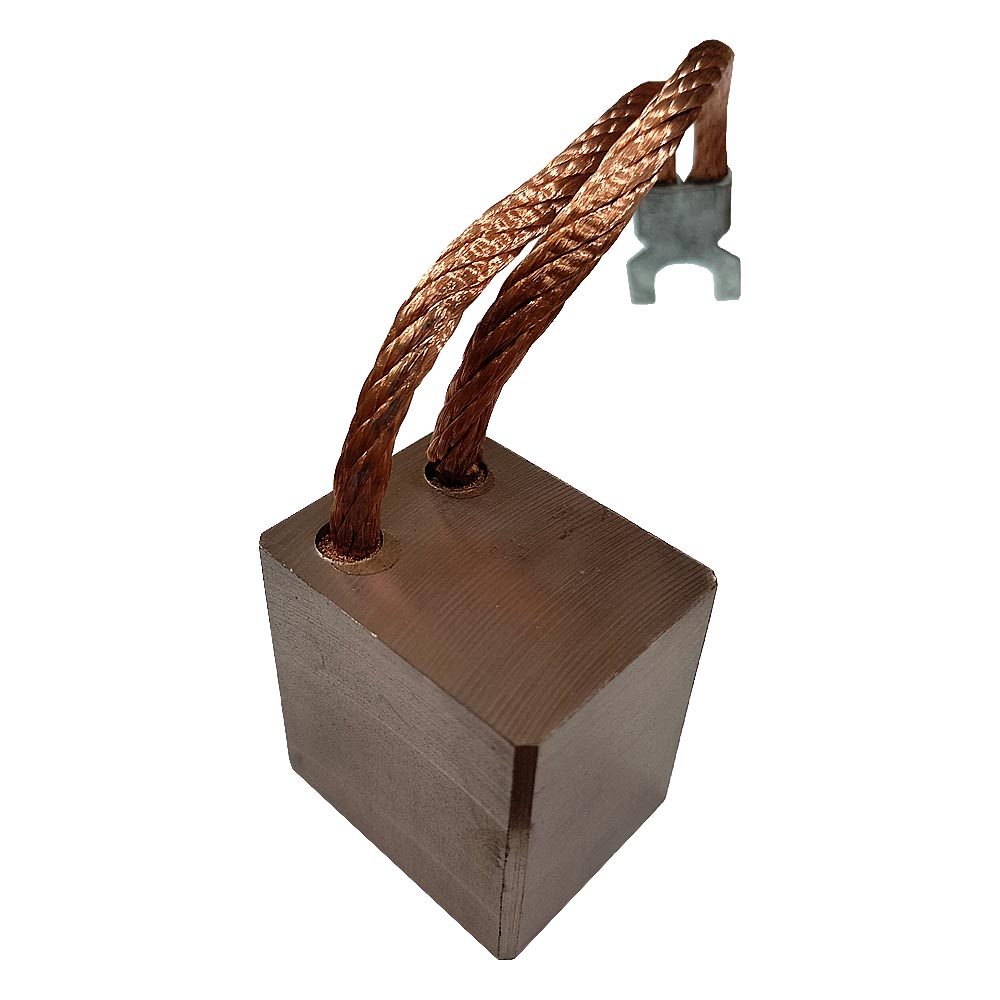

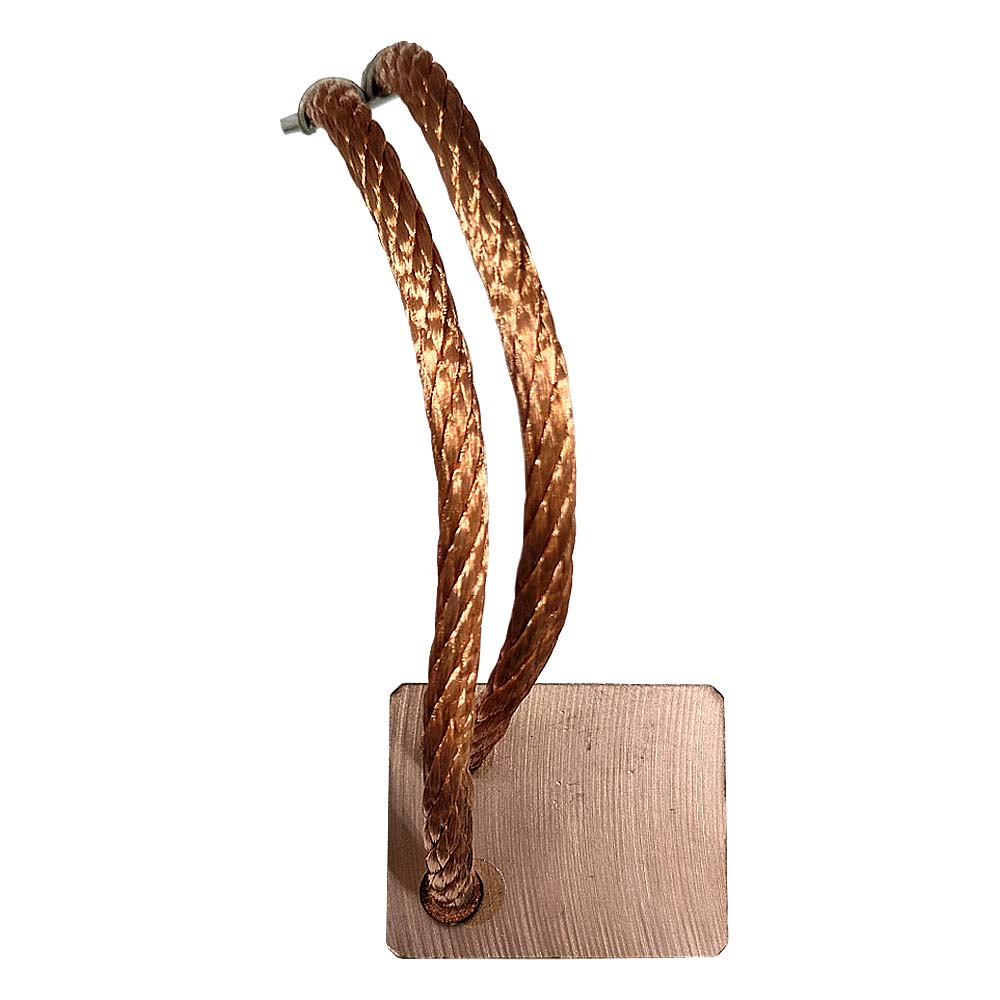

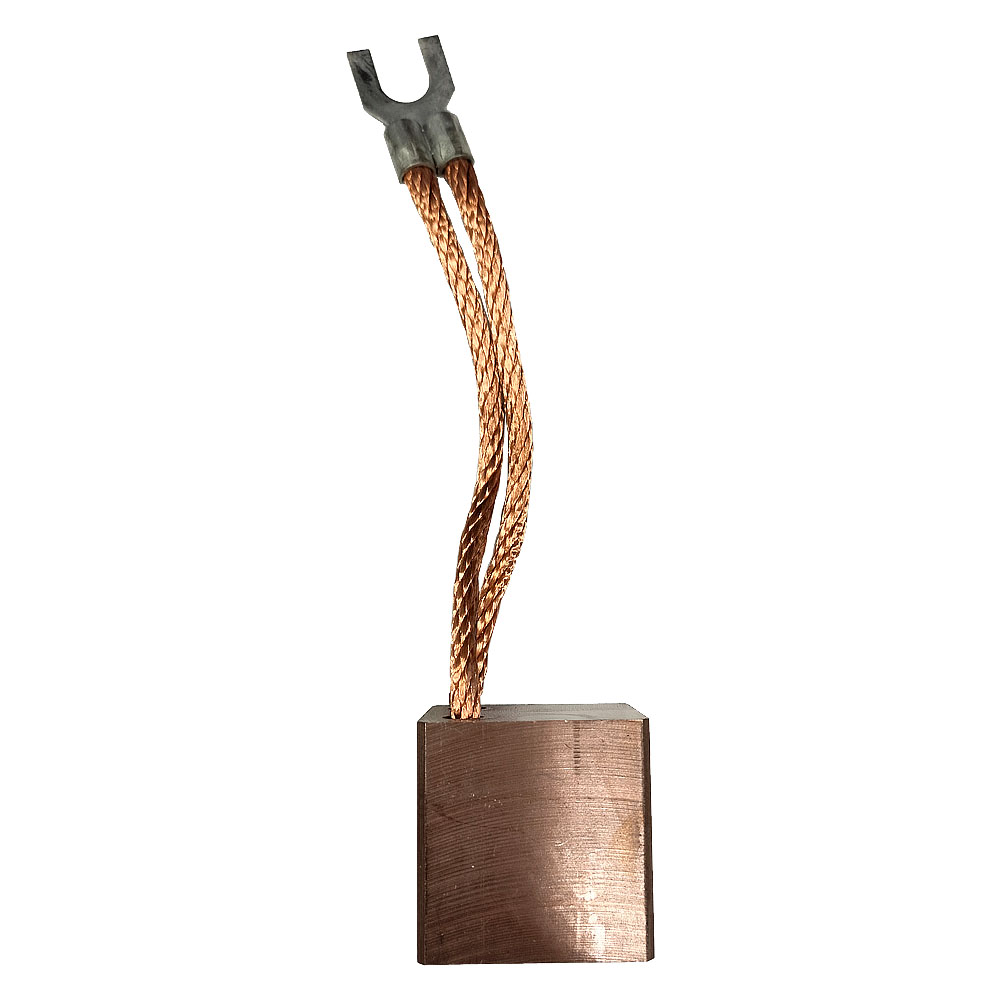

- Name: Copper graphite brush MG 32x40x40 K1-7
- Brand: ZTV
- Product Code: MG_32x40x40_K1-7
- Availability: Pre-order 39 calendar days
22.50€
Main specifications
All specifications
Material:
М10
Analog material:
CM1S, MG, M87
Сonstruction by ГОСТ Р 53617-2009:
К1-7
Conductor length by ГОСТ 12232-89, no less, L :
125 mm
Conductor cross-section, S :
10 mm²
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
10P
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush MG 32x40x40 K1-7
Specifications
Main characteristics
Material
М10
Analog material
CM1S, MG, M87
Сonstruction by ГОСТ Р 53617-2009
К1-7
Conductor length by ГОСТ 12232-89, no less, L
125 mm
Conductor cross-section, S
10 mm²
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
10P
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
6-17 HR
Specific electrical resistance, p
0.08-0.15 μΩ·m
Current density, j
0,2 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.15-0.30 V
Brush pressure, p
200 kPa
Circum velocity, Vₚₑᵣ
20 m/s
Friction factor, μ
0.2
Manufacturer country
Bulgaria
