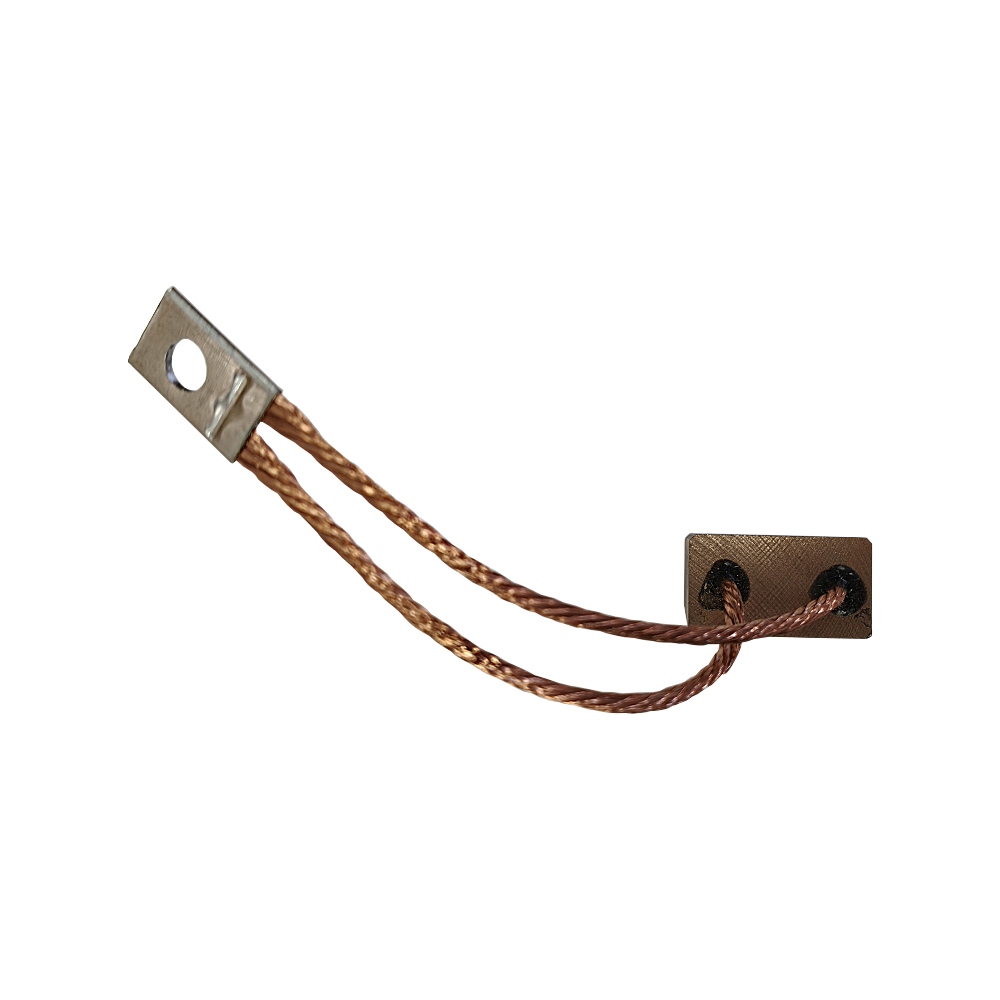

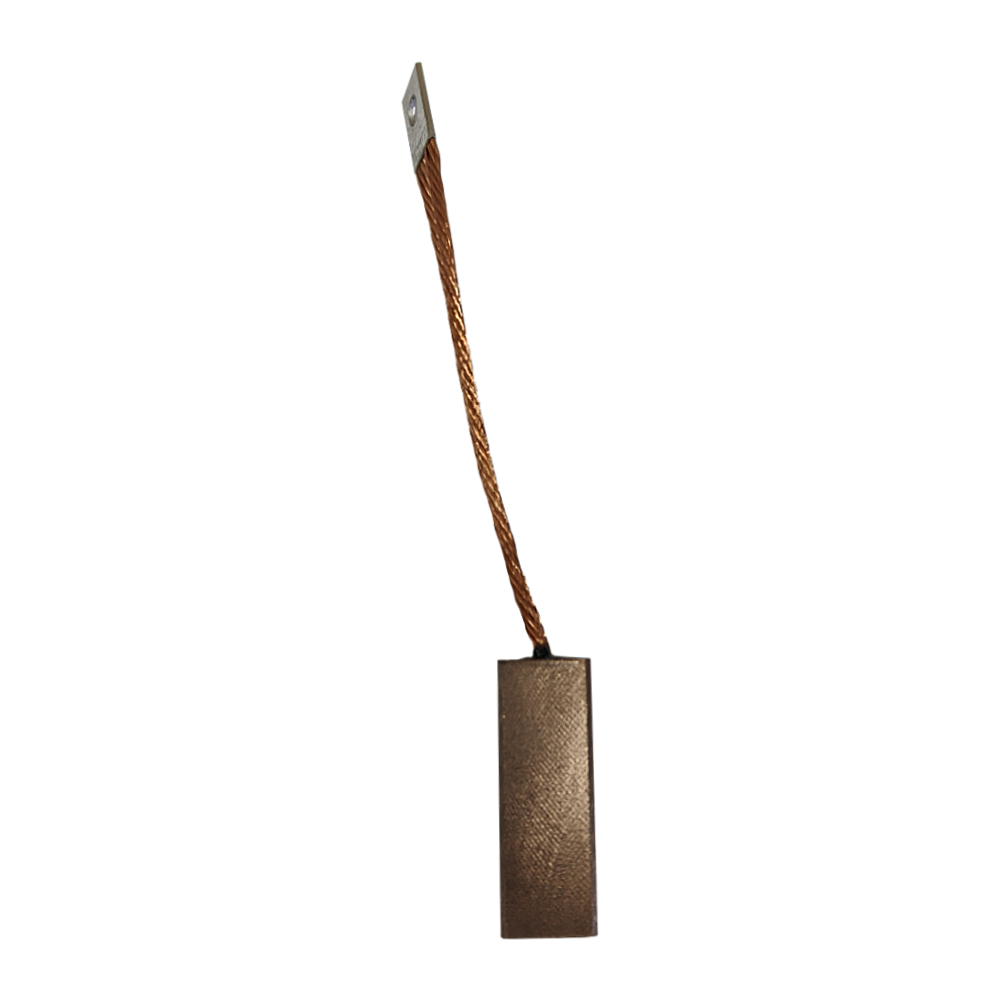

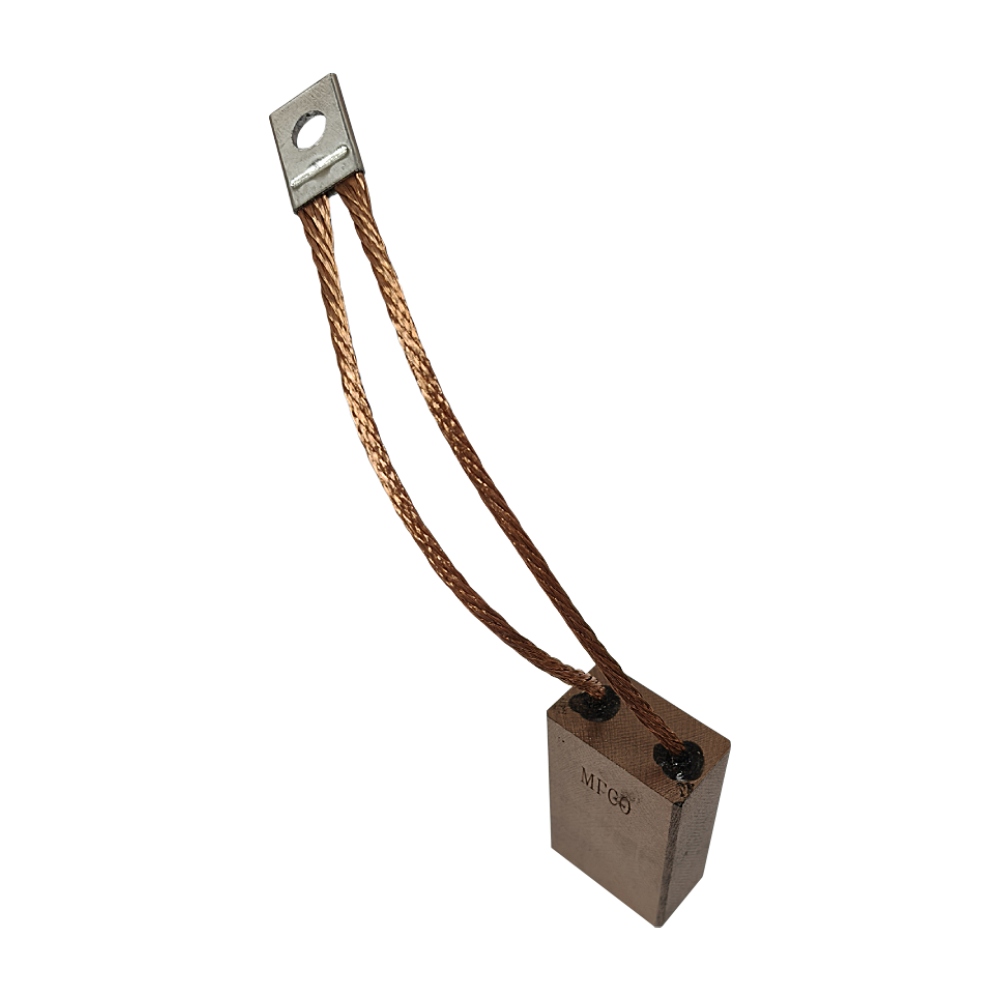

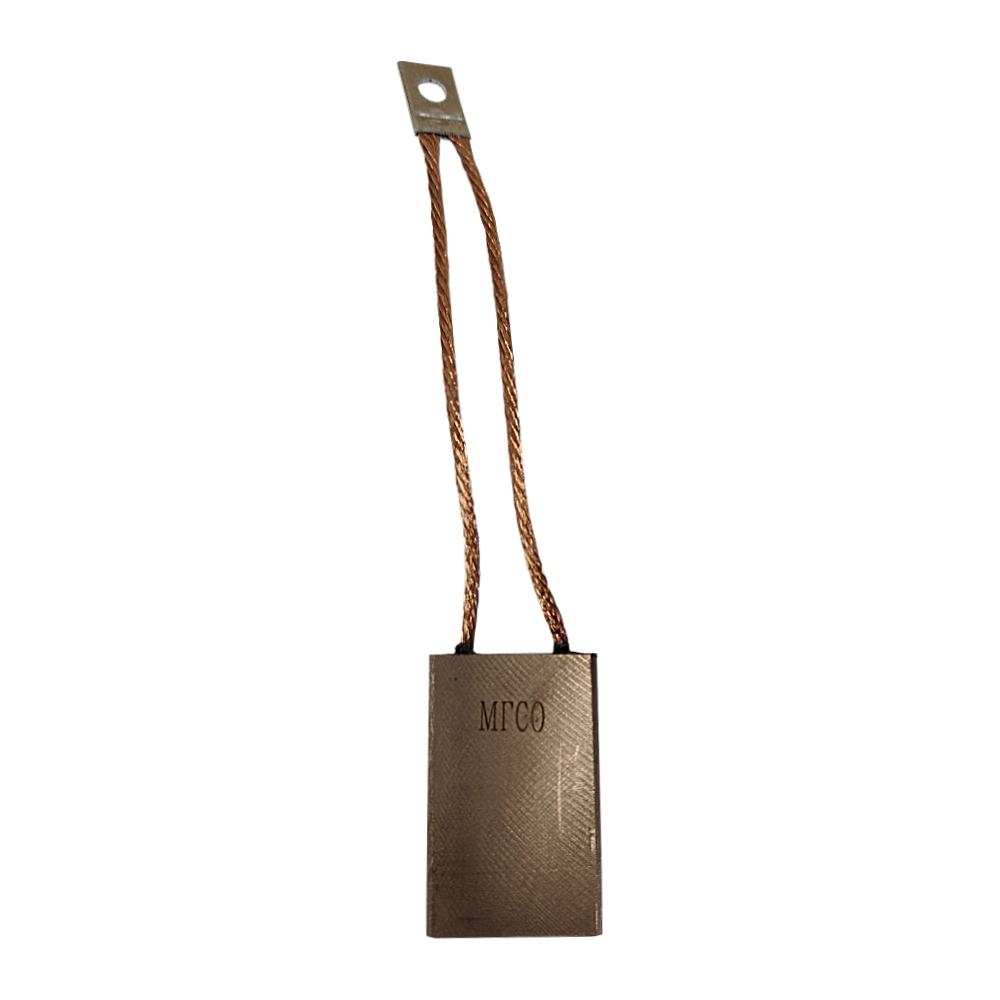

- Name: Copper graphite brush MGCO 18x32x50 K1-3
- Brand: ЛЕГ
- Product Code: MGCO_18x32x50_K1-3_LEG
- Availability: Pre-order 39 calendar days
11.45€
Main specifications
All specifications
Material:
М26
Analog material:
FTSX 128, МГСО, М70
Сonstruction by ГОСТ Р 53617-2009:
К1-3
Conductor length by ГОСТ 12232-89, no less, L :
120 mm
Conductor cross-section, S :
2,5 mm²
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
6PG
IEC 60276 tip shape:
6M
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush MGCO 18x32x50 K1-3
Specifications
Main characteristics
Material
М26
Analog material
FTSX 128, МГСО, М70
Сonstruction by ГОСТ Р 53617-2009
К1-3
Conductor length by ГОСТ 12232-89, no less, L
120 mm
Conductor cross-section, S
2,5 mm²
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
6PG
IEC 60276 tip shape
6M
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Specific electrical resistance, p
0.1-0.3 μΩ·m
Current density, j
0,45 A/mm²
Circum velocity, Vₚₑᵣ
50 m/s
Brush pressure, p
15-40 kPa
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.35 V
Friction factor, μ
0.24
Manufacturer country
Ukraine
