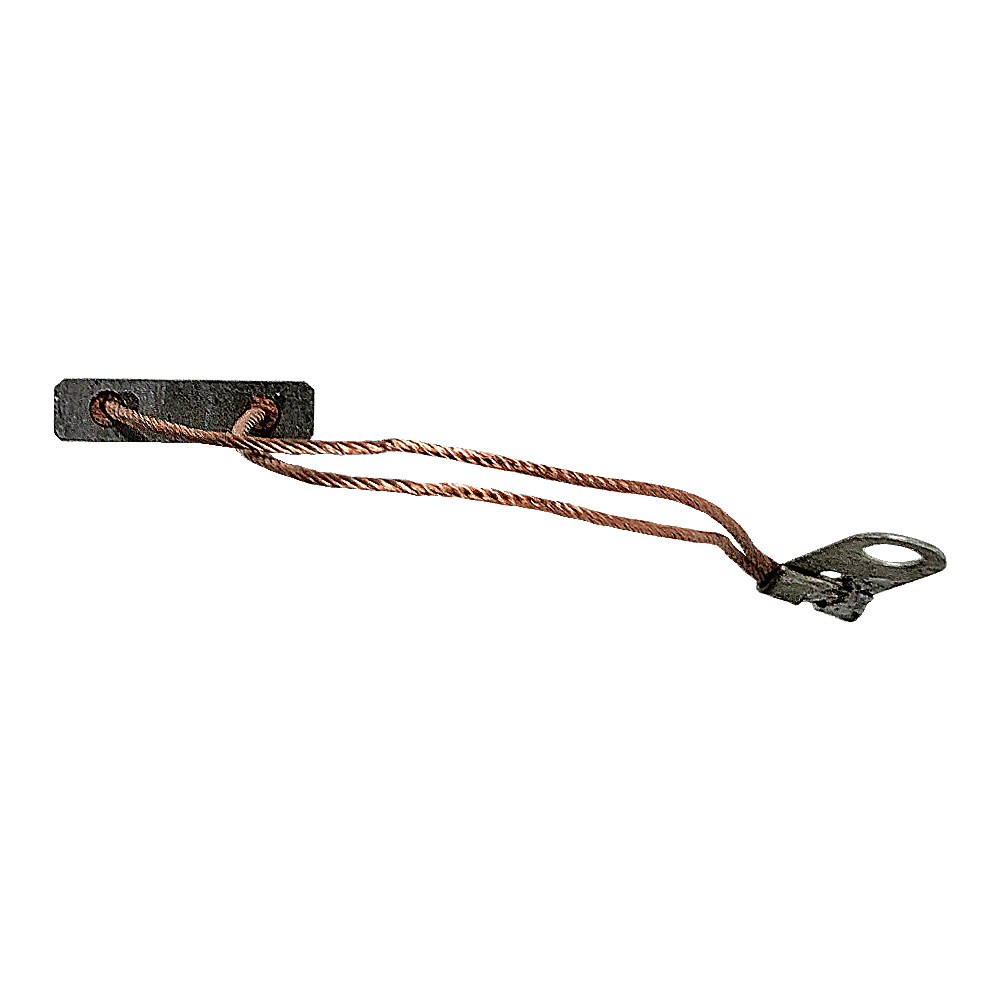

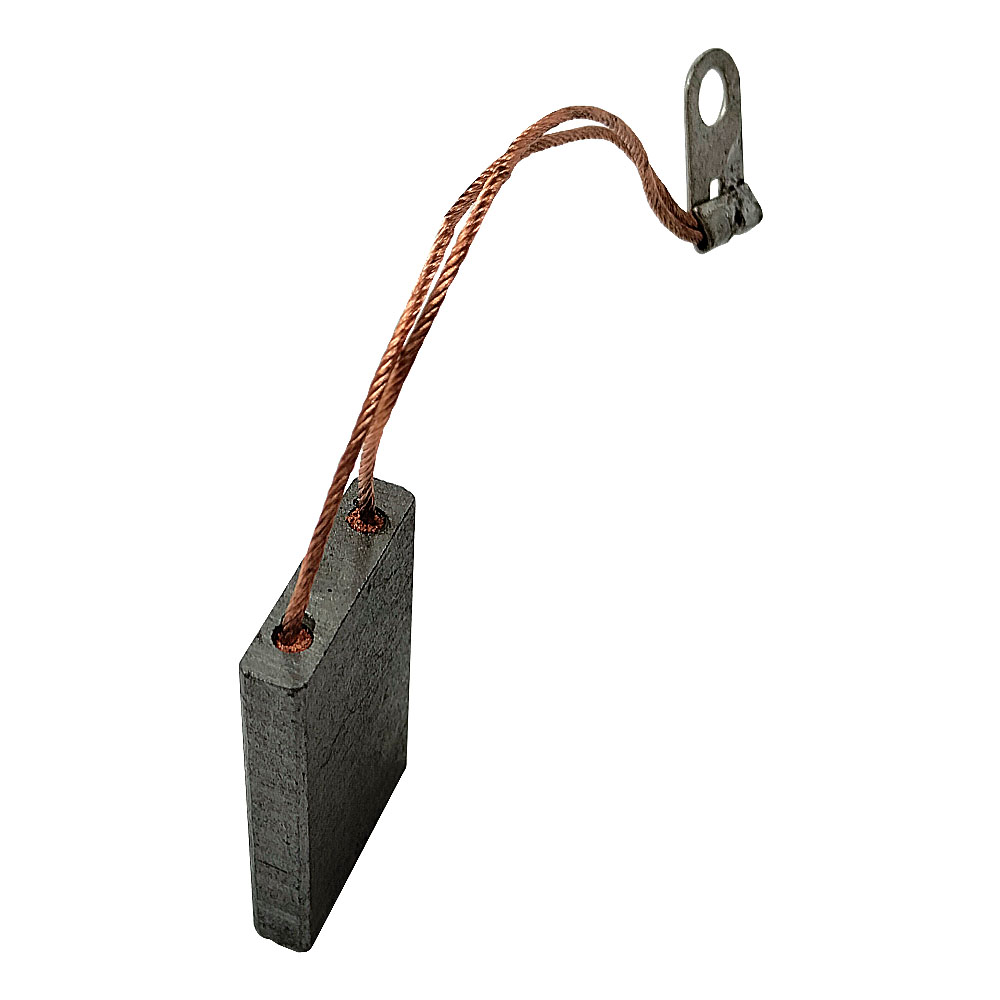

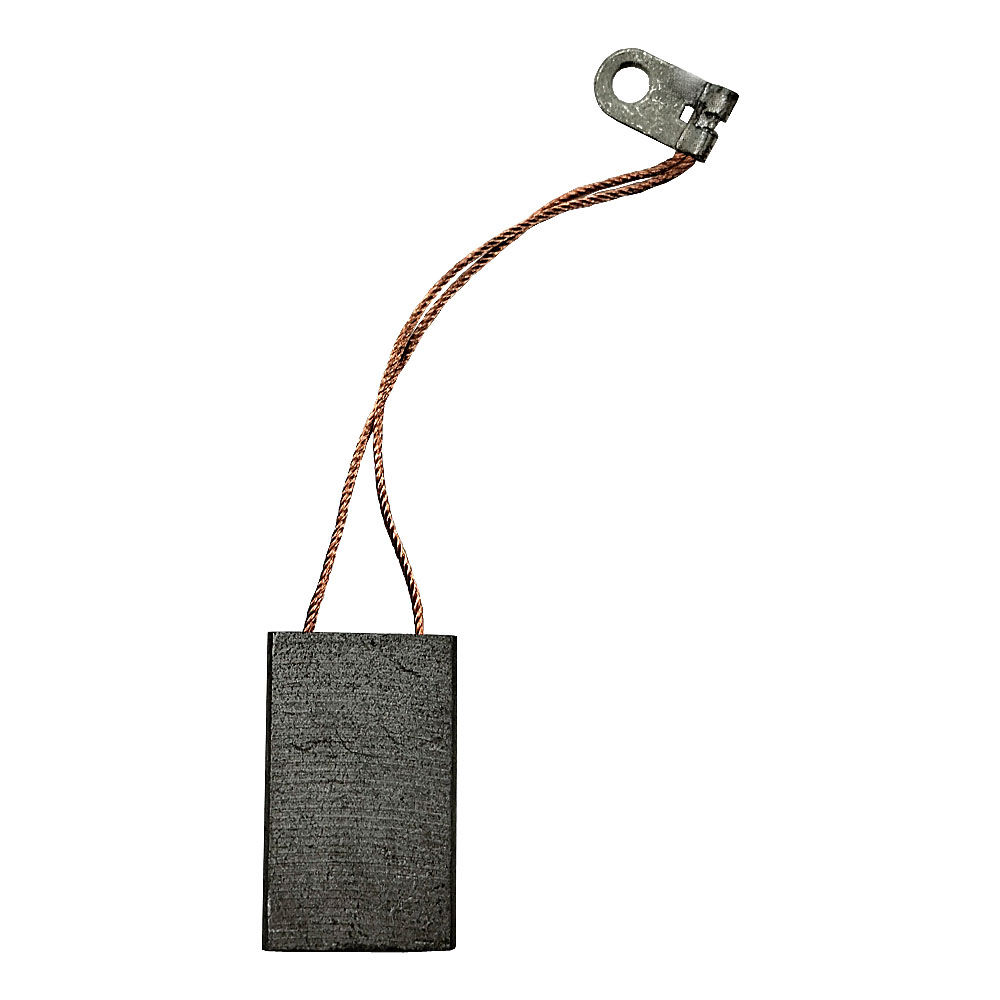

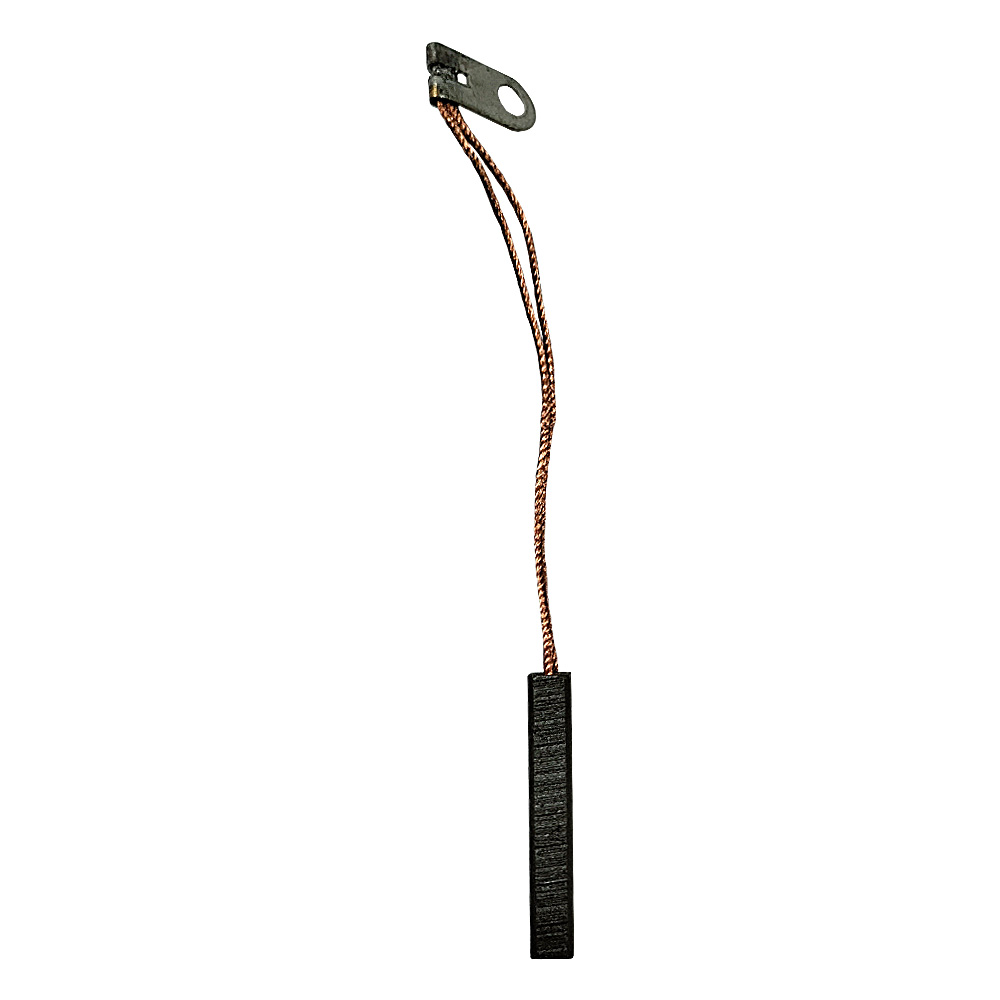

Electro graphite brush EF54 5x20x32 K1-3 for motors and generators

Reviews:

(0)

Name: Electro graphite brush EF54 5x20x32 K1-3
Brand: ZTV
Product Code: EF54_5x20x32_K1-3
Availability: Pre-order 39 calendar days

2.25€

Main specifications

All specifications

Material: EF54

Сonstruction by ГОСТ Р 53617-2009: K1-3

Сonstruction by IEC 60276: CL16A

Conductor length by ГОСТ 12232-89, no less, L : 70 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: FG

IEC 60276 tip shape: G

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Electro graphite brush EF54 5x20x32 K1-3 for motors and generators

Specifications

Main characteristics

Material

EF54

Сonstruction by ГОСТ Р 53617-2009

K1-3

Сonstruction by IEC 60276

CL16A

Conductor length by ГОСТ 12232-89, no less, L

70 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

FG

IEC 60276 tip shape

G

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

15 - 20 HBS 7.9/60

Specific electrical resistance, p

25-50 μΩ·m

Current density, j

0,15 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

1.2-2.6 V

Brush pressure, p

2-5 kPa

Circum velocity, Vₚₑᵣ

60 m/s

Friction factor, μ

0.2

Manufacturer country

Bulgaria
