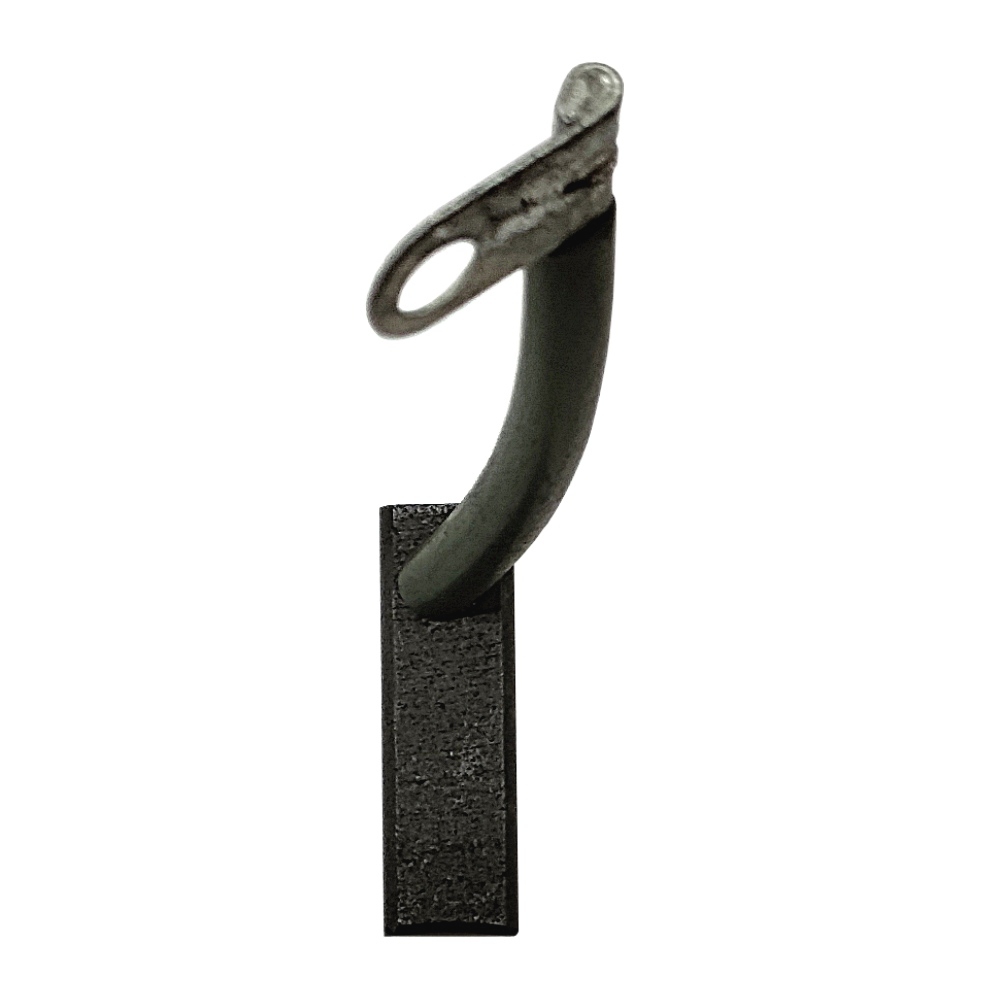

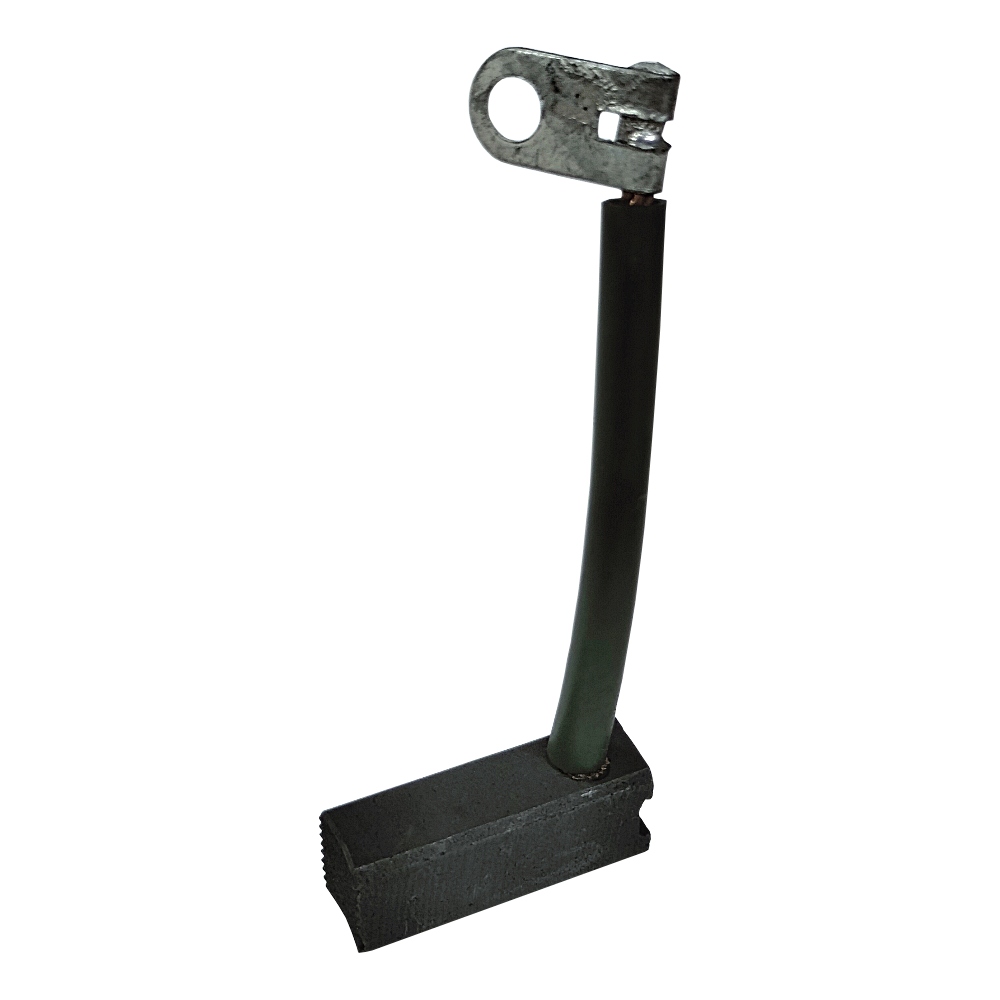

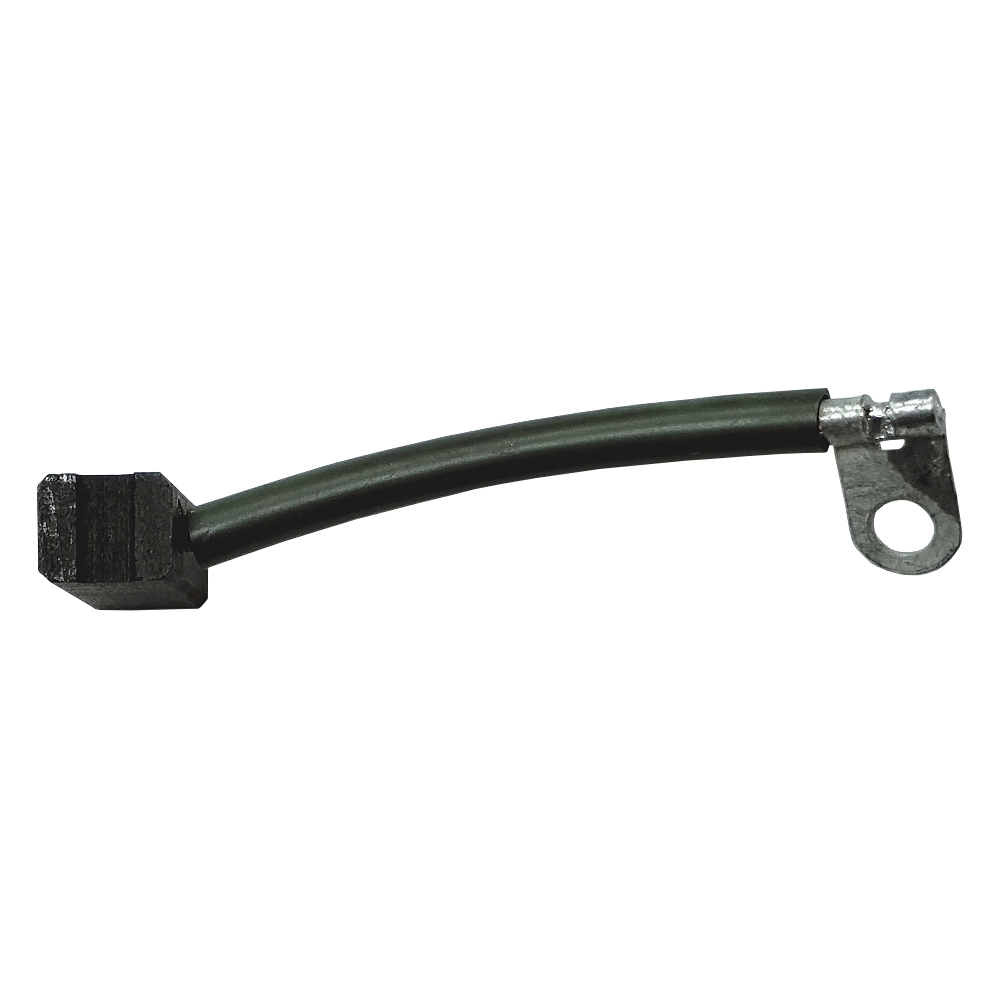

Electro graphite brush EG14 8x10x25 K8-4 for motors and generators

Reviews:

(0)

Name: Electro graphite brush EG14 8x10x25 K8-4
Brand: ZTV
Product Code: ЕG14_8x10x25_K8-4
Availability: Pre-order 39 calendar days

2.07€

Main specifications

All specifications

Material: EG14

Analog material: EG616, Е46, EG625

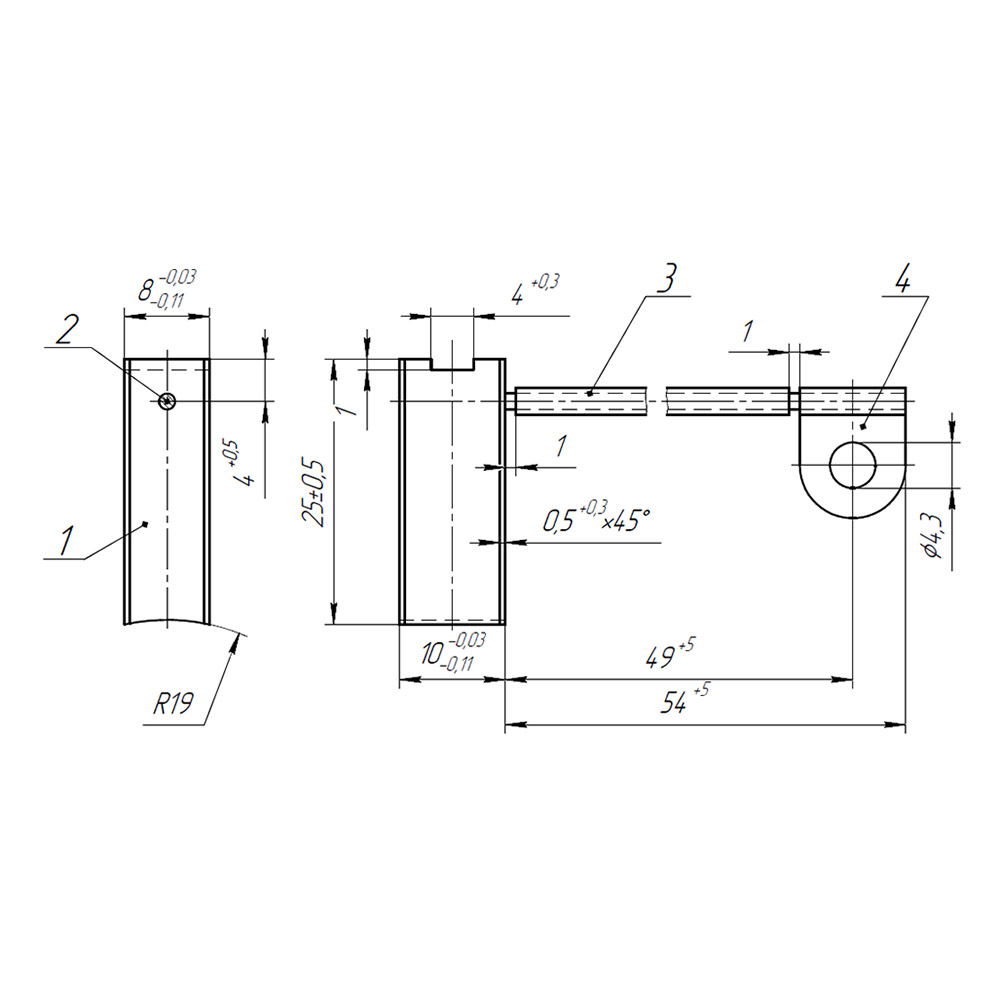

Сonstruction by ГОСТ Р 53617-2009: К8-4

Conductor insulation : present

Terminal type according to ГОСТ Р 53617-2009: FG

IEC 60276 tip shape: G

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Electro graphite brush EG14 8x10x25 K8-4 for motors and generators

Specifications

Main characteristics

Material

EG14

Analog material

EG616, Е46, EG625

Сonstruction by ГОСТ Р 53617-2009

К8-4

Conductor insulation

present

Terminal type according to ГОСТ Р 53617-2009

FG

IEC 60276 tip shape

G

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

8-30 HR

Specific electrical resistance, p

20-38 μΩ·m

Current density, j

0,12 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

1.1-2.1 V

Brush pressure, p

40 kPa

Circum velocity, Vₚₑᵣ

45 m/s

Friction factor, μ

0.25

Manufacturer country

Bulgaria
