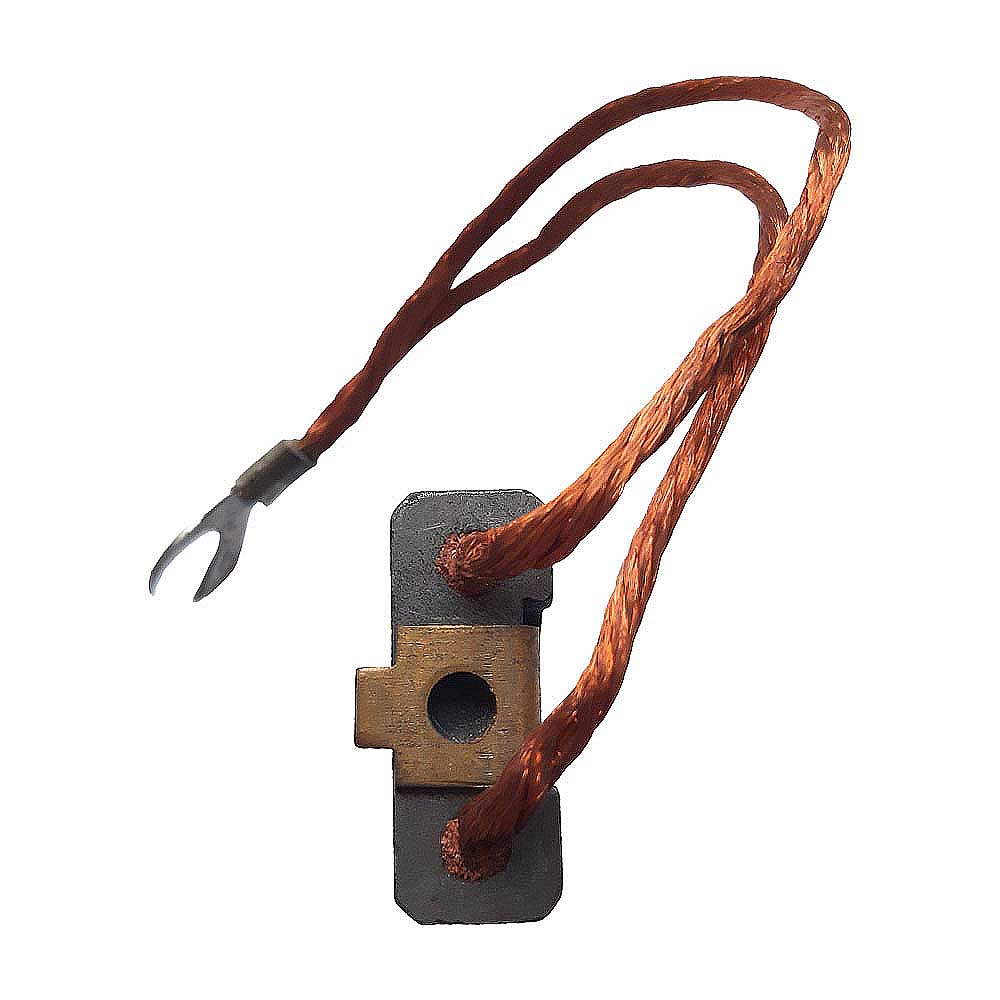

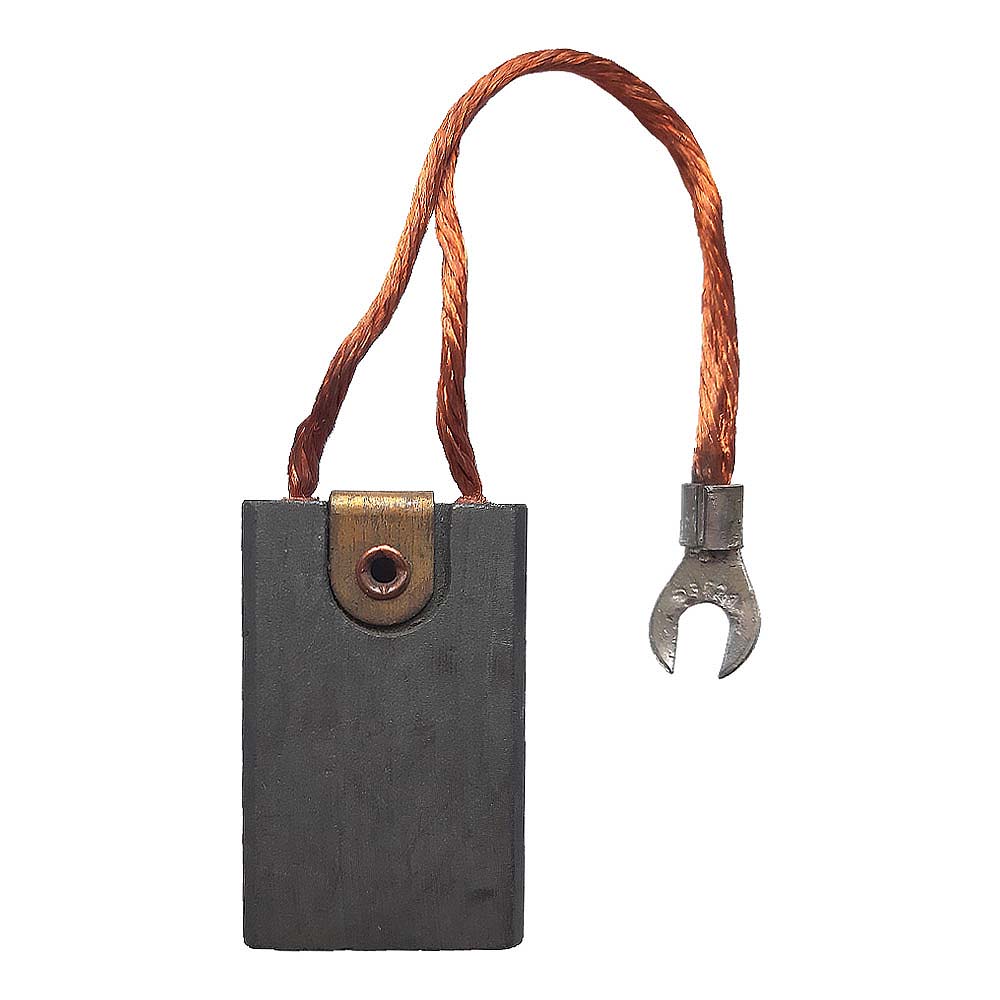

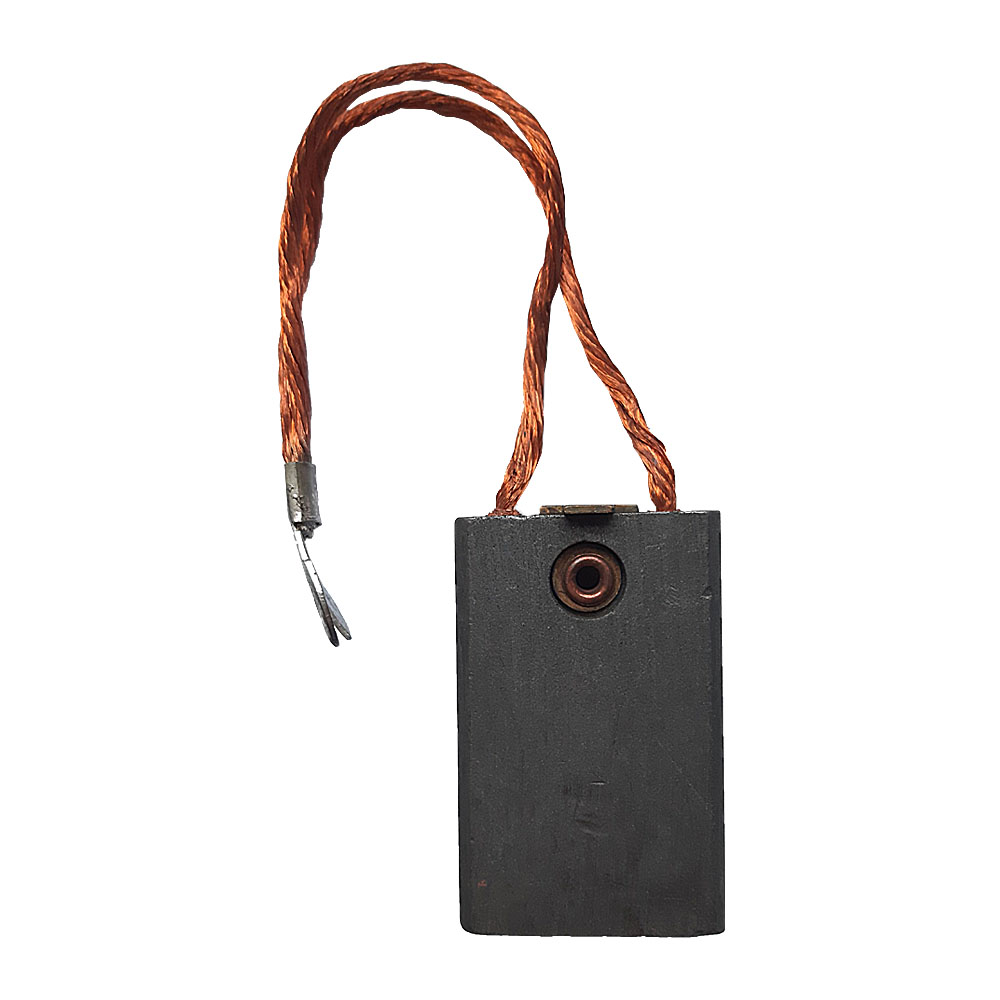

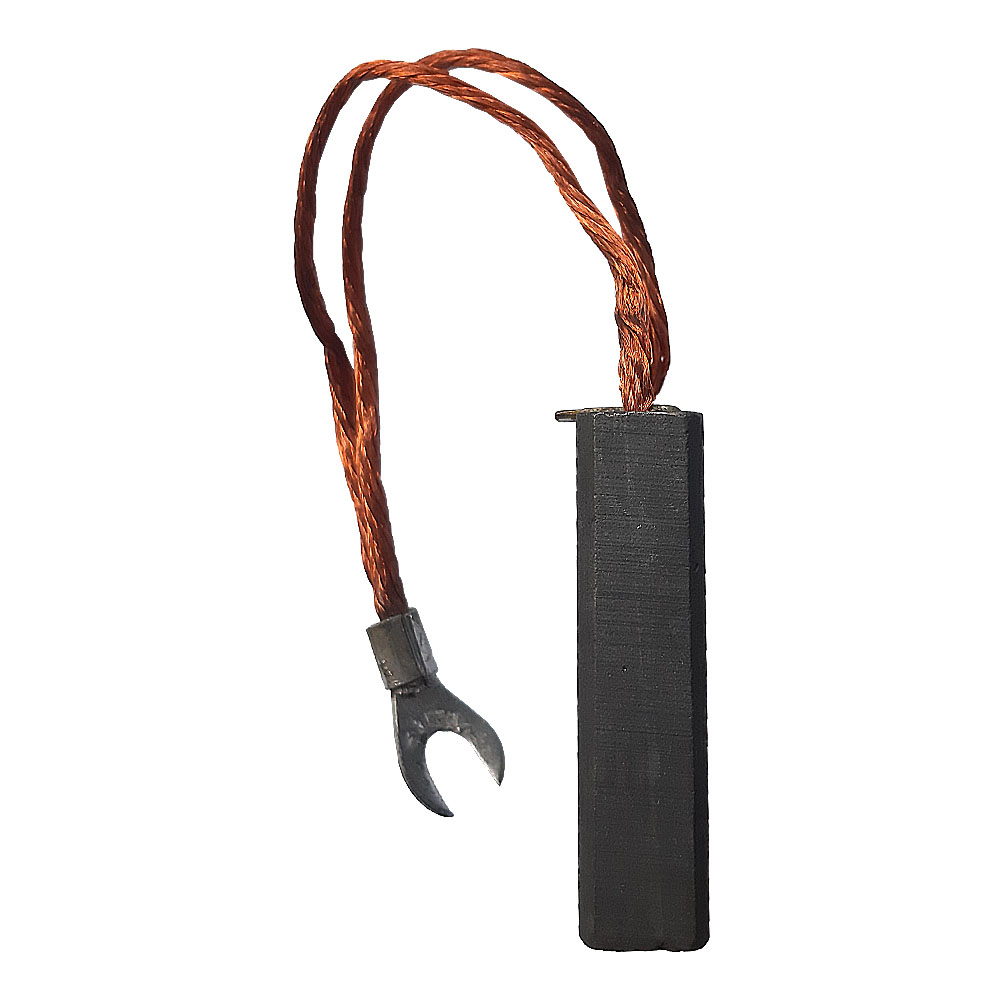

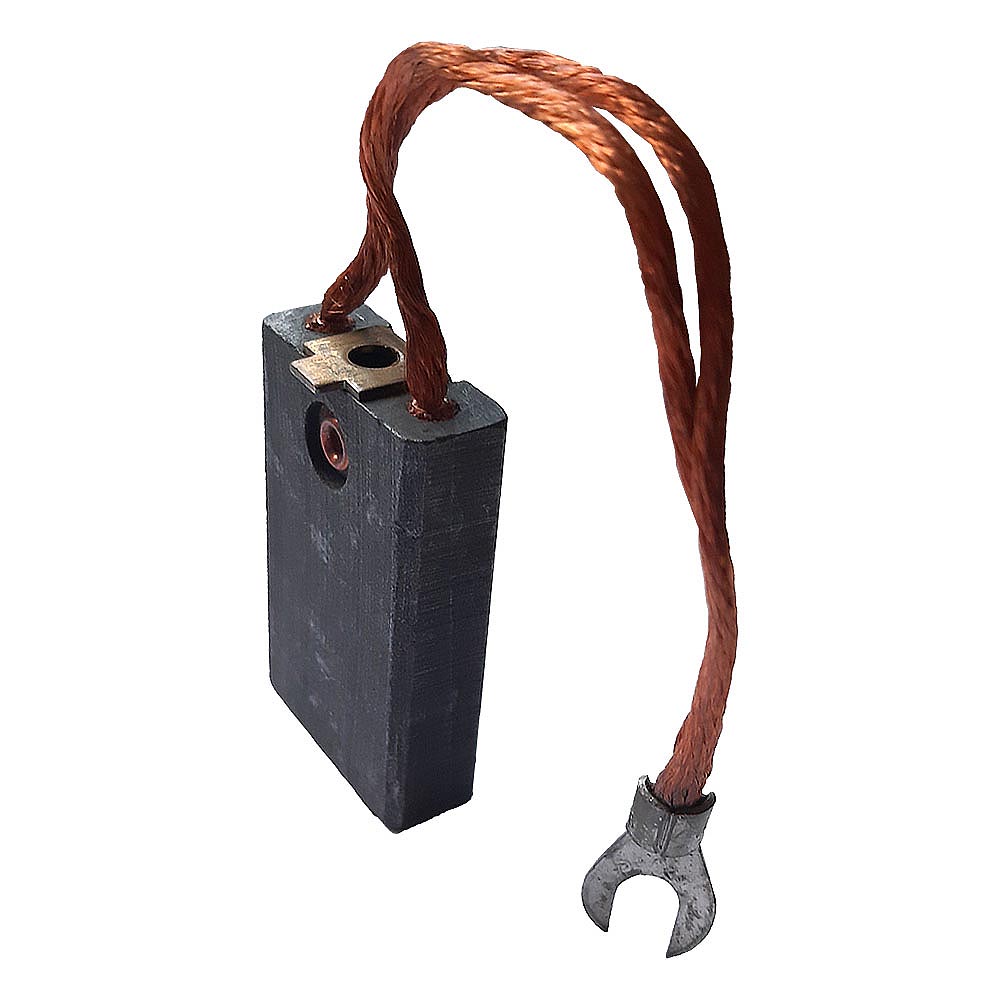

Electro graphite brush EG2A 12.5x32x50 K1-3 for motors and generators

Reviews:

(0)

Name: Electro graphite brush EG2A 12.5x32x50 K1-3
Brand: ZTV
Product Code: EG2A_12_5x32x50_K1-3
Availability: In Stock

80 грн.

Main specifications

All specifications

Material: EG2A

Analog material: EG71, EG624, EG389P, LFC554, Е468, SL52

Сonstruction by ГОСТ Р 53617-2009: К1-3

Сonstruction by IEC 60276: CL04A

Conductor length by ГОСТ 12232-89, no less, L : 125 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: 6B

Cover type according to ГОСТ Р 53617-2009: HK-2

Qty:

Terms of agreement

All goods are certified

We accept payment online

Electro graphite brush EG2A 12.5x32x50 K1-3 for motors and generators

Specifications

Main characteristics

Material

EG2A

Analog material

EG71, EG624, EG389P, LFC554, Е468, SL52

Сonstruction by ГОСТ Р 53617-2009

К1-3

Сonstruction by IEC 60276

CL04A

Conductor length by ГОСТ 12232-89, no less, L

125 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

6B

Cover type according to ГОСТ Р 53617-2009

HK-2

Additional parameters

Hardness, H

8-21 HBS 7.9/60

Specific electrical resistance, p

11.0-27.0 μΩ·m

Current density, j

0,12 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

0.9-1.9 V

Brush pressure, p

25 kPa

Circum velocity, Vₚₑᵣ

50 m/s

Friction factor, μ

0.23

Manufacturer country

Bulgaria
