- Name: Electro graphite brush EG4 20x32x64 K1-3
- Brand: ZTV
- Product Code: EG4_20х32х64_K1-3
- Availability: Pre-order 39 calendar days
9.00€
Main specifications
All specifications
Material:
EG4
Сonstruction by ГОСТ Р 53617-2009:
К1-3
Сonstruction by IEC 60276:
CL04A
Conductor length by ГОСТ 12232-89, no less, L :
140 mm
Conductor cross-section, S :
6 mm²
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
6D
Cover type according to ГОСТ Р 53617-2009:
HK-2
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

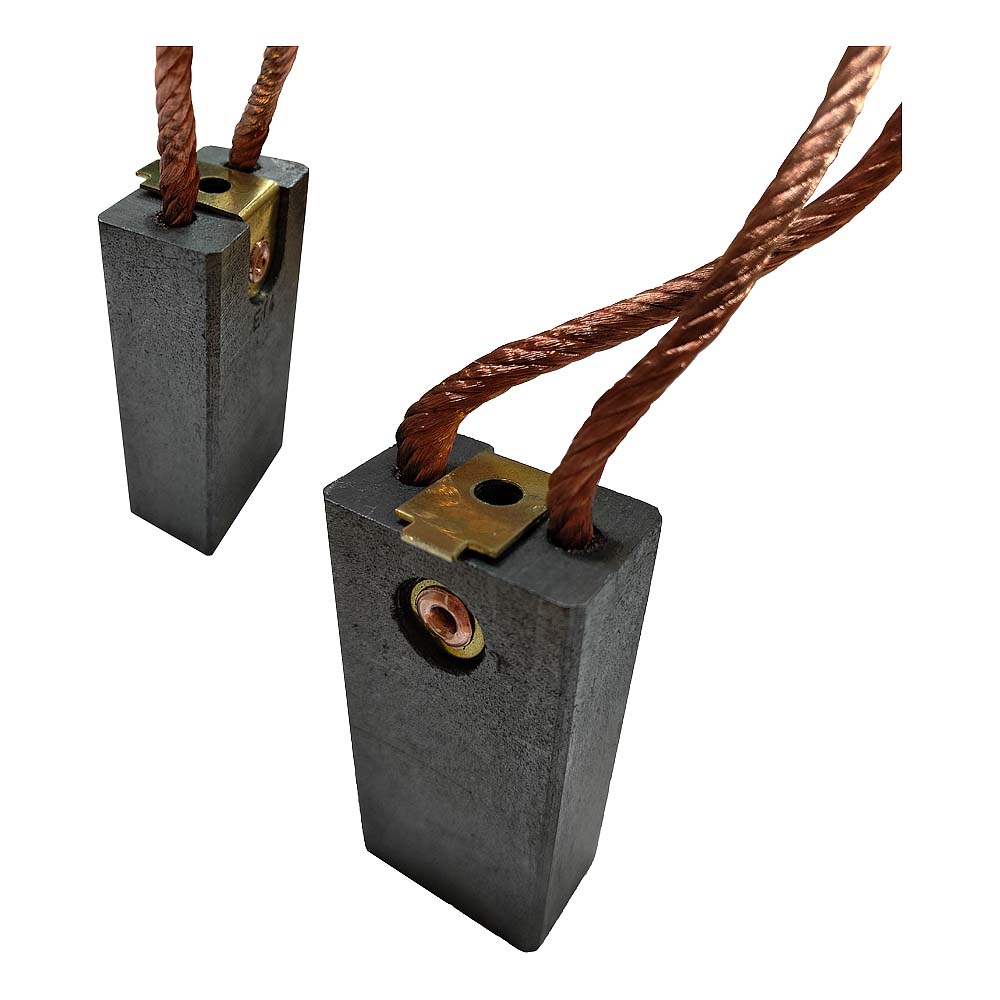

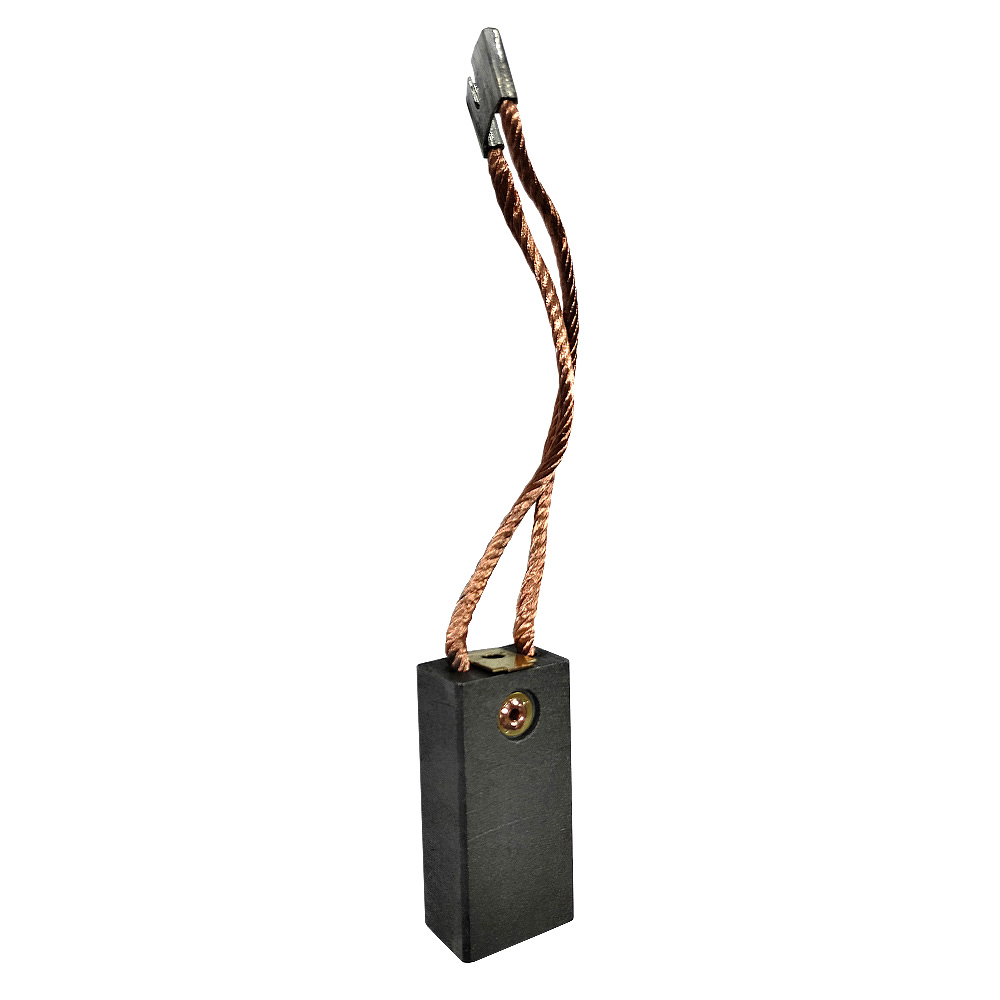

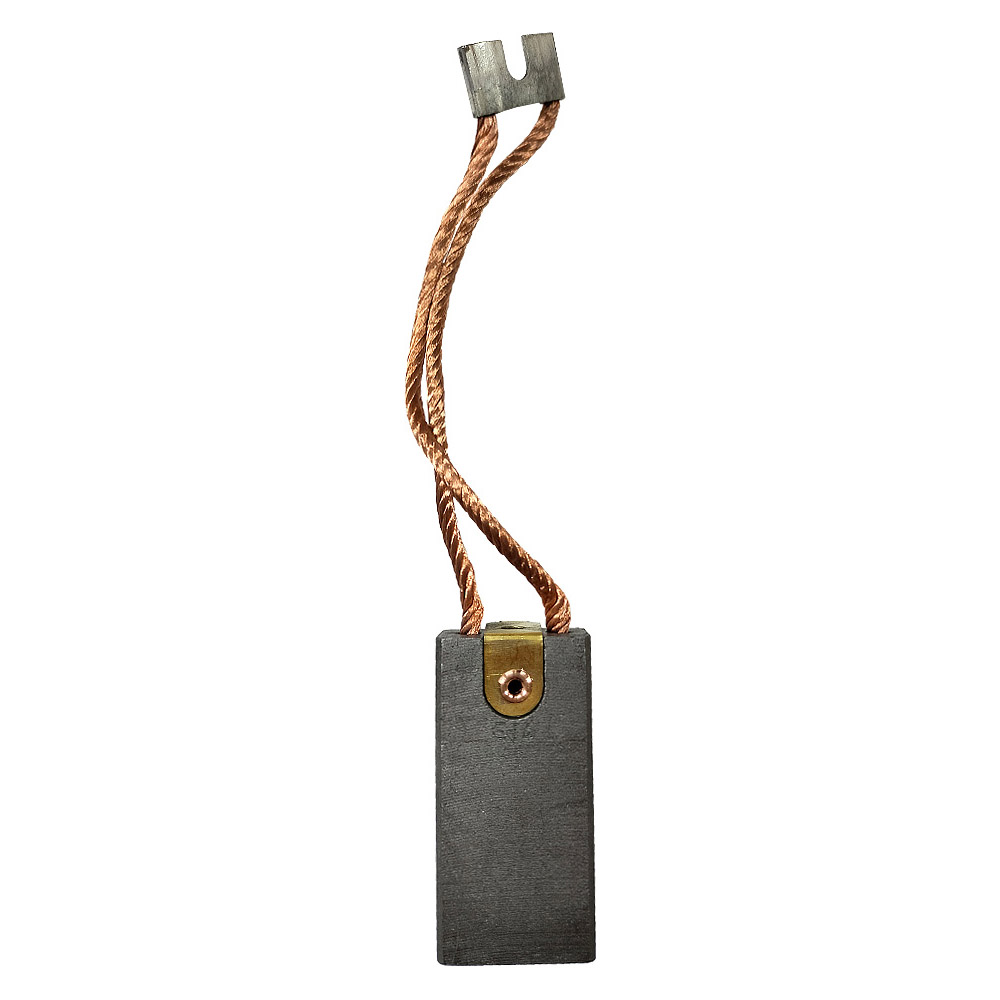

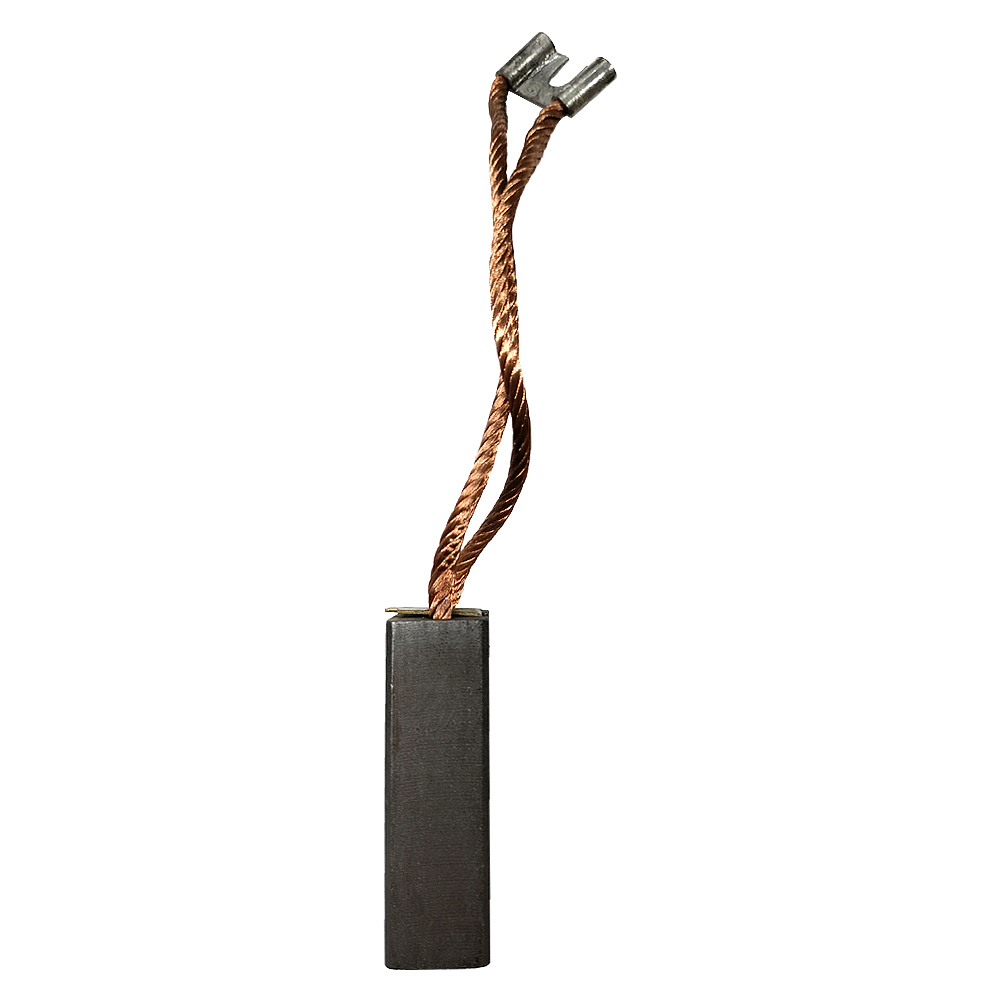

Electro graphite brush EG4 20x32x64 K1-3 for motors and generators
Specifications
Main characteristics
Material
EG4
Сonstruction by ГОСТ Р 53617-2009
К1-3
Сonstruction by IEC 60276
CL04A
Conductor length by ГОСТ 12232-89, no less, L
140 mm
Conductor cross-section, S
6 mm²
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
6D
Cover type according to ГОСТ Р 53617-2009
HK-2
Additional parameters
Hardness, H
2-6 HR
Specific electrical resistance, p
6.0-16.0 μΩ·m
Current density, j
0,12 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.8-2.0 V
Brush pressure, p
20 kPa
Circum velocity, Vₚₑᵣ
60 m/s
Friction factor, μ
0.25
Manufacturer country
Bulgaria
