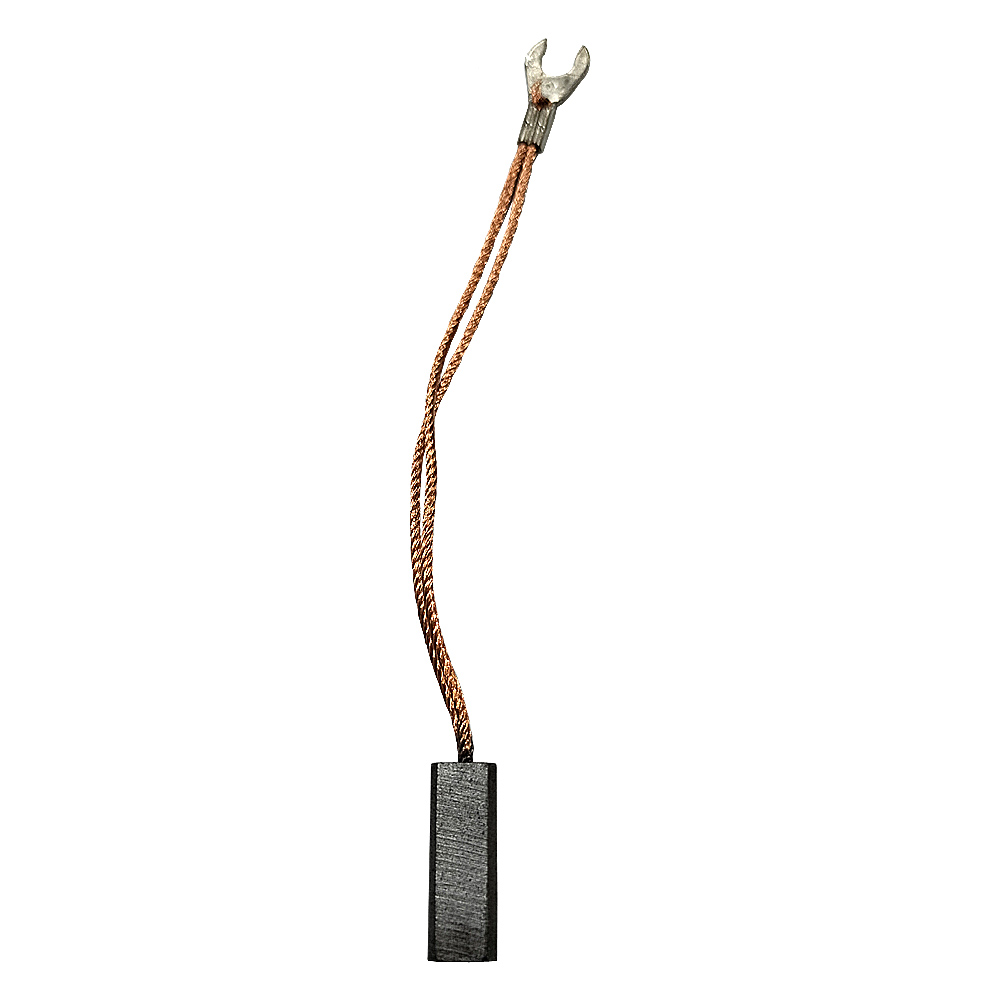

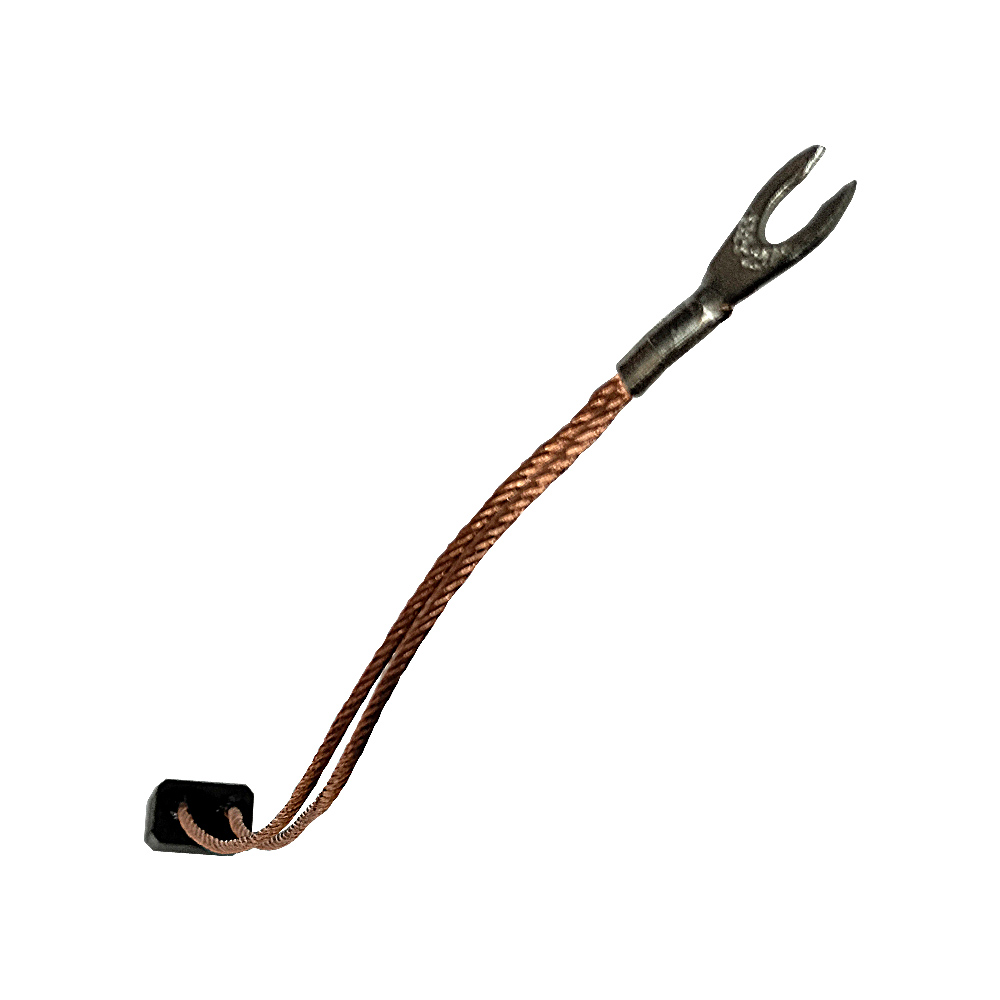

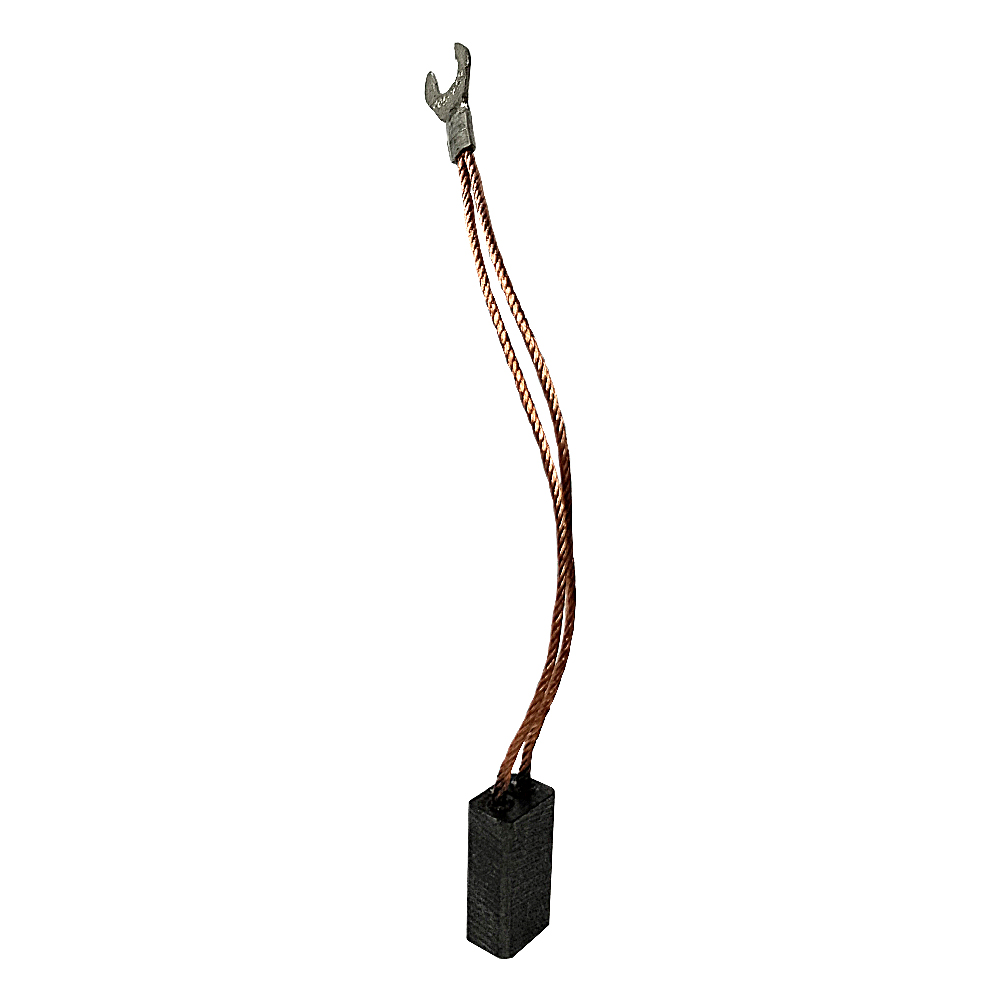

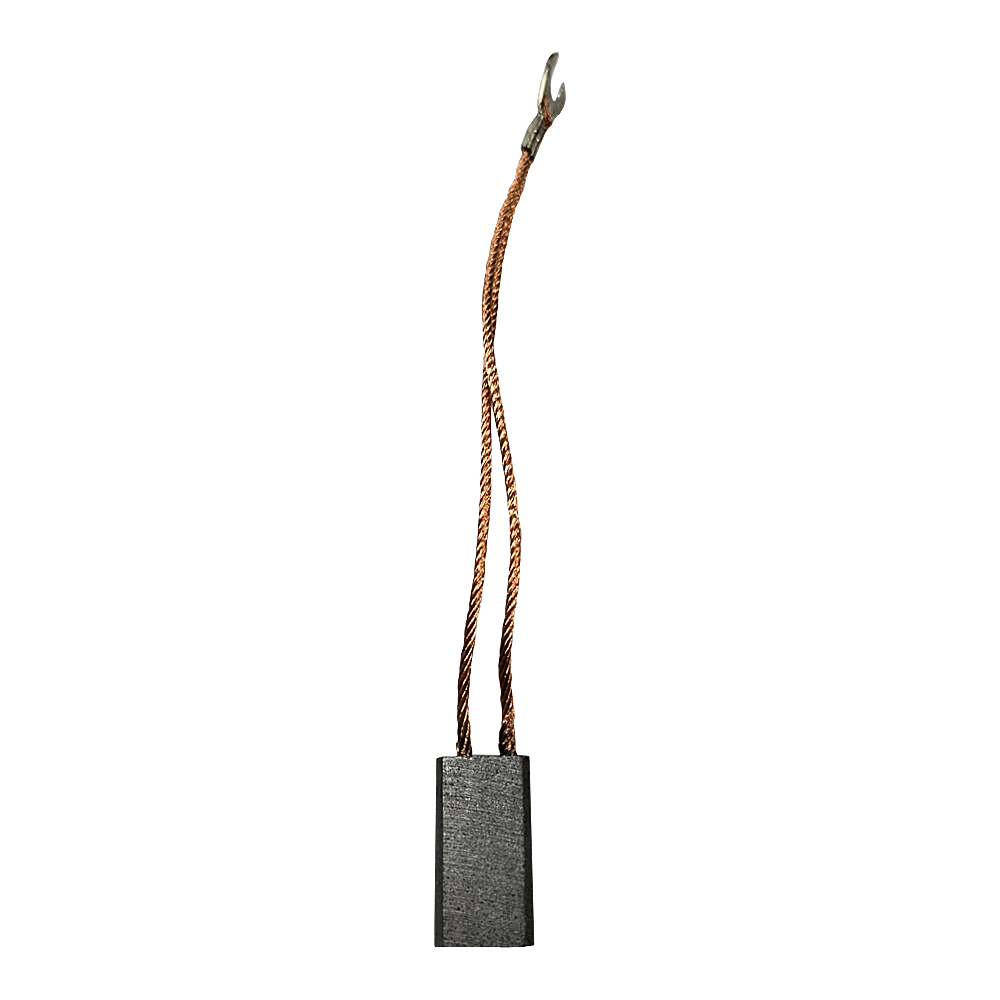

- Name: Electro graphite brush EG4 8x12x22 K1-3
- Brand: ZTV
- Product Code: EG4_8x12x22_K1-3
- Availability: Pre-order 39 calendar days
1.80€
Main specifications
All specifications
Material:
EG4
Сonstruction by ГОСТ Р 53617-2009:
К1-3
Сonstruction by IEC 60276:
CL04A
Conductor length by ГОСТ 12232-89, no less, L :
100 mm
Conductor cross-section, S :
2,5 mm²
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
B
IEC 60276 tip shape:
Z
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Electro graphite brush EG4 8x12x22 K1-3 for motors and generators
Specifications
Main characteristics
Material
EG4
Сonstruction by ГОСТ Р 53617-2009
К1-3
Сonstruction by IEC 60276
CL04A
Conductor length by ГОСТ 12232-89, no less, L
100 mm
Conductor cross-section, S
2,5 mm²
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
B
IEC 60276 tip shape
Z
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
2-6 HR
Specific electrical resistance, p
6.0-16.0 μΩ·m
Current density, j
0,12 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.8-2.0 V
Brush pressure, p
20 kPa
Circum velocity, Vₚₑᵣ
60 m/s
Friction factor, μ
0.25
Manufacturer country
Bulgaria
