- Name: Electro graphite brush EG4 8x15x15 K4-2
- Brand: ZTV
- Product Code: EG4_8x15x15_K4-2
- Availability: Pre-order 39 calendar days
1.78€
Main specifications
All specifications
Material:
EG4
Сonstruction by ГОСТ Р 53617-2009:
К4-2
Сonstruction by IEC 60276:
CL06A
Conductor length by ГОСТ 12232-89, no less, L :
50 mm
Conductor insulation :
missing
Terminal type according to ГОСТ Р 53617-2009:
FG
IEC 60276 tip shape:
G
Cover type according to ГОСТ Р 53617-2009:
missing
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

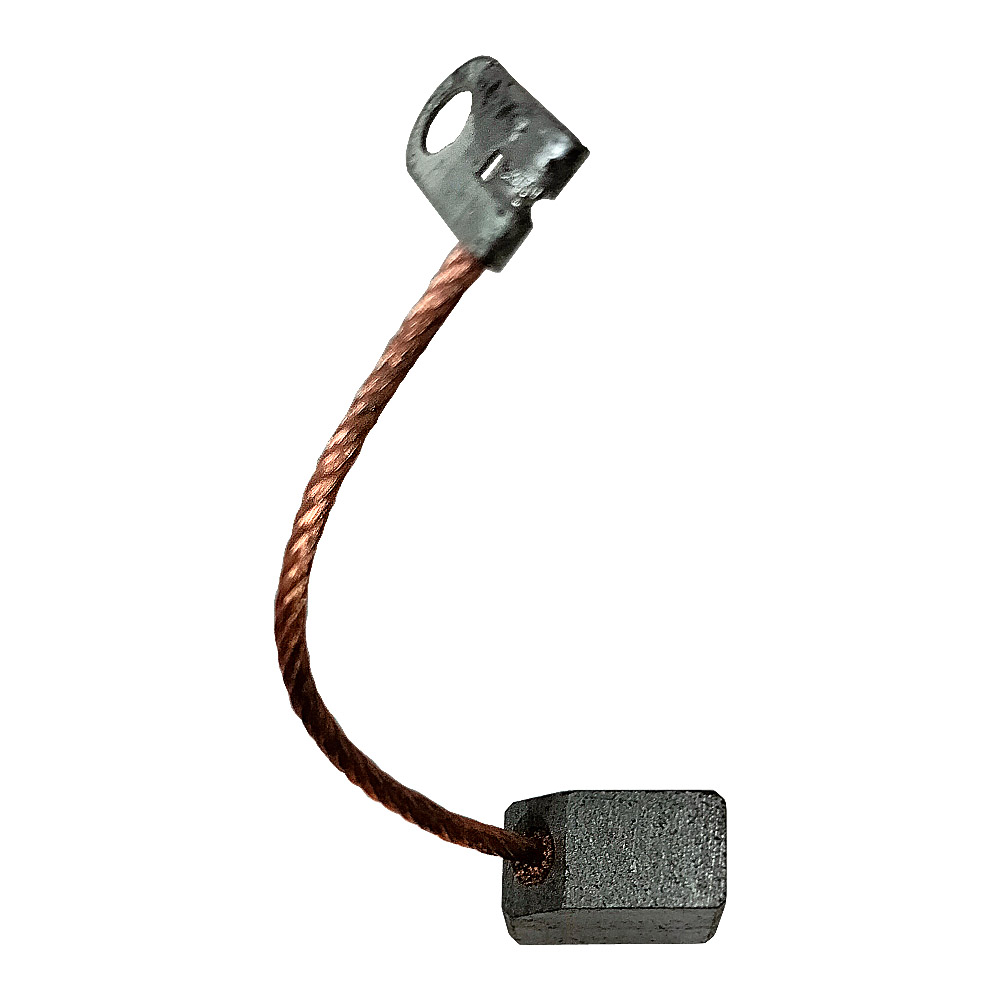

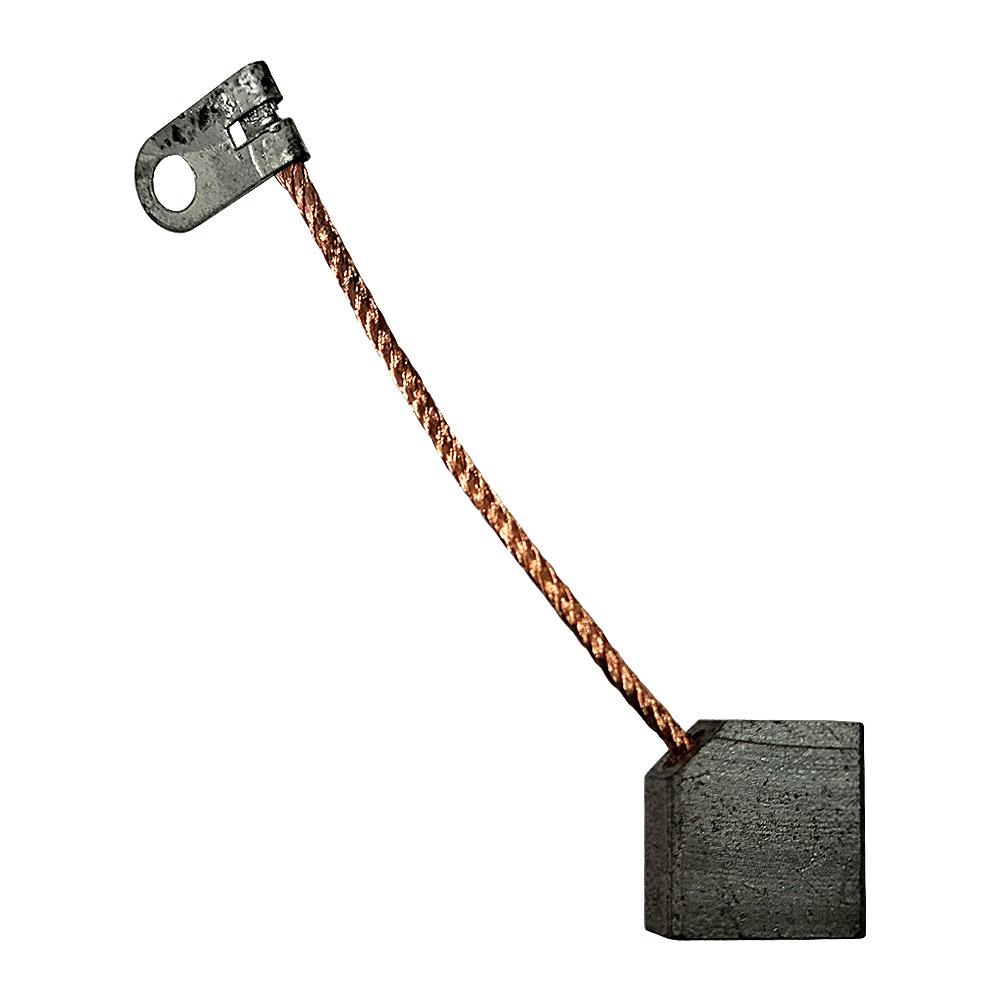

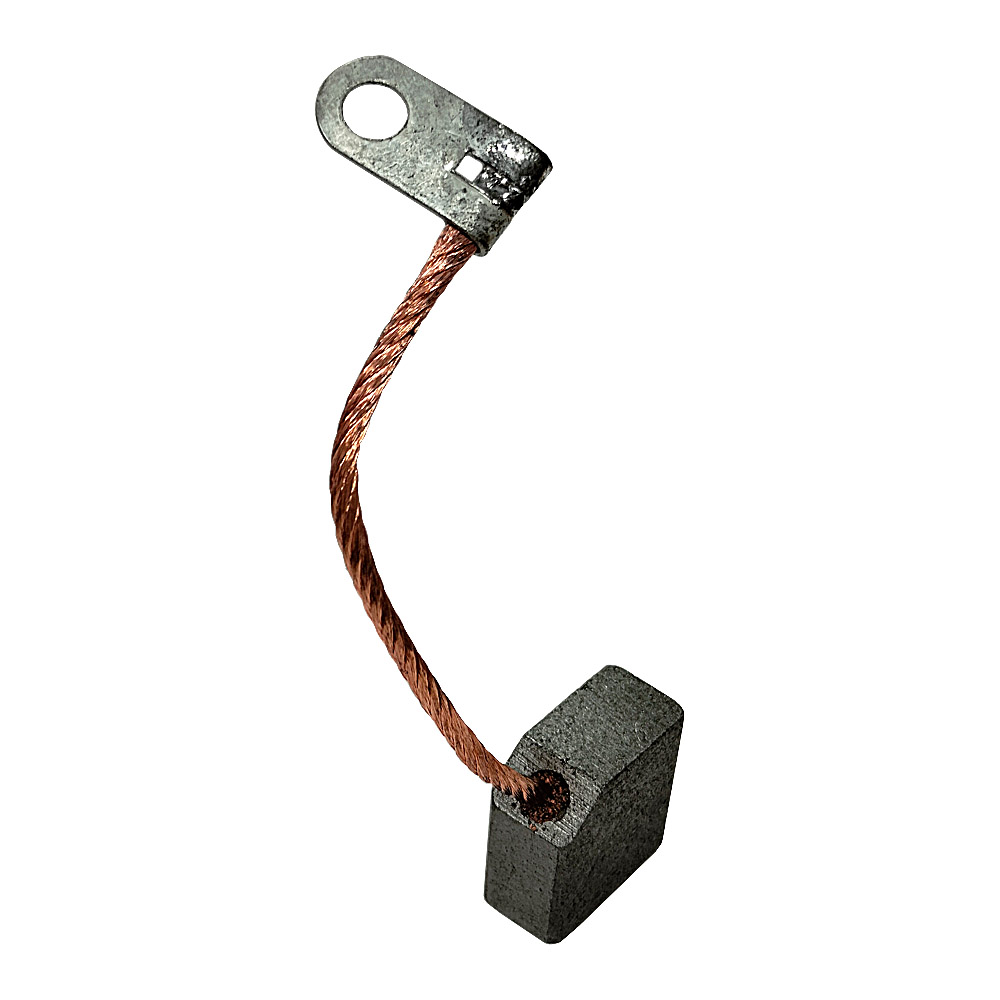

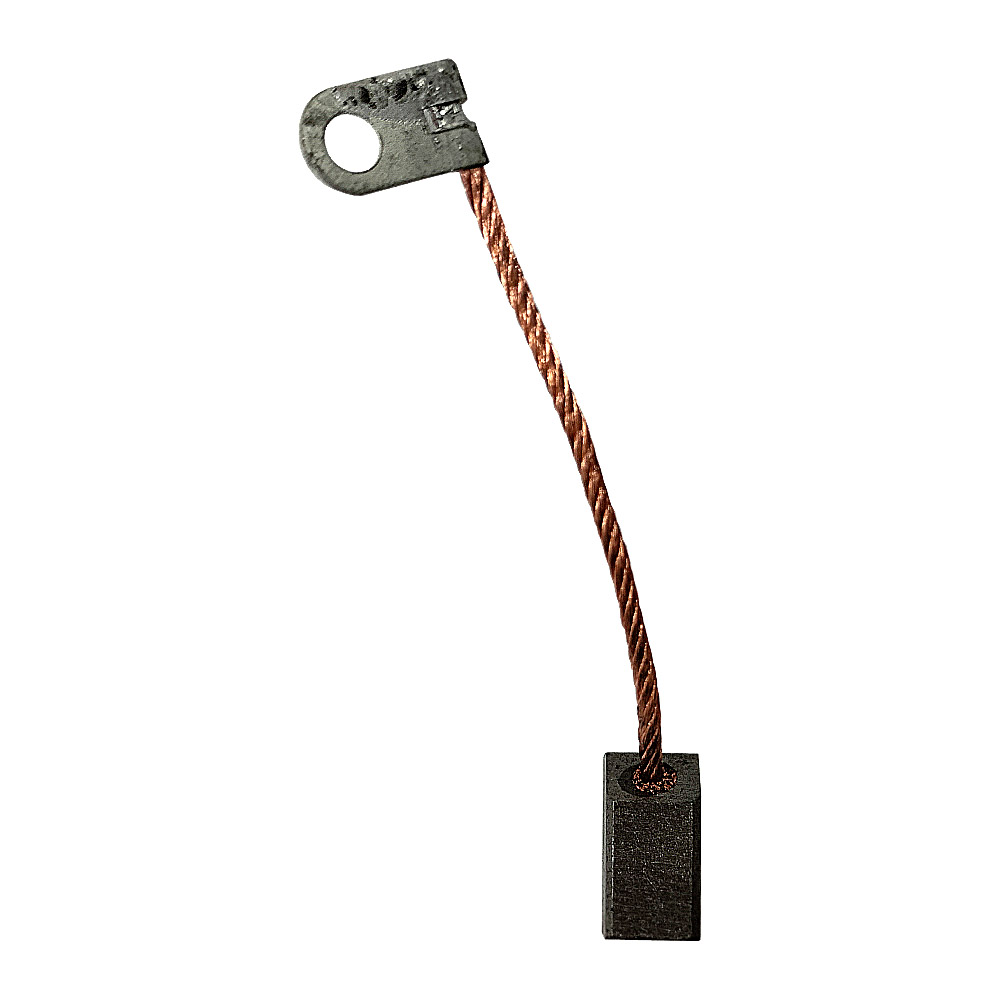

Electro graphite brush EG4 8x15x15 K4-2 for motors and generators
Specifications
Main characteristics
Material
EG4
Сonstruction by ГОСТ Р 53617-2009
К4-2
Сonstruction by IEC 60276
CL06A
Conductor length by ГОСТ 12232-89, no less, L
50 mm
Conductor insulation
missing
Terminal type according to ГОСТ Р 53617-2009
FG
IEC 60276 tip shape
G
Cover type according to ГОСТ Р 53617-2009
missing
Additional parameters
Hardness, H
2-6 HR
Specific electrical resistance, p
6.0-16.0 μΩ·m
Current density, j
0,12 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
0.8-2.0 V
Brush pressure, p
20 kPa
Circum velocity, Vₚₑᵣ
60 m/s
Friction factor, μ
0.25
Manufacturer country
Bulgaria
