- Brand: ARTECH
- Product Code: SDC1-70
- Availability: Pre-order 39 calendar days
43 257 грн.
Main specifications
All specifications
Input voltage type :
AC
Input voltage, U :
380 В
Quantity phases:
3
Frequency, f :
50 Hz
Power electric, Рₑₗ :
10.0 kW
Torque nominal, Мₙₒₘ :
70 Nm
Armature current, Iₐ :
120 A
Armature voltage, Uₐ :
0...±180V
Speed of revolution max., Nₘₐₓ :
1000 rpm
Mode of operation:
S1
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online

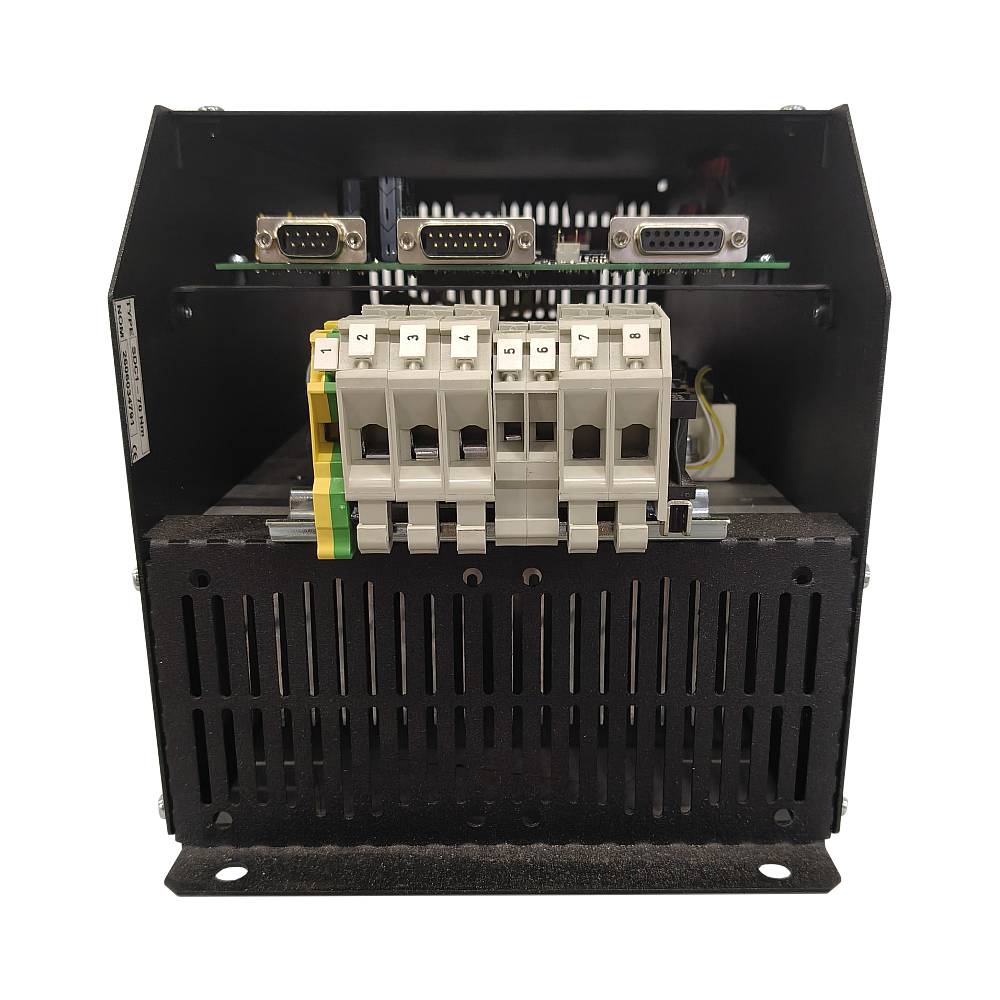

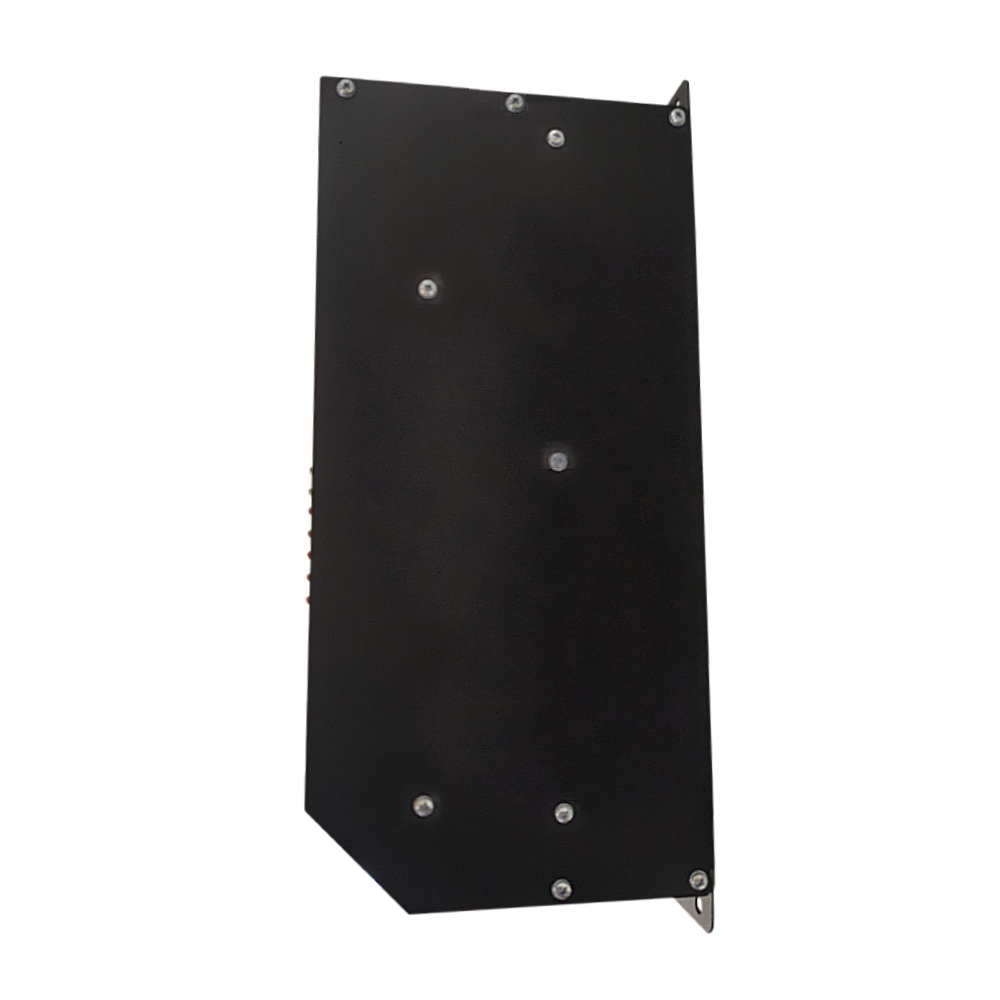

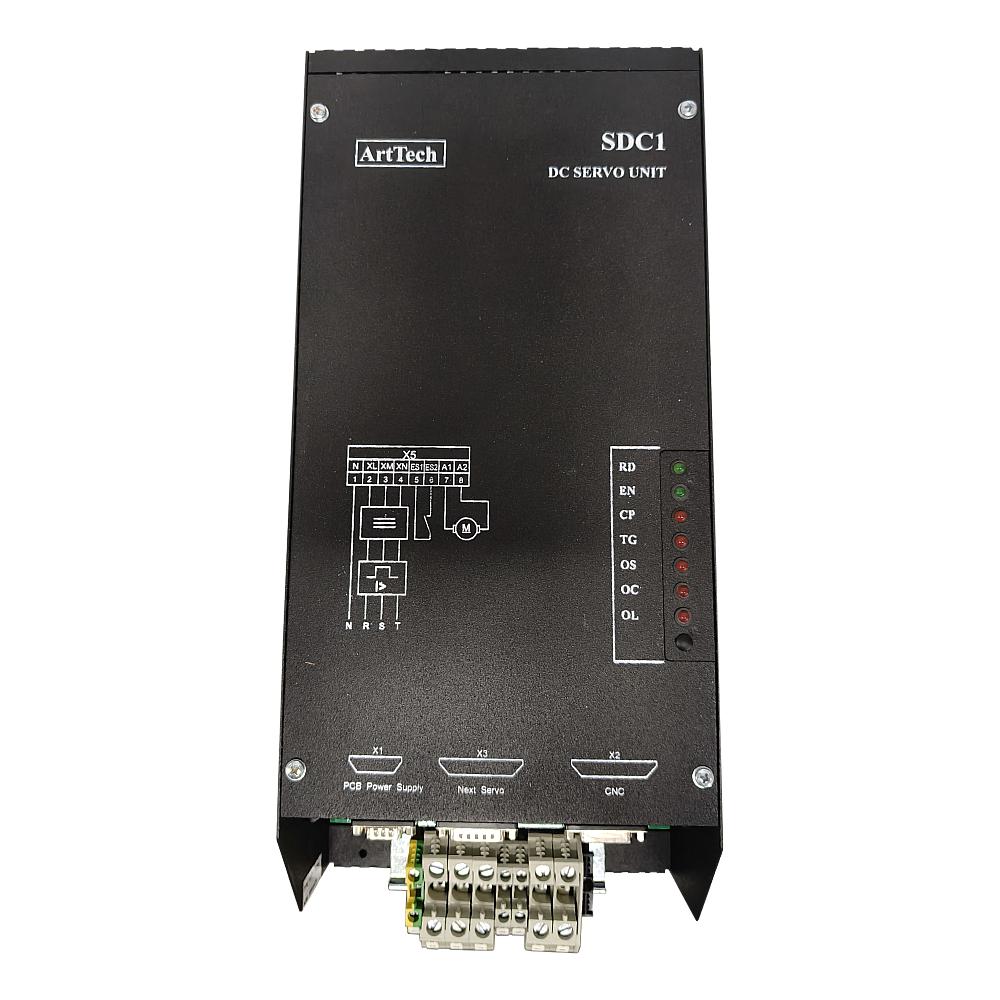

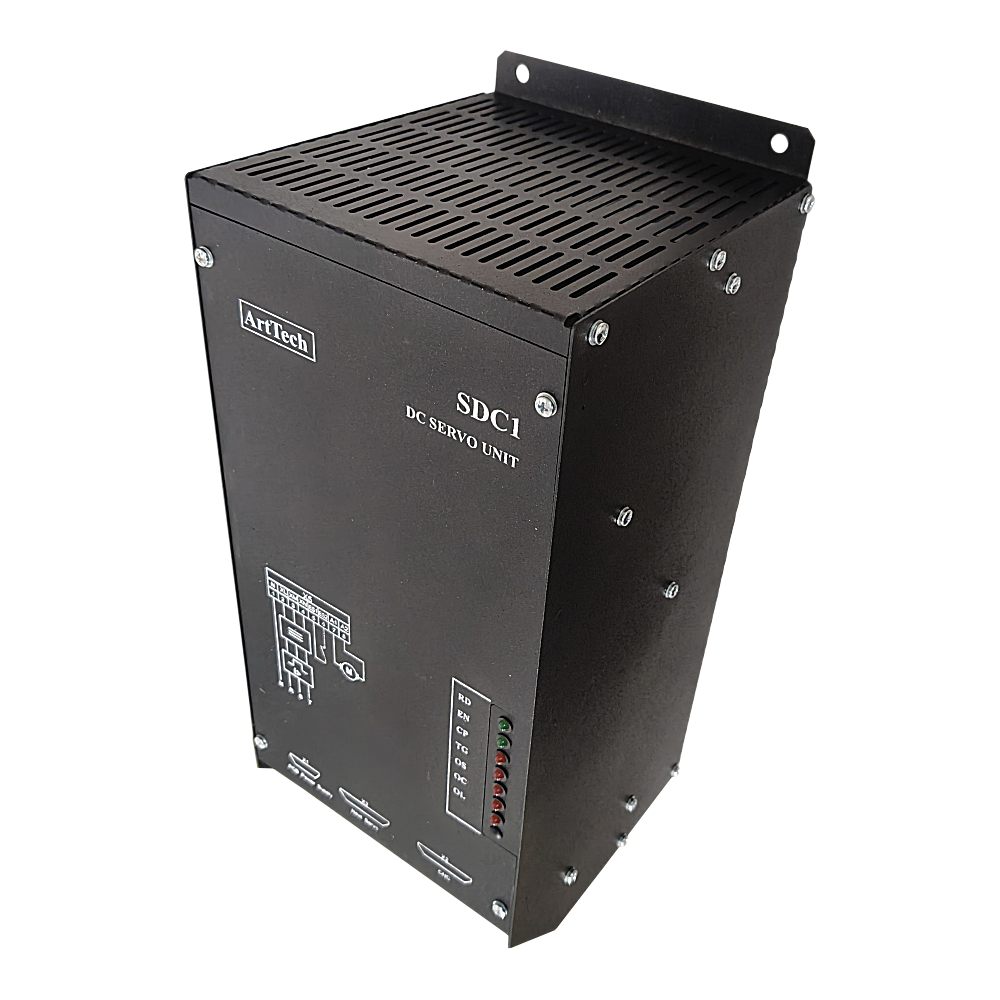

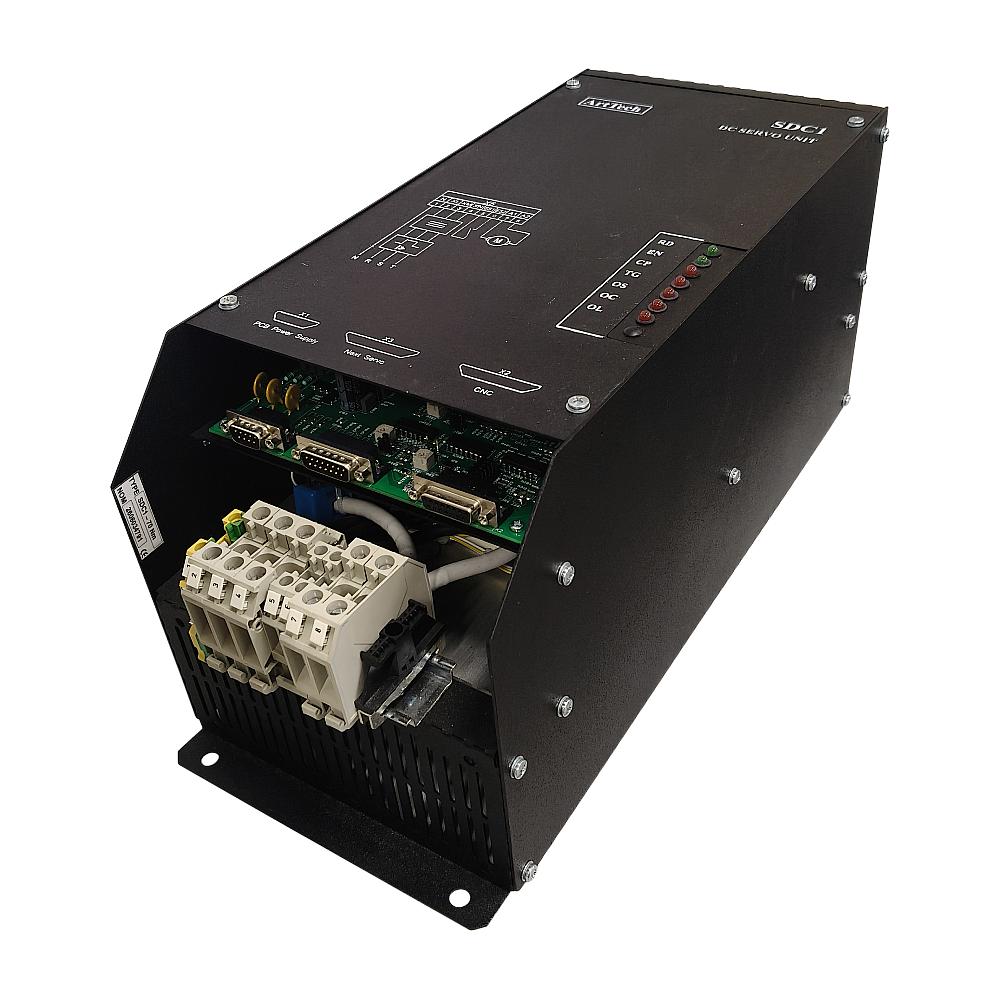

Thyristor converter SDC1-70
Specifications
Main characteristics
Input voltage type
AC
Input voltage, U
380 В
Quantity phases
3
Frequency, f
50 Hz
Power electric, Рₑₗ
10.0 kW
Torque nominal, Мₙₒₘ
70 Nm
Armature current, Iₐ
120 A
Armature voltage, Uₐ
0...±180V
Speed of revolution max., Nₘₐₓ
1000 rpm
Mode of operation
S1
Additional parameters
Control signal
аналоговий від 0 ÷ ±7V
Regulation range
1:10000
Ambient temperature, T
0...+50° C
Degree of protection
IP 00
Warranty
12 months

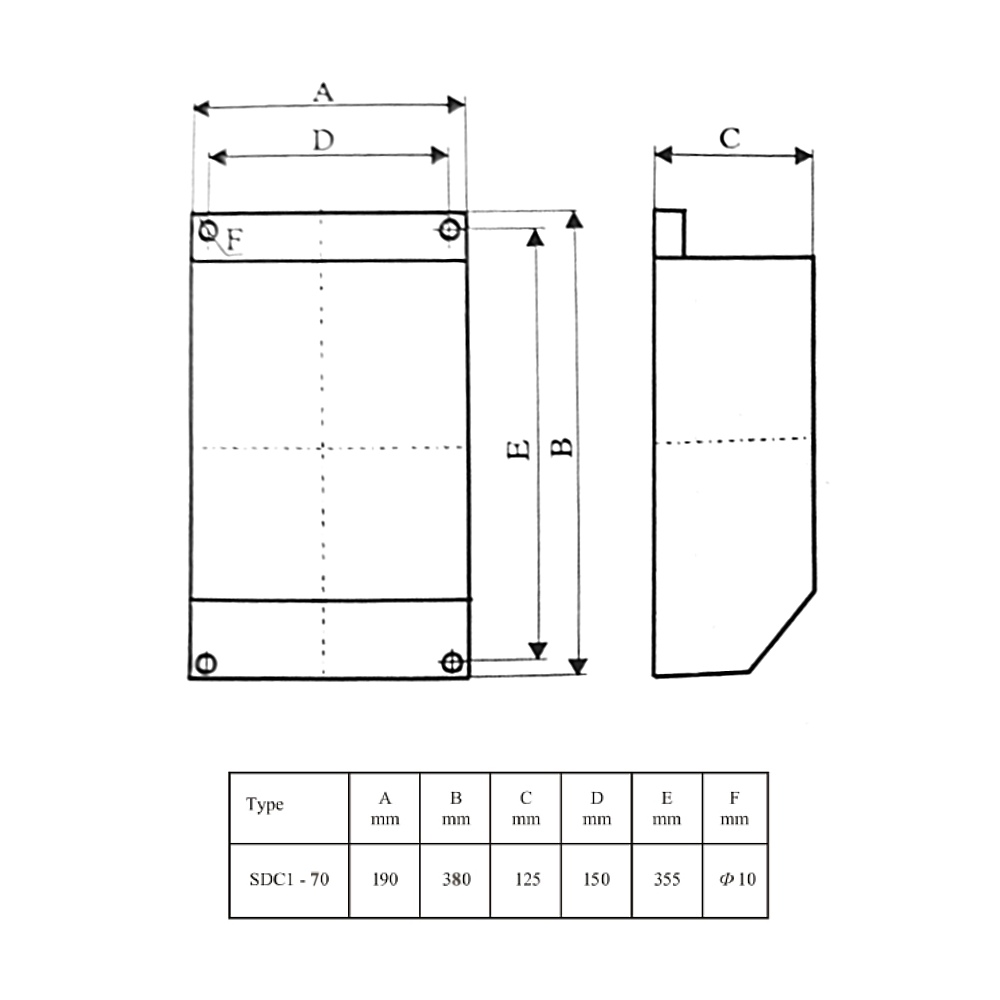

Overall dimensions of the packing case
400x220x150 mm
Mass, m
11,0 kg
Application area
electric motors 70МВО3, 2MK
Manufacturer country
Bulgaria
