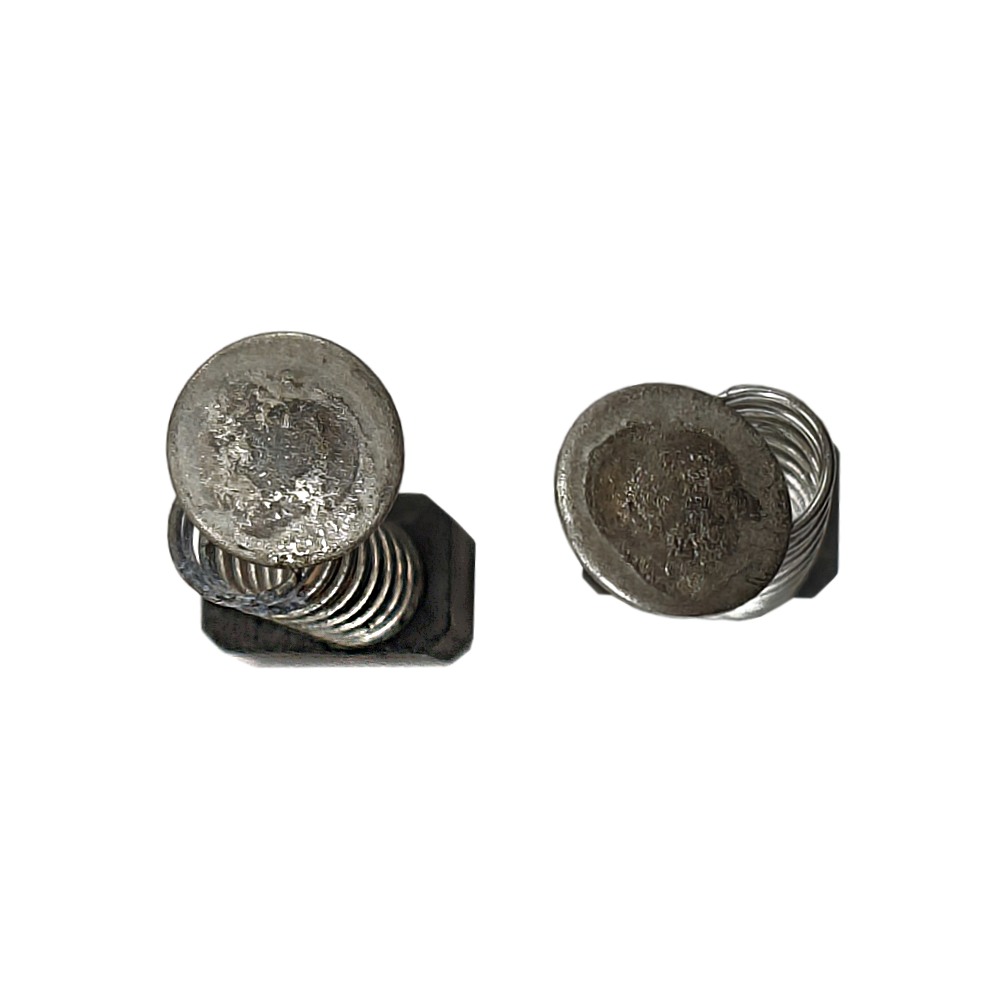

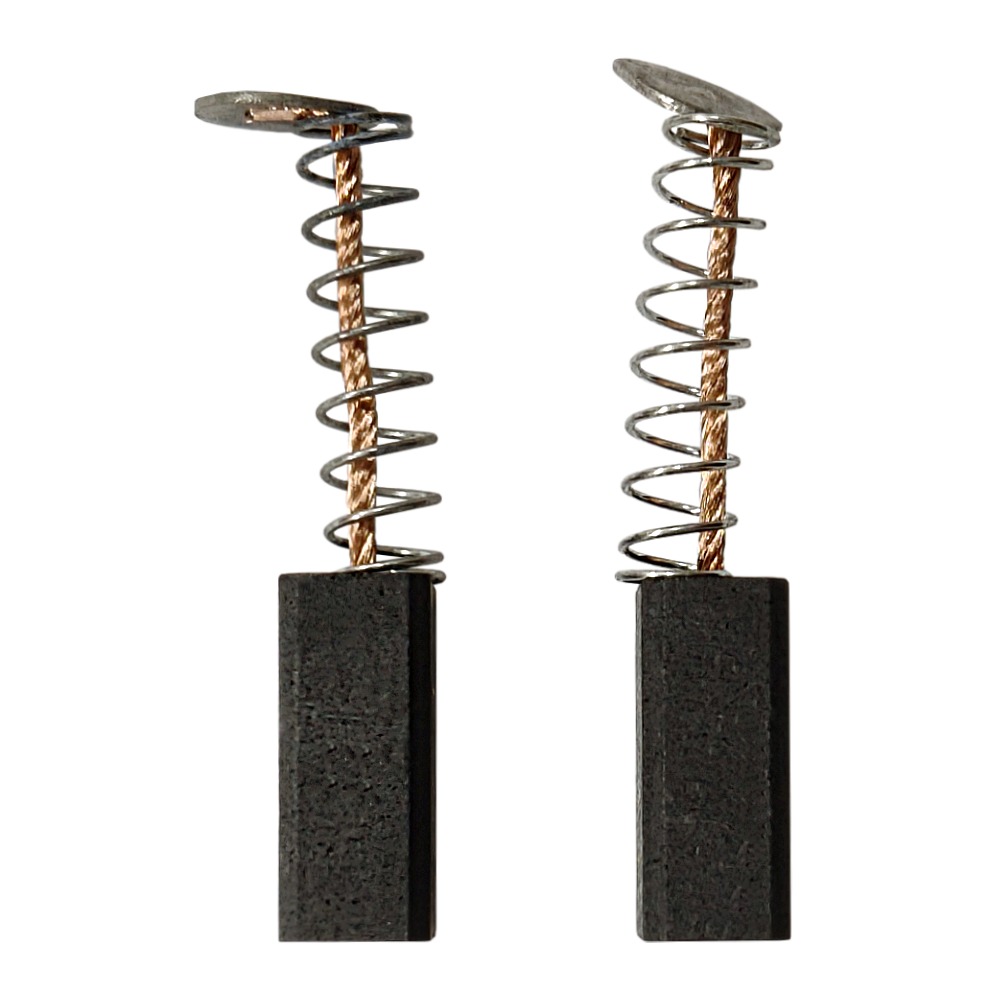

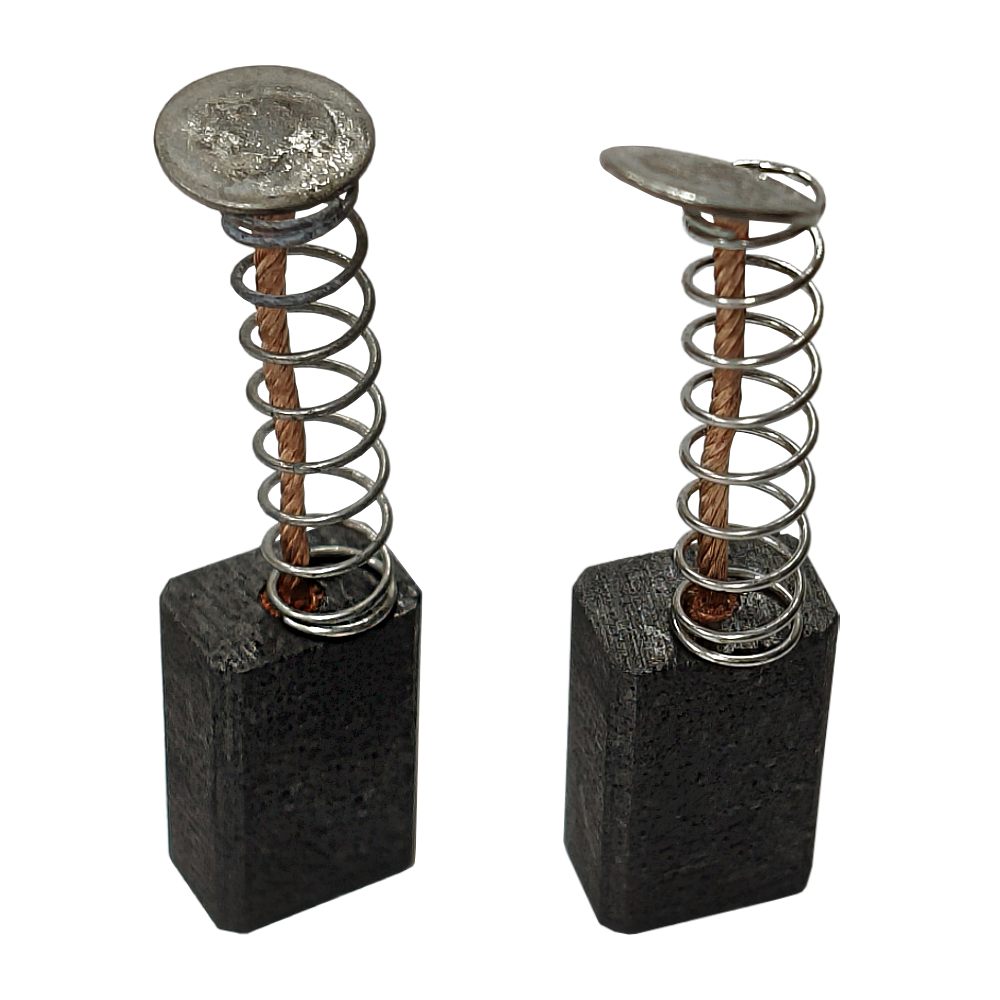

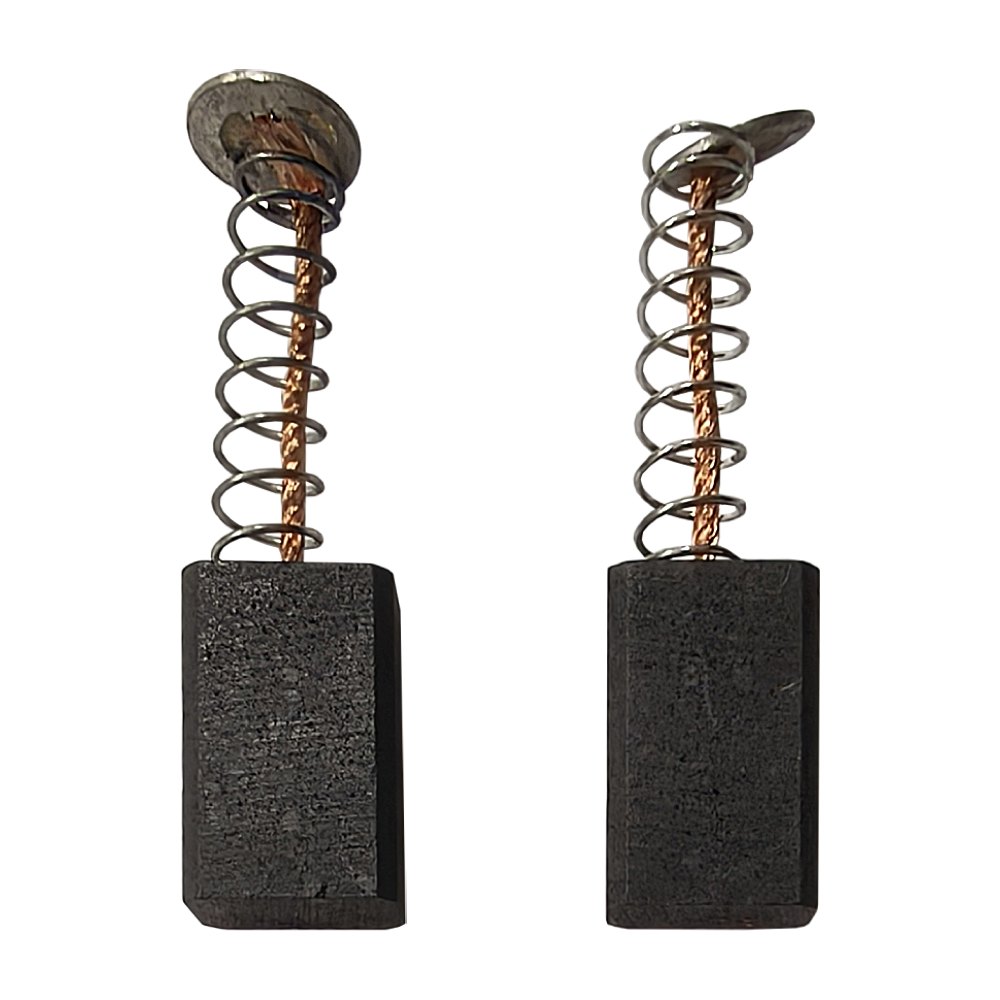

Graphite carbon brush types H12 6x9x14 K14-1 set for motor and tools

Reviews:

(0)

Name: Graphite carbon brush types H12 6x9x14 K14-1 set
Brand: ZTV
Product Code: H12_6x9x14_K14-1
Availability: Pre-order 39 calendar days

2.88€

Main specifications

All specifications

Material: H12

Analog material: G20

Сonstruction by ГОСТ Р 53617-2009: К14-1

Сonstruction by IEC 60276: CL46A

Conductor length by ГОСТ 12232-89, no less, L : 20 mm

Conductor insulation : No

Terminal type according to ГОСТ Р 53617-2009: No

IEC 60276 tip shape: Q

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Graphite carbon brush types H12 6x9x14 K14-1 set for motor and tools

Specifications

Main characteristics

Material

H12

Analog material

G20

Сonstruction by ГОСТ Р 53617-2009

К14-1

Сonstruction by IEC 60276

CL46A

Conductor length by ГОСТ 12232-89, no less, L

20 mm

Conductor insulation

No

Terminal type according to ГОСТ Р 53617-2009

No

IEC 60276 tip shape

Q

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

110 HRB 10/40

Specific electrical resistance, p

800 μΩ·m

Current density, j

0,08 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

2.5-3.5 V

Brush pressure, p

40 kPa

Circum velocity, Vₚₑᵣ

45 m/s

Friction factor, μ

0.15

Manufacturer country

Bulgaria
