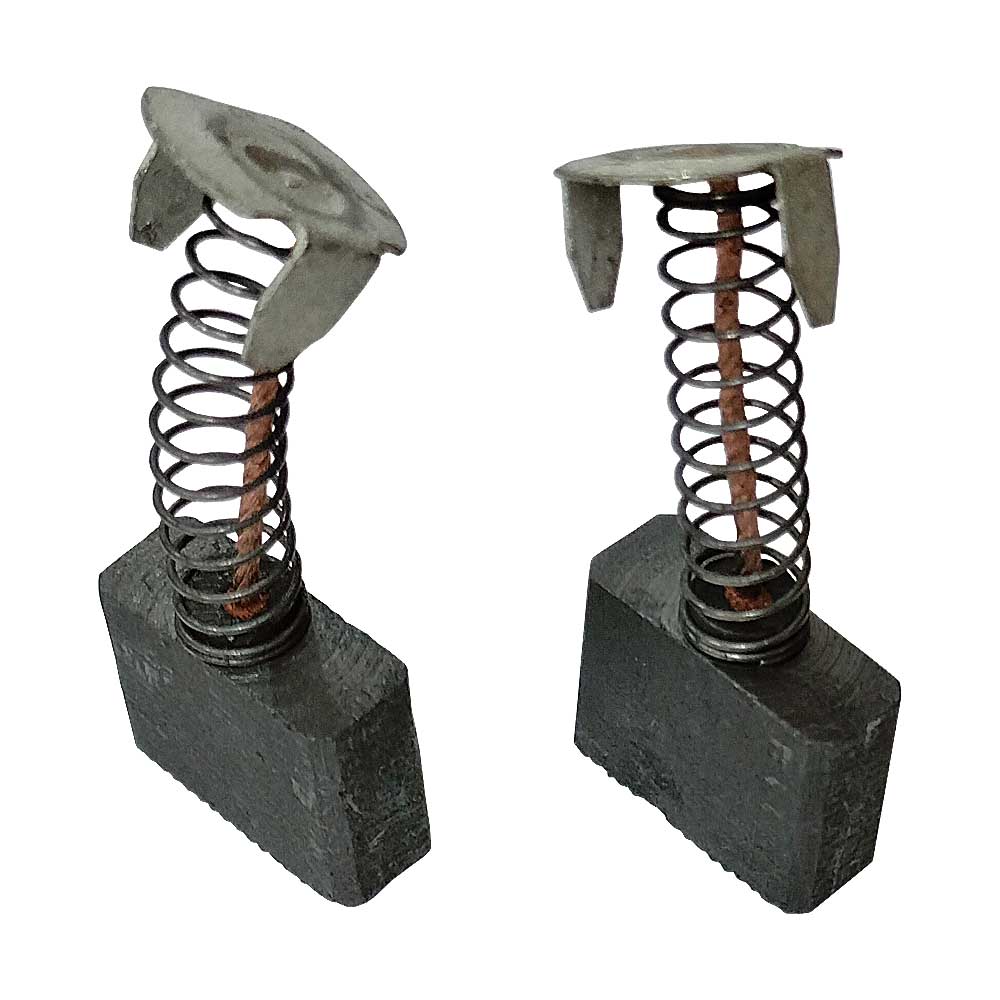

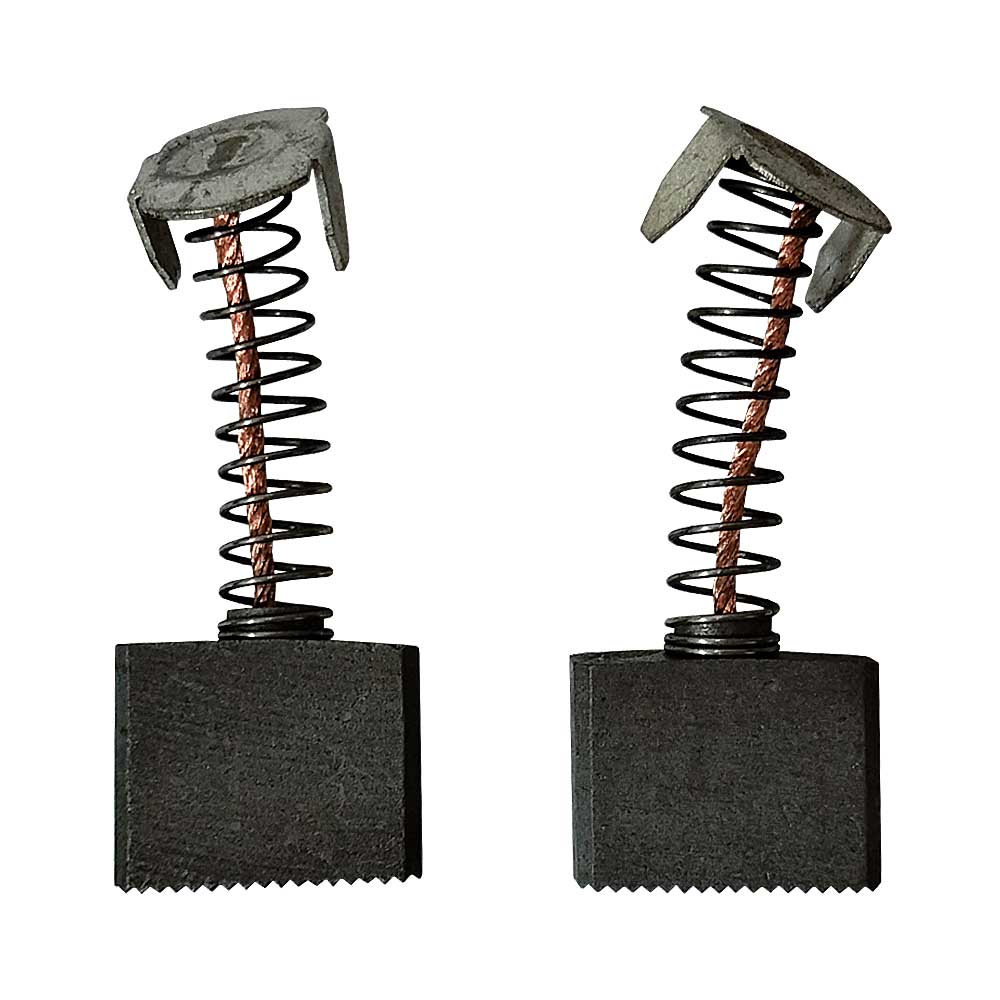

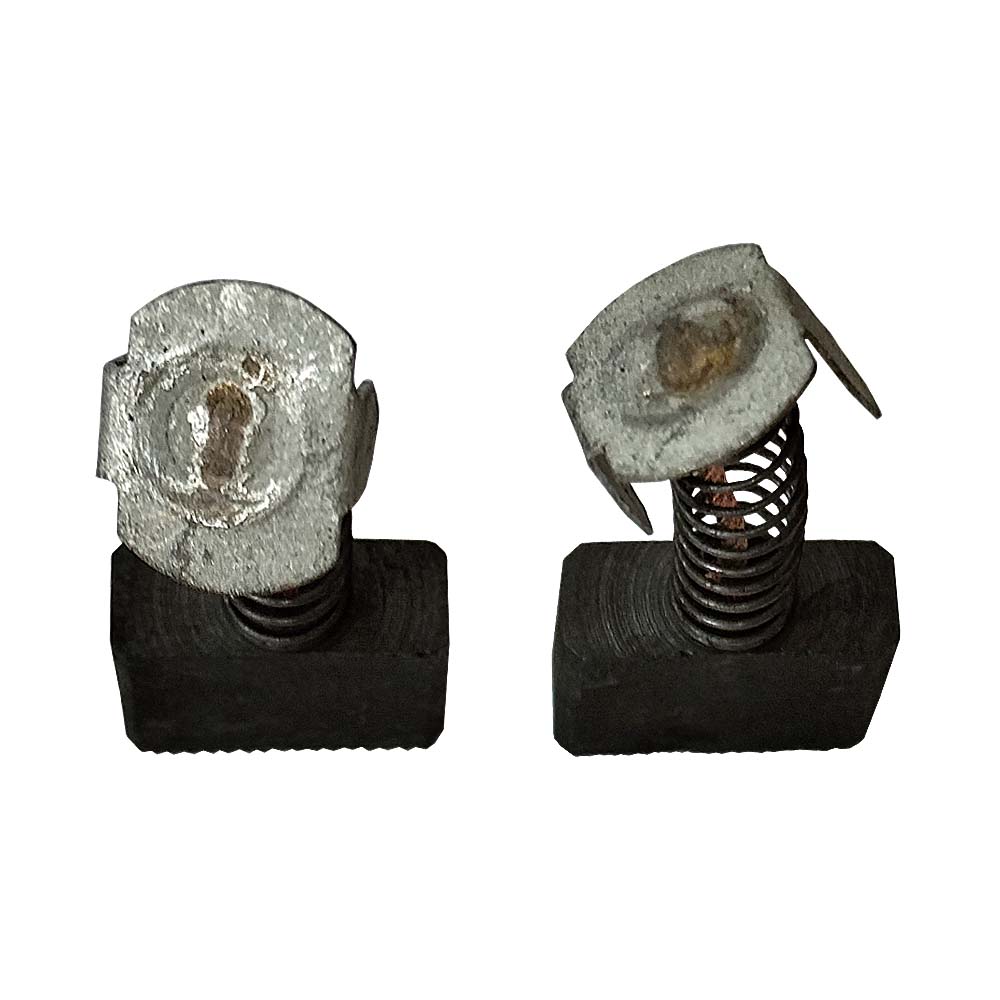

Graphite carbon brush types H12 7x16x18 K14-1 set for motor and tools

Reviews:

(0)

Name: Graphite carbon brush types H12 7x16x18 K14-1 set
Brand: ZTV
Product Code: H12_7x16x18_K14-1
Availability: In Stock

3.42€

Main specifications

All specifications

Material: H12

Analog material: G20

Сonstruction by ГОСТ Р 53617-2009: К14-1

Сonstruction by IEC 60276: CL46A

Conductor length by ГОСТ 12232-89, no less, L : 30 mm

Conductor insulation : missing

Terminal type according to ГОСТ Р 53617-2009: missing

IEC 60276 tip shape: P

Cover type according to ГОСТ Р 53617-2009: missing

Qty:

Terms of agreement

All goods are certified

We accept payment online

Graphite carbon brush types H12 7x16x18 K14-1 set for motor and tools

Specifications

Main characteristics

Material

H12

Analog material

G20

Сonstruction by ГОСТ Р 53617-2009

К14-1

Сonstruction by IEC 60276

CL46A

Conductor length by ГОСТ 12232-89, no less, L

30 mm

Conductor insulation

missing

Terminal type according to ГОСТ Р 53617-2009

missing

IEC 60276 tip shape

P

Cover type according to ГОСТ Р 53617-2009

missing

Additional parameters

Hardness, H

110 HRB 10/40

Specific electrical resistance, p

800 μΩ·m

Current density, j

0,08 A/mm²

Transitional voltage drop on a pair of brushes, ΔUᵦ

2.5-3.5 V

Brush pressure, p

40 kPa

Circum velocity, Vₚₑᵣ

45 m/s

Friction factor, μ

0.15

Application area

Makita 4112HS angle diamond saw; Makita angle grinder 9027; 9027S; 9029; 9029S; 9037; 9039; 9047; 9047S; 9049; 9049S; 9057; 9059; 9059S; 9067; 9067S; 9069; 9069S; 9077; 9077S; 9079; 9079S; GA7010C; GA7012C; GA7020; GA7020R; GA7020S; GA7030; GA7030R; GA7030S; GA7040R; GA7040S; GA7050R; GA9010C; GA9012C; GA9020C; GA9020R; GA9020S; GA9030; GA9030R; GA9030S; GA9040R; GA9040S; GA9050; GA9050R; Maktec MT903 angle grinder; HM1303 jackhammer; HM1303B; HM1304; HM1304B; HM1500; HM1500B; HM1800; HM1801; HM1810; SA7000; SA7000C polishing machine

Manufacturer country

Bulgaria
