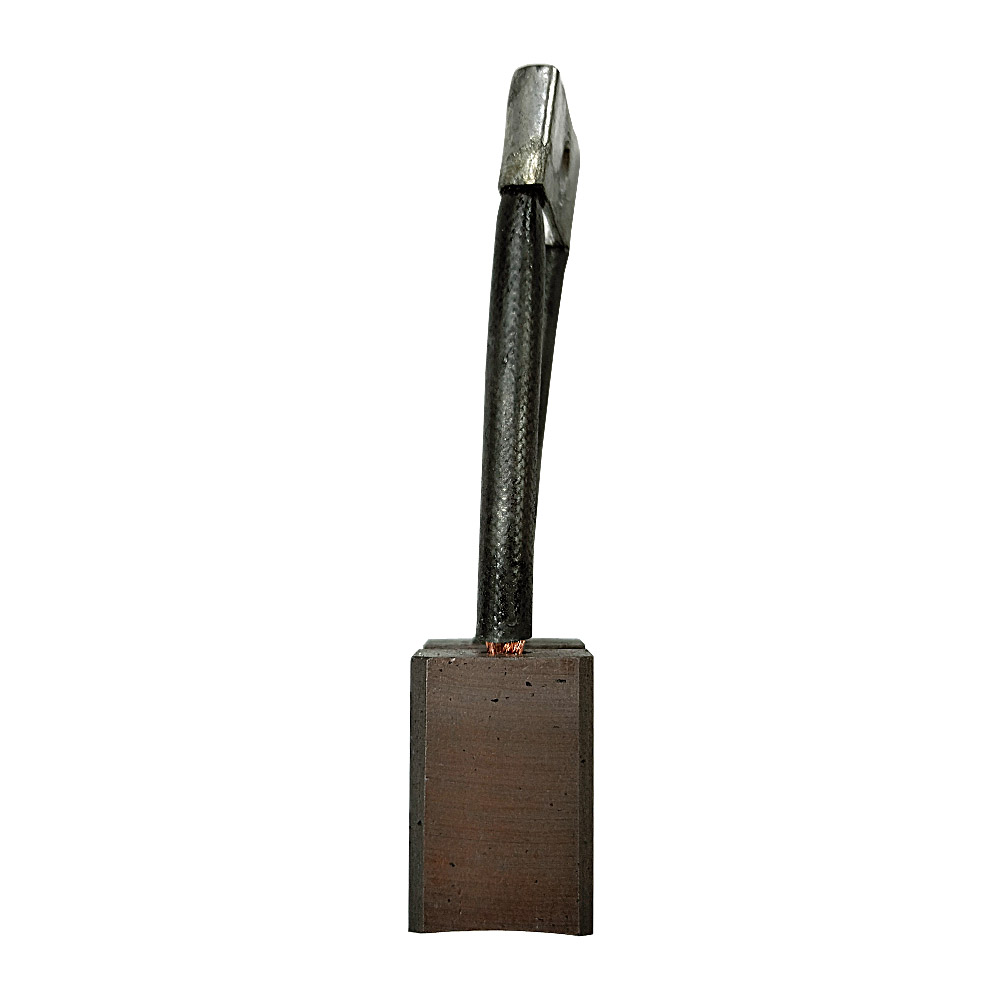

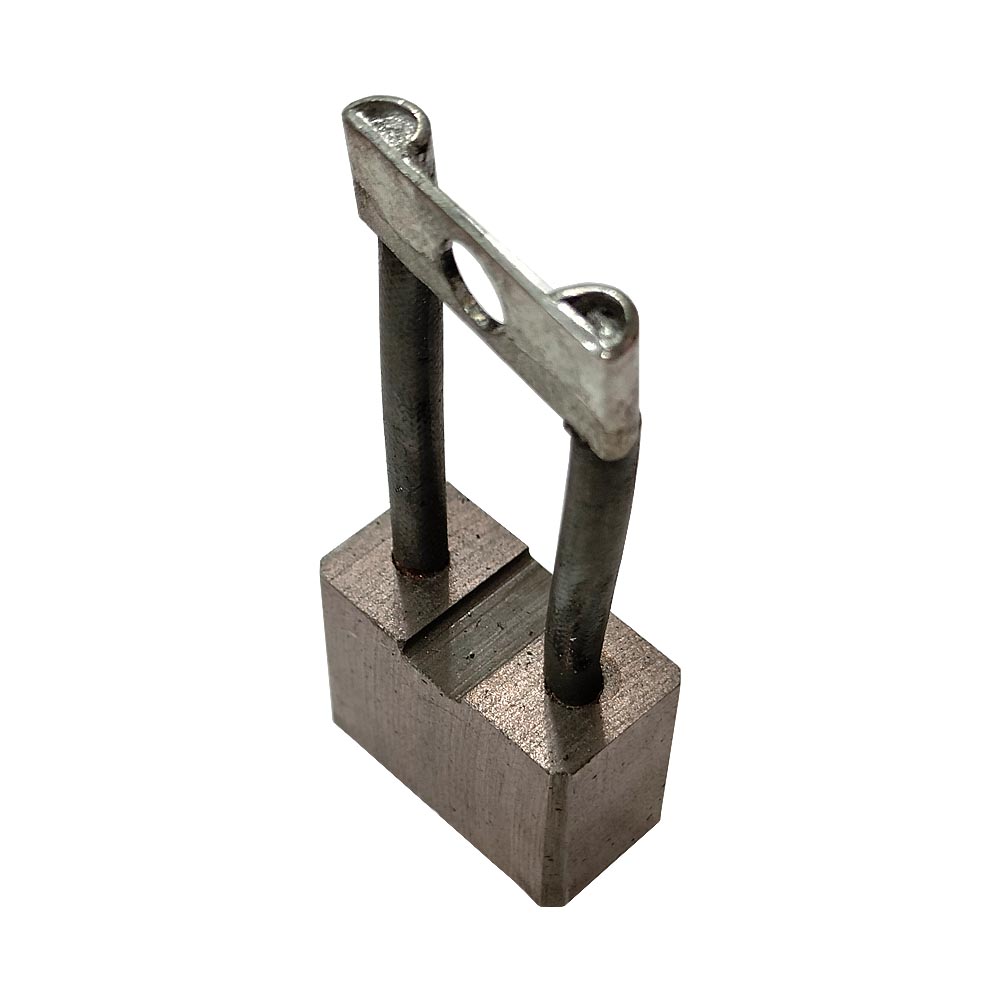

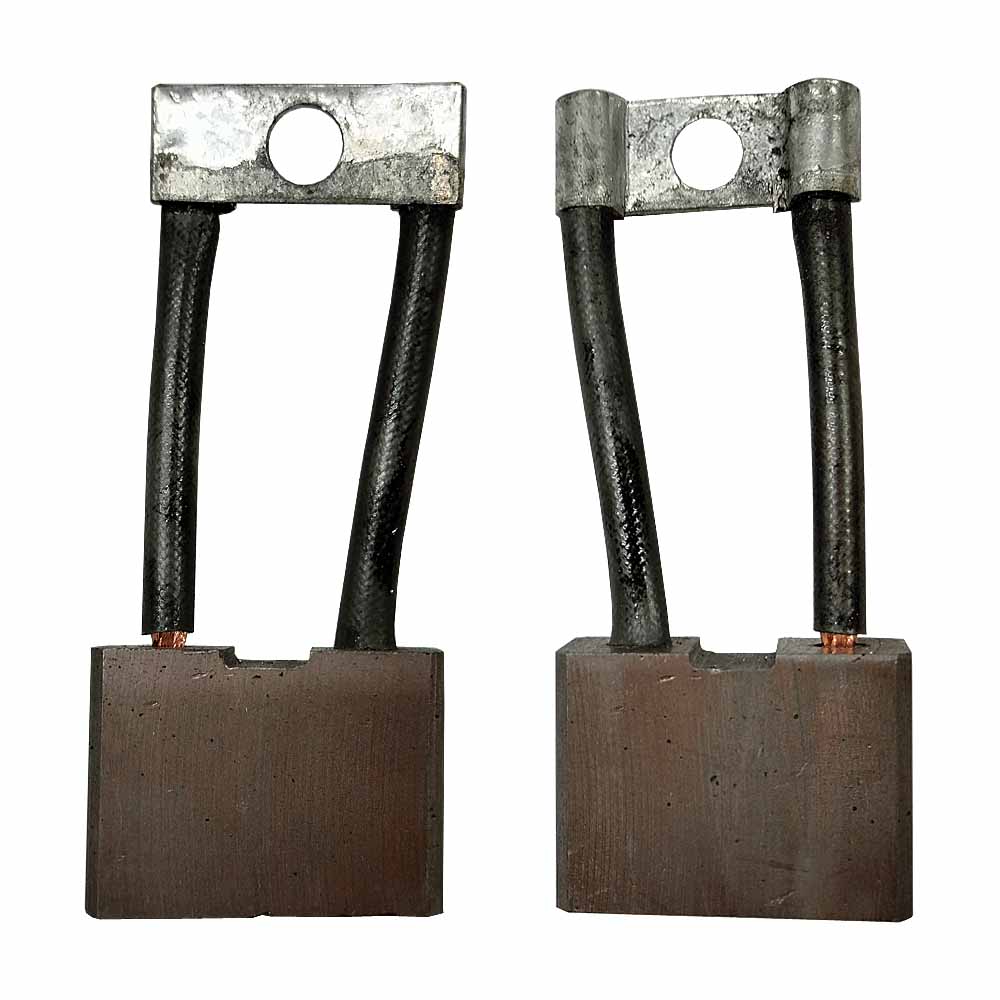

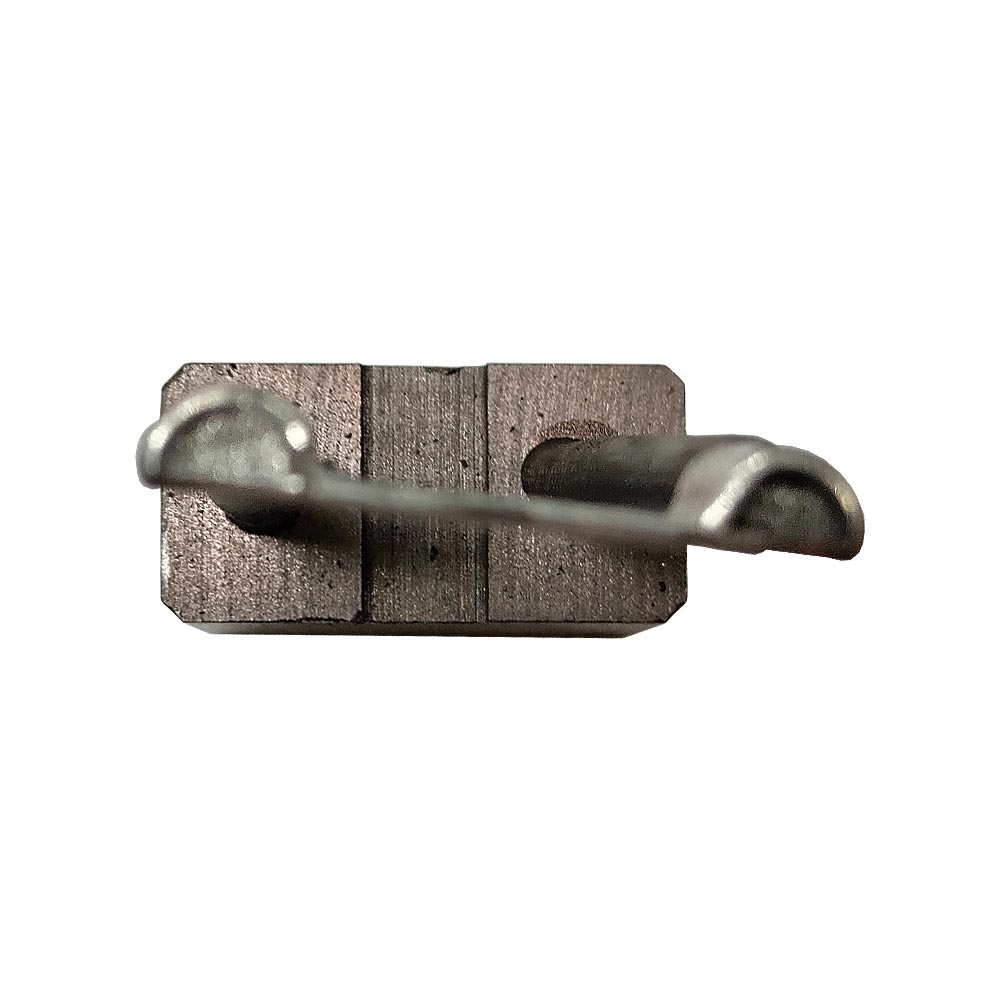

- Name: Copper graphite brush M30 15x30x22 K8-3
- Brand: ZTV
- Product Code: M30_15x30x22_K8-3
- Availability: Pre-order 39 calendar days
3.85€
Main specifications
All specifications
Material:
М30
Analog material:
CG657
Сonstruction by ГОСТ Р 53617-2009:
К8-3
Сonstruction by IEC 60276:
CL17С
Conductor length by ГОСТ 12232-89, no less, L :
43 mm
Conductor cross-section, S :
4 mm²
Conductor insulation :
present
Terminal type according to ГОСТ Р 53617-2009:
DG
IEC 60276 tip shape:
O
Cover type according to ГОСТ Р 53617-2009:
missing
Analog:
CG657
Terms of agreement
All goods are certified
Privacy Policy
We accept payment online
Copper graphite brush M30 15x30x22 K8-3
Specifications
Main characteristics
Material
М30
Analog material
CG657
Сonstruction by ГОСТ Р 53617-2009
К8-3
Сonstruction by IEC 60276
CL17С
Conductor length by ГОСТ 12232-89, no less, L
43 mm
Conductor cross-section, S
4 mm²
Conductor insulation
present
Terminal type according to ГОСТ Р 53617-2009
DG
IEC 60276 tip shape
O
Cover type according to ГОСТ Р 53617-2009
missing
Analog
CG657
Additional parameters
Hardness, H
10-30 HR
Specific electrical resistance, p
1.0-3.0 μΩ·m
Current density, j
0,12-0,25 A/mm²
Transitional voltage drop on a pair of brushes, ΔUᵦ
1.0-1.8 V
Brush pressure, p
200 kPa
Circum velocity, Vₚₑᵣ
20-25 m/s
Friction factor, μ
0.20
Manufacturer country
Bulgaria
